Description
Capture professional HD video for your conferencing, education, or house of worship using the AV-1563A All-in-One PTZ Camera with Auto-Tracking, PoE & 30x Optical Zoom from AViPAS. This remotely controllable PTZ camera enables you to capture up to 1080p60 video via 3G-SDI and HDMI outputs and up to 1080p30 over USB or dual IP streams via an RJ45 interface. It features flexible, AI-assisted, auto tracking, 30x optical zoom, a 2.34 to 65° angle of view, a 170° panning range, auto or manual focus, wide dynamic range, and serial control support.
| Image Sensor | 1/2.8"-Type |
| Effective Sensor Resolution | 2.07 Megapixel (1920 x 1080) |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 15x |
| Max Video Output | via HDMI / SDI/BNC Up to 1080p at 25/29.97/30.00/50/59.94/60.00 fps via USB Up to 1080p up to 30.00 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control IP/IR/ONVIF/Pelco-D/Pelco-P/UVC/VISCA Video Streaming RTMP/RTMPS/RTP/RTSP/SRT |
| Wireless | IR |
| PoE Support | Yes: PoE+ 802.3at |
| Mounting | 1x 1/4"-20 Female for Bracket |
| Image Sensor | 1/2.8"-Type CMOS |
| Effective Sensor Resolution | 2.07 Megapixel (1920 x 1080) |
| Focus Control | Autofocus Manual Focus |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at f/1.8 Aperture |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Color Temperature, Manual, One Push |
| Focal Length | 5.2 to 148.4mm |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 15x |
| Field of View | 58.1 to 2.1° |
| Maximum Aperture | f/1.8 to 11 |
| Video Output | via HDMI / SDI/BNC 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/60.00 fps via USB 1920 x 1080p up to 30.00 fps 1280 x 720 up to 30.00 fps 800 x 600 up to 30.00 fps 1024 x 576 up to 30.00 fps 960 x 540 up to 30.00 fps 640 x 360 at 30.00 fps 480 x 270p up to 30.00 fps 320 x 180p up to 30.00 fps |
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control IP/IR/ONVIF/Pelco-D/Pelco-P/UVC/VISCA Video Streaming RTMP/RTMPS/RTP/RTSP/SRT |
| Presets | 10 via IR 255 via IP, RS-232, RS-485 |
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 1 to 100°/s Tilt: 120° (-30 to 90°) at 1 to 45°/s |
| Wireless | IR |

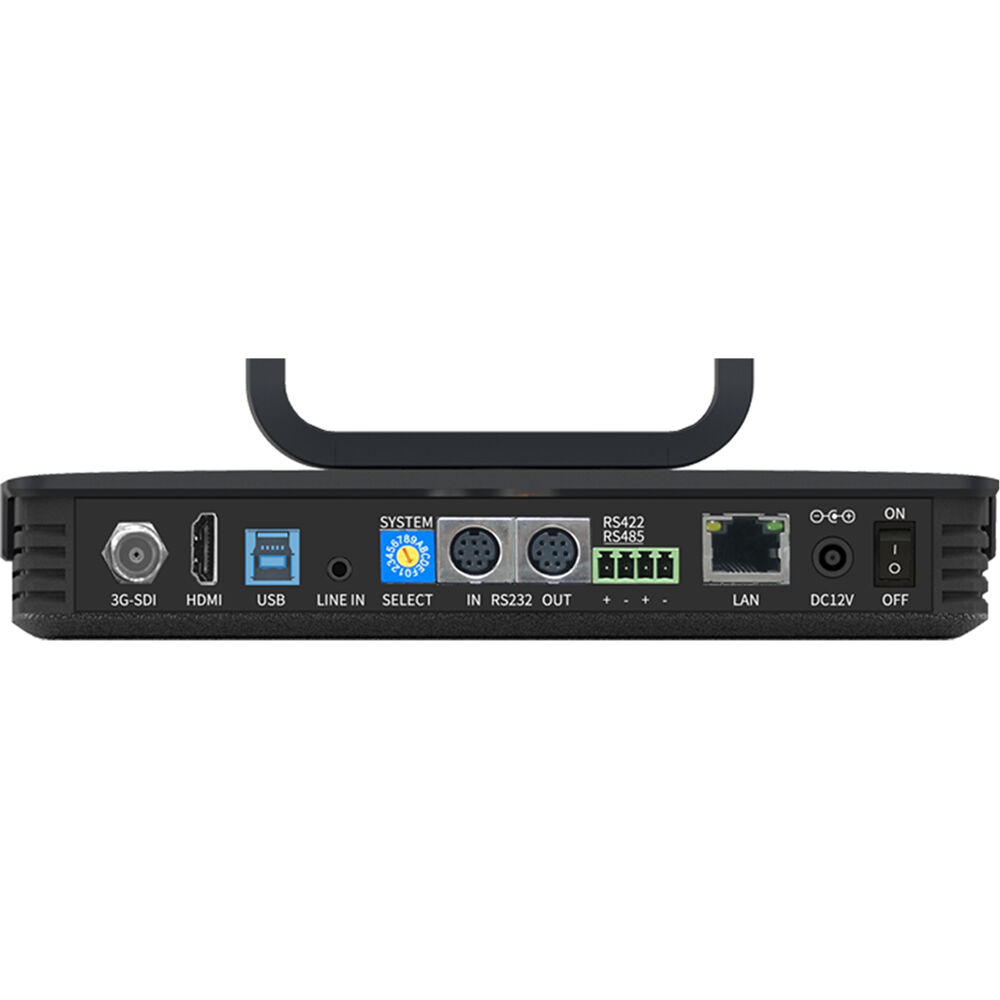

| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 LAN Output |
| Audio I/O | 1x 1/8" / 3.5 mm TS Mono Line Input |
| Other I/O | 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 4-Pin (RS-422, RS-485) 1x RJ45 (LAN) Control (Shared with Video Output) 1x USB-B (USB 3.2 / 3.1 Gen 1) Control (Shared with Video Output) |
| Built-In Microphone | Yes |
| PoE Support | Yes: PoE+ 802.3at |
| Power I/O | 1x Barrel (12VDC at 1.1 A) Input |
| Power Consumption | Device: 14 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 122°F / -10 to 50°C at 20 to 95% Humidity |
| Mounting | 1x 1/4"-20 Female for Bracket |
| Dimensions (W x H x D) | 7.1 x 5.9 x 4.5" / 181 x 149 x 115 mm |
| Weight | 3 lb / 1.15 kg (Body Only) |
| Package Weight | 4.925 lb |
| Box Dimensions (LxWxH) | 10.4 x 9.8 x 9.1" |
