Description
Sony ILME-FR7 Overview
- 1Description
- 2FR7: Cinematic PTZ
- 3Expressive 4K Imaging
- 4Remote and Robotics Functions
- 5Cinematic Multicamera Use
- 6Up to 100 Presets
- 7Interfaces
By Photo's
Mary Latvis

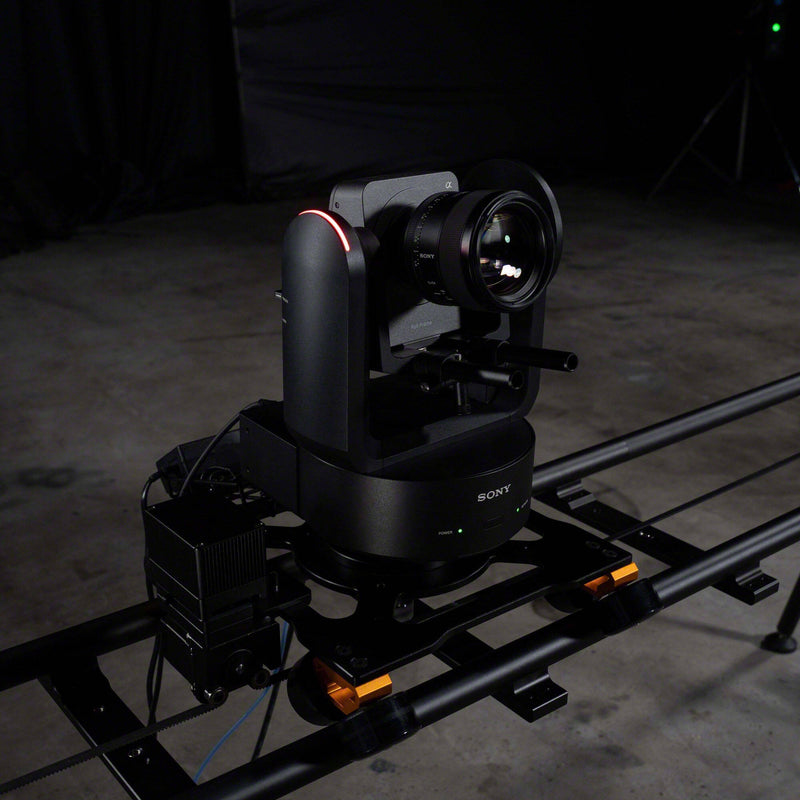

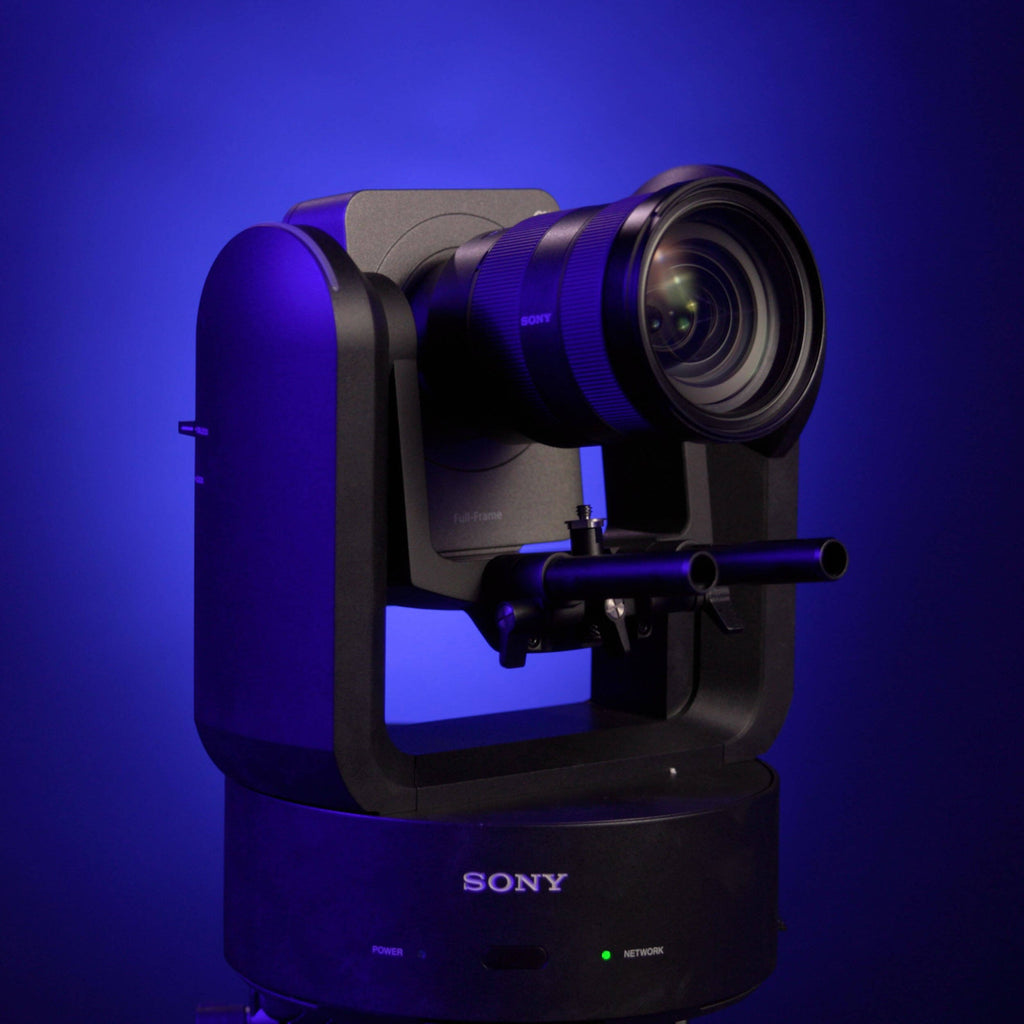

FR7: Cinematic PTZ
Capture cinematic, full-frame footage in PTZ form for broadcast use, reality shows, houses of worship, and live events and sports with the black FR7 Cinema Line PTZ Camera from Sony. This versatile camera features the unique ability to use interchangeable Sony E-mount lenses and is currently compatible with up to 70 E-mount lenses ranging from 12 to 1200mm. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects.
Expressive 4K Imaging
Full-Frame Sensor
- The FR7 combines a 4K full-frame sensor and compatibility with Sony E-mount lenses to produce outstandingly expressive, cinematic imagery
- 15+ stops of dynamic range and a base ISO of 800 that is expandable from 12,800 to 409,600 for capturing optimal video in an array of lighting conditions
Sony E-Mount
- Compatibility with up to 70 Sony E-mount lenses covers a range of 12 to 1200
- Enables you to capture the widest vistas and the closest details
- Use with G Master (GM) lenses to obtain impressive resolution and pleasing bokeh
Imaging Functions
Capture rich detail and wide color using Sony S-Log3 and create nuanced contrast with Hybrid Log Gamma (HLG)
Built-In ND Filters
- An integrated, electronic ND filter offers variable ND filtration ranging from 1/4 (2 stops) to 1/128 (7 stops)
- Use the ND filter to compensate for changes in exposure without affecting your depth of field
- Create shallow depth-of-field effects by adding the ND and opening the iris
SDI Raw Output
The FR7 can output raw video via the SDI (BNC) output to an external recording for color grading and other post-production tweaking
UHD 4K 120p Recording
Record UHD 4K video at rates up to 120 fps for slow-motion effects
Remote and Robotics Functions
IP Control
Use the IP remote function to control your camera from a distance like a broadcast truck and/or to control multiple cameras
Smooth Movement
Slow, smooth pan and tilt movements enable you to unobtrusively zoom in on the action and reframe accordingly
Video Output and Streaming
- Output video using the HDMI and up to 12G-SDI video outputs
- Stream RTSP, SRT, or NDI|HX (requires NewTek license) using the LAN port
Control Options
- The included IR remote can be used for pan, tilt, zoom (PTZ), focus, recording, playback, and other camera settings
- Use with the separately available RM-IP500 control panel with joystick zoom rocker, and buttons
- Web app remote control can be accessed from a tablet or PC browser
Mounting
- Mount on a tripod or riser using the two 1/4"-20 threads

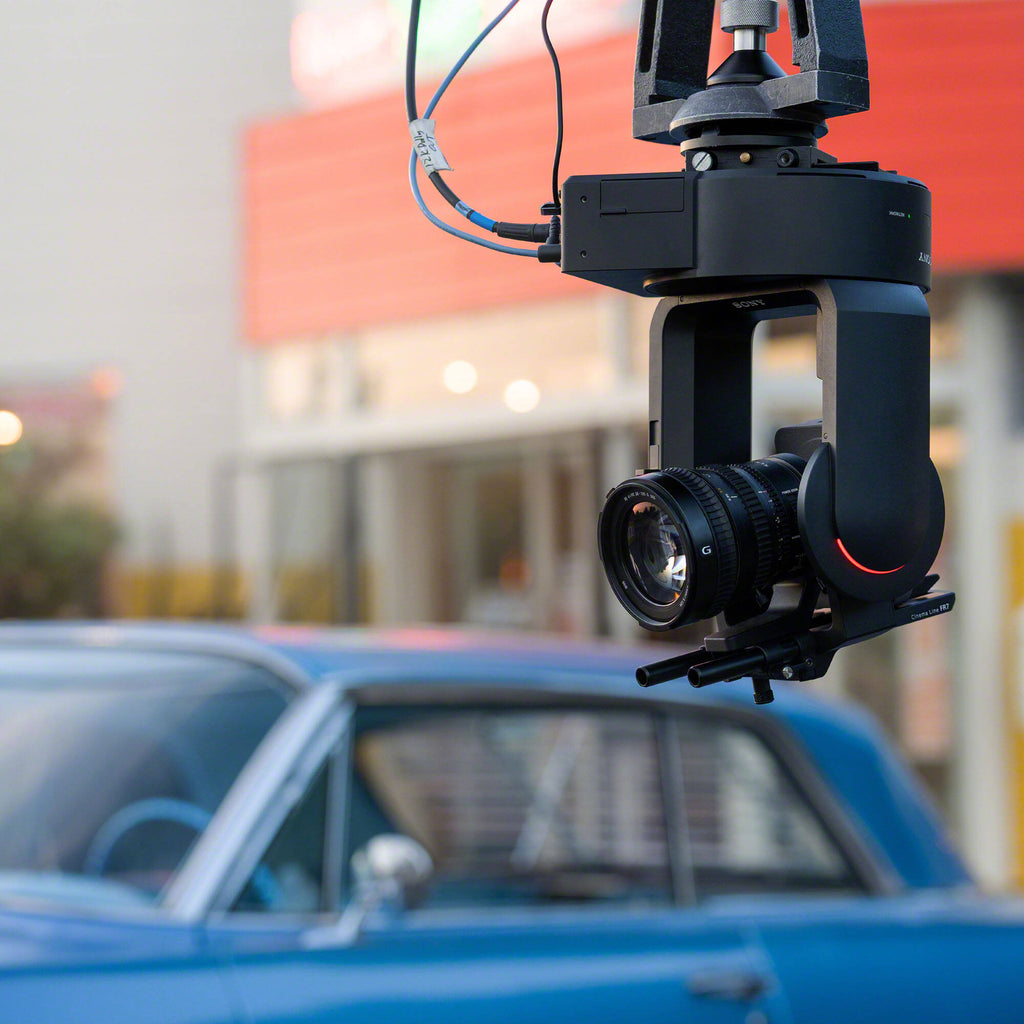

- Use the optional mount to attach the FR7 camera to a ceiling
- Attach camera accessories using the 15mm rod mounts
Cinematic Multicamera Use
Cine-Style Capture
- Bring a cinematic look to your PTZ capture and match footage from other Sony cameras with the S-Cinetone picture profile
- The Cine EI mode with MLUT management can be used with S-Log3 or raw recording
- XAVC recording with metadata capture supports up to 10-bit, 4:2:2 color and HDR recording
Hybrid Autofocus
Fast hybrid autofocus with face detection and touch tracking enable you to keep even dynamic action in focus
Up to 100 Presets
Quick control with up to 100 preset positions

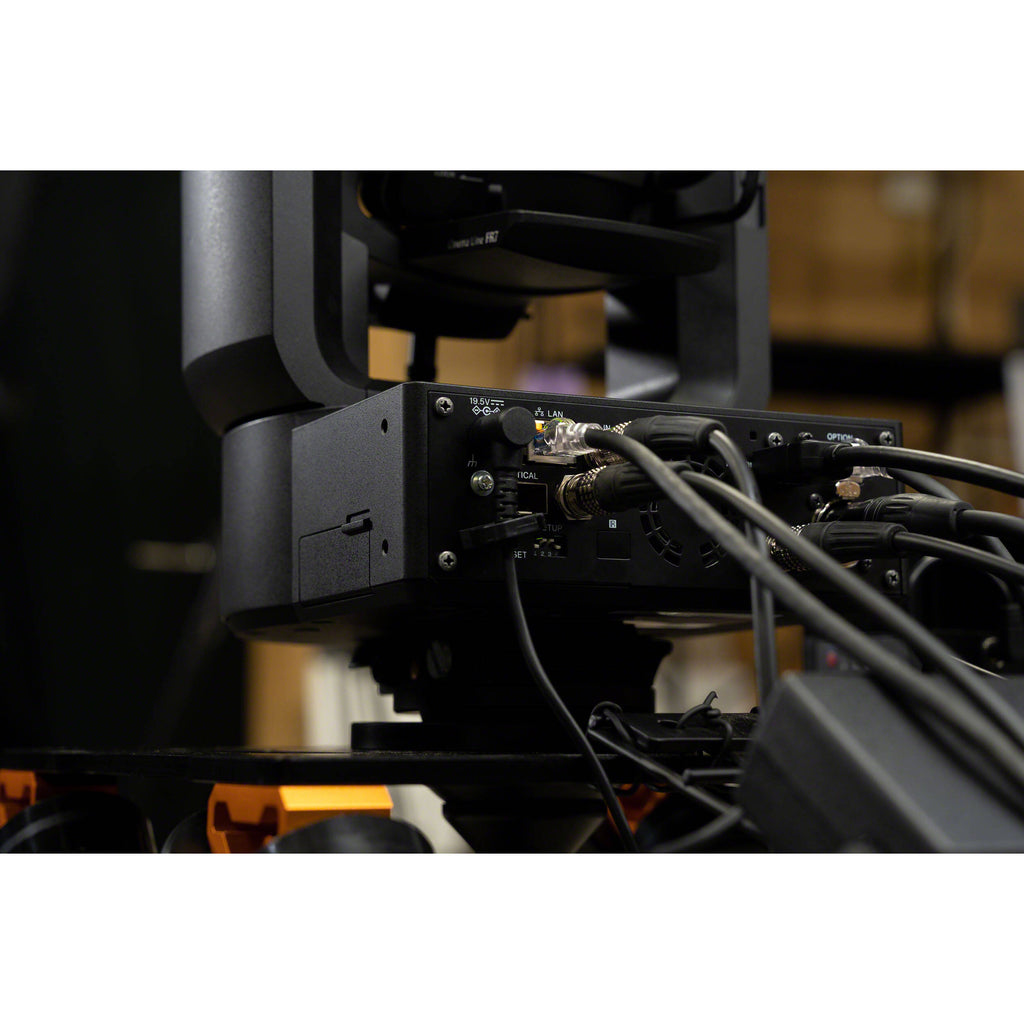

Interfaces
- A robust interface includes a LAN port for network and PoE++ use, timecode input, a genlock connector, and red/green tally indicators
- Dual media slots are compatible with both CFexpress Type A and SDXC memory cards
In the Box
- Sony FR7 Cinema Line PTZ Camera
- RMT-RC1 Remote Commander
- Lens Mount Cap for Body
- AC Adapter
- Power Cord
- HDMI Cable Clamp
Table of Contents
- Description
- FR7: Cinematic PTZ
- Expressive 4K Imaging
- Remote and Robotics Functions
- Cinematic Multicamera Use
- Up to 100 Presets
- Interfaces
Sony ILME-FR7 Specs
Imaging
| Lens Mount | Sony E |
| Sensor Type | CMOS Sensor |
| Sensor Resolution | Actual: 12.9 Megapixel Effective: 10.3 Megapixel |
| Lens Communication | Yes, with Autofocus Support |
| Built-In ND Filter | 2 to 7 Stop Electronic ND Filter |
| Focus Control | Autofocus |
| Autofocus Points | Phase Detection: 627 |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1 Second |
| ISO Sensitivity | 800 to 12,800 (Extended: 409,600) |
| Gain | -3 to 30 dB |
| Advertised Dynamic Range | 15 Stops |
| Flip / Mirror Support | Image Flip |
| White Balance | 2000 to 15,000K Presets: ATW, Set A |
Video Capture
| External Recording Modes | Raw 16-Bit via SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps HDMI 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 720 x 480 at 59.94 fps 720 x 576 at 50 fps |
| Internal Recording Modes | XAVC-I 4:2:2 10-Bit DCI 4K (4096 x 2160) at 24.00/25/29.97/50/59.94 fps [240 to 600 Mb/s VBR] UHD 4K (3840 x 2160) at 25/29.97/50/59.94 fps [240 to 600 Mb/s VBR] 1920 x 1080 at 25/29.97/50/59.94 fps [89 to 222 Mb/s] XAVC-L UHD 4K (3840 x 2160) at 25/29.97/50/59.94 fps [100 to 150 Mb/s VBR] 1920 x 1080 at 25/29.97/50/59.94 fps [35 to 50 Mb/s VBR] |
| Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
| Gamma Curve | HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard |
| IP Streaming | NDI|HX, RTSP, SRT 640 x 360 to 4096 x 2160 (0.5 to 80.00 Mb/s) |
Control
| Presets | 3 via IR 100 via IP |
| Move Speed | Pan: 0.02 to 60°/sec Tilt: 0.02 to 60°/sec |
| Movement Range |
Pan: 340° (-170 to 170°) Tilt: 225° (-30 to 195°) |
| Tally Light | Yes |
| Supported Control Protocols | IR VISCA |

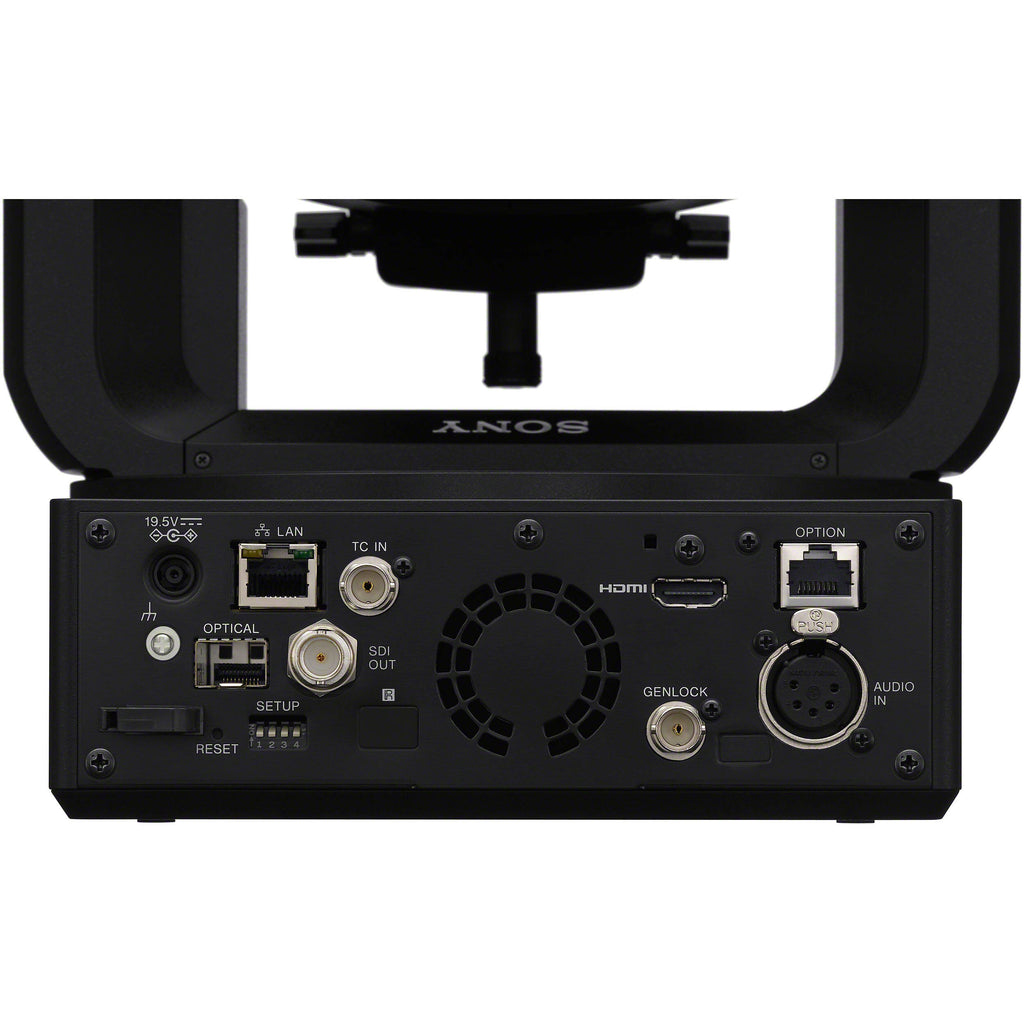

Interface
| Media/Memory Card Slot | Dual Slot: CFexpress Type A / SD |
| Video I/O | 1 x BNC (12G-SDI) Output 1 x SFP+ Output 1 x HDMI Output |
| Audio I/O | 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input |
| Other I/O | 1 x BNC (Timecode) 1 x RJ45 (LAN) Control 1 x BNC (Genlock) 1 x RJ45 (Tally) |
Power
| PoE Support | PoE++ 802.3bt |
| Power I/O | 1 x Barrel (19.5VDC) Input |
| Power Consumption | PoE: 71.3 W Power Supply: 80 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Mounting | 2 x 1/4"-20 Female for Tripod |
| Netflix Approved | Yes |
| Sound Level | NC35 |
| Dimensions (W x H x D) | 11.4 x 9.2 x 8.9" / 289 x 233 x 227 mm (Without Protrusions) |
| Weight | 10.1 lb / 4.6 kg (Body Only) |
Packaging Info
| Package Weight | 15.305 lb |
| Box Dimensions (LxWxH) | 16.4 x 16.2 x 13.2" |
