Description
PTZOptics Link 4K PTZ Camera Overview
- 1Description
- 2Dante AV-H Support
- 3Connectivity Features
- 4PTZ and Tracking Movement
- 5Control Options
- 6Multiple Mounting Options
- 7Software Compatibility
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the white Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Link 4K camera features the same 4K capture resolutions up to UHD 4K60 via IP and HDMI, up to 1080p60 over 3G-SDI, and it adds support for Dante AV-H audio and video routing.
The Link 4K features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and handy Dante AV-H workflow capabilities provide a sharp, consistent image, even in low light.
The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using Dante AV-H, SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
In addition to the Link 4K's auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.
In the Box
- PTZOptics Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White)
- 12 VDC Power Adapter
- IR Remote Control
- USB-A to USB-A Cable
- RS-232 Cable
- 2 x AA Battery
- Limited 5-Year Manufacturer Warranty
- Description
- Dante AV-H Support
- Connectivity Features
- PTZ and Tracking Movement
- Control Options
- Multiple Mounting Options
- Software Compatibility
PTZOptics Link 4K PTZ Camera Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel (3840 x 2160)
|
| Shutter Type |
Electronic Global Shutter
|
| Shutter Speed |
1/10000 to 1/30 Second
|
| Optical Zoom Ratio |
20x
|
| Max Digital Zoom |
16x
|
| External Recording Modes |
SDI/BNC
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps HDMI / RJ45 / USB UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTMP, RTMPS, RTSP, SRT
640 x 360 to 3840 x 2160 to 320 x 240 to 720 x 480 to Dante AV-H 1920 x 1080 at 60p |
| Supported Control Protocols |
IP
IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel (3840 x 2160)
|
| IR Cut Filter |
No
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Global Shutter
|
| Shutter Speed |
1/10000 to 1/30 Second
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| Focal Length |
6.25 to 125mm
|
| Optical Zoom Ratio |
20x
|
| Max Digital Zoom |
16x
|
| Field of View |
Horizontal: 60.7 to 3.5°
Vertical: 34.1 to 1.9° |
| Maximum Aperture |
f/1.58 to 3.95
|
| External Recording Modes |
SDI/BNC
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps HDMI / RJ45 / USB UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTMP, RTMPS, RTSP, SRT
640 x 360 to 3840 x 2160 to 320 x 240 to 720 x 480 to Dante AV-H 1920 x 1080 at 60p |
| Presets |
255
|
| Move Speed |
Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA |
| Wireless Range |
30' / 9.1 m (IR)
|
| Max Cable Length |
98.5' / 30 m (RS-232)
3937' / 1200 m (RS-485) |

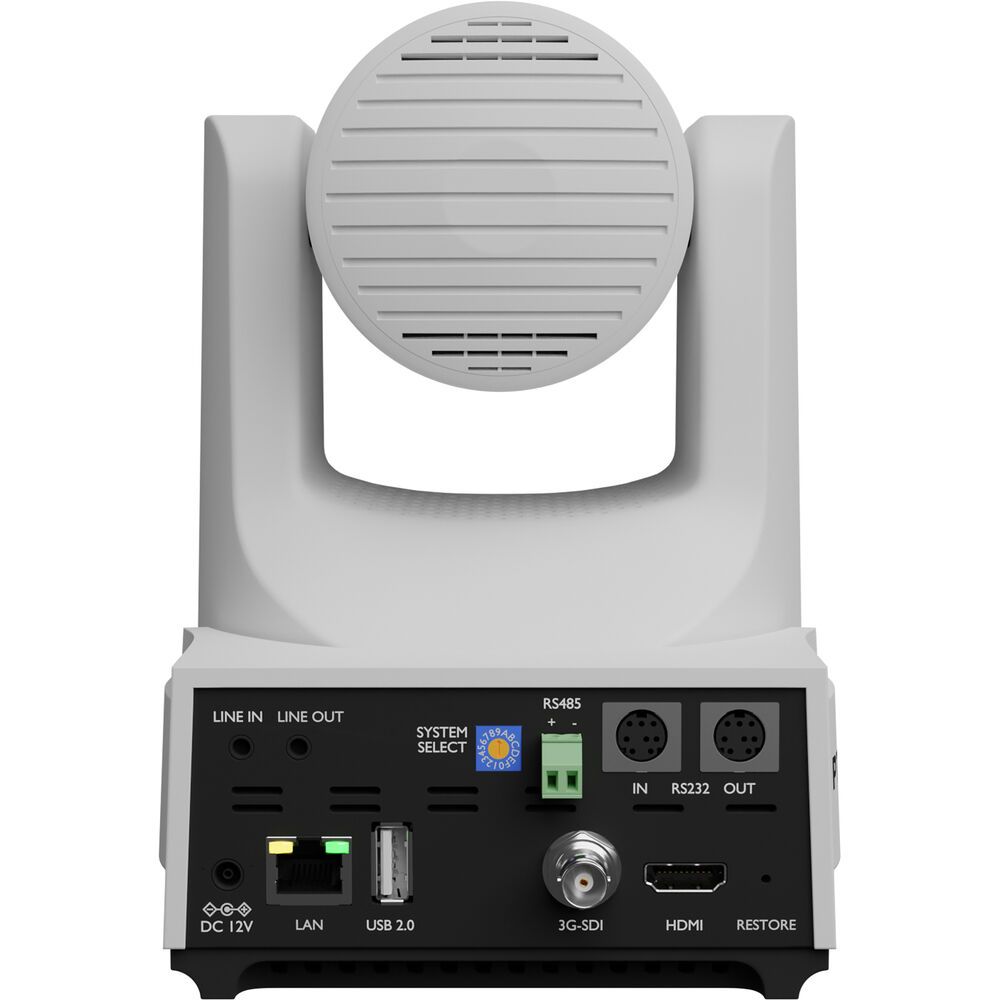

| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output 1x RJ45 Output 1x USB-A 2.0 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O |
1x D-Sub 8-Pin (RS-232) Control Input
1x D-Sub 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input/Output |
| Built-In Speaker |
No
|
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Power Consumption |
Device: 12 VDC at 2 A (18 W)
|
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
| Material of Construction |
Aluminum, Plastic
|
| OS Compatibility |
Windows
macOS Linux |
| Mobile App Compatible |
Yes
|
| Dimensions (W x H x D) |
5.6 x 5.9 x 6.9" / 141.5 x 151 x 176 mm
5.6 x 5.9 x 7.9" / 141.5 x 151 x 201 mm (With Tilt Up) |
| Weight |
3.24 lb / 1.47 kg
|
| Package Weight |
6.245 lb
|
| Box Dimensions (LxWxH) |
10.3 x 10 x 9.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 373664.2 |
| 3-5 | ₹ 369851.3 |
| 5-10 | ₹ 362225.5 |
| 10+ | ₹ 354599.7 |
Bulk discount will be automatically applied during checkout based on quantity.
