Description

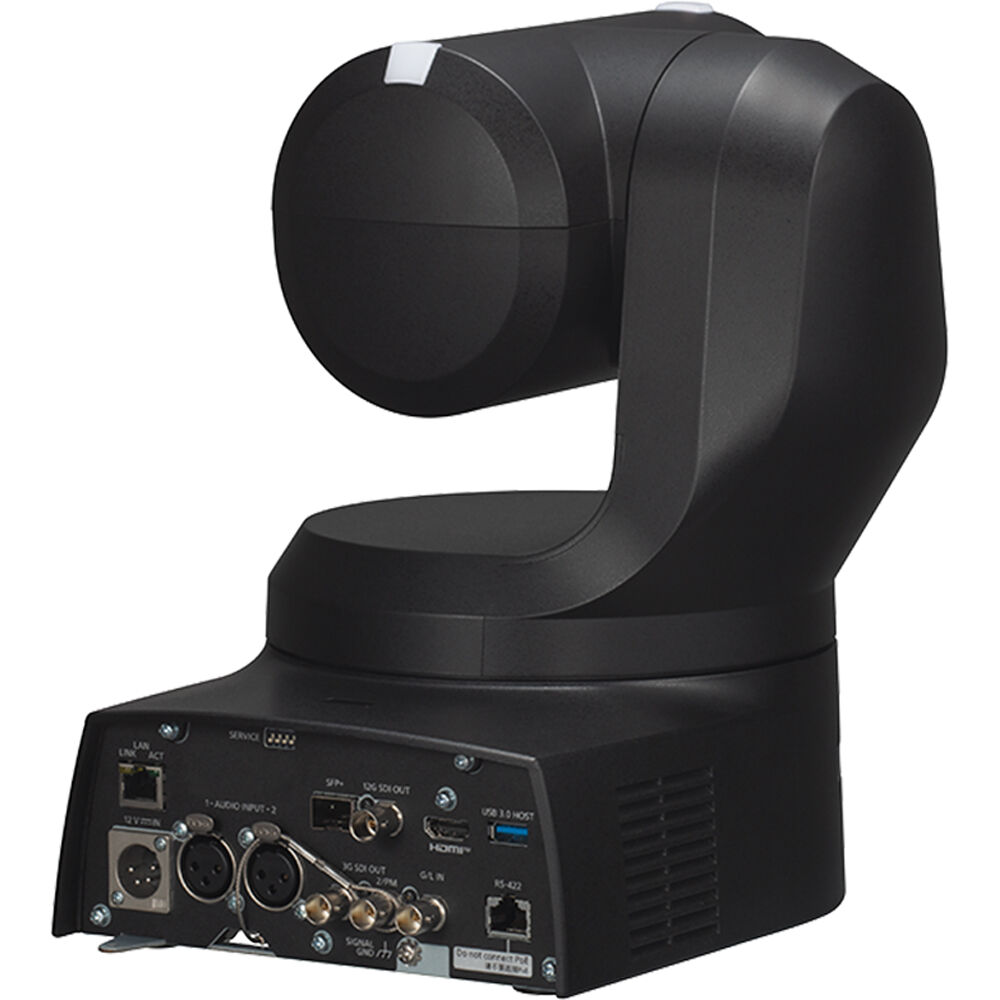

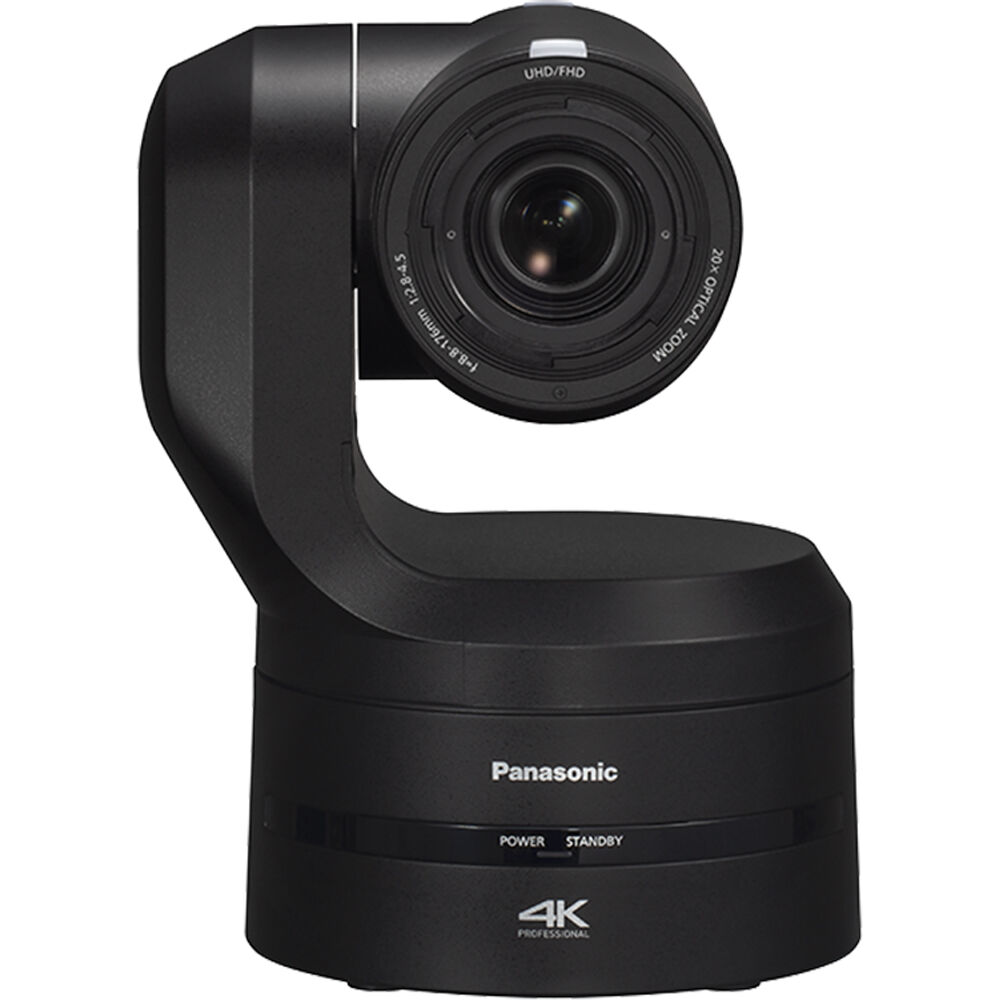

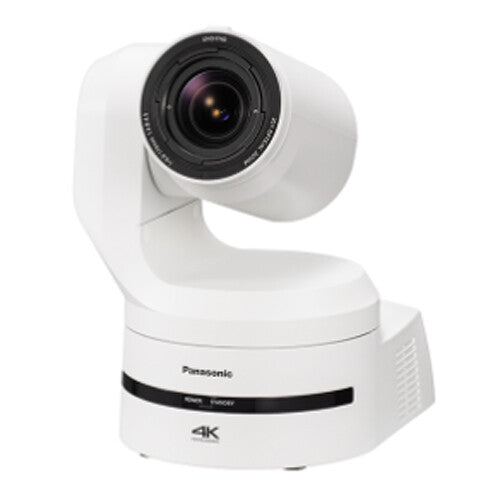

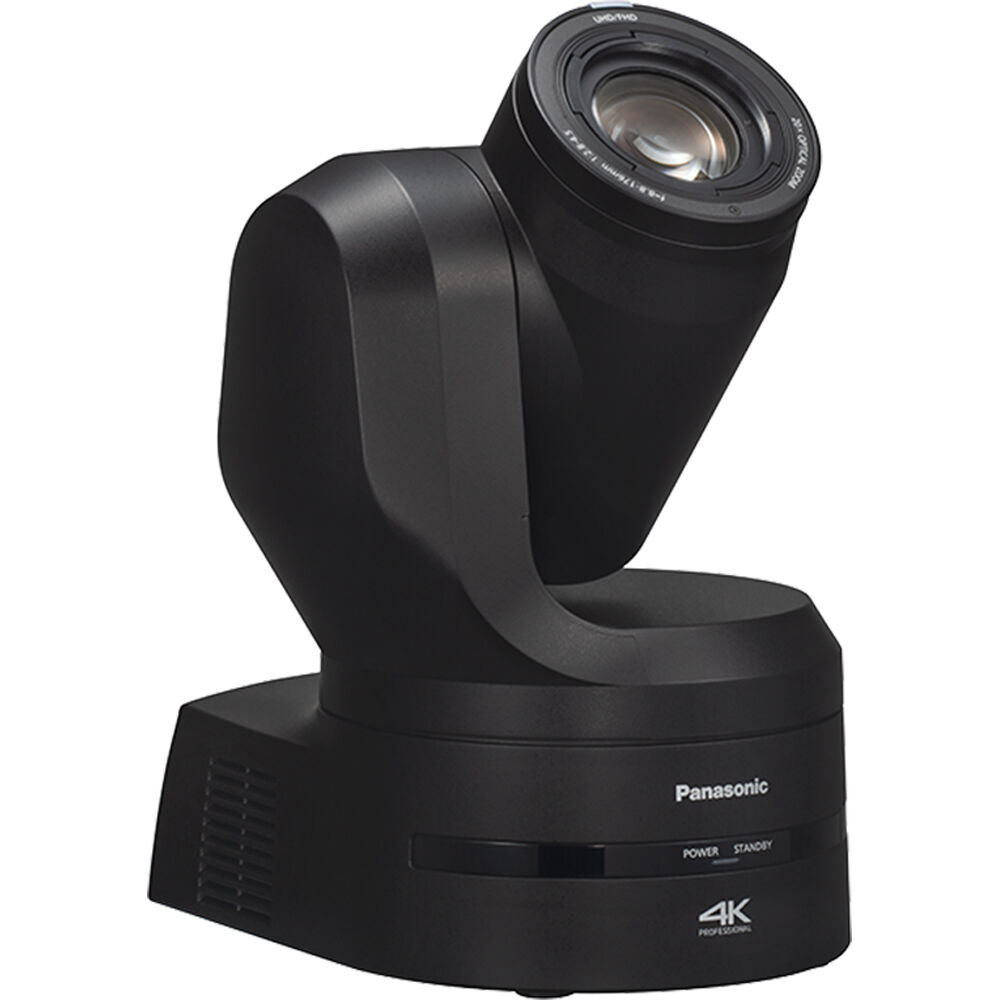

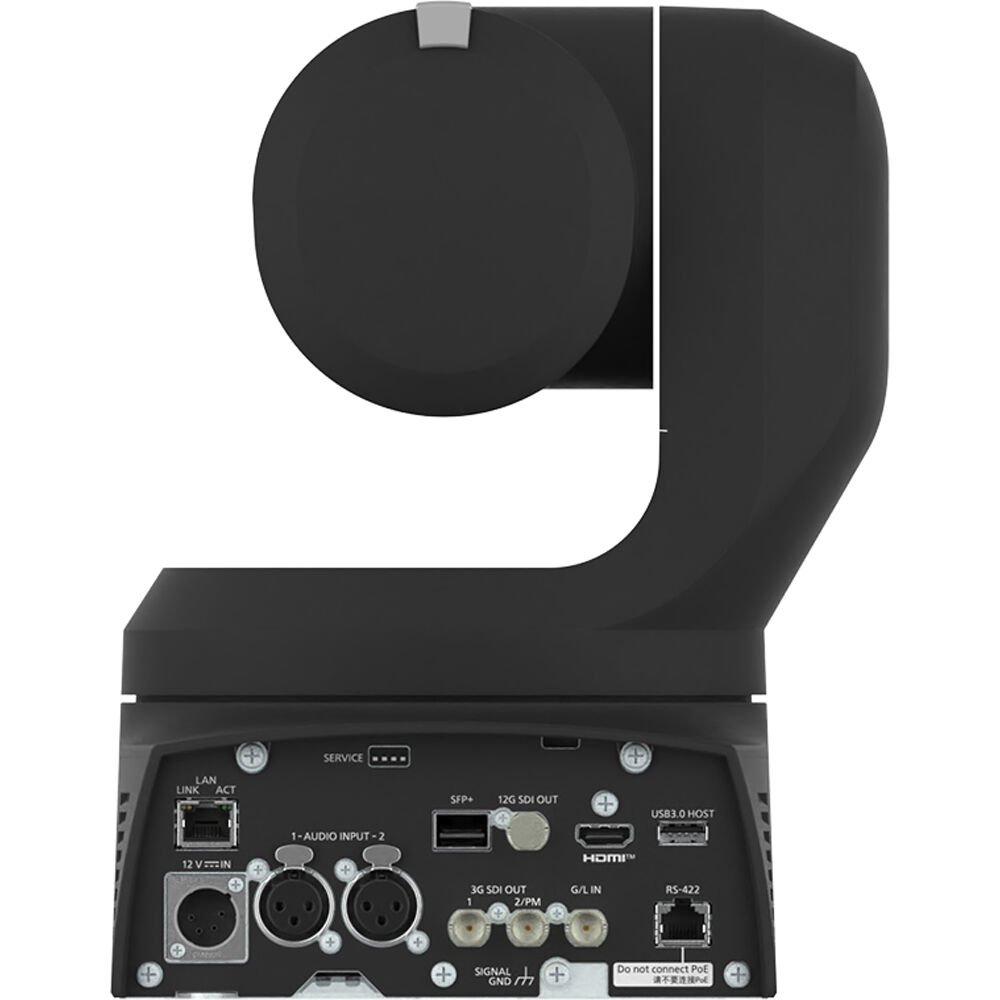

Panasonic AW-UE160 Overview
Flexible, Sensitive PTZ 4K Camea
Capture optimal 4K images, even in the most challenging lighting conditions with the white
AW-UE160 UHD 4K 20x PTZ Camera from
Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1? angle-of-view, a smooth, redesigned PTZ mechanism, and PoE++ compatibility. Additional camera features include HDR/HLG compatibility, front and rear tally lights, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP.
4K 1" MOS Sensor
The AW-UE160 features a newly developed 4K 1" MOS sensor that offers the highest sensitivity of Panasonic's entire PTZ lineup. This sensitivity enables you to easily capture clear images, even in the most challenging lighting conditions, including concert venues and houses of worship.
Built-In OLPF
- A new optical low-pass filter reduces moir? effects, producing clearer picture quality.
- Especially useful when shooting against an LED wall, during live events or in worship environments.
NDI and ST 2110 Workflow Flexibility
- Built-in NDI and NDI|HX provide flexible video transmission over your IP network.
- An ST 2110 option with high-speed capture and return video is ideal for sports capture.
Phase Detection AF
- Improved PDAF (phase-detection autofocus) technology.
- Enables you to focus on moving subjects with high speed and precision.
High-Speed Frame Rates
2x high-speed capture enables you to create smooth slow-motion video suitable for sports, Esports, and other dynamic events.
UPC: 885170402416
Items Included

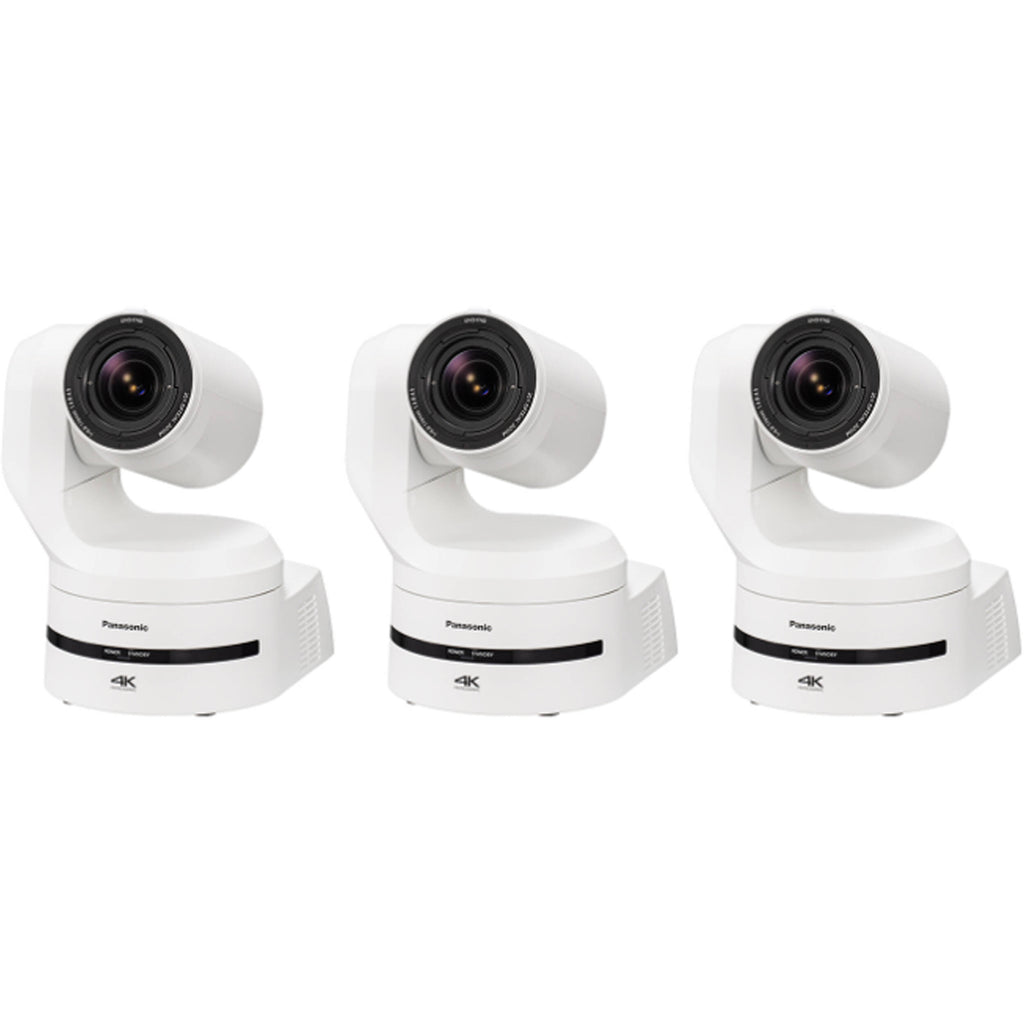

- 3 x Panasonic AW-UE160 UHD 4K 20x PTZ Camera (White)
- Cable Cover
- Mounting Hardware
- Limited 1-Year Manufacturer Warranty
Additional Resources
Panasonic AW-UE160 Specs
Key Specs
| Image Sensor |
1"-Type MOS
|
| Sensor Resolution |
Effective: 9.62 Megapixel
|
| Shutter Speed |
1/2000 to 1/48 Second
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
10x
|
| Video Output |
SDI/BNC / HDMI / RJ45
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps HD (1920 x 1080p) at 23.98/24.00/25/29.97/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
UDP/SRT/RTMP/NDI HX2
1920 x 1080 to 3840 x 2160 at 29.97p, 25p, 24p, 60p, 23.98p, 59.94p, 50p 1280 x 720 at 59.94p, 50p |
| Wireless |
IR
|
| PoE Support |
PoE++ 802.3bt
|
| Mounting |
1x 1/4"-20 Female
6x M3 Female |
Imaging
| Image Sensor |
1"-Type MOS
|
| Horizontal Resolution (TV Lines) |
1600 TV Lines
|
| Sensor Resolution |
Effective: 9.62 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/2000 to 1/48 Second
|
| ISO/Gain Sensitivity |
Gain: 0 to 36 dB
|
| Precise Scan Rate Control |
Yes
|
| Minimum Illumination |
2 Lux
|
| Flip / Mirror Support |
Image Flip
|
| White Balance |
Presets: ATW, AWB
Range: 2000 to 15,000K |
Lens
| Focal Length |
8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
10x
|
| Field of View |
Horizontal: 75.1 to 4?
Vertical: 46.7 to 2.3? Diagonal: 82.8 to 4.6? |
| Maximum Aperture |
f/2.8 to 4.5
|
| Minimum Focus Distance |
3.9' / 1.2 m
|
Video Capture
| Video Output |
SDI/BNC / HDMI / RJ45
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps HD (1920 x 1080p) at 23.98/24.00/25/29.97/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Embedded Audio |
LAN (RJ45) Output
|
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
UDP/SRT/RTMP/NDI HX2
1920 x 1080 to 3840 x 2160 at 29.97p, 25p, 24p, 60p, 23.98p, 59.94p, 50p 1280 x 720 at 59.94p, 50p |
Control
| Presets |
100
|
| Pan/Tilt |
Pan: 350? (-175 to 175?) at 0.08 to 1800?/s
Tilt: 240? (-30 to 210?) at 0.08 to 1800?/s |
| Tally Light |
Yes
|
Networking
| Wireless |
IR
|
| Max Cable Length |
328.1' / 100 m (Cat 5e, Cat 6)
4.9' / 1.5 m (USB) |
Interface

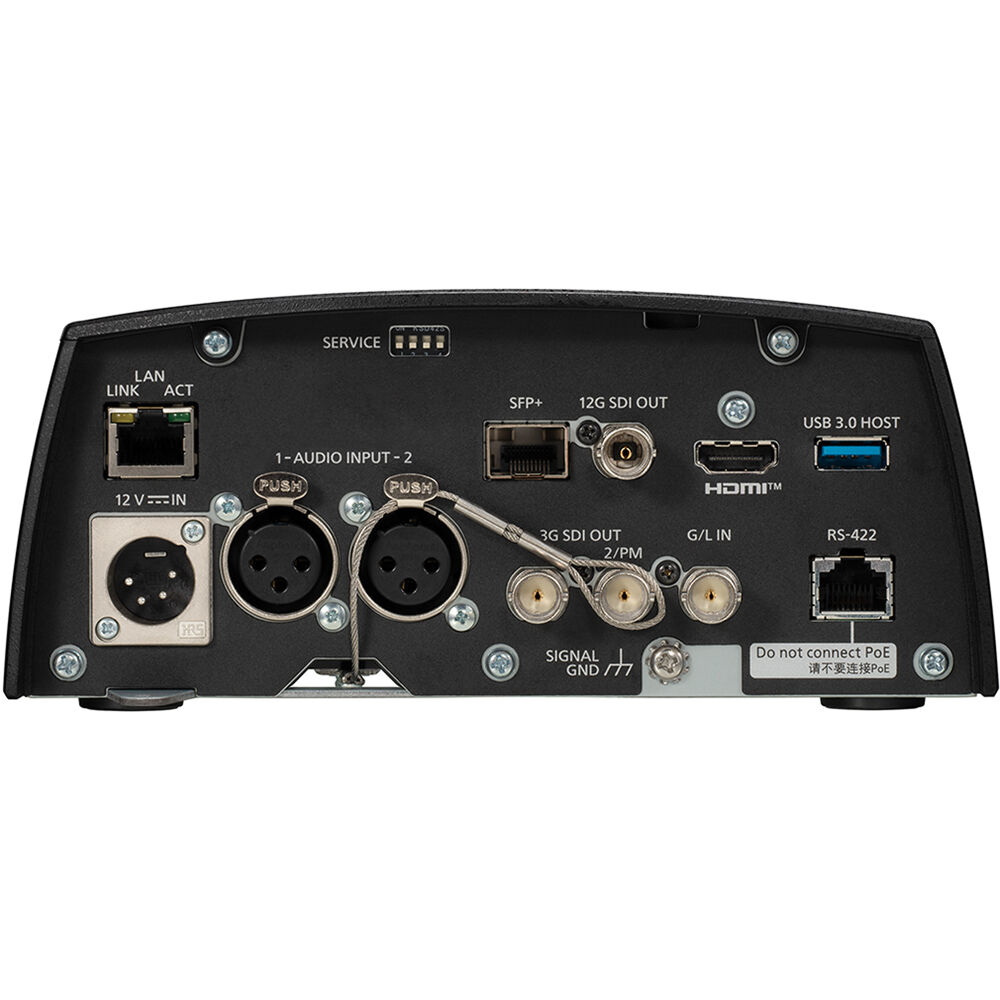

| Video I/O |
1x BNC (12G-SDI) Output
2x BNC (3G-SDI) Output 1x HDMI 2.0 Output |
| Audio I/O |
2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
|
| Other I/O |
1x RJ45 (LAN) Control
1x RJ45 (RS-422) Control 1x BNC (Genlock) Input 1x USB-A (USB 3.0) Host (Shared with Video Output) |
| Expansion Slots |
1x SFP+ Slot
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x XLR 4-Pin (12VDC at 1.5 A) Input
|
| Power Consumption |
10.8 to 13.2 VDC at 5 A
PoE: 42 to 57 VDC |
Environmental
| Operating Conditions |
32 to 72?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 122?F / -20 to 50?C
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female
6x M3 Female |
| OS Compatibility |
Chrome OS / Windows 10 or Later / macOS 10.13 to 15
|
| Security Lock Support |
Bolt-Down Base
|
| Dimensions (W x H x D) |
10.9 x 9.4 x 8.4" / 27.7 x 24 x 21.3 cm (Without Bracket, Protrusions)
|
| Weight |
10.1 lb / 4.6 kg (Body Only)
|
Packaging Info
| Package Weight |
16.115 lb
|
| Box Dimensions (LxWxH) |
20.1 x 15.9 x 14.7"
|
