Description
Panasonic AW-HE145 Overview

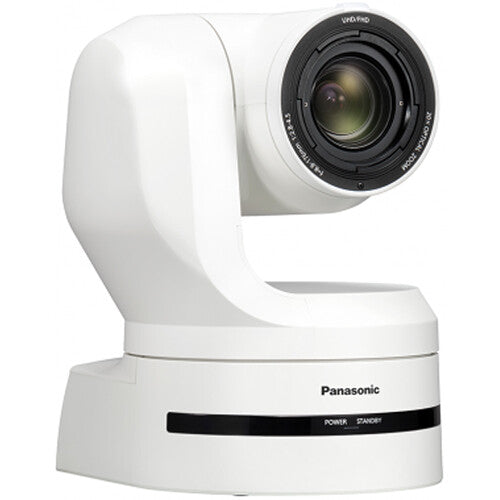

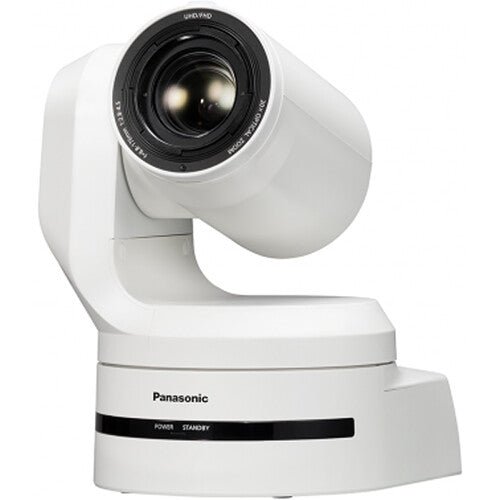

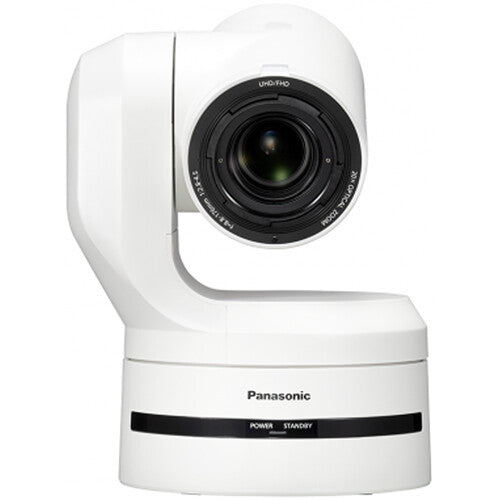

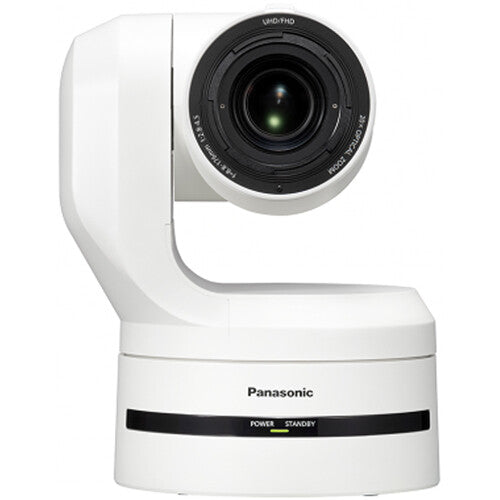

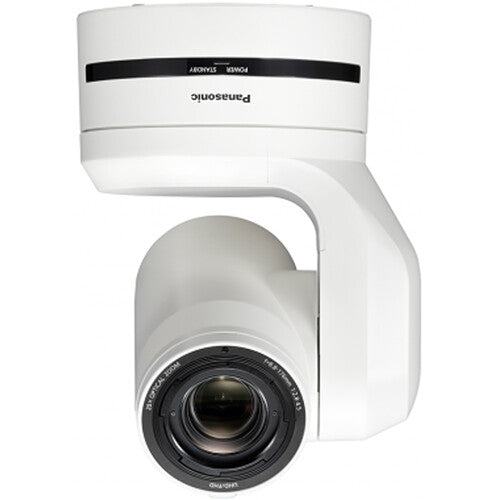

Capture high-quality 1080p video in your conference room, house of worship, or education locations with the white AW-HE145 HD Integrated PTZ Camera with 20x Optical Zoom from Panasonic. The camera features a 1" MOS sensor, HDMI and 3G-SDI outputs, RJ45 LAN streaming support, mic/line audio input, and serial control. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.
Equipped with a 8.8 to 176mm zoom lens (35mm equivalent zoom of 24.5 to 490mm), 20x optical zoom, 10x digital zoom, and 32x iZoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. It features Night Mode and features high-quality performance in low-light situations with little to no noise. Other features include auto white balance, RS-422 serial control, genlock input, 175° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, RTSP/RTMP streaming, AAC-LC audio compression, and a built-in 4-stage ND filter system.
The camera supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables. An optional Auto-Tracking software upgrade allows the camera to utilize facial recognition technology for face tracking and body detection so the camera will follow the subject around the room automatically. If you are using an NDI-enabled network, you can also purchase an optional NDI|HX license to transmit high-quality, low-bandwidth NDI|HX video streams.
Key Features
In the Box
- Panasonic AW-HE145 HDMI/3G-SDI/IP Integrated PTZ Camera with 20x Optical Zoom (White)
- Limited 1-Year Warranty
Panasonic AW-HE145 Specs
| Image Sensor | 1-Chip 1" MOS Sensor |
| Horizontal Resolution (TV Lines) | 1000 TV Lines |
| Gain | 0 to 36 dB |
| Signal-to-Noise Ratio | 60 dB |
| Minimum Illumination | 2 Lux at 1/60 Shutter Speed |
| White Balance | 2000 to 15,000K |
| Shutter Speed | 1/60 to 1/10,000 sec (In 60p/60i Mode) 1/50 to 1/10,000 sec (In 50p/50i Mode) 1/30 to 1/10,000 sec (In 30p Mode) 1/25 to 1/10,000 sec (In 25p Mode) 1/24 to 1/10,000 sec (In 24p Mode) |
| Precise Scan Rate Control | Yes |
| Max Digital Zoom | 10x |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Optical Zoom Ratio | 20x |
| Focal Length | 8.8 to 176mm (35mm Equivalent Focal Length: 24.5 to 490mm) |
| Field of View | Horizontal: 4 to 75.1° Vertical: 2.3 to 46.7° Vertical: 4.6 to 82.8° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Wide: 3.3' / 100.0 cm Telephoto: 3.9" / 10.0 cm |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps SDI: 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, MJPEG, RTP, RTSP, TCP, UDP: 1080p, 720p, 480p, 360p at 24p, 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s) |
| Audio Recording | None |
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 240° (-30 to 210°) |
| Tally Light | Yes |
| Supported Control Protocols | IP RS-422 |
| Max Cable Length | 328.1' / 100 m (Cat 5e, Cat 6) 3280.8' / 1000 m (Cat 5e, Cat 6, RS-232) |

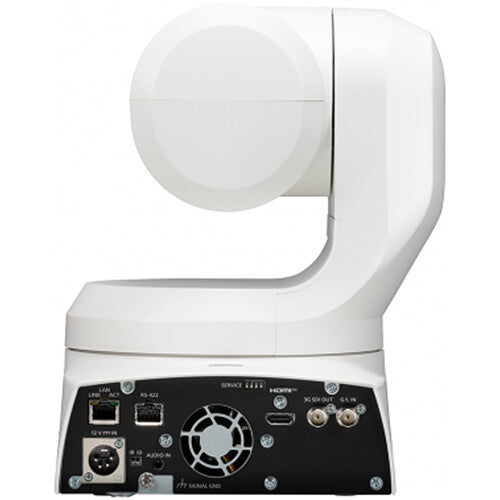

| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (LAN) 1 x RJ45 (RS-422) |
| Other I/O | 1 x BNC (Genlock) Output 1 x 2-Pin Euroblock (IR) Input/Output |
| PoE Support | Yes |
| Power Connectors | 1 x 4-Pin XLR (12 VDC) |
| Power Consumption | Power Supply: 4 A PoE: 1.2 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
| Dimensions | 10.5 x 8.6 x 8.4" / 267 x 219 x 213 mm (Excluding Protrusions) |
| Weight | 9 lb / 4.1 kg |
| Package Weight | 15.045 lb |
| Box Dimensions (LxWxH) | 19.7 x 15.2 x 14.6" |
