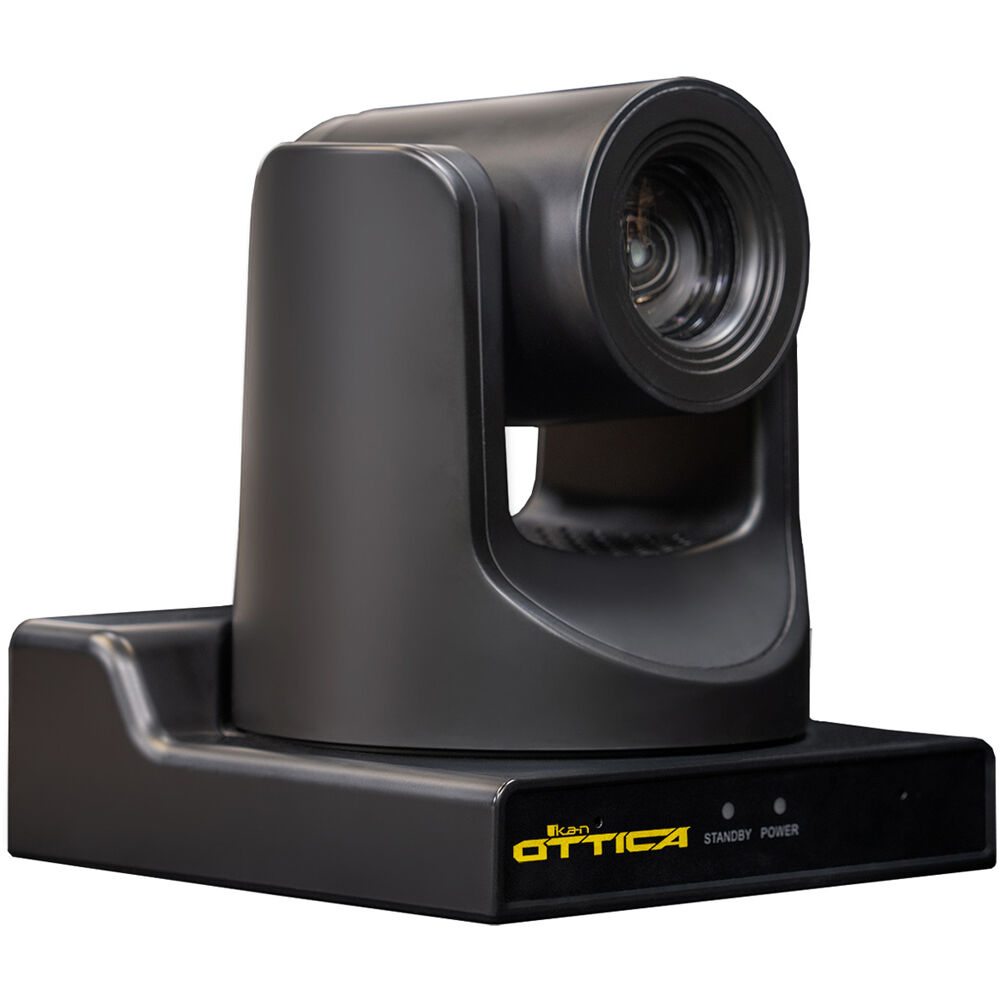

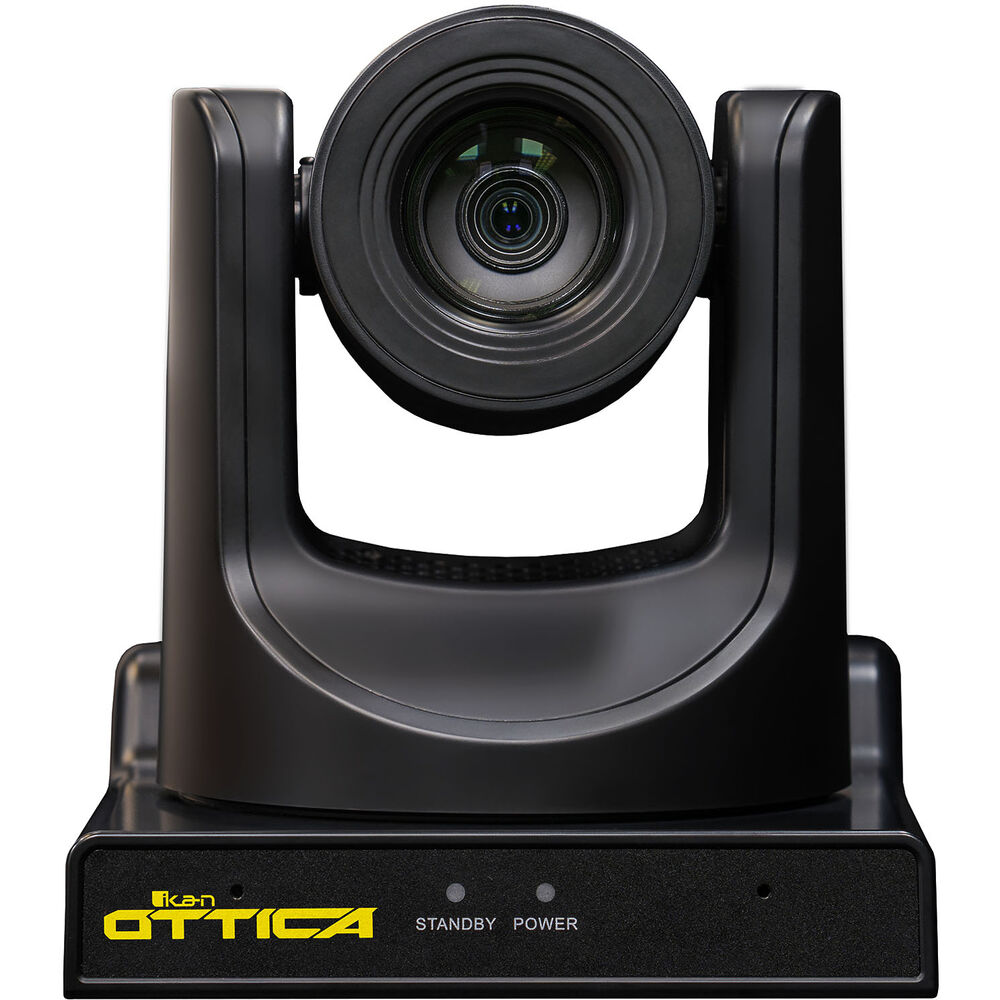

ikan OTTICA NDI and NDI|HX3 PTZ Camera with AI Tracking and 20x Zoom

Add a versatile PTZ camera to your meeting room, studio, or house of worship with the OTTICA NDI and NDI|HX PTZ Camera with 20x Optical Zoom from ikan. Featuring AI auto tracking and a 1/2.8" CMOS sensor, this OTTICA camera includes both NDI high bandwidth and efficient NDI|HX transmission for your different production needs.

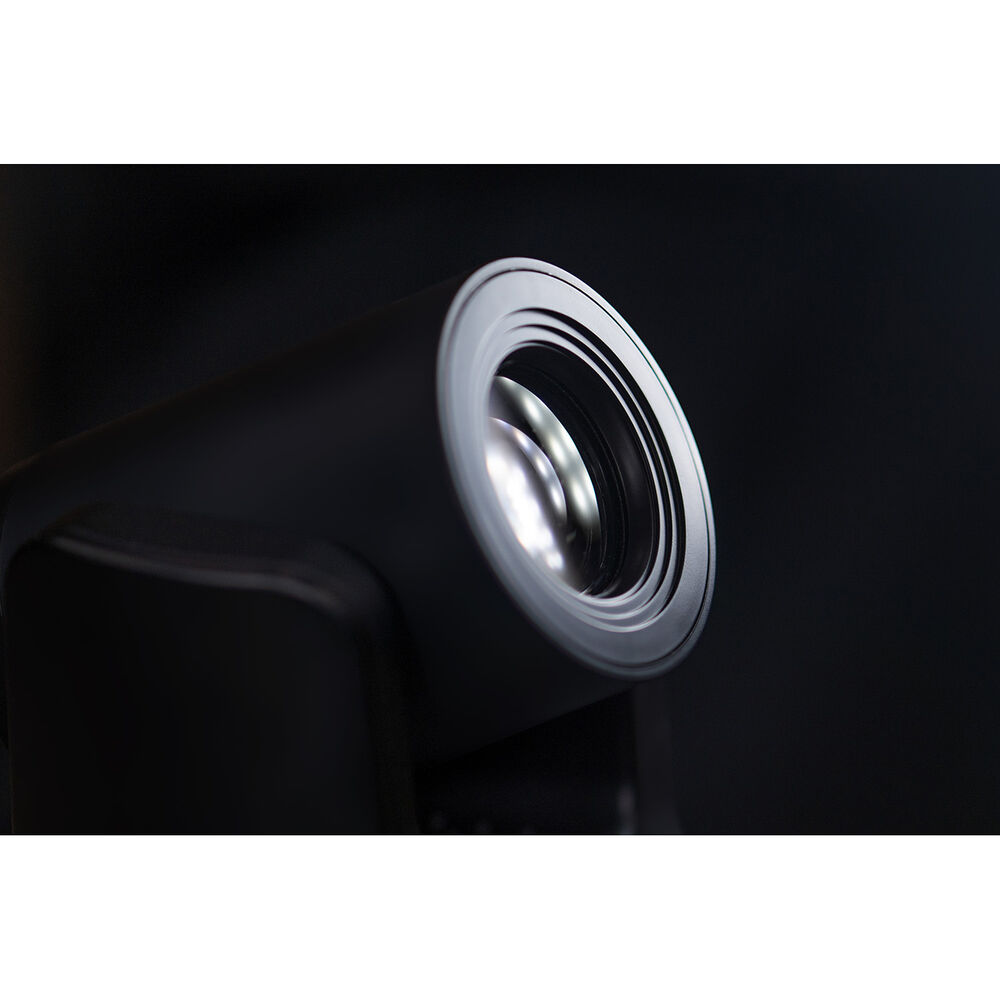

The 4.42 to 88.5mm lens provides a 20x optical zoom with a wide 60.7 to 3.36° horizontal angle of view for detailed close-ups that is the equivalent to 30 to 590mm in a 35mm format.

AI-assisted auto tracking and face recognition enable the OTTICA 20x PTZ camera to reliably keep your subject in frame.

• The OTTICA 20x camera supports ±170° panning angle with 1.7 to 100°/s panning speeds and tilting from -30 to 90° at 1.7 to 69.9°/s tilting speeds.
• These are speedy and agile enough to support professional broadcasting and live events.

The 1/2.8" type CMOS sensor captures up to 1080p60 HD video with true color reproduction under a variety of light levels with a processing algorithm providing accurate white balance and exposure control. PoE (power over Ethernet) lets you easily power your camera using your IP network.

The OTTICA 20x PTZ camera outputs 3G-SDI, HDMI 1.3, USB, and RJ45 Ethernet video simultaneously at rates up to 1080p60 with minimal latency. It supports uncompressed, broadcast standard output via HDMI and 3G-SDI and also offers drop-frame timecode.

Use the web client GUI (graphical user interface) to select image parameters like pan/tilt/zoom control, exposure, focus, color temperature, preset positions, format, frame rates, and more.

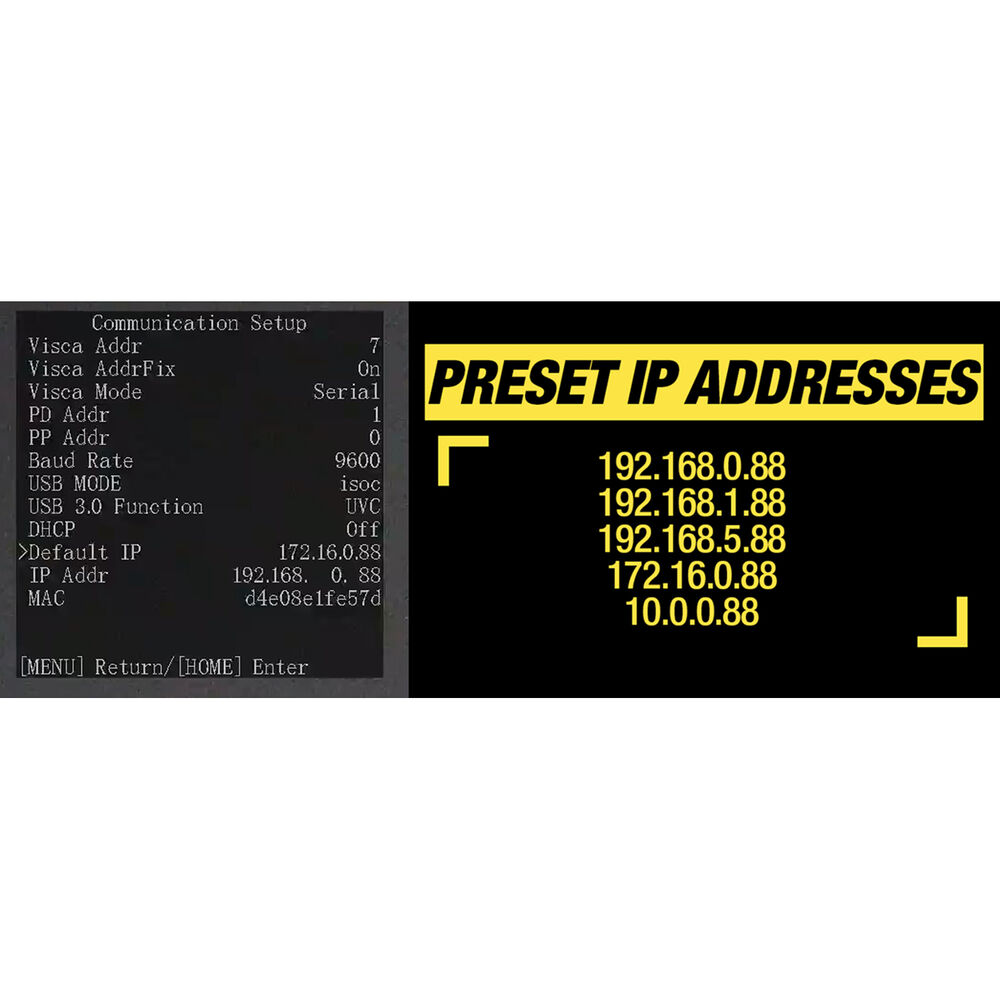

• Choose between five preset IP addresses using the IR camera remote controller.
• This lets you match your network range without necessarily having to log into the web GUI.

A blackout mode lets you turn off the camera's power indicator light, reducing glare within a teleprompter setup and minimizing distractions for your talent.

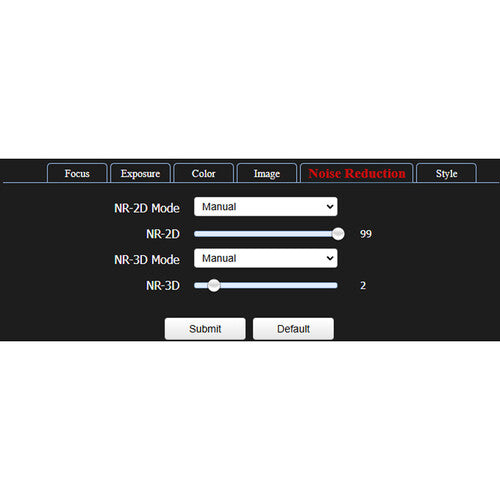

A SNR (signal to noise ratio) of 55 dB and 2D/3D noise reduction algorithms help to maintain image clarity, even in challenging, lower light levels.

Camera control options include IP VISCA, ONVIF, and NDI via RJ45, PELCO and VISCA using RS-232 and RS-485, and UVC control via USB.

• The OTTICA 20x PTZ camera offers a range of audio capture options.

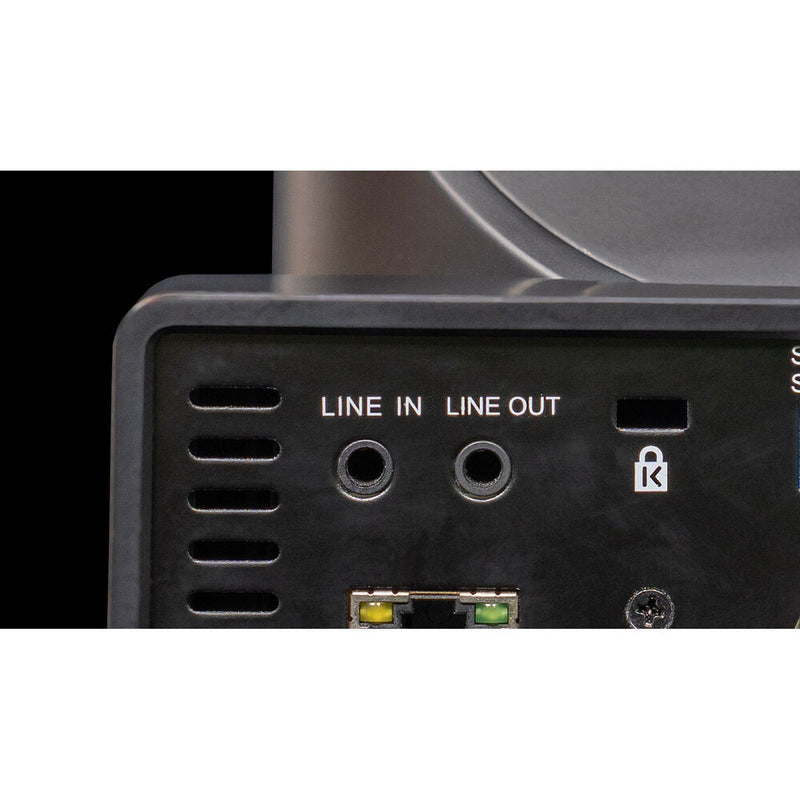

• Audio features include dual built-in microphones and 3.5mm line input and output ports.

ikan OTTICA-FHD-20X Specs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel (1920 x 1080)
Shutter Speed	1/10000 to 1/30 Second
Optical Zoom Ratio	20x
Max Digital Zoom	16x
External Recording Modes	SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265 640 x 360 to 1920 x 1080 up to 60p (Main Stream) 320 x 180 to 1280 x 720
Supported Control Protocols	IR Pelco-D Pelco-P RS-232 RS-485 VISCA
Mounting	2x 1/4"-20 Female 3x M3 Female

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel (1920 x 1080)
Focus Control	Autofocus Manual Focus

Shutter Speed	1/10000 to 1/30 Second
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR Range: 2000 to 8500K

Focal Length	4.42 to 88.5mm
Optical Zoom Ratio	20x
Max Digital Zoom	16x
Field of View	Horizontal: 60.7 to 3.36° Vertical: 34.1 to 1.89°
Maximum Aperture	f/1.8 to 2.8

External Recording Modes	SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94/60.00 fps
Audio Recording	AAC Audio
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265 640 x 360 to 1920 x 1080 up to 60p (Main Stream) 320 x 180 to 1280 x 720

Presets	255 10 via IR
Pan/Tilt	Pan: 340° (-170 to 170°) at 1.7 to 100°/s  Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s
Tally Light	No
Supported Control Protocols	IR Pelco-D Pelco-P RS-232 RS-485 VISCA

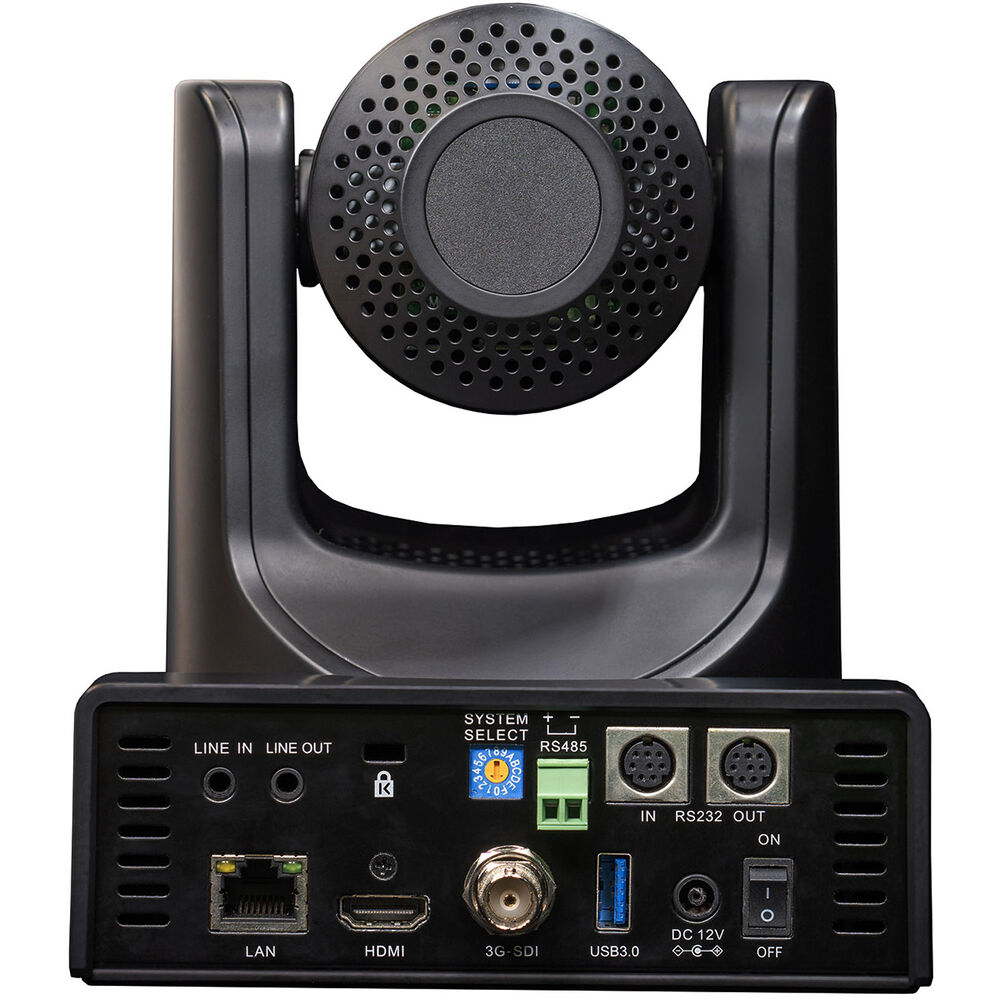

Video I/O	1x HDMI 1.3 Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output
Other I/O	1x Block 2-Pin (RS-485) Control 1x Mini-DIN 8-Pin (RS-232) Control 1x Mini-DIN 9-Pin (RS-232) Control
Built-In Microphone	Stereo
Built-In Speaker	No

Power I/O	1x Barrel (12VDC at 1.2 A)
Power Consumption	15 W

Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-40 to 140°F / -40 to 60°C
Impact Resistance	No
Environmental Resistance	No

Mounting	2x 1/4"-20 Female 3x M3 Female
OS Compatibility	Computer: Windows 7 to 10 / macOS 10 Only / Linux Mobile: Android Only
Security Lock Support	Kensington Lock Slot
Dimensions (W x H x D)	6.7 x 6.6 x 5.7" / 169 x 168 x 146 mm
Weight	3.3 lb / 1.5 kg (Body Only)

Package Weight	7.015 lb
Box Dimensions (LxWxH)	14.2 x 9.7 x 9.4"
