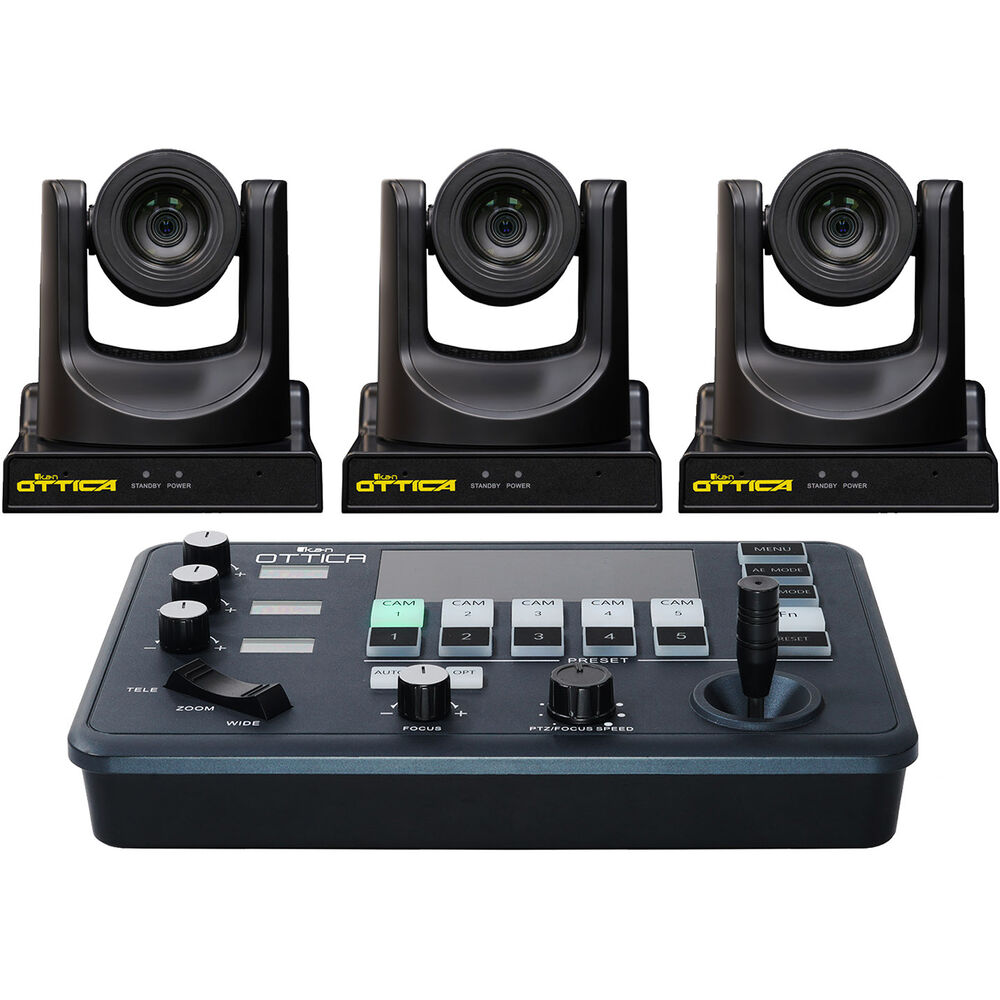

ikan OTTICA 3 x Full NDI 20x PTZ Cameras and IP Controller Bundle (Black)

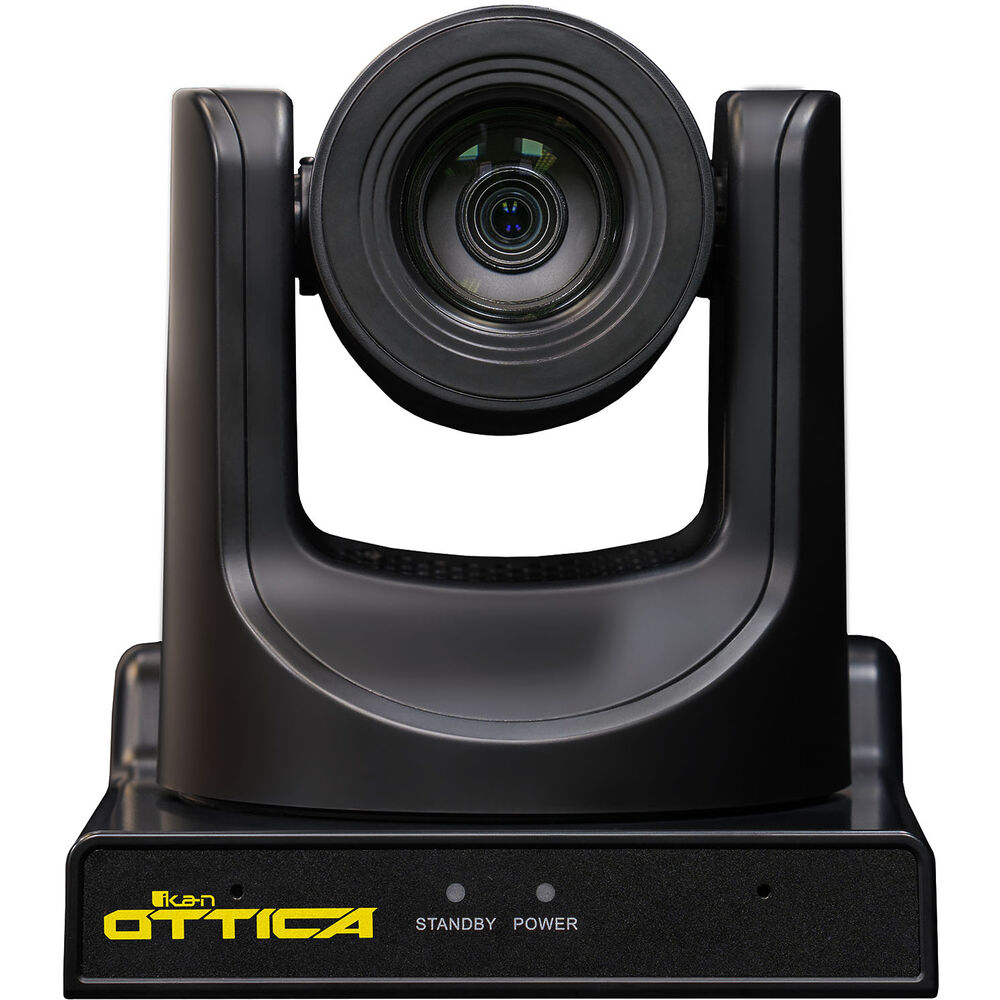

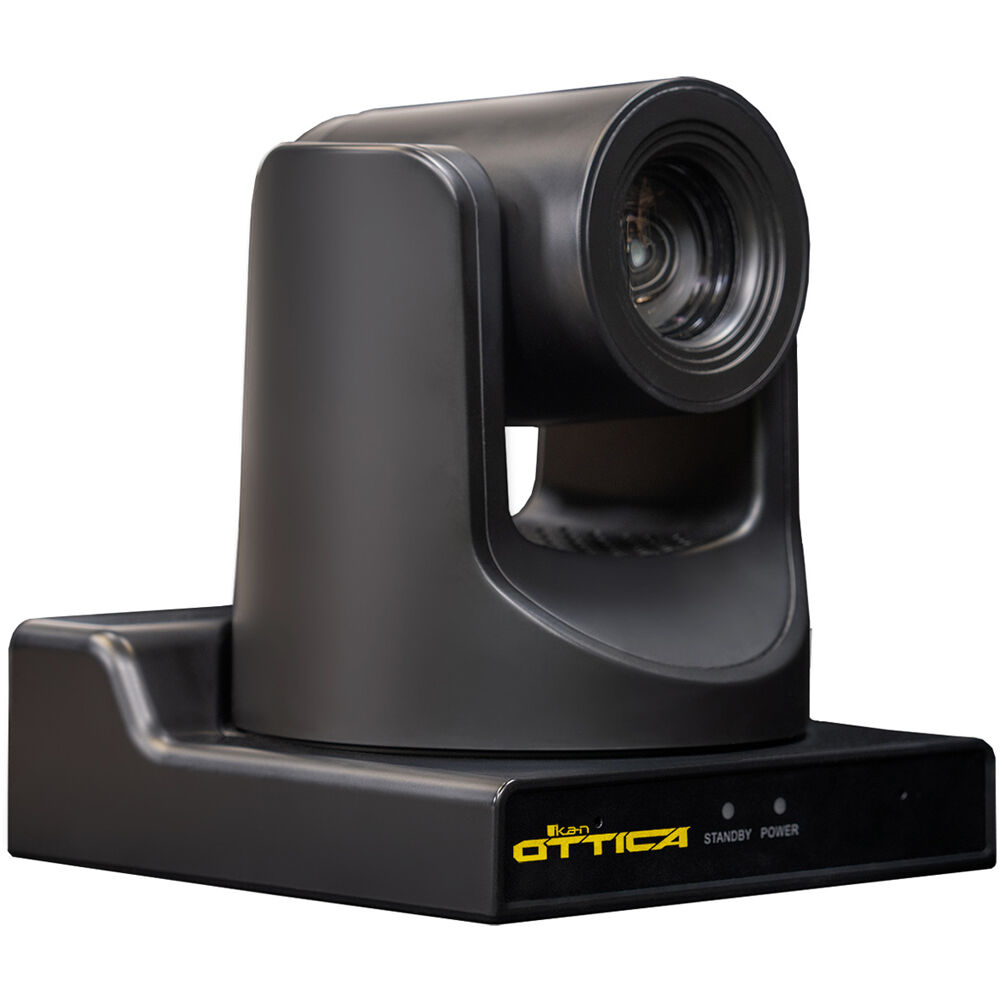

Add a versatile PTZ camera to your meeting room, studio, or house of worship with the OTTICA Full NDI and NDI HX PTZ Camera with 20x Optical Zoom from ikan. Featuring AI auto tracking and a 1/2.8" CMOS sensor, this OTTICA camera includes both full NDI high bandwidth and efficient NDI HX transmission for your different production needs.

The 4.42 to 88.5mm lens provides a 20x optical zoom with a wide 60.7 to 3.36? horizontal angle of view for detailed close-ups that is the equivalent to 30 to 590mm in a 35mm format.

AI-assisted auto tracking and face recognition enable the OTTICA 20x PTZ camera to reliably keep your subject in frame.

• The OTTICA 20x camera supports ?170? panning angle with 1.7 to 100?/s panning speeds and tilting from -30 to 90? at 1.7 to 69.9?/s tilting speeds.
• These are speedy and agile enough to support professional broadcasting and live events.

The 1/2.8" type CMOS sensor captures up to 1080p60 HD video with true color reproduction under a variety of light levels with a processing algorithm providing accurate white balance and exposure control. PoE (power over Ethernet) lets you easily power your camera using your IP network.

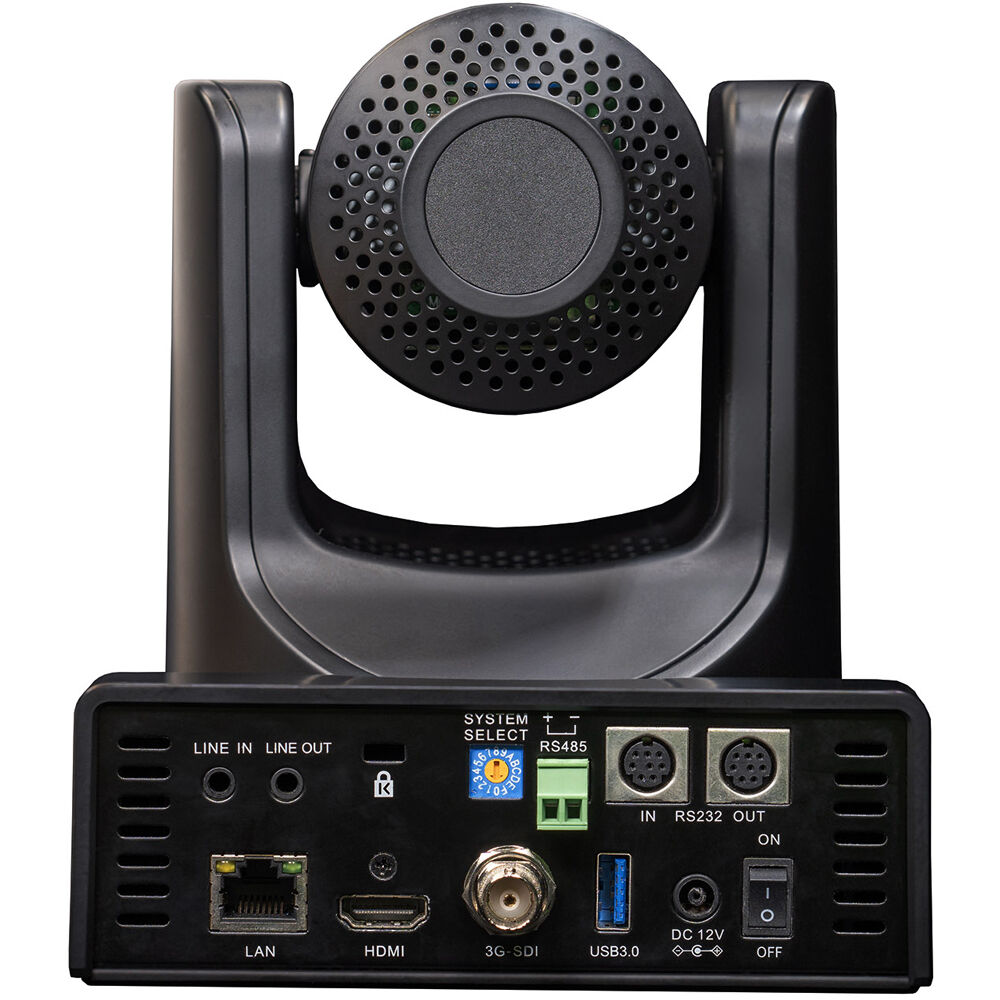

The OTTICA 20x PTZ camera outputs 3G-SDI, HDMI 1.3, USB, and RJ45 Ethernet video simultaneously at rates up to 1080p60 with minimal latency. It supports uncompressed, broadcast standard output via HDMI and 3G-SDI and also offers drop-frame timecode.

Use the web client GUI (graphical user interface) to select image parameters like pan/tilt/zoom control, exposure, focus, color temperature, preset positions, format, frame rates, and more.

• Choose between five preset IP addresses using the IR camera remote controller.
• This lets you match your network range without necessarily having to log into the web GUI.

A blackout mode lets you turn off the camera's power indicator light, reducing glare within a teleprompter setup and minimizing distractions for your talent.

A SNR (signal to noise ratio) of 55 dB and 2D/3D noise reduction algorithms help to maintain image clarity, even in challenging, lower light levels.

Camera control options include IP VISCA, ONVIF, and NDI via RJ45, PELCO and VISCA using RS-232 and RS-485, and UVC control via USB.

• The OTTICA 20x PTZ camera offers a range of audio capture options.
• Audio features include dual built-in microphones and 3.5mm line input and output ports.

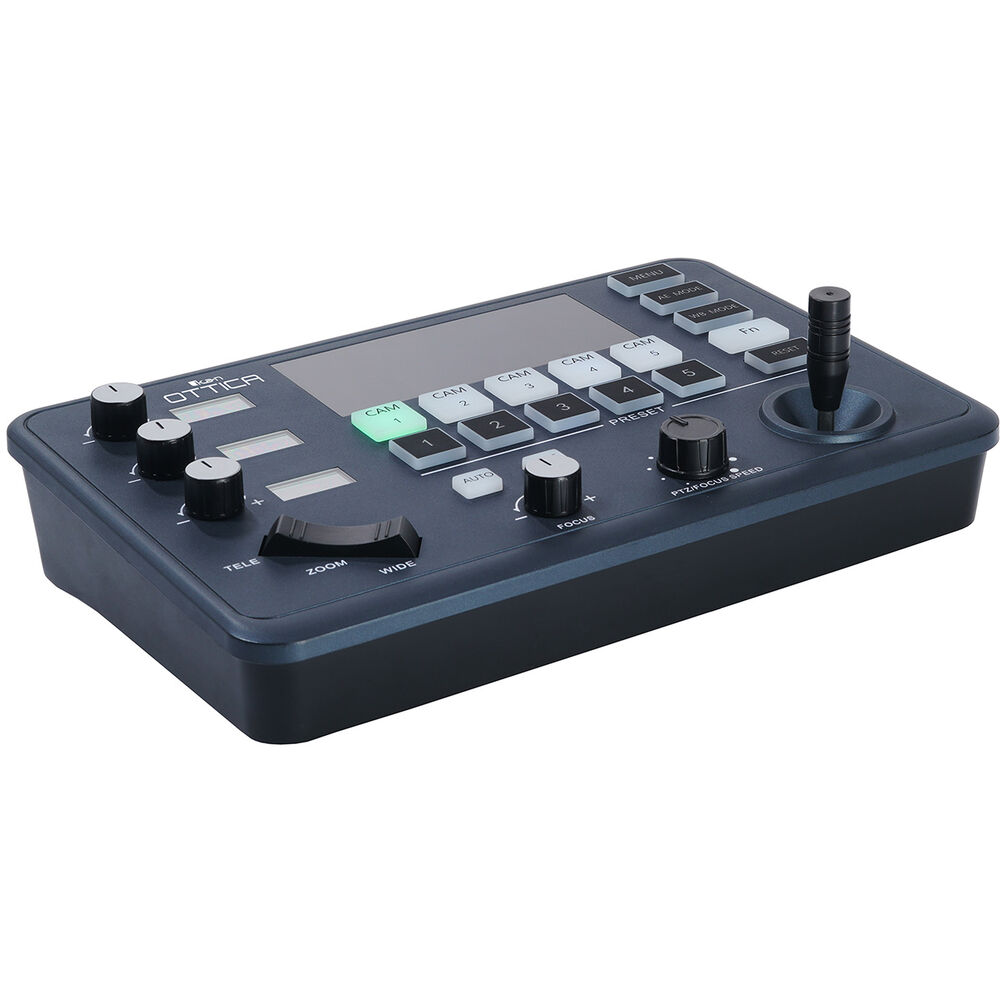

The OTTICA V2 IP PTZ Camera Controller from ikan features four LED screens, various controls, and is compatible with any PTZ camera that uses IP VISCA, serial port VISCA, and Pelco-D/P protocols. It can be set up to control up to 5 cameras over Ethernet, DB-9 RS-232, and 4-pin Phoenix RS-422 ports simultaneously. Three dedicated knobs control camera parameters like iris, zoom, and gain. Camera presets have been streamlined for intuitive configuration. The controller comes with a Phoenix 4-pin terminal and a power adapter for easy integration into your broadcast setup.

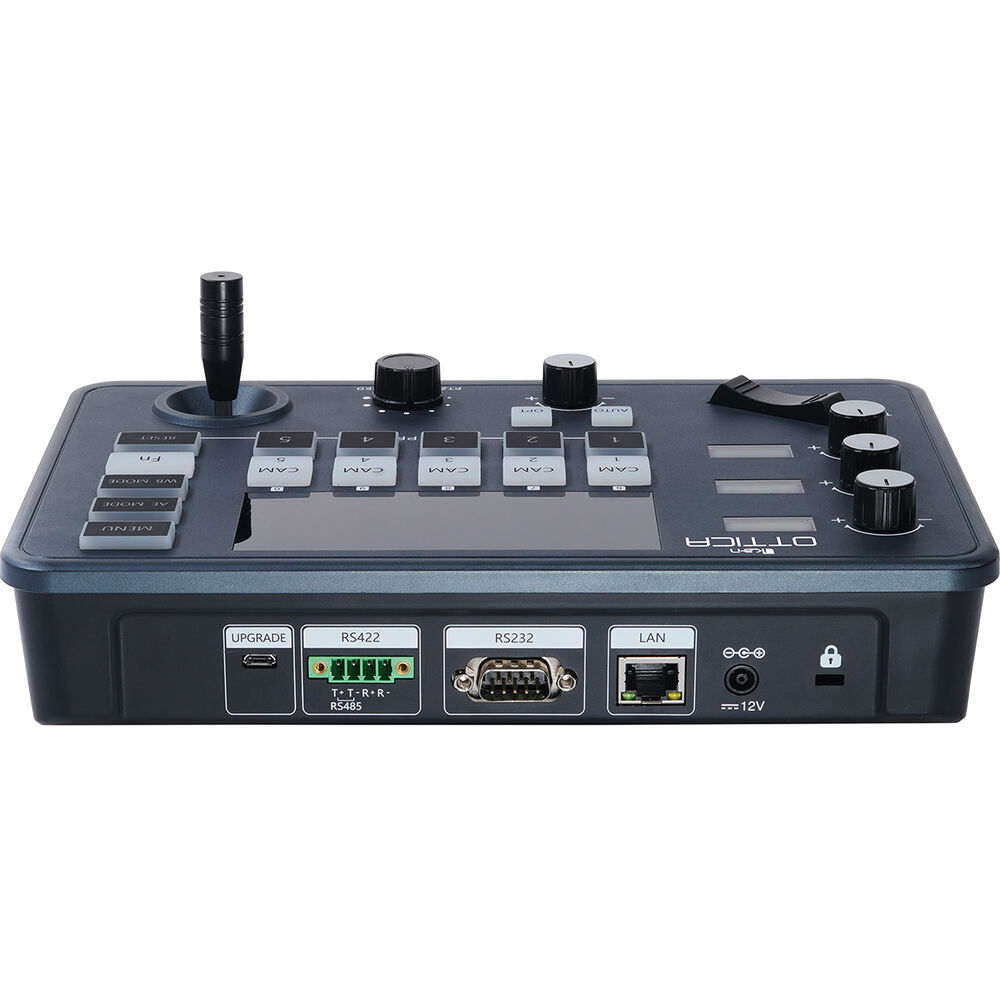

The OTTICA V2 has an RJ45 port, DB-9 RS-232 port, and a 4-pin RS-422 port for both analog and IP control protocols. Other connectors include a 12V barrel power input and a micro USB connector for firmware updates.

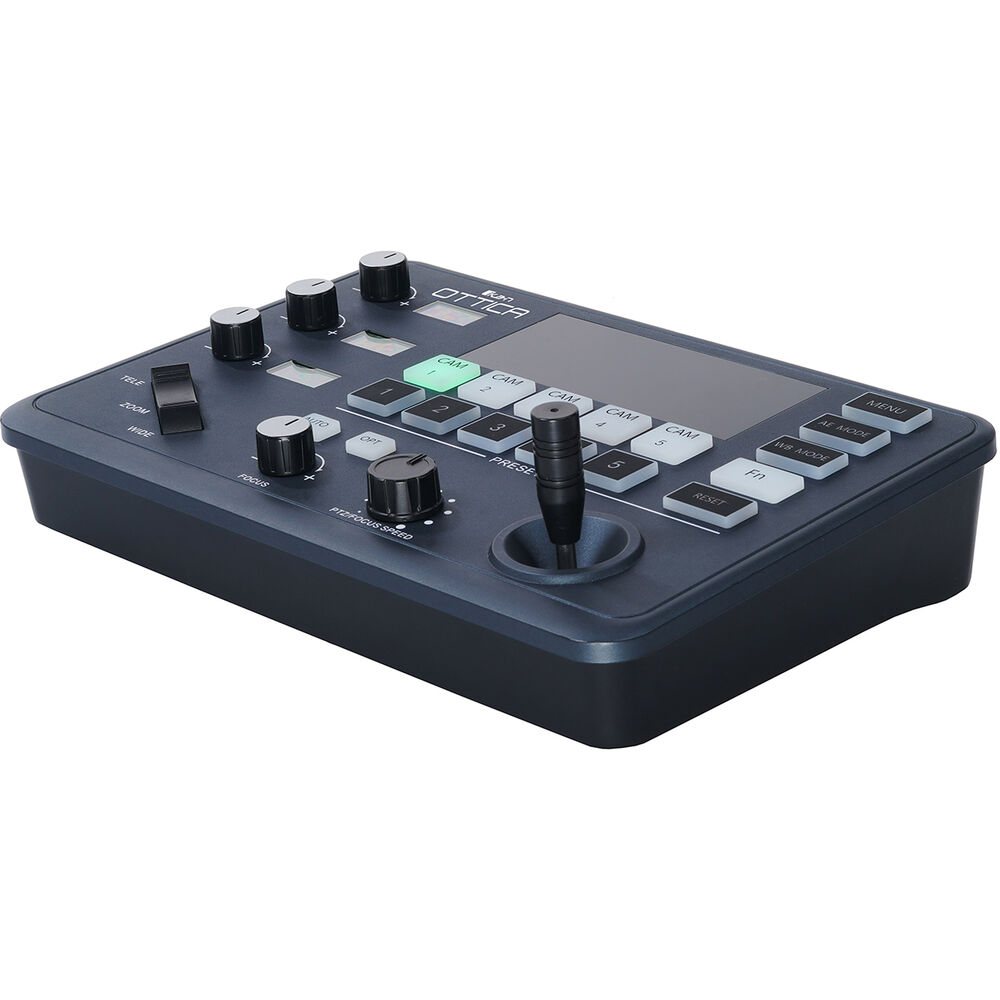

A 2-axis joystick on the OTTICA V2 facilitates smooth control of pan and tilt movements. A zoom rocker easily zooms your camera in or out. Two separate knobs control the focus and PTZ/focus speed. Select from 7 different speed levels for PTZ movements. Reset your camera parameters to the default positions by holding down the function button.

Three dedicated side knobs and corresponding LED screens can adjust different parameters depending on the operating mode you are in. Enter AE mode to change the auto exposure mode of your connected camera. The side knobs will then allow you to adjust shutter, iris, and exposure compensation. When in WB mode, change the white balance of your camera by adjusting the knobs for color temperature, red gain, and blue gain. Other possible parameters controlled by the knobs include brightness, focus, and gain limit.

Creating camera presets is intuitive, simply press and hold one of the preset buttons. When you wish to recall the preset, tap the corresponding button and your camera will adjust accordingly. The OTTICA V2 is capable of programming 5 presets or a maximum of 10 presets for selection per channel.

Key Specs

Imaging

Exposure Control

Lens

Video Capture

Control

Networking

Interface
