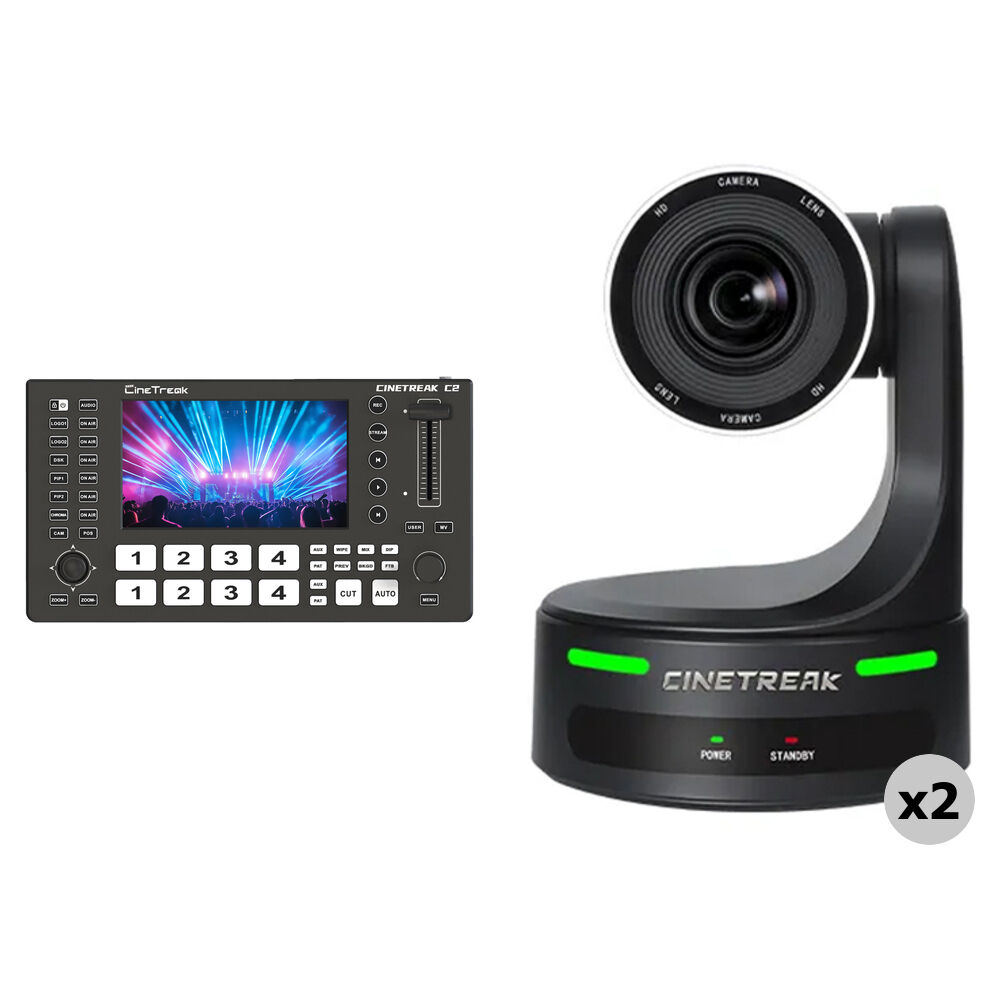

CineTreak CT-PT20 NDI PTZ 2-Camera Kit with HDMI Video Switcher

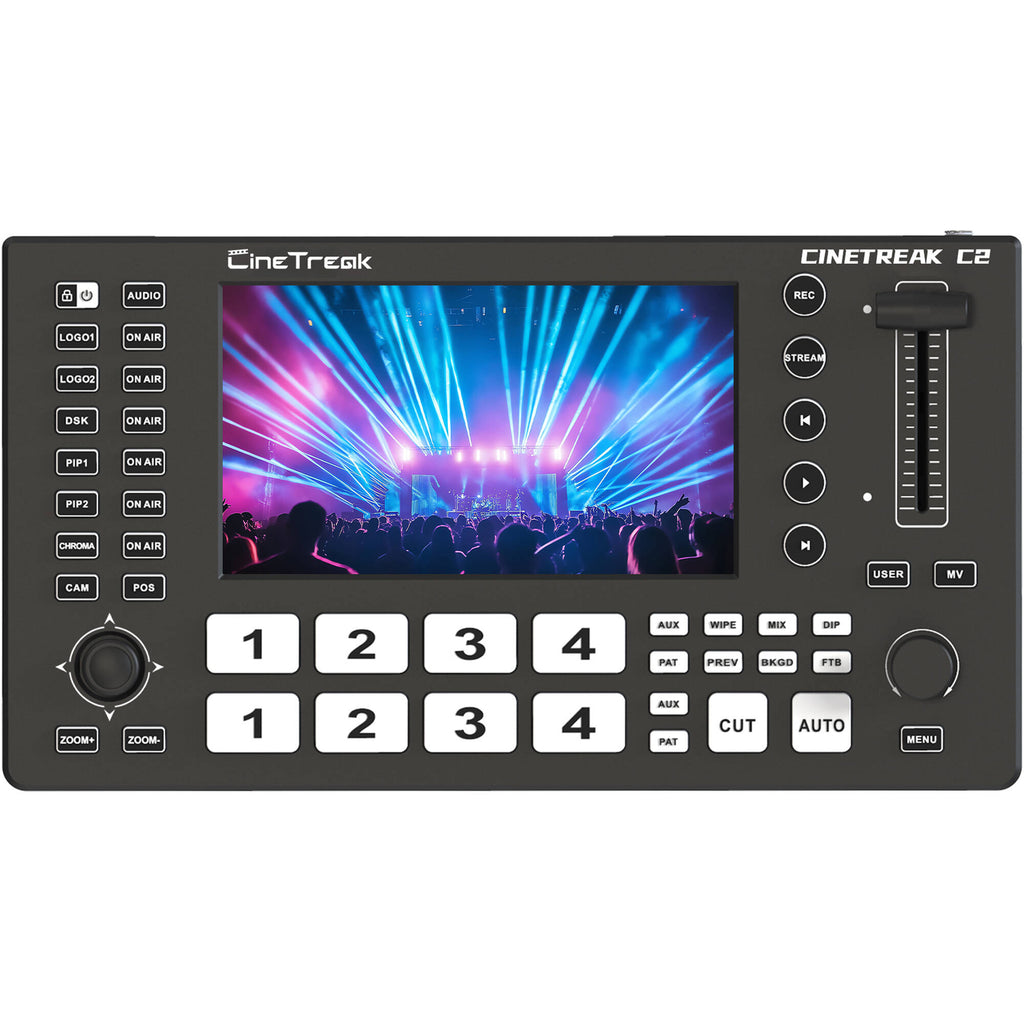

Professional broadcast and content creators can enhance their productions with intuitive multicamera switching using the C2 Video Switcher from CineTreak. The versatile, all-in-one live streaming switcher is equipped with one HDMI AUX output and four HDMI inputs. Boasting powerful recording and playback capabilities, the C2 offers downstreaming capabilities that allow for additional content to be handled from an online streaming code and an SD card. The unit integrates a 5.5" LCD screen and has a customized Meeting mode that allows users to display up to four image windows at the same time.

The switcher records high bit rate Full HD, H.264 files for regular and instantaneous playback, making it ideal for various applications in professional live production. Built-in PTZ camera control provides connectivity for up to four cameras using the VISCA protocol, and landscape and portrait modes allow for quick switching between 16:9 and 9:16 aspect ratios.

Picture-in-Picture and Picture-over-Picture (PiP/PoP) functionality is customizable and facilitates integration with luma and chroma-keying applications for virtual studio environments. The unit can simultaneously stream to two different RTMP destinations, while wireless IP control makes it possible to control the switcher from a computer, smartphone, or iPad. A 12V, 2A power adapter and a USB-A 3.0  cable are included.

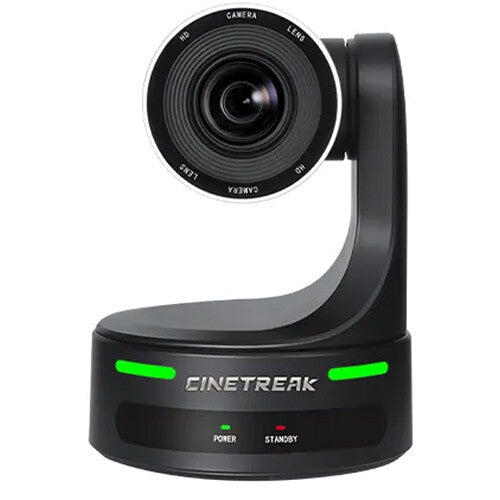

Add PTZ functionality with advanced AI human tracking to your educational, conferencing, or live broadcasting production arsenal with the CT-PT20 NDI PTZ Camera from CineTreak. Boasting a 20x optical zoom and a built-in Sony 1/2.8" STARVIS CMOS Sensor, the CT-PT20 NDI captures video up to 1080p60 resolution and outputs simultaneous Full HD 1080p video via its HDMI, SDI, and IP interfaces.

The camera can store up to 200 position presets, and it supports NDI|HX2, RTMP, RTSP, RTMPS, ONVIF, and SRT streaming protocols, as well as ONVIF, VISCA, VISCA over IP, Pelco D, and Pelco-P for control. It has a 3.5mm stereo line input and integrates 2D and 3D noise reduction for enhanced imaging. Power is provided via the included 12 VDC power adapter or PoE (Power over Ethernet).
