Description

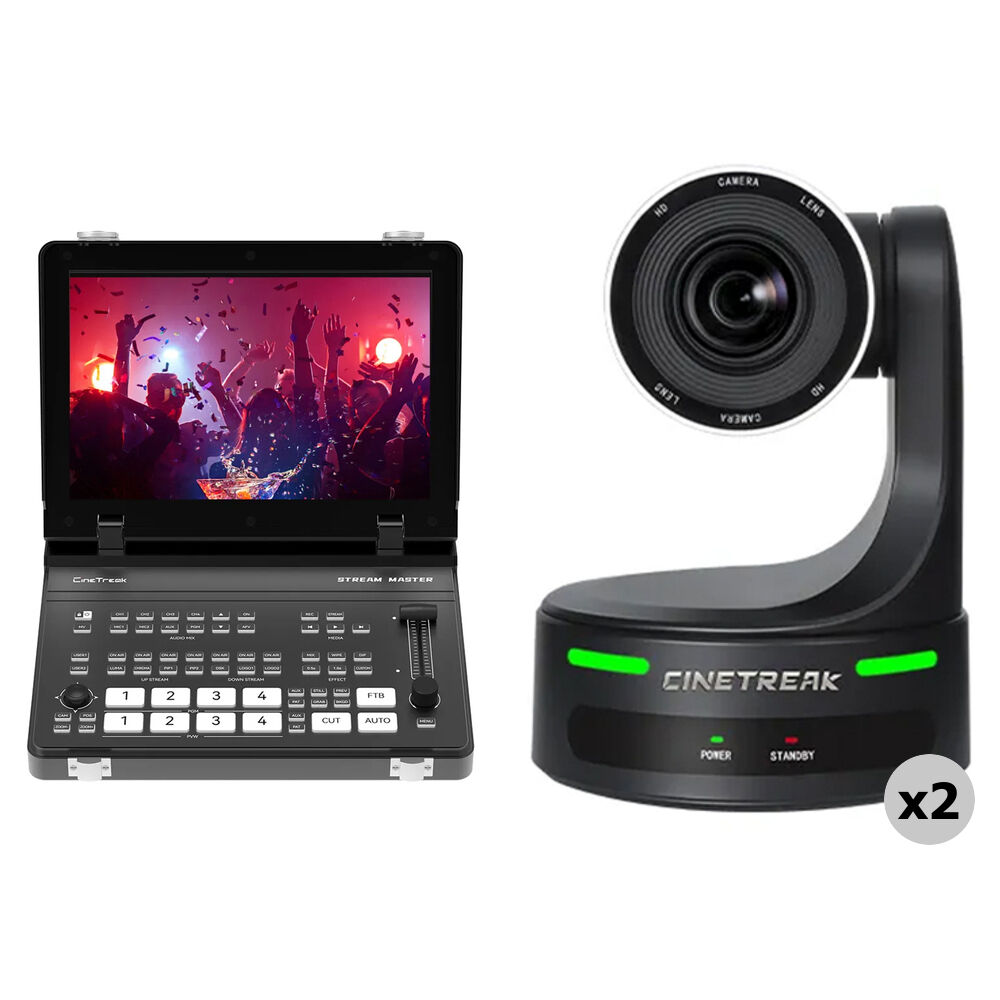

Add live streaming and switching to your field production with the CineTreak CT-PT20 NDI PTZ 2-Camera Kit with HDMI Field Video Switcher put together by . This kit includes a Stream Master video switcher with IP control, streaming, quad HDMI input, and integrated 10" display, as well as two CT-PT20 PTZ 20x optical zoom streaming cameras with SDI, HDMI, and IP/NDI streaming support.

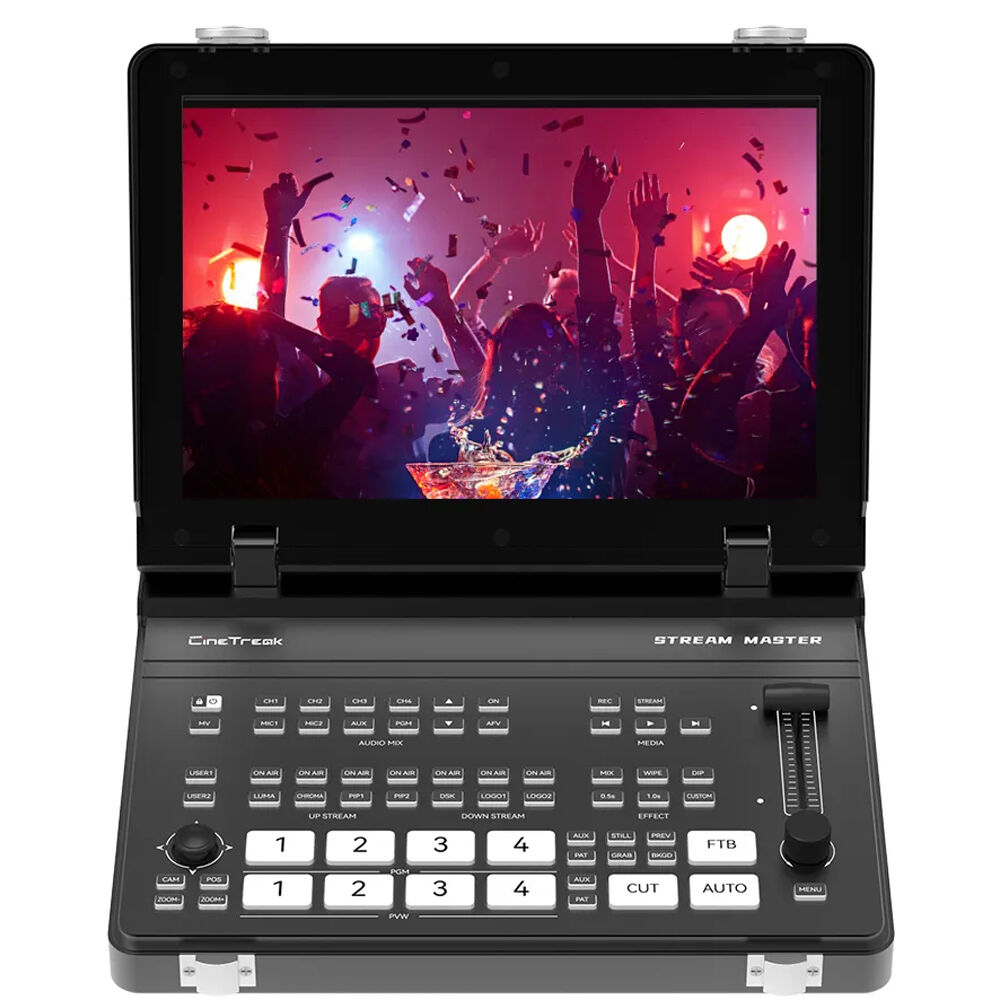

Professional broadcast and content creators can enhance their productions with intuitive multicamera switching using the Stream Master Video Switcher from CineTreak. The versatile, all-in-one live streaming switcher is equipped with four HDMI inputs, one HDMI PGM output, and one HDMI AUX output. Boasting powerful recording and playback capabilities, the unit offers downstreaming capabilities that allow for additional content to be handled from an online streaming code and an SD card. The Stream Master integrates a foldable 10" screen and has a customized Meeting mode that allows users to display up to four image windows at the same time.
The switcher records high bit rate Full HD files for regular and instantaneous playback, making it ideal for various applications in professional live production. Built-in PTZ camera control provides connectivity for up to four cameras using the VISCA protocol, and landscape and portrait modes allow for quick switching between 16:9 and 9:16 aspect ratios.
Picture-in-Picture and Picture-over-Picture (PiP/PoP) functionality is customizable and facilitates integration with luma and chroma-keying applications for virtual studio environments. The unit can simultaneously stream to two different RTMP destinations, while wireless IP control makes it possible to control the switcher from a computer, smartphone, or iPad. A 12V, 2A power adapter and a USB-A 3.0 cable are included.

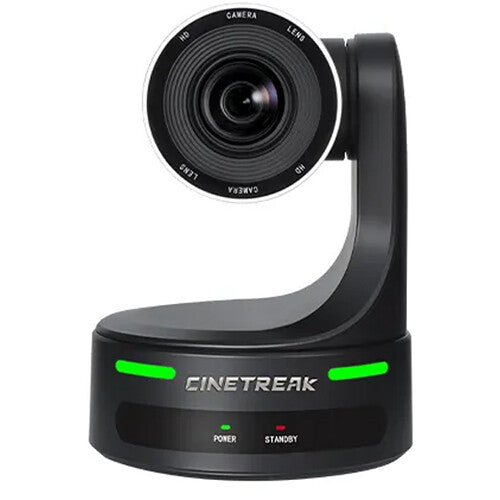

Add PTZ functionality with advanced AI human tracking to your educational, conferencing, or live broadcasting production arsenal with the CT-PT20 NDI PTZ Camera from CineTreak. Boasting a 20x optical zoom and a built-in Sony 1/2.8" STARVIS CMOS Sensor, the CT-PT20 NDI captures video up to 1080p60 resolution and outputs simultaneous Full HD 1080p video via its HDMI, SDI, and IP interfaces.
The camera can store up to 200 position presets, and it supports NDI|HX2, RTMP, RTSP, RTMPS, ONVIF, and SRT streaming protocols, as well as ONVIF, VISCA, VISCA over IP, Pelco D, and Pelco-P for control. It has a 3.5mm stereo line input and integrates 2D and 3D noise reduction for enhanced imaging. Power is provided via the included 12 VDC power adapter or PoE (Power over Ethernet).
Items Included
- CineTreak Stream Master Video Switcher
- 12V, 2A Power Adapter
- USB-A Cable (USB 3.0)
- Limited 1-Year Manufacturer Warranty
- 2 x CineTreak CT-PT20 NDI PTZ Camera with 20x Optical Zoom
- 12 VDC Power Adapter
- IR Remote Control
- RS-232C Cable
- HDMI Cable
- USB Cable
- Mounting Bracket
- Limited 1-Year Manufacturer Warranty
Additional Resources
CineTreak CT-PT20 NDI Specs
| Color Processing |
RGB
YUV |
| Video Inputs |
2x HDMI (2.0)
2x HDMI |
| Input Video Format |
HDMI
UHD 4K at 23.98/24/25/29.97/30/50/59.94 fps 1080p at 23.98/24/25/29.97/30/50/59.94 fps 1080i at 50/59.94 fps |
| Audio Inputs |
2x 1/8" / 3.5 mm TRS Stereo Line
|
| Video Outputs |
1x HDMI (Program)
1x HDMI (Preview) 1x USB-C (3.1) 1x RJ45 |
| Output Video Format |
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94 fps |
| Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo Line
|
| Embedded Audio Output |
HDMI
USB-C |
| Monitor Output |
1x HDMI
|
| IP Video |
H.264:
1920 x 1080 Encoding |
| Transport Protocols |
RTMP
|
| Compatible Services |
Facebook Live, Skype, Twitch, YouTube Live
|
| Wireless |
No
|
| Power I/O |
1x Barrel (7 to 24 VDC ) Input
|
| Power Consumption |
20 W
|
| Dimensions |
9.8 x 8.1 x 2.5" / 250 x 206 x 63 mm
|
| Weight |
4.4 lb / 2 kg
|
| Package Weight |
6.74 lb
|
| Box Dimensions (LxWxH) |
13.9 x 12.2 x 4.3"
|
