Description
Canon CR-N700 Overview
Testing Canon's CR-N500 & CR-N700 4K PTZ Cameras
Staff
Case Study: Video Destination (Canon PTZ CR-N700 Camera and Auto Tracking Application)

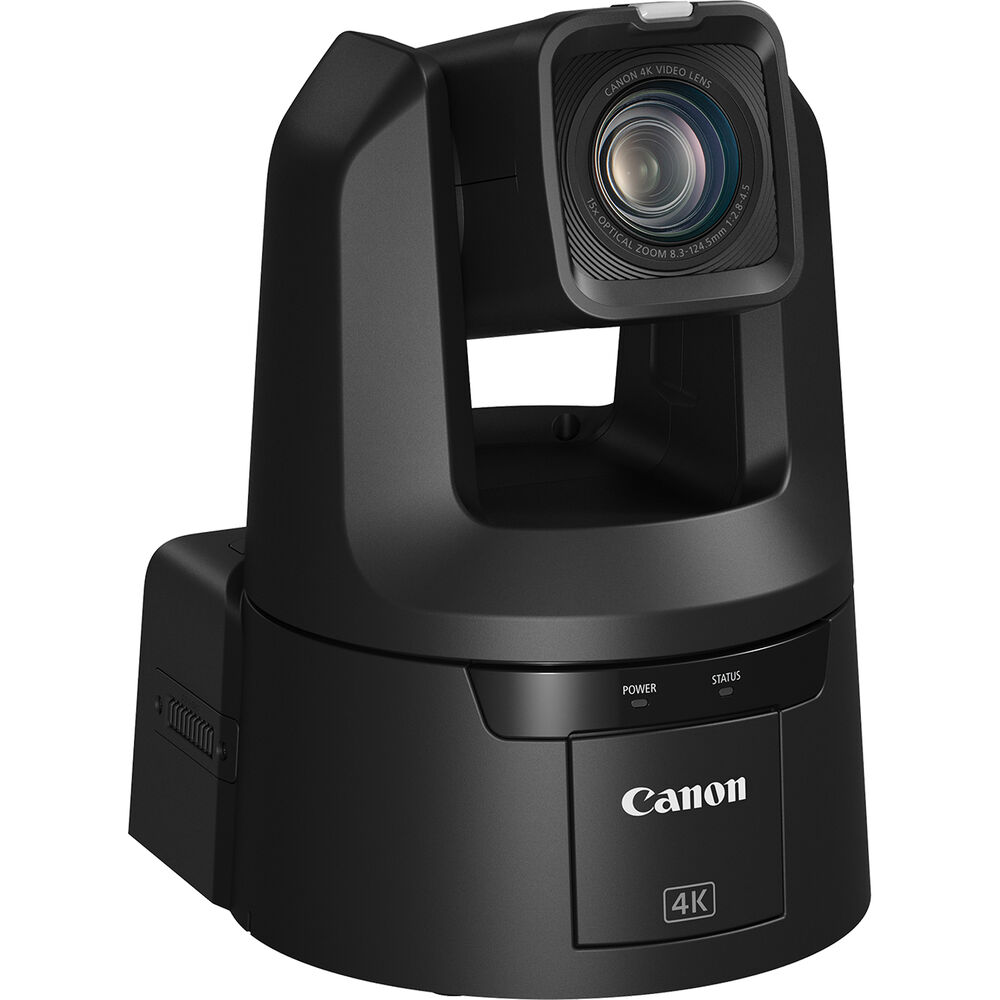

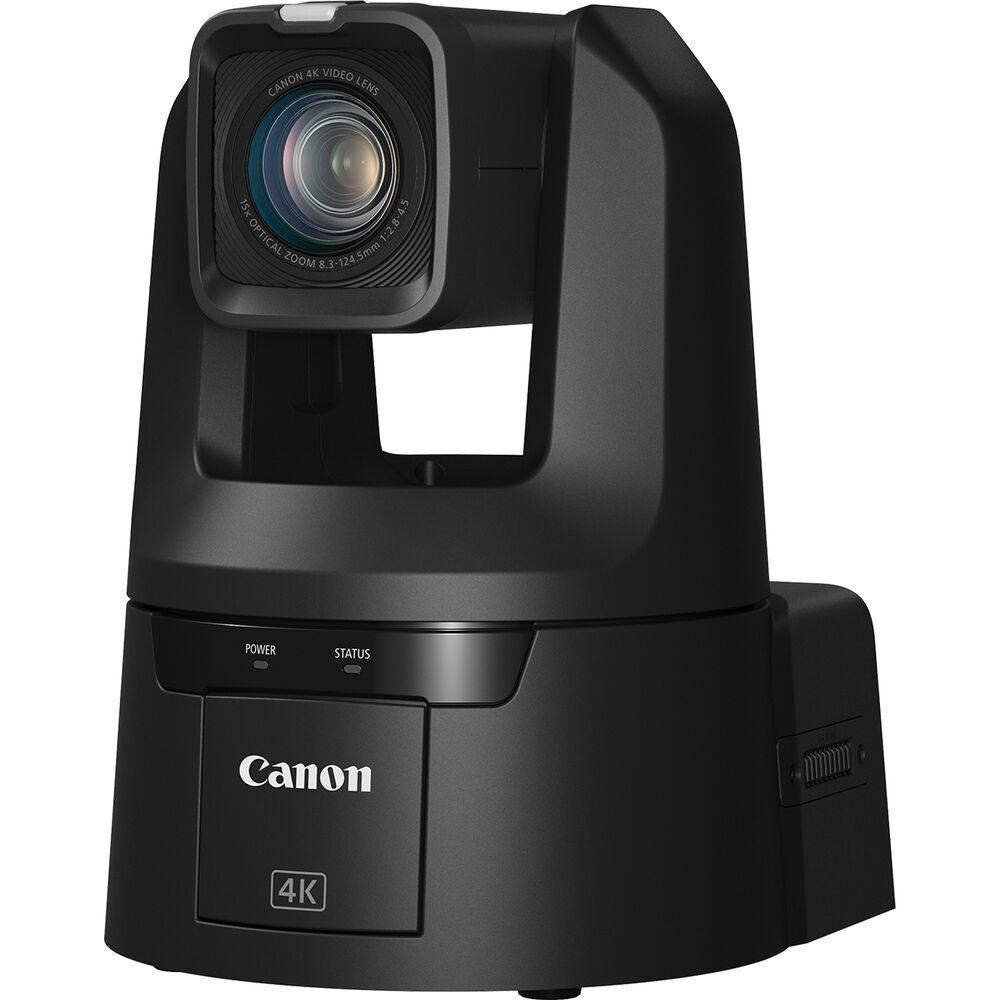

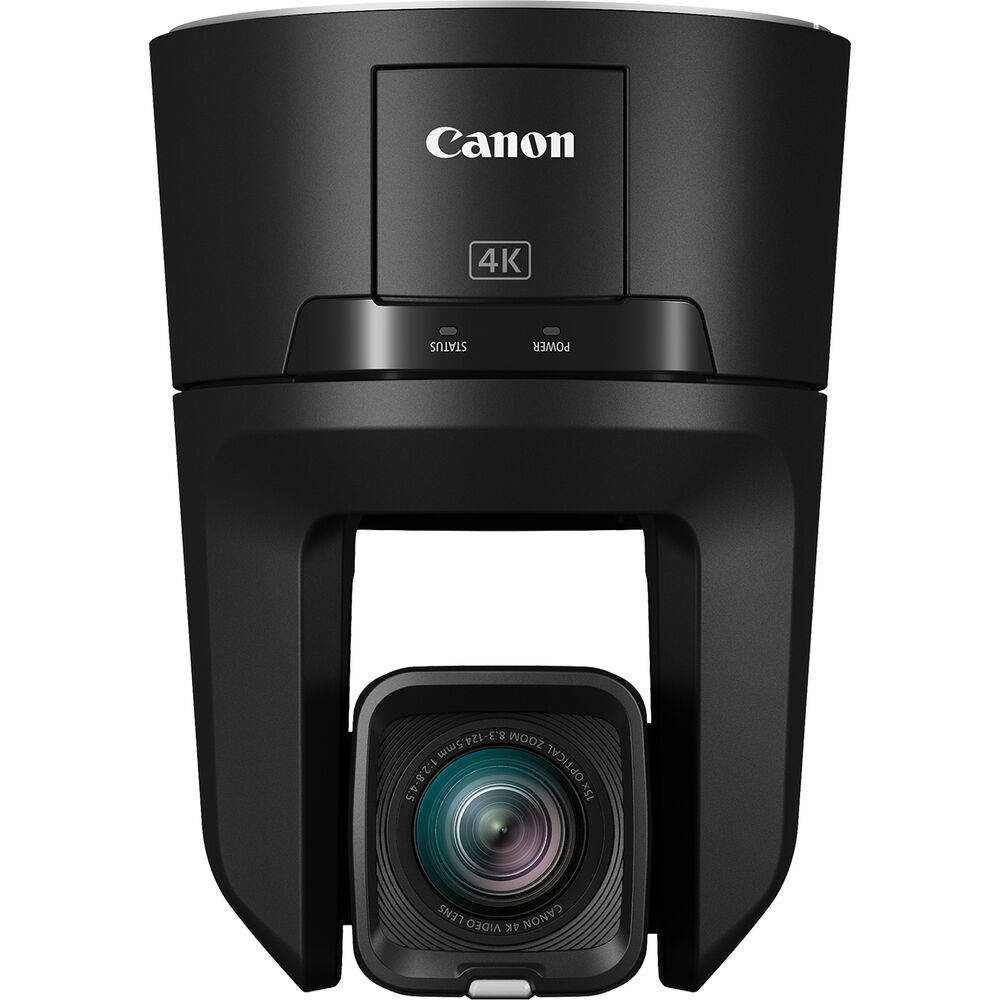

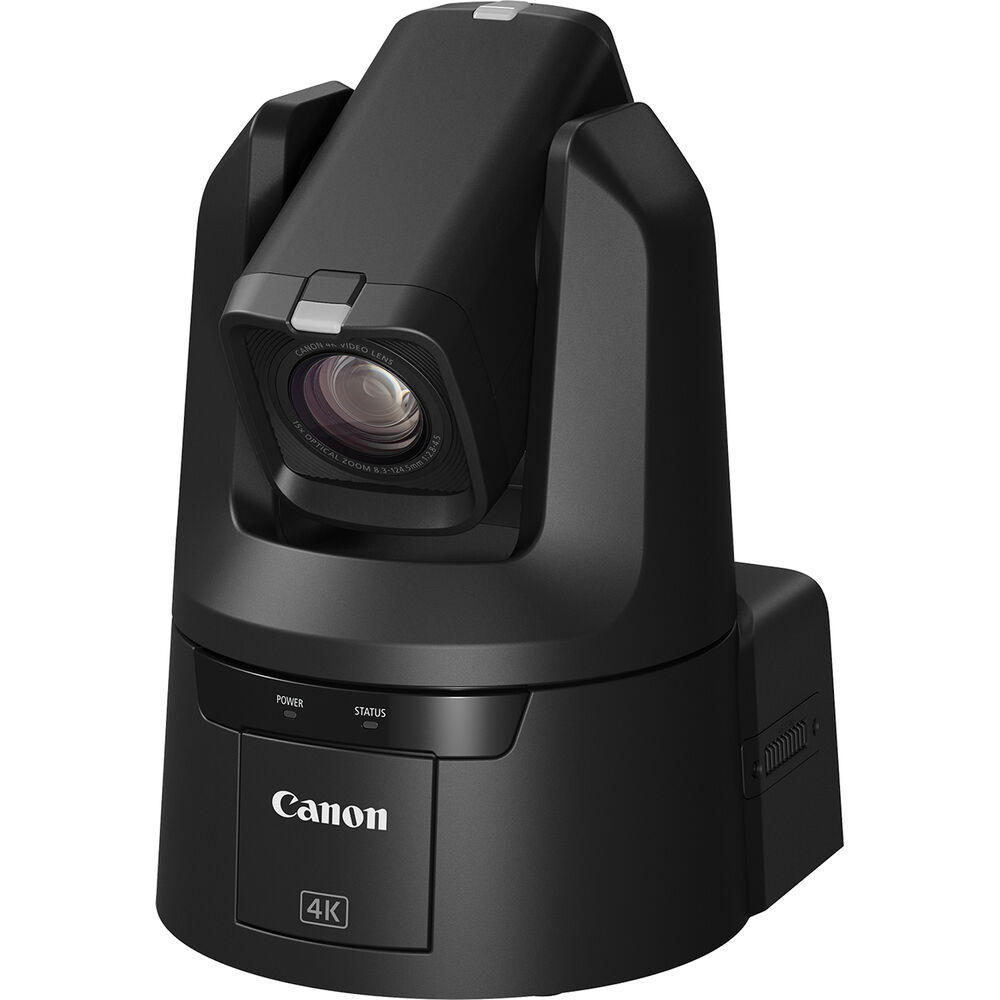

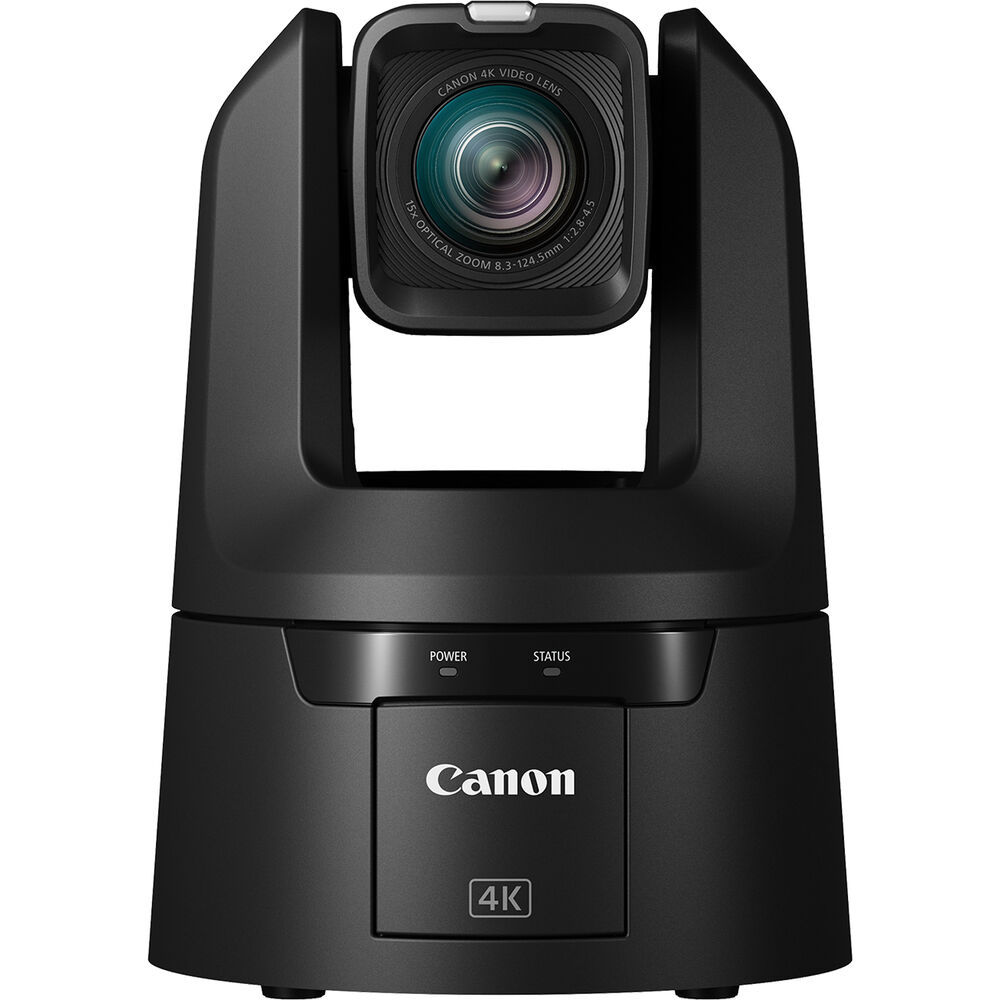

Capture exceptional 4K imaging in a PTZ form using the satin black CR-N700 4K PTZ Camera from Canon. Ideal for high-end broadcast, TV studio, and live event use, the compact CR-N700 supports up to UHD 4K60p 4:2:2 10-bit HDR video. The CR-N700 shares several features with high-resolution, cine-style Canon cameras like a 1" type CMOS sensor, a Canon DIG!C DV7 image processor, Dual Pixel CMOS AF with EOS iTR AF X (autofocus), and a 15x optical/20x digital zoom with a 30x Advanced Zoom in HD.
The CR-N700 PTZ camera's additional features include "deep learning" auto focus, 12G-SDI connectivity, flexible connectivity, and compatibility with multiple streaming and control protocols. Region of interest (ROI) crop capabilities enable you to highlight areas within your 4K image.
1" CMOS Sensor
The CR-N700 features a Canon 1" 4K CMOS image sensor that supports up to 4K60p 4:2:2 10-bit HDR image quality.
Canon DIG!C DV7 Processor
Incorporates Canon's DIG!C DV7 Image Processor for high image quality, advanced performance, and convenient operability. This advanced technology provides the image-processing power and speed that enables features such as 4K UHD video acquisition and precise Hybrid AF.
EOS iTR AF
Intelligent Tracking and Recognition Auto Focus (EOS iTR AF) helps the camera focus on faces, even when a subject turns to look away from the camera
Advanced Zoom Lens
Supported IP and control protocols include NDI|HX, SRT, FreeD, RTMP/RTMPS, RTP/RTSP, Canon XC, and Standard Communication options
The CR-N700 features a 15x optical/20x digital zoom with a 30x Advanced Zoom in HD that lets you get tight telephoto shots when getting closer physically isn't desired or possible
Multiple Protocol Support
UPC: 013803356151
Items Included
- Canon CR-N700 4K PTZ Camera with 15x Zoom (Satin Black)
- Ceiling Plate
- Ceiling Plate Screw
- Safety Cable
- Camera-to-Mount Safety Cable
- IR Remote Control
- Battery for Remote Control
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Firmware Updates
v1.0.0, Dec ' 23
Canon CR-N700 Specs
Key Specs
| Image Sensor |
1"-Type CMOS
|
| Sensor Resolution |
Actual: 13.4 Megapixel
Effective: 8.29 Megapixel |
| Shutter Speed |
1/3 to 1/2000 Second
|
| Optical Zoom Ratio |
15x
|
| Max Digital Zoom |
30x ( in 1080p)
|
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576i at 50 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
SRT/RTSP/RTP/RTMP/NDI|HX
3840 x 2160 at 29.97p, 25p, 23.98p, 59.94p, 50p |
| Supported Control Protocols |
FreeD
IP IR NDI VISCA |
| PoE Support |
PoE++ 802.3bt
|
| Mounting |
6x M3 Female
|
Imaging
| Image Sensor |
1"-Type CMOS
|
| Sensor Resolution |
Actual: 13.4 Megapixel
Effective: 8.29 Megapixel |
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/3 to 1/2000 Second
|
| ISO/Gain Sensitivity |
Gain: -6 to 36 dB dB
|
| Minimum Illumination |
3 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: AWB, Auto
Range: 3200 to 5600K |
Lens
| Focal Length |
8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
|
| Optical Zoom Ratio |
15x
|
| Max Digital Zoom |
30x ( in 1080p)
|
| Field of View |
Horizontal: 73 to 5.7°
Vertical: 45.2 to 3.2° |
| Maximum Aperture |
f/2.8 to 4.5
|
| Minimum Focus Distance |
2' / 60 cm
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI
3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576i at 50 fps |
| Embedded Audio |
HDMI/SDI
|
| Broadcast Output |
NTSC
|
| IP Streaming |
SRT/RTSP/RTP/RTMP/NDI|HX
3840 x 2160 at 29.97p, 25p, 23.98p, 59.94p, 50p |
Control
| Presets |
100
|
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-30 to 90°) at 0.1 to 100°/s |
| Tally Light |
Yes
|
| Supported Control Protocols |
FreeD
IP IR NDI VISCA |

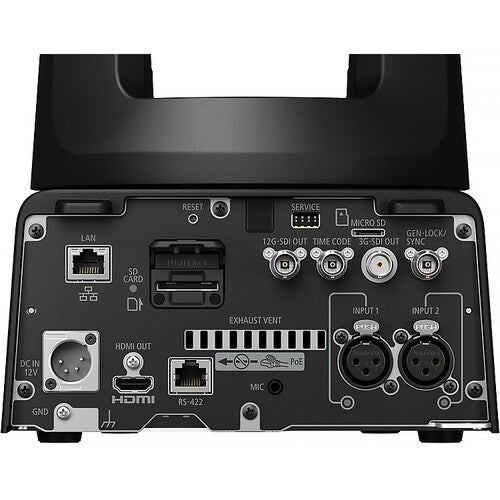

Interface
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
Single Slot: microSD (Unspecified Type) |
| Video I/O |
1x BNC (3G-SDI) Output
1x BNC (12G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Audio I/O |
2x XLR 3-Pin Input
|
| Other I/O |
1x RJ45 (RS-422) Control
1x RJ45 (LAN) 1x BNC (Genlock) |
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x XLR 4-Pin (12VDC)
|
| Power Consumption |
PoE: 1.2 A (37.4 W)
Power Supply: 3.5 A (36.7 W) |
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
General
| Mounting |
6x M3 Female
|
| Dimensions (W x H x D) |
7.9 x 10.6 x 8.2" / 200 x 269 x 208 mm
|
| Weight |
9.7 lb / 4.4 kg (Body Only)
|
Packaging Info
| Package Weight |
15.9 lb
|
| Box Dimensions (LxWxH) |
18.6 x 15.3 x 14.6"
|
