Description

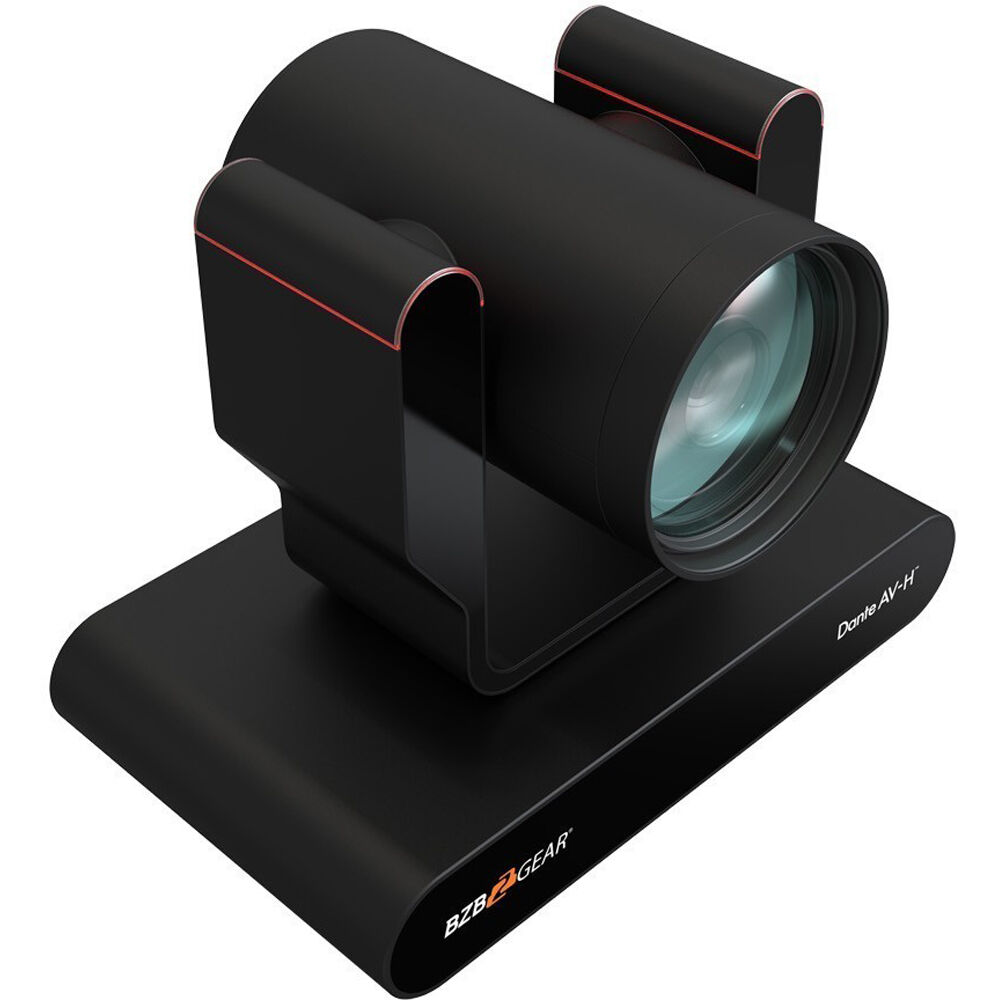

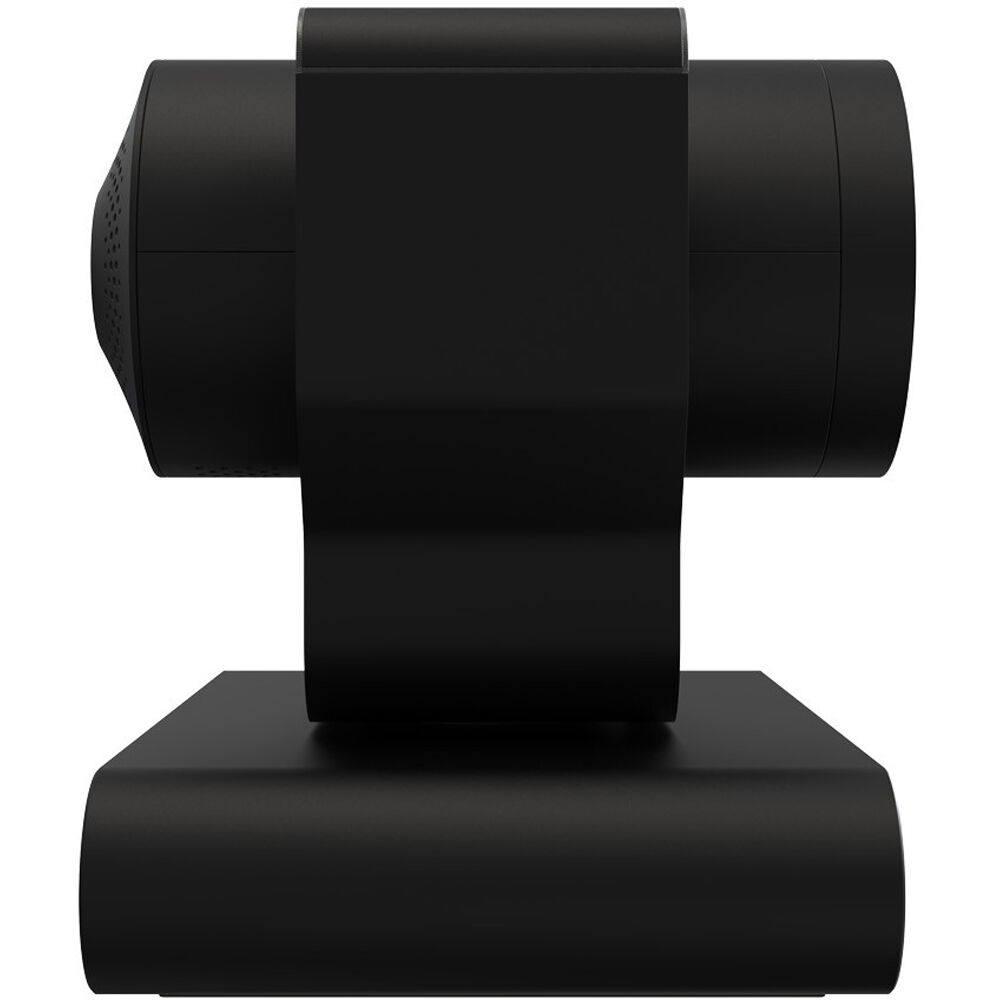

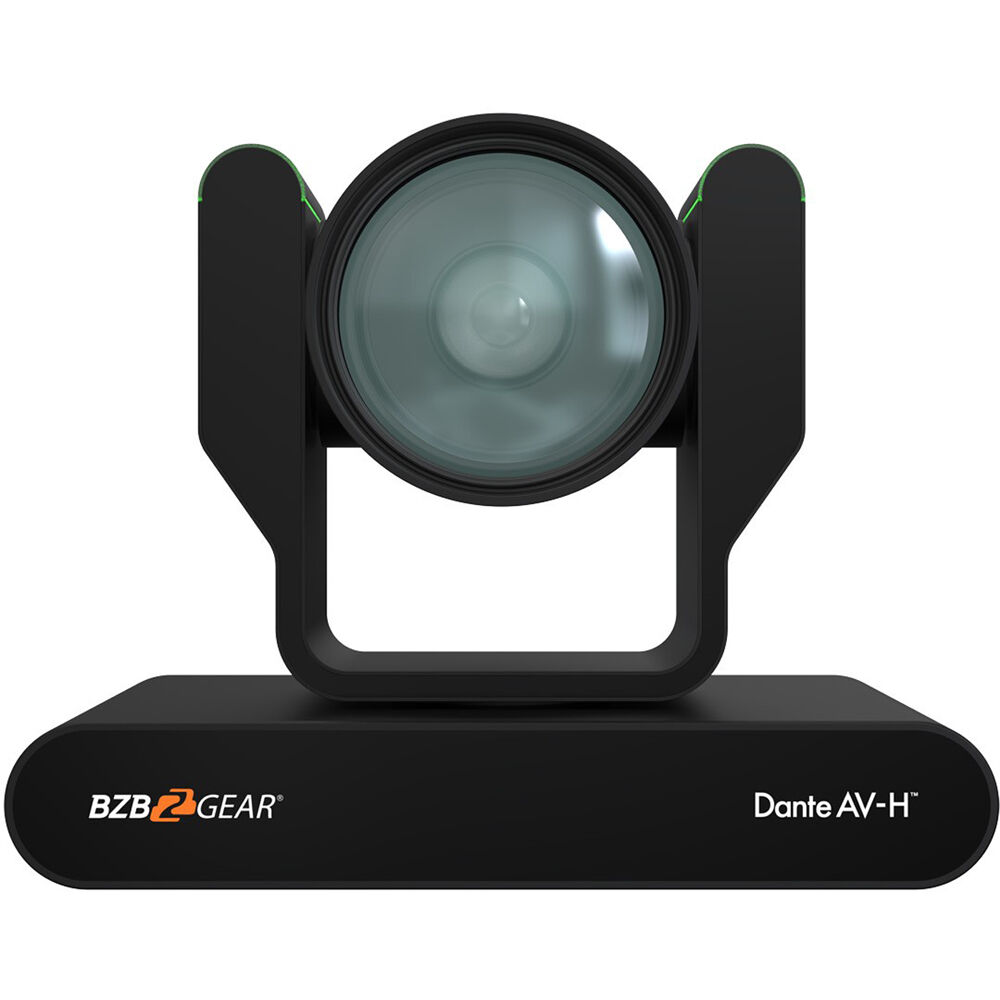

BZBGEAR BG-ADAMO-4KDA 12X Overview
Capture high-resolution UHD 4K imagery in your conference room, event space, or house of worship with the 4K PTZ Auto-Tracking/Live Streaming Camera with Tally & 12x Zoom from BZBGear. This camera features a 1/2.5" Sony 4K CMOS sensor, a 12x optical zoom, accurate autofocus, and simultaneous output via HDMI, 12G-SDI, USB 3.0, USB 2.0, and IP streaming with Dante AV-H support. Dante AV-H allows you to stream audio and video signals over a Dante network, providing high-compression, low-bandwidth streams. You can embed analog audio into your video using the 3.5mm audio input.
You can record the camera's capture up to 4K resolution onto an optional microSD card up to 1TB. The camera features LED tally lights to indicate the camera is on or idle. The camera supports PoE (Power-over-Ethernet), so it can be controlled, powered, and can stream over one connector. It also supports RS-232 and RS-422 serial control using a separately available serial controller.
Dante AV-H Support
Dante AV-H technology enables users to stream their camera footage over a local area network with a single ethernet cable using H.265/264 compression, YUV 4:4:4 color, and low latency
Image Capture
12x optical zoom lens
UHD 4K60 resolutions provide fluid motion, clear image, and accurate colors
Sharp Focus
Autofocusing algorithms resulting in quick, accurate, and stable focus
Control Options
Web interface control via the IP address with camera preview access
IR remote control
Supports IP and serial control protocols (VISCA IP, ONVIF and Pelco-P/D, VISCA)
Free BG-PTZ-Control app/program for macOS and Windows
Streaming and I/O
Supports RTSP, RTMP, RTMPS, ONVIF, and GB/T28181
12G-SDI, HDMI, USB 2.0/3.0, Dante AV-H, LAN / Power over Ethernet
H.264/H.265 video compression formats provide excellent image quality
3.5mm input for embedding audio into your live stream
Applications
Compatible with live streaming software and online platforms such as vMix, Wirecast, Echo360, Zoom, Skype, Meet, GoToMeeting, YouTube, Facebook, Linkedin, Instagram, Twitter, Twitch, and more
UPC: 850033687545
Items Included

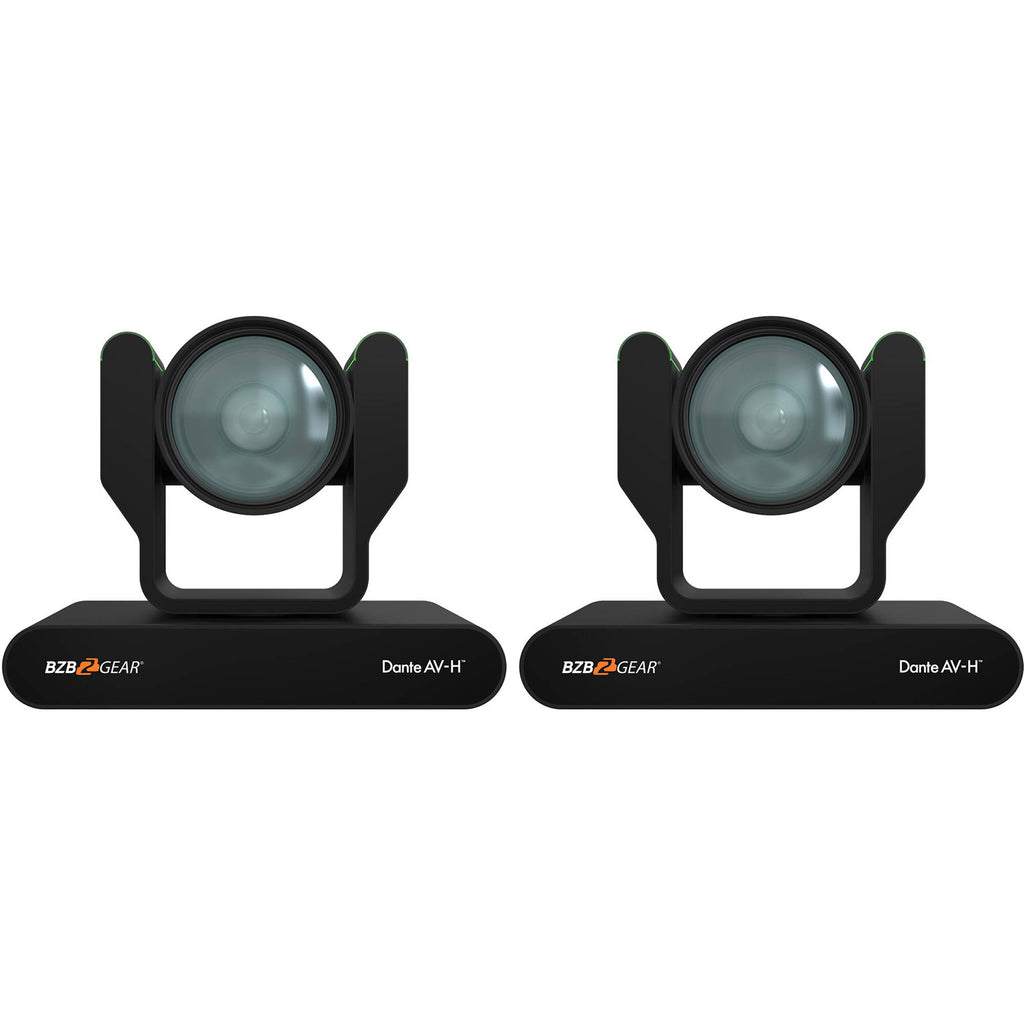

- 2 x BZBGEAR 4K PTZ Auto-Tracking/Live Streaming Camera with Tally & 12x Zoom (Black)
- IR Remote Control
- Power Adapter
Additional Resources
Guides & Manuals
BZBGEAR BG-ADAMO-4KDA 12X Specs
Key Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Max Optical Zoom |
12x
|
| Video Output |
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 640 x 480p at 29.97 fps 800 x 448 at 29.97 fps 640 x 360 at 29.97 fps 432 x 240 at 29.97 fps 320 x 176 at 29.97 fps |
| Broadcast Output |
NTSC
|
| Wireless |
IR
|
| PoE Support |
PoE 802.3af
|
| Mounting |
1x 1/4"-20 Female for Bracket
|
Imaging
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 3000 to 7000K
Presets: Auto, Manual, One Push |
Lens
| Focal Length |
3.8 to 43mm
|
| Max Optical Zoom |
12x
|
| Field of View |
Horizontal: 80.4 to 7.59?
Vertical: 50 to 4.6? |
| Maximum Aperture |
f/1.8 to 3.56
|
Video Capture
| Video Output |
SDI/BNC / HDMI
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 640 x 480p at 29.97 fps 800 x 448 at 29.97 fps 640 x 360 at 29.97 fps 432 x 240 at 29.97 fps 320 x 176 at 29.97 fps |
| Embedded Audio |
1/8" / 3.5mm TRRS A/V Input
|
| Broadcast Output |
NTSC
|
Control
| Presets |
255 via IP, RS-232, VISCA
10 via IR |
| Pan/Tilt |
Pan: 340? (-170 to 170?) at 0.1 to 120?/s
Tilt: 120? (-30 to 90?) at 0.1 to 80?/s |
| Tally Light |
Yes
|
Networking
| Wireless |
IR
|
Interface
| Media/Memory Card Slot |
Single Slot: microSDXC Only
|

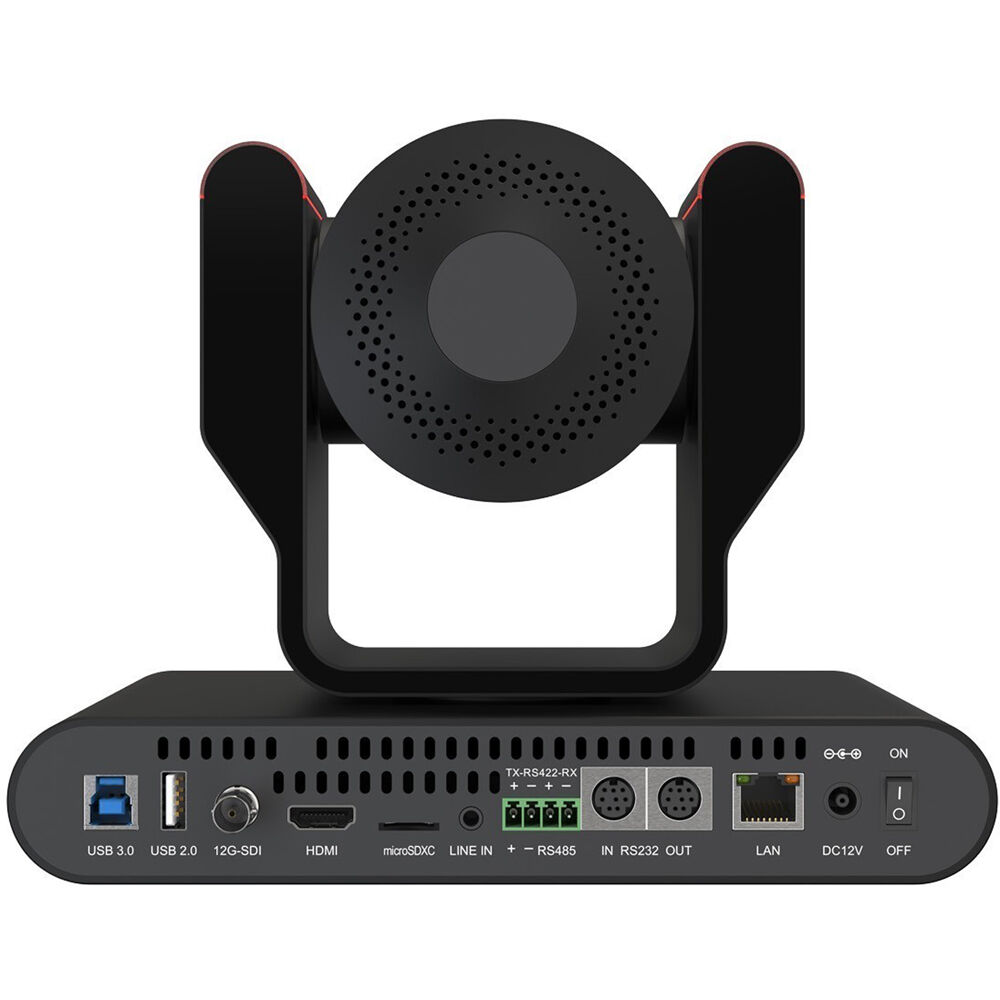

| Video I/O |
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1x USB-A 2.0 Output 1x HDMI Output 1x BNC (12G-SDI) Output 1x RJ45 (Dante) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Block (RS-422, RS-485) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output |
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC at 2.5 A) Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
|
Environmental
| Operating Conditions |
14 to 122?F / -10 to 50?C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140?F / -10 to 60?C at 20 to 95% Humidity
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General

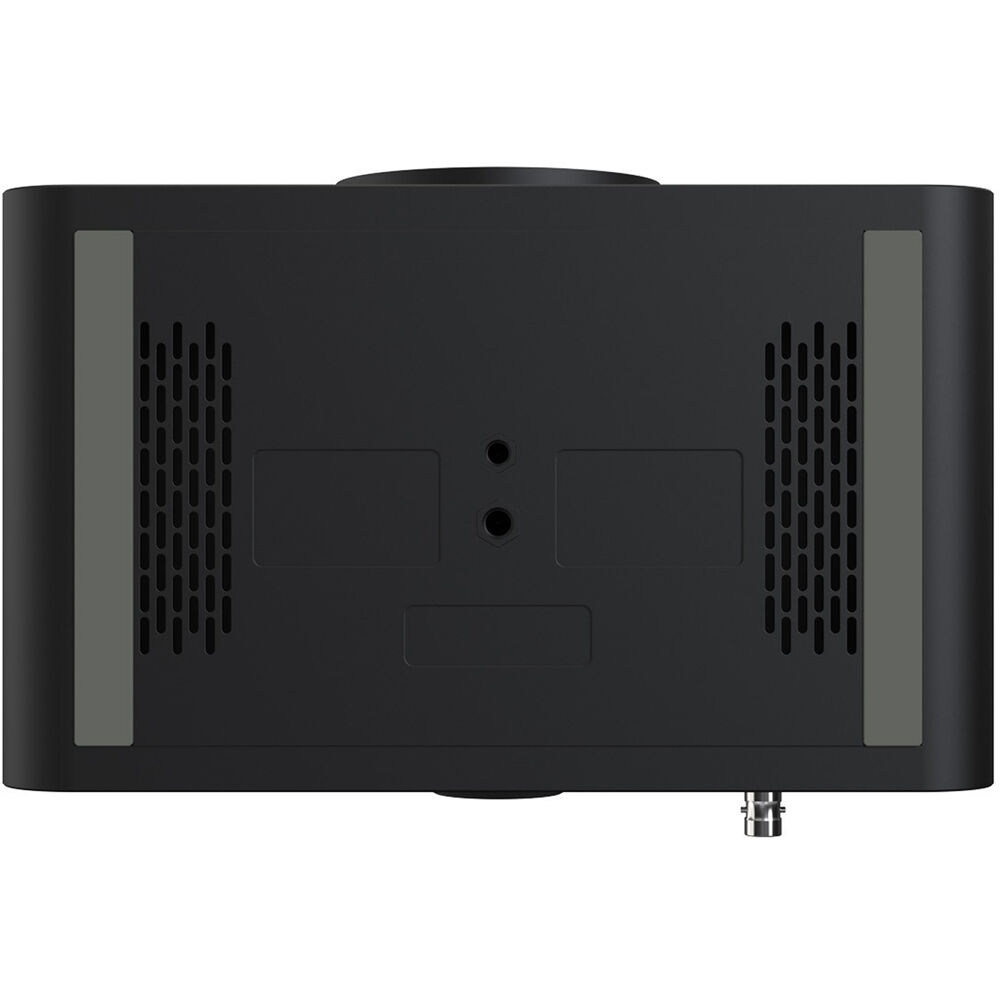

| Mounting |
1x 1/4"-20 Female for Bracket
|
| OS Compatibility |
Computer: Windows / macOS 11 or Later
Mobile: iOS Only |
| Dimensions (W x H x D) |
8.7 x 7 x 5.9" / 220 x 177.5 x 150.2 mm
|
| Weight |
4 lb / 1.8 kg (Body Only)
|
Packaging Info
| Package Weight |
7.595 lb
|
| Box Dimensions (LxWxH) |
11.2 x 10.1 x 9.4"
|
