Description
BirdDog X5 Ultra Overview

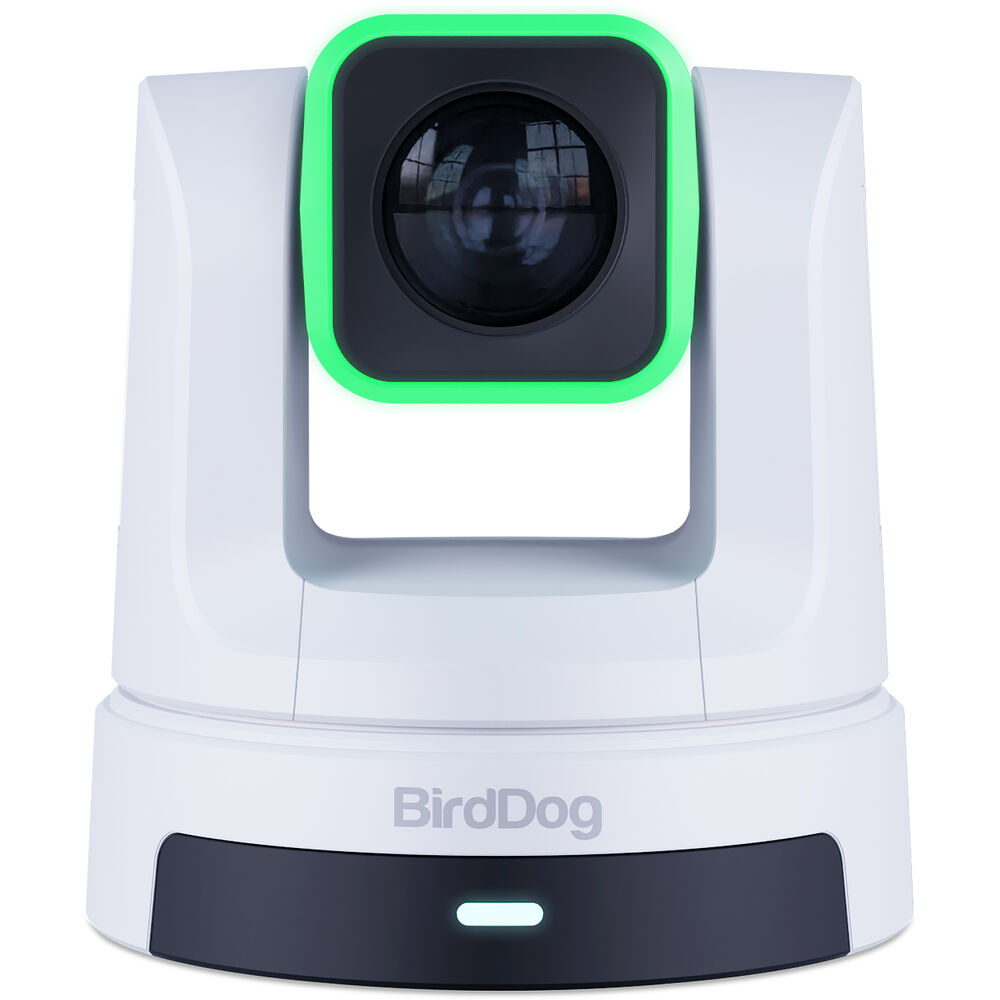

BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (White)
Update your production to 4K and keep your subjects in frame with AI auto framing using this white
BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom. The X5 Ultra updates the X1 with 12G-SDI and HDMI 2.0 outputs for up to UHD 4K60 capture, Gigabit Ethernet, and PoE+ support as well as two 2.983" E-Ink displays. With a powerful 20x zoom and color matrix, the versatile X5 Ultra offers high-quality, low-light performance and support for NDI|HX3.
Integrated NDI Decoder
The camera features an NDI|HX decoder designed specifically for monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, simplifying how you interface with your equipment.
AI Tracking
Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.
Connectivity Options
The X5 Ultra features 12G-SDI output, dual HDMI outputs, and support for multiple network formats, including NDI|HX3, SRT, RTMP and RTSP, and webcam connectivity over USB-C with UVC 1.1 support.
4K60 NDI|HX3 Integration
The X5 Ultra delivers superior network performance via integrated NDI|HX3. Reduce network impact while maintaining high-quality imagery across all video resolutions. NDI|HX2 is also supported in alternate resolutions.
Built-In Halo Tally Light
A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep your audience engaged and your look polished.
E-Ink Label
The dual, always-on e-ink label displays on the X5 Ultra allow easy access to controls and customizable logos to complement your brand image. This cool feature ensures that your setup is clear and that each camera is easily identifiable, even when the power is off.
BirdUI Advanced Features
BirdUI gives you access to every function of your X5 Ultra with an intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra. There is also a dashboard for monitoring the camera and light/dark modes to suit your production environment.

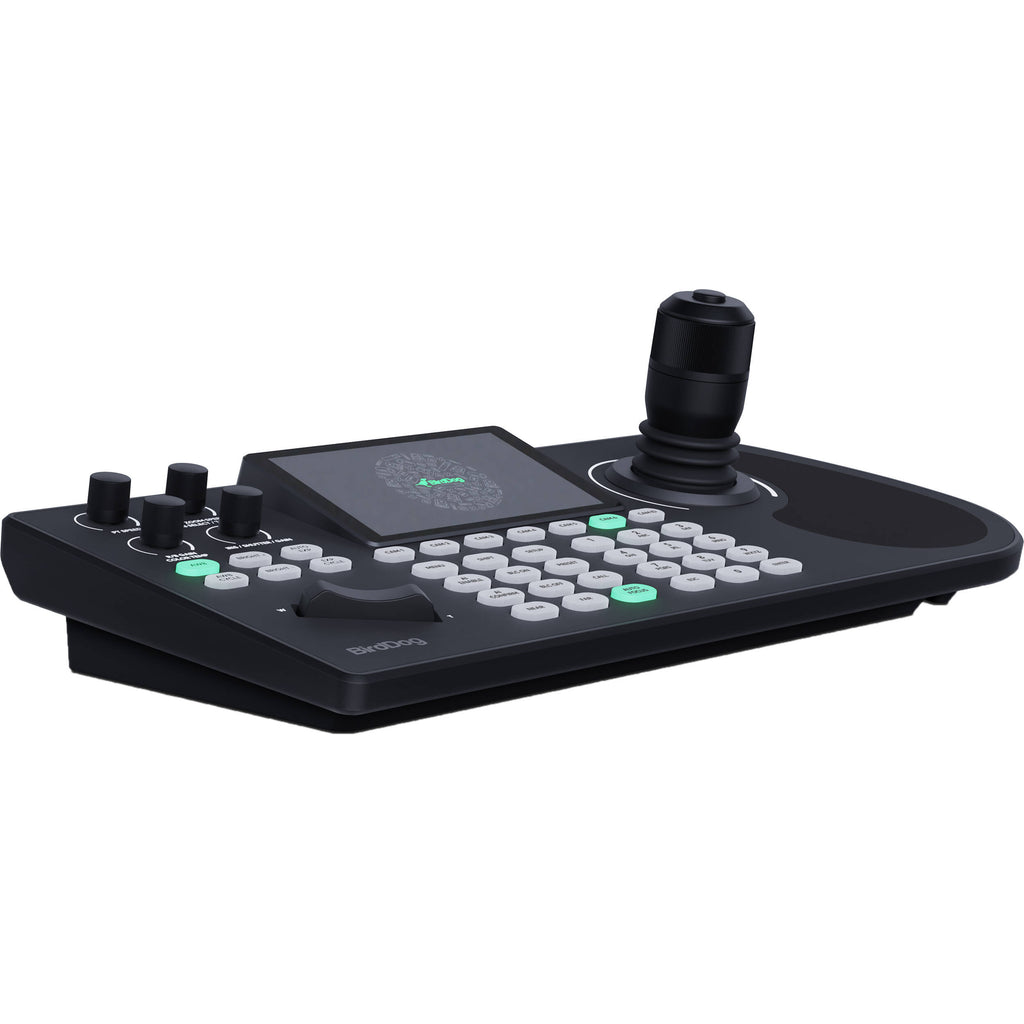

BirdDog KBD PTZ Controller with Integrated Screen
Control your PTZ multicamera setup and monitor up to four cameras simultaneously with the KBD PTZ Controller with Integrated Screen from BirdDog. Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the KDP boasts a rugged, ergonomic design with a large 1280 x 720 display to allow you to quickly pair and switch cameras with a single keystroke.
The new Effortless Camera Settings Sync function enables you to easily copy settings from one X-series device to another, and the integrated tally borders facilitate live switching with optional TriCaster or vMix platforms. The KDP offers NDI|HX2 and NDI|HX3 support as well as VISCA-IP, ONVIF, RS-232, and RS-422 for smooth workflow versatility. Balancing power, operational comfort, and eco-friendly innovation, the KDP is the ideal companion for studio production, live events, and mobile program acquisition applications.
All-Day Operational Comfort
Rugged, ergonomic design with a hand-rest area and tactile controls for seamless, extended use.
Expanded Screen Control
Monitor up to four cameras simultaneously or focus on one in full-screen mode. Pair and switch cameras with a single keystroke.
Super-Fine Control Mode
Fine-tune Mode provides 10x joystick sensitivity for precise on-air framing.
Streamlined Access
Access essential functions like pairing, switching, and setup instantly for a smooth, user-friendly experience.
Affordable Innovation
Refined through user insights, the KDP offers precision, comfort, and an eco-conscious design at an affordable price point.
Items Included

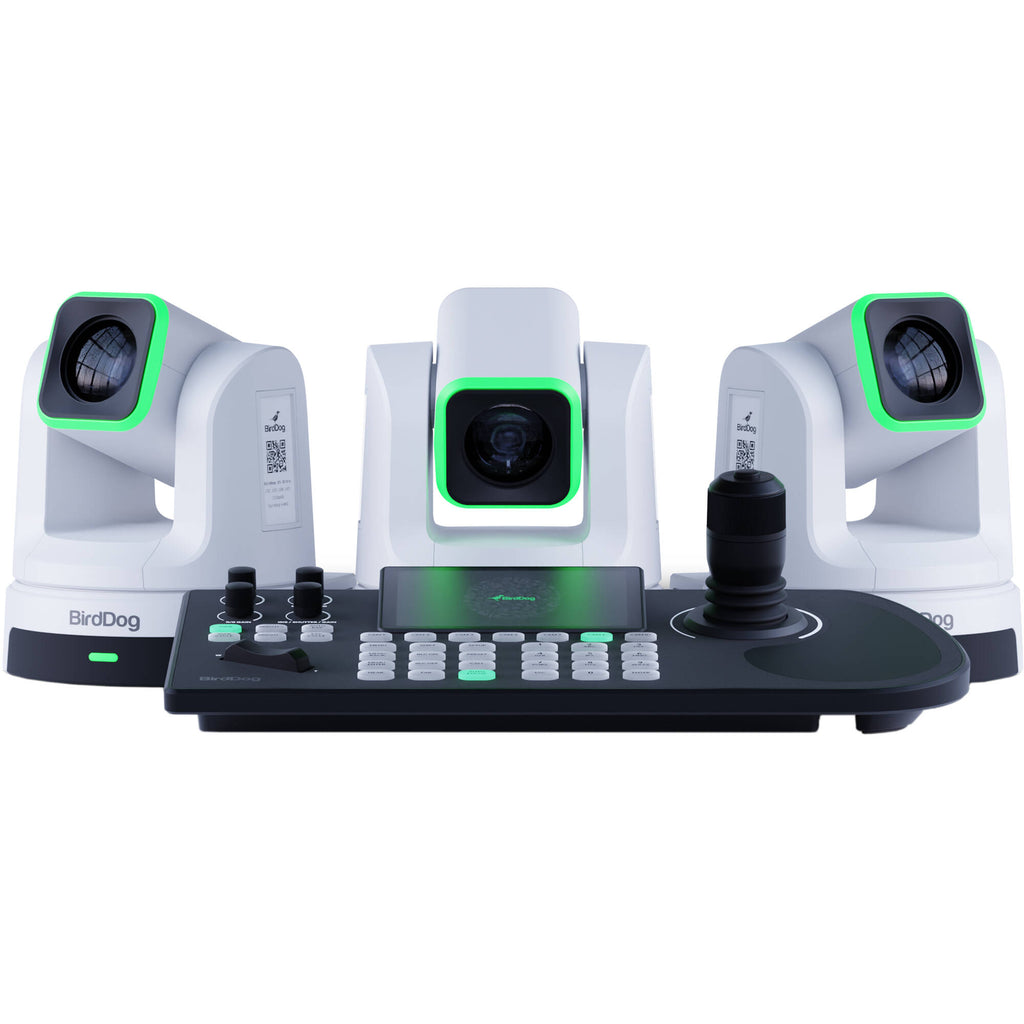

- 3 x BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (White)
- IR Remote Controller
- 12 VDC Power Supply
- USB-C Cable (5.9')
- Limited 5-Year Manufacturer Warranty
- BirdDog KBD PTZ Controller with Integrated Screen
- Limited 5-Year Manufacturer Warranty
Additional Resources
Kit Contains:
![BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (White)]()
![BirdDog KBD PTZ Controller with Integrated Screen]()
BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (White)
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.46 Megapixel (3840 x 2160)
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/H.265 via SRT/RTSP/RTMP/NDI|HX3
1920 x 1080 at 30p, 29.97p, 25p, 60p, 59.94p, 50p 1280 x 720 at 60p, 59.94p, 50p |
| Supported Control Protocols |
IP
NDI RS-232 RS-422 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Mounting |
1x 1/4"-20 Female for Bracket/Tripod
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.46 Megapixel (3840 x 2160)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Precise Scan Rate Control |
No
|
| Signal-to-Noise Ratio |
50 dB
|
Lens
| Focal Length |
5.4 to 104mm
|
| Optical Zoom Ratio |
20x
|
| Field of View |
Horizontal: 56.6 to 3°
Vertical: 32.5 to 1.7° Diagonal: 64.7 to 3.5° |
| Maximum Aperture |
f/1.6 to 3.6
|
Video Capture
| External Recording Modes |
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/H.265 via SRT/RTSP/RTMP/NDI|HX3
1920 x 1080 at 30p, 29.97p, 25p, 60p, 59.94p, 50p 1280 x 720 at 60p, 59.94p, 50p |
Control
| Presets |
128
|
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 0.1 to 200°/s
Tilt: 120° (-30 to 90°) at 0.1 to 200°/s |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
NDI RS-232 RS-422 VISCA |
Interface
| Video I/O |
1x HDMI 2.0 Output
1x HDMI 1.4 Output 1x BNC (12G-SDI) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Input/Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x RJ45 (RS-232, RS-422, VISCA)
|
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC up to 2 A) Input
|
| Power Consumption |
Device: 18 W
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
General
| Mounting |
1x 1/4"-20 Female for Bracket/Tripod
|
| Dimensions (W x H x D) |
7.9 x 7.3 x 6.8" / 200.9 x 185.7 x 171.9 mm
|
| Weight |
5.09 lb / 2.31 kg (Body Only)
|
Packaging Info
| Package Weight |
8.335 lb
|
| Box Dimensions (LxWxH) |
10.9 x 10.8 x 9.8"
|
