Description
BirdDog X1 Ultra Overview

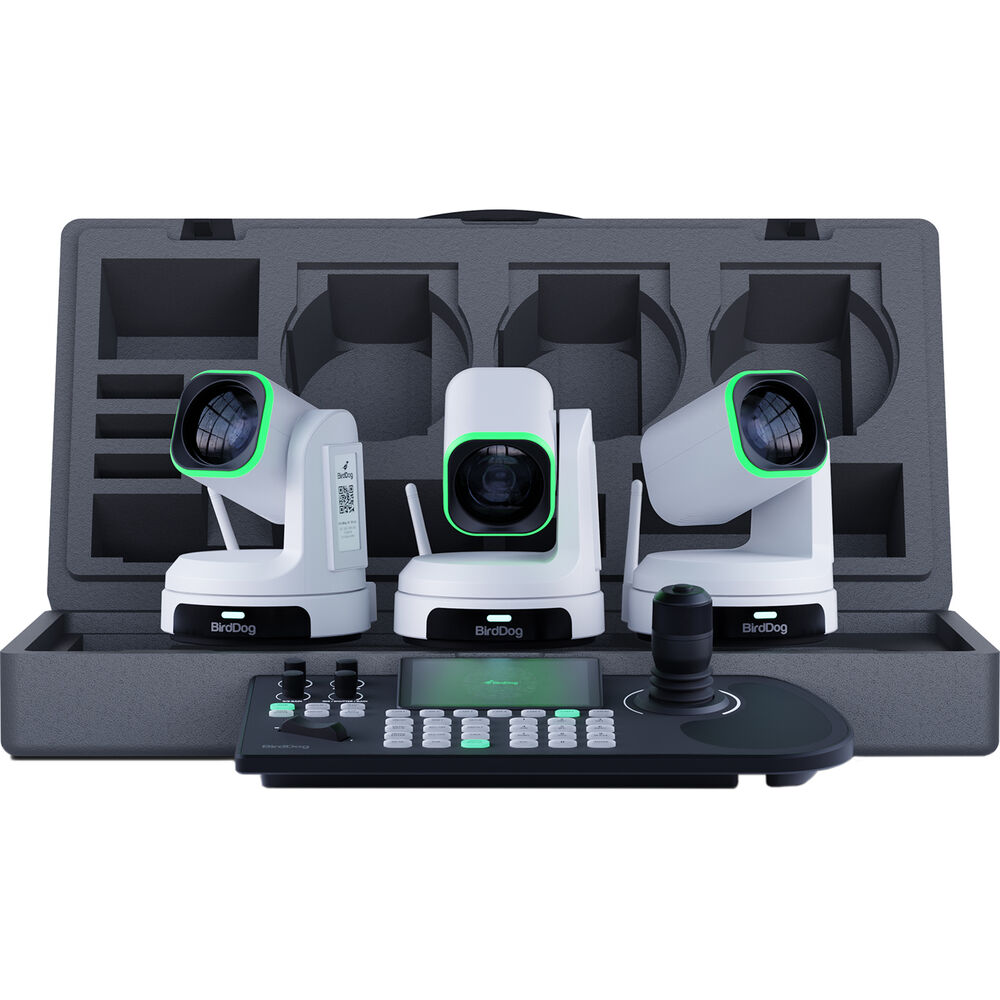

Add a multicamera PTZ system to your production kit with this 3 x X1 Ultra PTZ Cameras & KBD PTZ Controller Bundle from BirdDog. This complete PTZ capture and streaming solution includes three X1 Ultra PTZ cameras and a KBD PTZ controller.
Capture UHD 4K30 resolution video and keep your subjects in frame with AI auto framing using this white X1 Ultra PTZ Camera with 12x Zoom from BirdDog. Boasting a powerful 12x zoom as well as color matrix, API, and Kelvin control, the versatile X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.
Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

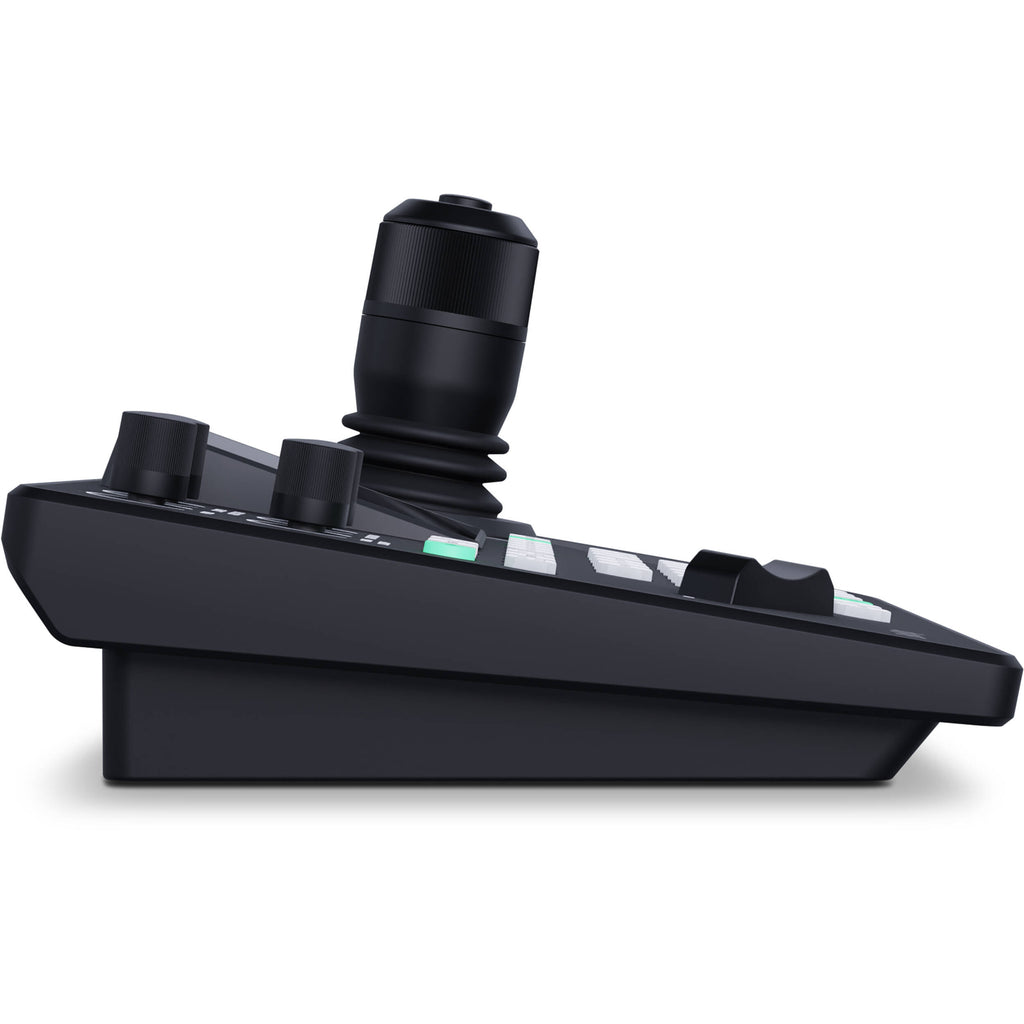

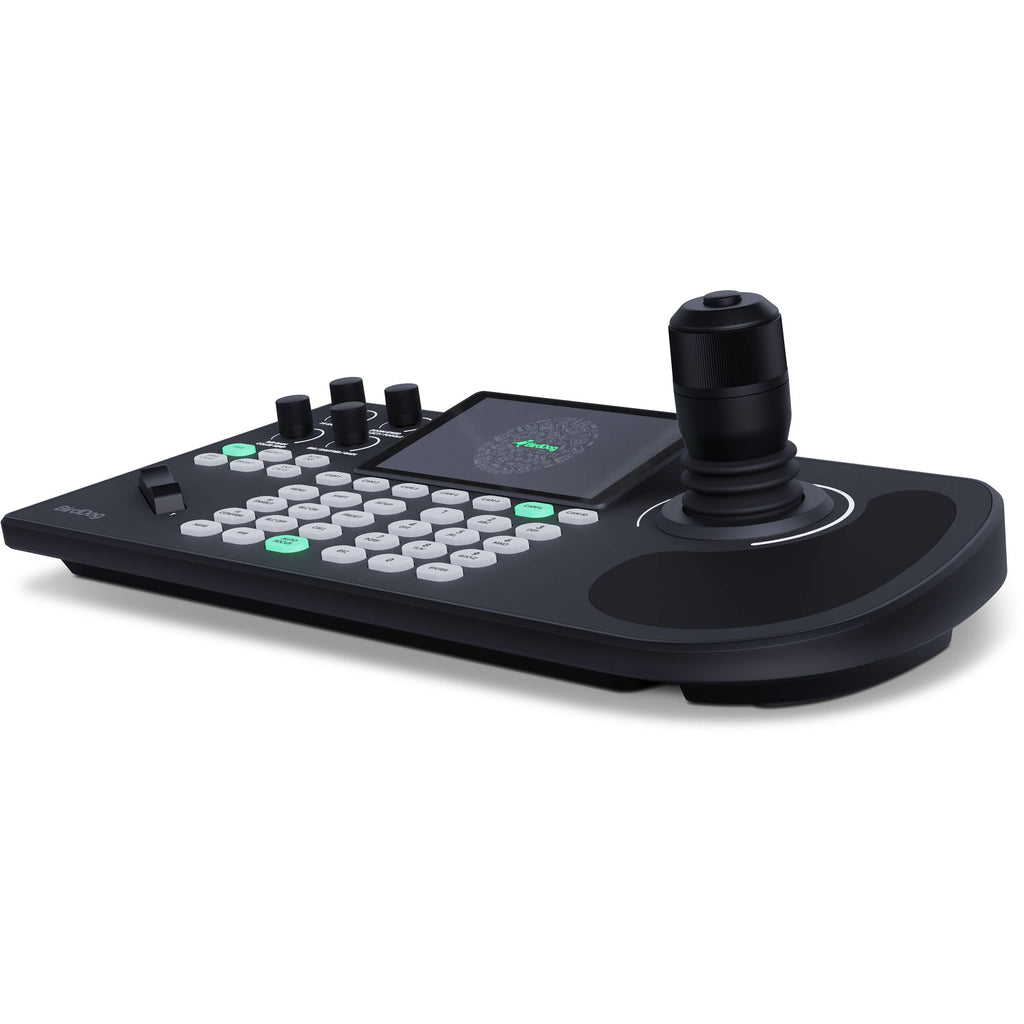

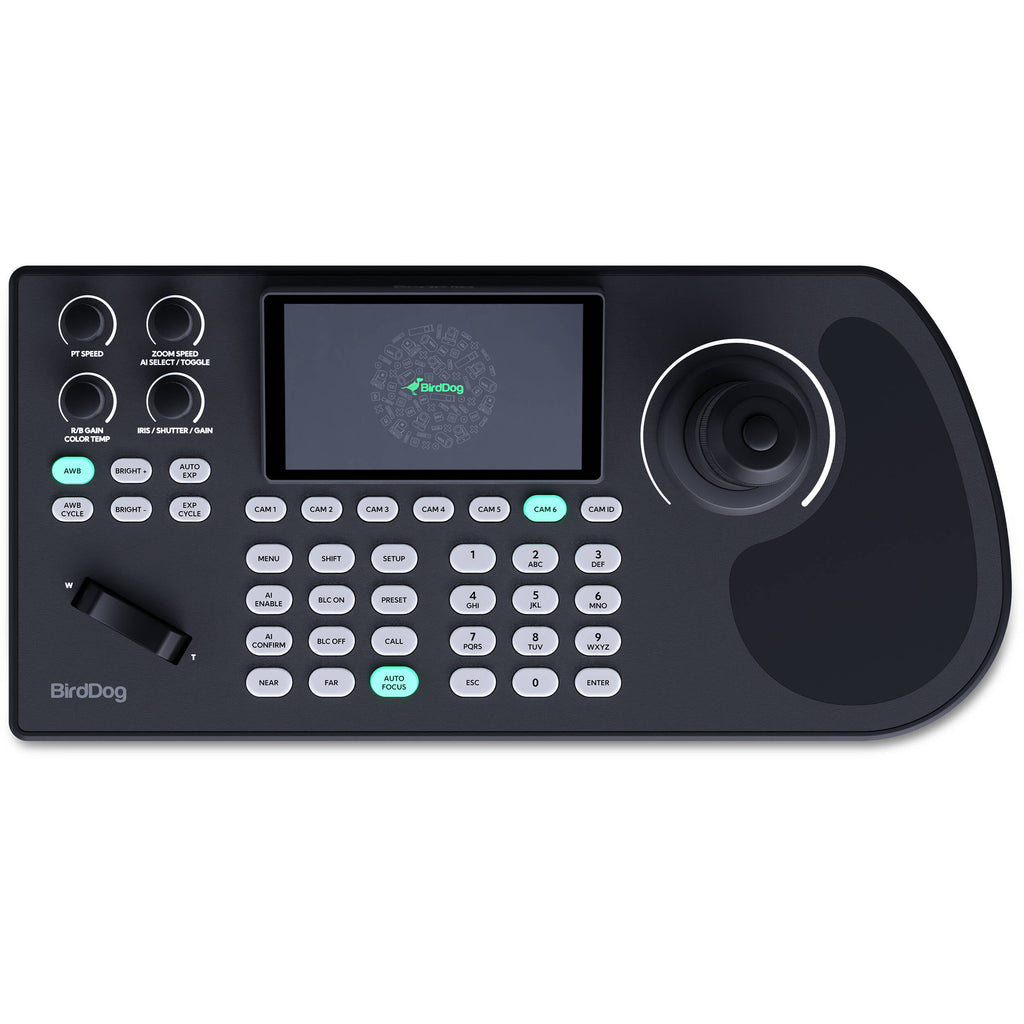

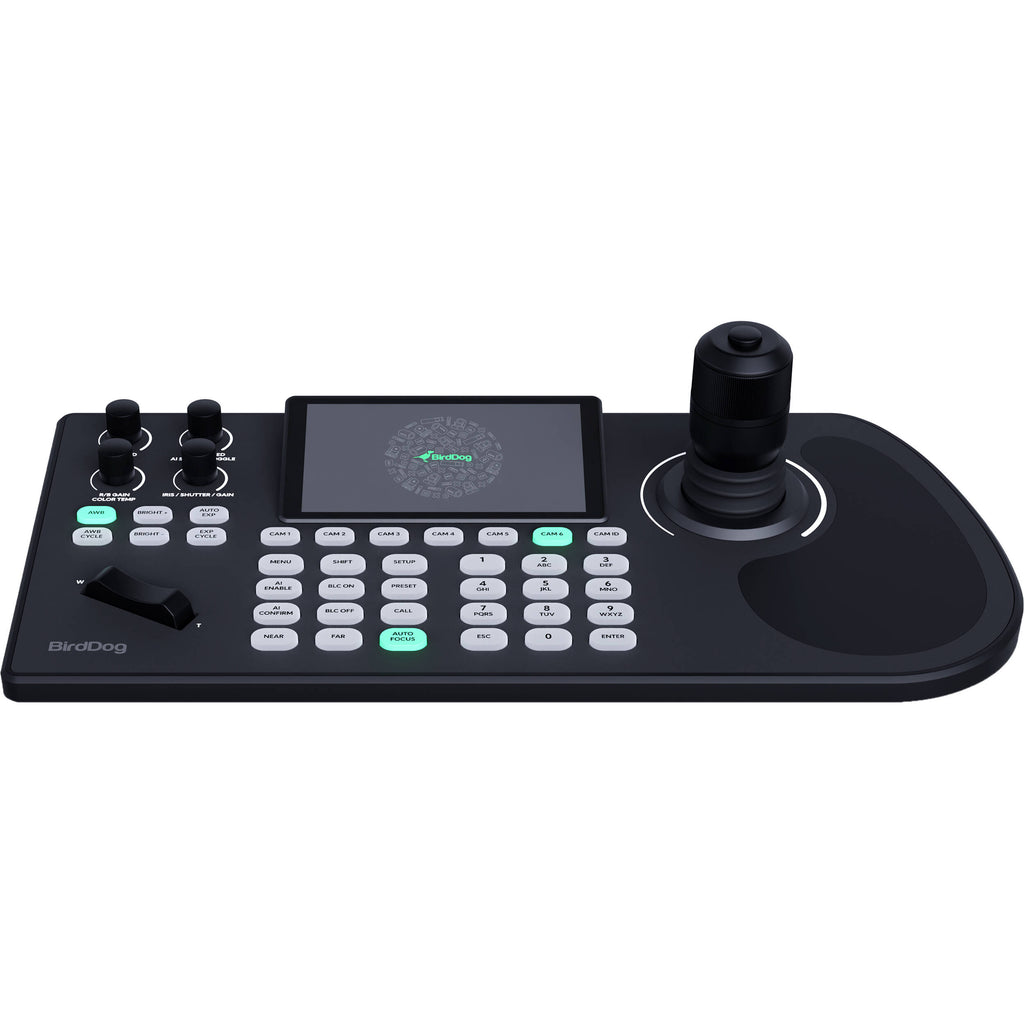

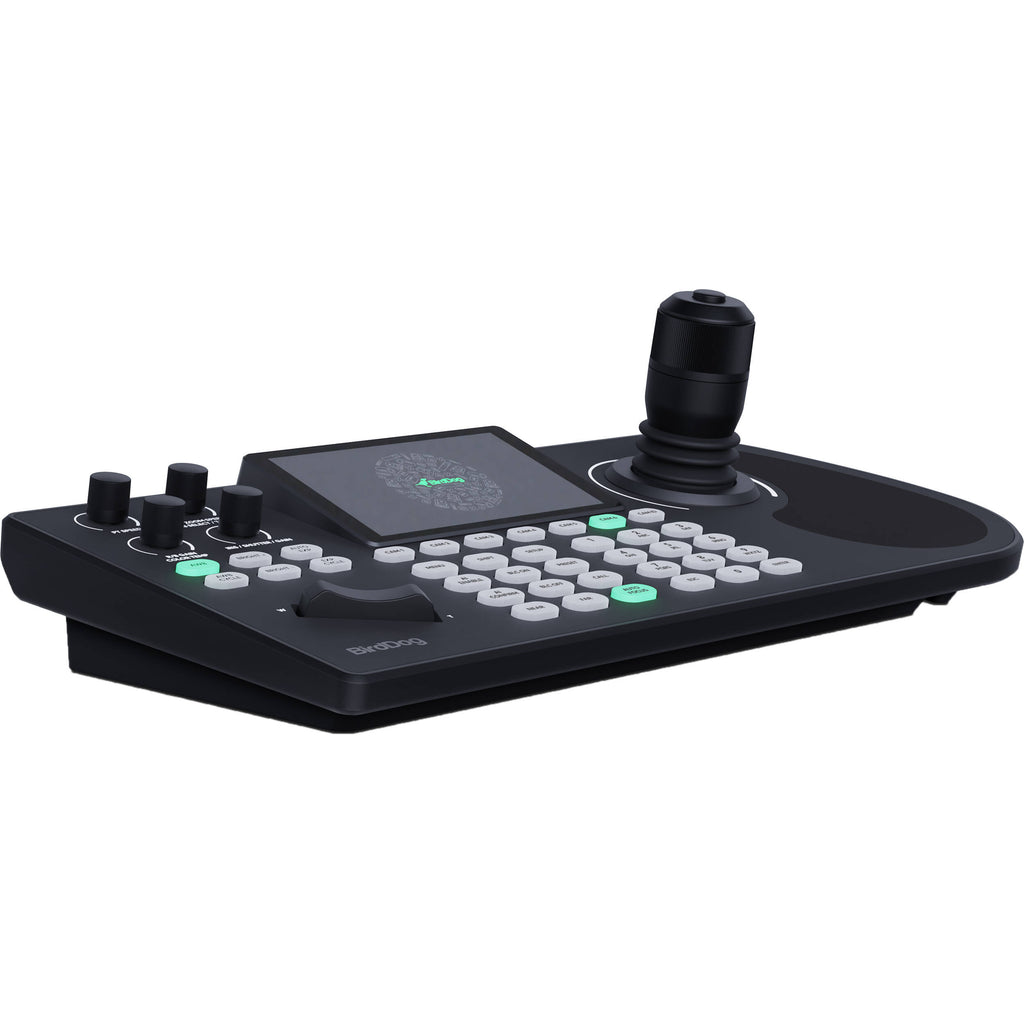

Control your PTZ multicamera setup and monitor up to four cameras simultaneously with the KBD PTZ Controller with Integrated Screen from BirdDog. Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the KDP boasts a rugged, ergonomic design with a large 1280 x 720 display to allow you to quickly pair and switch cameras with a single keystroke.
The new Effortless Camera Settings Sync function enables you to easily copy settings from one X-series device to another, and the integrated tally borders facilitate live switching with optional TriCaster or vMix platforms. The KDP offers NDI|HX2 and NDI|HX3 support as well as VISCA-IP, ONVIF, RS-232, and RS-422 for smooth workflow versatility. Balancing power, operational comfort, and eco-friendly innovation, the KDP is the ideal companion for studio production, live events, and mobile program acquisition applications.
Items Included
- BirdDog X1 Ultra PTZ Camera with 12x Zoom (White)
- Limited 5-Year Manufacturer Warranty
- BirdDog KBD PTZ Controller with Integrated Screen
- Limited 5-Year Manufacturer Warranty
Additional Resources
BirdDog X1 Ultra PTZ Camera with 12x Zoom (White)
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.29 Megapixel (3840 x 2160)
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Optical Zoom Ratio |
12x
|
| External Recording Modes |
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps HD (1920 x 1080p) at 25/29.97/30.00 fps HD (1280 x 720) at 25/29.97/30.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTSP/RTMP/NDI|HX3/NDI|HX2
3840 x 2160 at 30p |
| Supported Control Protocols |
IR
ONVIF Profile S RS-232 RS-485 |
| PoE Support |
PoE 802.3af
|
| Mounting |
1x 1/4"-20 Female
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
2160 TV Lines
|
| Sensor Resolution |
Effective: 8.29 Megapixel (3840 x 2160)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| White Balance |
Range: 2500 to 9000K
Presets: Manual, VAR |
| Focal Length |
4.1 to 49.2mm
|
| Optical Zoom Ratio |
12x
|
| Field of View |
Horizontal: 70.28 to 6.57°
Vertical: 42.06 to 3.76° Diagonal: 78.36 to 7.5° |
| Maximum Aperture |
f/1.8 to 2.68
|
| External Recording Modes |
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps HD (1920 x 1080p) at 25/29.97/30.00 fps HD (1280 x 720) at 25/29.97/30.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTSP/RTMP/NDI|HX3/NDI|HX2
3840 x 2160 at 30p |
| Presets |
255
|
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.1 to 80°/s
Tilt: 180° (-90 to 90°) at 0.1 to 60°/s |
| Tally Light |
Yes
|
| Supported Control Protocols |
IR
ONVIF Profile S RS-232 RS-485 |
| Video I/O |
1x HDMI (Unspecified Signal) Output
|
| Other I/O |
1x USB-C
1x RJ45 (NDI, RS-232) Control |
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 (12VDC at 2 A) Input
|
| Power Consumption |
13 W
|
| Operating Conditions |
14 to 104°F / -10 to 40°C at 20 to 80% Humidity
|
| Mounting |
1x 1/4"-20 Female
|
| Dimensions (W x H x D) |
10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm
|
| Weight |
3.15 lb / 1.43 kg (Body Only)
|
| Package Weight |
5.86 lb
|
| Box Dimensions (LxWxH) |
11.8 x 9.5 x 7.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
