Description
AViPAS AV-1562 Overview
- 1Description
- 2Key Features
- 3Dual Streaming
- 4Communication

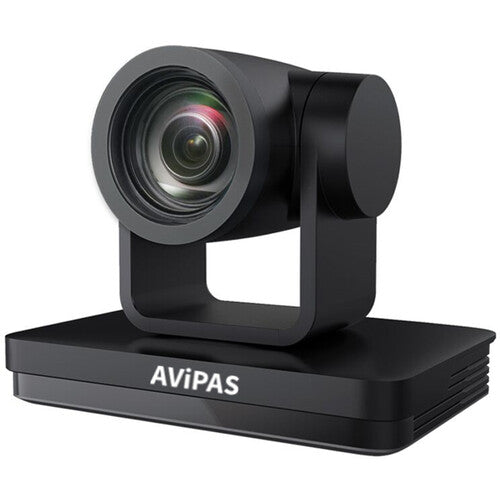

The AV-1562 SDI/HDMI/USB PTZ Camera with PoE & 20x Optical Zoom from AViPAS is a low-light friendly PTZ camera with dual-streaming capability that captures up to 1080p60 resolution video and allows you to stream 1920 x 1080 and 1280 x 720 first and second streams. The camera features 3G-SDI, HDMI, USB 3.0, and RJ45 outputs and supports PoE (Power-over-Ethernet) for a more efficient workflow. It's compatible with popular streaming platforms such as OBS Studio and vMix for PTZ control.
The built-in lens provides 20x optical zoom and an additional 10x digital zoom with a focal length range from 5.2 to 98mm, making it suitable for small to large conference rooms or event areas. The camera can be controlled over RS-232, RS-485, and LAN as well as via the supplied IR remote control, which allows selecting from 255 presets among other functions. Other features include a 3.5mm audio line-in port that lets you embed stereo audio into all the output video signals.
Key Features
- Up to 1080p60 capture
- HDMI / 3G-SDI, USB 3.0, and LAN outputs
- 3.5mm stereo audio line input for embedding
- 255 presets
- 20x optical zoom, 10x digital zoom
- AAC, MP3, G.711A audio encoding
- 2D and 3D noise reduction
- UVC support
- Daisy-chain support
- Auto and manual white balance, exposure, focus, and iris
Dual Streaming
- H.264, H.265, MJPEG compression
- Up to 1920 x 1080 first stream resolution, up to 1280 x 720 second stream
- TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, and multicast protocols
Communication
- RS-232/RS-422/RS-485/UVC 1.5 input/output supporting VISCA/Pelco-D/Pelco-P protocols
- LAN control using ONVIF and VISCA over IP
In the Box
- AViPAS AV-1562 SDI/HDMI/USB PTZ Camera with PoE & 20x Optical Zoom
- IR Remote Control
- AC Power Adapter
- Power Cable
- RS-232 Cable
- Limited 2-Year Warranty
- Description
- Key Features
- Dual Streaming
- Communication
AViPAS AV-1562 Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 2400 to 7100K |
| Max Digital Zoom | 10x |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 20x |
| Focal Length | 5.2 to 98mm |
| Field of View | Horizontal: 3.2 to 56° |
| Maximum Aperture | f/1.5 to 3 |
| Focus Control | Autofocus Manual Focus |
| Output Formats | SDI, HDMI, RJ45, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720i at 25, 30, 50, 59.94, 60 fps |
| IP Streaming | H.264, H.265, MJPEG, ONVIF: 1080i, 1080p, 720p, 480p, 360p |
| IP Multi-Stream Support | Yes |
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 100°/sec Tilt: 0.1 to 45°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

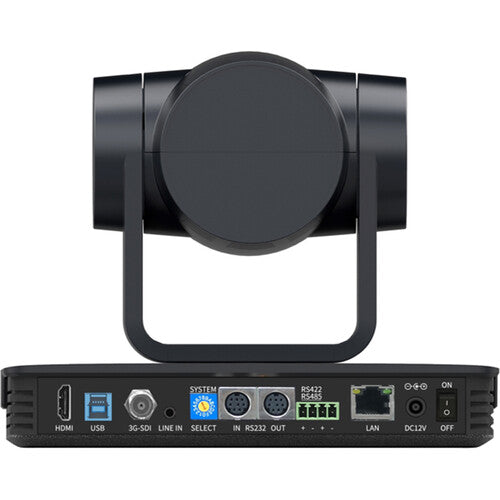

| Video Output Connectors | 1 x HDMI Type A Female 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 1 x RJ45 Female 1 x USB 3.0 Type-B (USB Video) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Mono Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x 2-Wire (RS-422, RS-485) Input 1 x RJ45 (IP Control, LAN, VISCA) Input |
| PoE Support | Yes |
| Power Connectors | 1 x JEITA (12 VDC) |
| Power Consumption | Device: 1 A (12 W) |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| Dimensions | 7.1 x 5.9 x 4.5" / 18 x 15 x 11.4 cm |
| Weight | 2.5 lb / 1.1 kg |
| Package Weight | 4.905 lb |
| Box Dimensions (LxWxH) | 10.5 x 9.7 x 9" |
