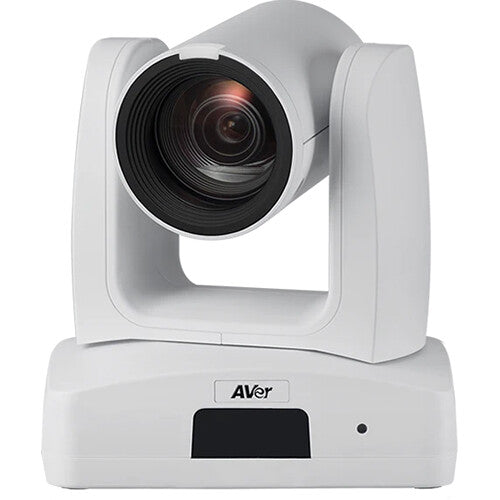

AVer PTZ211 PTZ Camera with 12x Optical Zoom (White)

Add a high-quality, multifunction PTZ camera to your conference room, event space, or house of worship with the white PTZ211 PTZ Camera with 12x Optical Zoom from AVer. The camera supports up to 1080p60 video capture in low light thanks to its wide dynamic range and features subject tracking to automatically follow a speaker around the room. The camera features a 1/2.8" HD CMOS sensor. It outputs video over 3G-SDI, HDMI, and USB-B 3.0 connections, and streams video/audio over IP via RTMP/RTSP. A Kensington lock slot allows you to keep your device secured.

The 12x optical zoom, 1x digital zoom, powerful 2MP camera, and HD resolution offer the range and picture quality to produce high-quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator.

With HDMI/IP/USB-B output, PoE+ support, VISCA control, and compatibility with all popular video platforms, you have all you need to connect with ease in any environment.

AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot's Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ211 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

The PTZ211 advanced Motion Control Settings allow you to perform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience, and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ211 is capable of pan/tilt rotation maneuvers as small as 0.1° per step, equipping you with perfectly fluid control when recording.

Preset the PTZ211 with up to 256 different locations through VISCA via RS-232 and RS-422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Whether you need a simple tool to control your PTZ camera or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link.

Crestron, echo 360, Extron, Panopto, Kaltura, vMix, Zoom, Telestream, NewTek, and more.

AVer PTZ211 12X Specs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2 Megapixel
Shutter Speed	1/32000 to 1 Second
Optical Zoom Ratio	12x
Max Digital Zoom	1x
External Recording Modes	SDI/BNC / HDMI / USB 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265/MJPEG via HTTP/RTMP/RTP/RTSP/SRT/TCP/UDP 1920 x 1080 at 60p (Simultaneous Multi-Stream)
Supported Control Protocols	IP IR Pelco-D Pelco-P RS-232 RS-422 VISCA
PoE Support	PoE+ 802.3at
Mounting	1x 1/4"-20 Female 3x M3 Female 3x M4 Female

Image Sensor	1/2.8"-Type CMOS
Horizontal Resolution (TV Lines)	1000 TV Lines
Sensor Resolution	Effective: 2 Megapixel
Focus Control	Autofocus Manual Focus

Shutter Speed	1/32000 to 1 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.46 Lux at 1/30 Shutter Speed
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Presets: ATW, Auto, Manual, One Push

Focal Length	4.5 to 135mm
Optical Zoom Ratio	12x
Max Digital Zoom	1x
Field of View	Horizontal: 62.3 to 2.5° Vertical: 37.3 to 1.4° Diagonal: 69.2 to 2.8°
Maximum Aperture	f/1.8 to 4.7
Minimum Focus Distance	3.9" / 0.1 m (Wide) to 47.2" / 1.2 m (Tele)

External Recording Modes	SDI/BNC / HDMI / USB 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Embedded Audio	HDMI/LAN (RJ45)/SDI/USB
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265/MJPEG via HTTP/RTMP/RTP/RTSP/SRT/TCP/UDP 1920 x 1080 at 60p (Simultaneous Multi-Stream)

Presets	255 via IP, RS-232, VISCA 10 via IR
Pan/Tilt	Pan: 340° (-170 to 170°) at 0.1 to 100°/s  Tilt: 120° (-30 to 90°) at 0.1 to 100°/s
Tally Light	Yes
Supported Control Protocols	IP IR Pelco-D Pelco-P RS-232 RS-422 VISCA

Video I/O	1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x HDMI (Unspecified Signal) Output 1x RJ45 (NDI) Output 1x BNC (3G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O	1x RJ45 (RS-422) Control Input/Output 1x Mini-DIN 9-Pin (RS-232) Control Input/Output
Built-In Microphone	No
Built-In Speaker	No

PoE Support	PoE+ 802.3at
Power I/O	1x Barrel (12VDC at 2 A) Input
Power Consumption	Device: 100 to 240 VAC 19 W

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 20 to 95% Humidity

Mounting	1x 1/4"-20 Female 3x M3 Female 3x M4 Female
OS Compatibility	Computer: macOS 10.14 or Later / Windows 7 or Later Mobile: iOS Only
Security Lock Support	Kensington Lock Slot
Dimensions (W x H x D)	7.1 x 7.6 x 5.7" / 180 x 192 x 145 mm
Weight	4.4 lb / 2 kg (Body Only)

Package Weight	9.545 lb
Box Dimensions (LxWxH)	12 x 11.7 x 9.9"
