AIR One Robotic Camera Kit and REMI Production Bundle

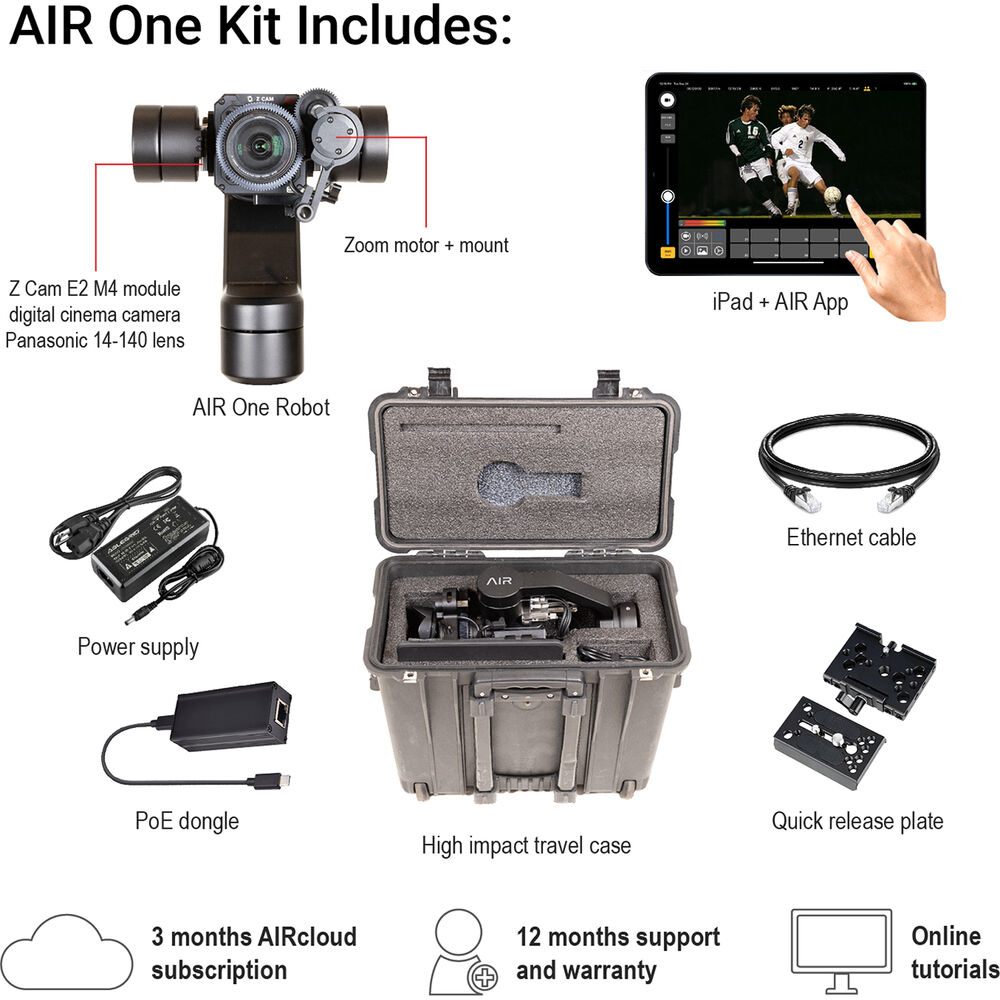

Designed for live, multi-camera productions, the AIR One Robotic Camera Kit and REMI Production Bundle consists of a compact, intelligent robotic PTZ camera with a Z CAM E2-M4 module installed, an integrated Panasonic 14-140mm zoom lens, an integrated AIRzoom motor, and camera mount with quick release plate. The camera is remotely controlled via the included 64GB iPad with the downloadable AIR app. The iPad can connect wirelessly and it also comes with a PoE dongle. It also includes three months of AIRcloud access to set up your multi-camera productions with drag-and-drop designs, remote camera controls, site plan upload, and camera stream routing.

The AIRcloud platform allows you to quickly and easily switch your production with smooth presets, add graphics, communication, and editing, while setting up your video stream to distribute to any CDN. AIRcloud also includes standard, upgradable cloud storage for your production videos.

Because AIR One connects directly to the internet, in most cases you don't need to roll an OB truck. At ultralow latency, your team can run multiple cameras from onsite or offsite, your director can call shots from anywhere as if they were in the same room. AIRcloud enables united workflow access to familiar tools like vMix, Premiere Pro, and more. Switch, distribute, edit, run comms, add graphics, and output the results to any CDN.

Ready to shoot out of the box, AIR One gives you incredibly accurate pan, tilt, and zoom control of a large-sensor 4K digital cinema camera over IP. Turn it on and AIR One self-calibrates, auto-levels, and connects to your network in about a minute. It moves like a human, with smooth multi-speed easing. Gimbal-stabilized and under 10 lb, you can mount it just about anywhere: on a tripod or light stand, underslung in the grid, down at ground level, or even on a robotic arm. 700° of rotation means you can follow all the action, and output video directly from the robot in HDMI or Ethernet via SRT�and the entire AIR One kit fits into its own carry-on case.

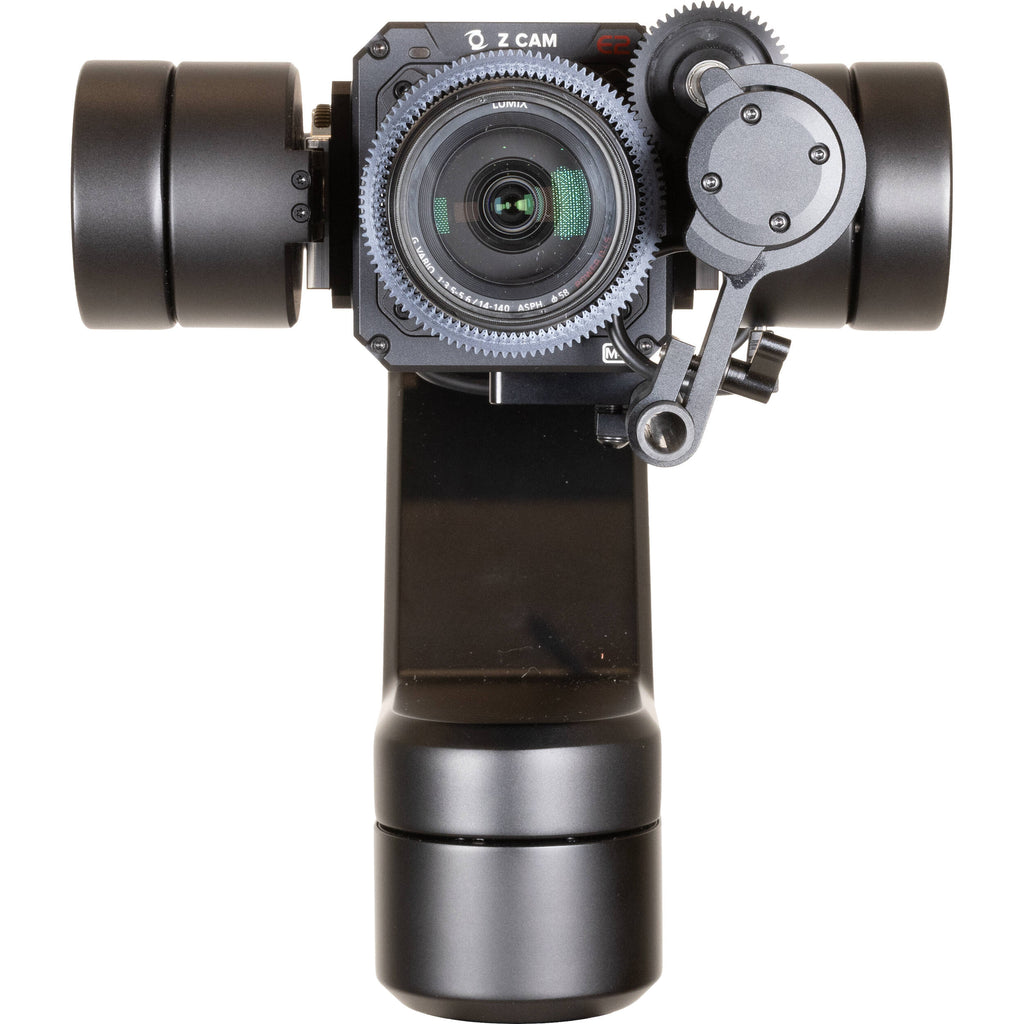

The Z Cam E2 M4 module that ships with the AIR One bundle provides the resolution and dynamic range you'd expect from a 4K MFT sensor, and works great with low light and high frame rate capabilities. Capture up to 4K ProResHQ internally, as well as H.265 and H.264, and up to 240fps HD.

A Panasonic 14-140 lens ships with the bundle, or you can install any MFT lens up to 300mm. As an option, you can swap the lens mount to use EF lenses. Also included is the AIR zoom motor and mount, giving you smooth action at any speed with ultraquiet operation.

You don't need AIRcloud to use AIR One, but you can give it a try with three months free included with this bundle. AIRcloud is a production suite with tools to manage and automate your entire camera-to-CDN workflow from one web interface. Using a simple UI, you can:

• Remotely operate your AIR One over IP from any distance
• Switch fully in the cloud with ultra-low latency over standard broadband using OBS, vMix, or any software-defined switcher of your choosing
• Diagnose metadata and real-time performance metrics at a glance for every AIR One on your network with the Master Status Dashboard
• Access ultralow-latency communications�8x faster than Discord�directly from your app
• Digitize shoot prep with a drag-and-drop planner to assign camera locations, cloud instances, gear management, crew permissions, cameras settings, and more
• Stream to any CDN

New features are being added to AIRcloud over time, and users will benefit from a growing ecosystem of in-house and third-party apps.

From anywhere around the globe, the AIR App gives you real-time control over the camera with just a touch. The intuitive interface allows for precise movement by dragging your finger over the screen or double-tapping a recall button. There are 40 programmable presets and a double-tap autofocus feature that make recreating shots easy.

Every camera control�from aperture, color shading, F-stop, and more�is fully accessible through the app interface, and a single operator can control up to six AIR One robots from one iPad. Learn it in minutes and capture it all with AIR App, from corporate panels to fast sports action. If you prefer a traditional joystick controller, SKAARHOJ support is also available.

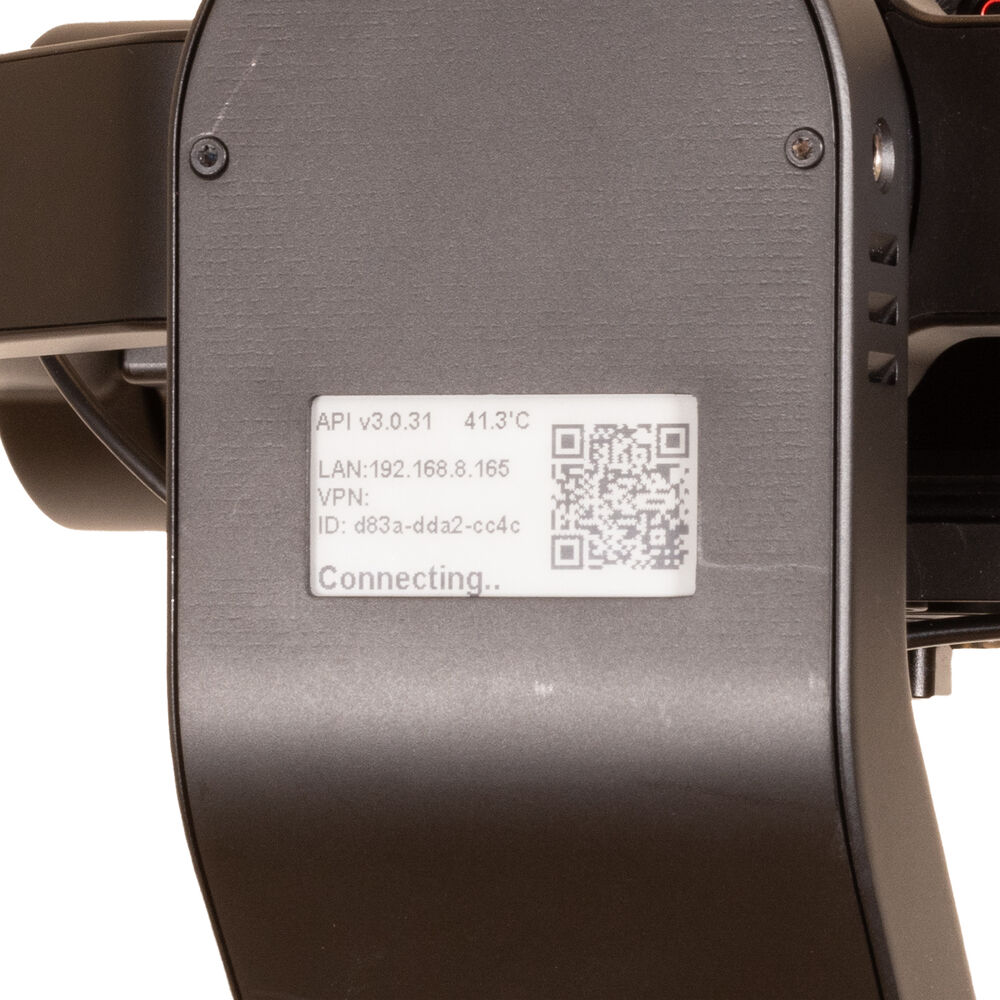

The eInk display on the back of AIR One gives onsite techs all relevant information at a glance: device status, IP address, and device name. This quick information display saves valuable time during production.

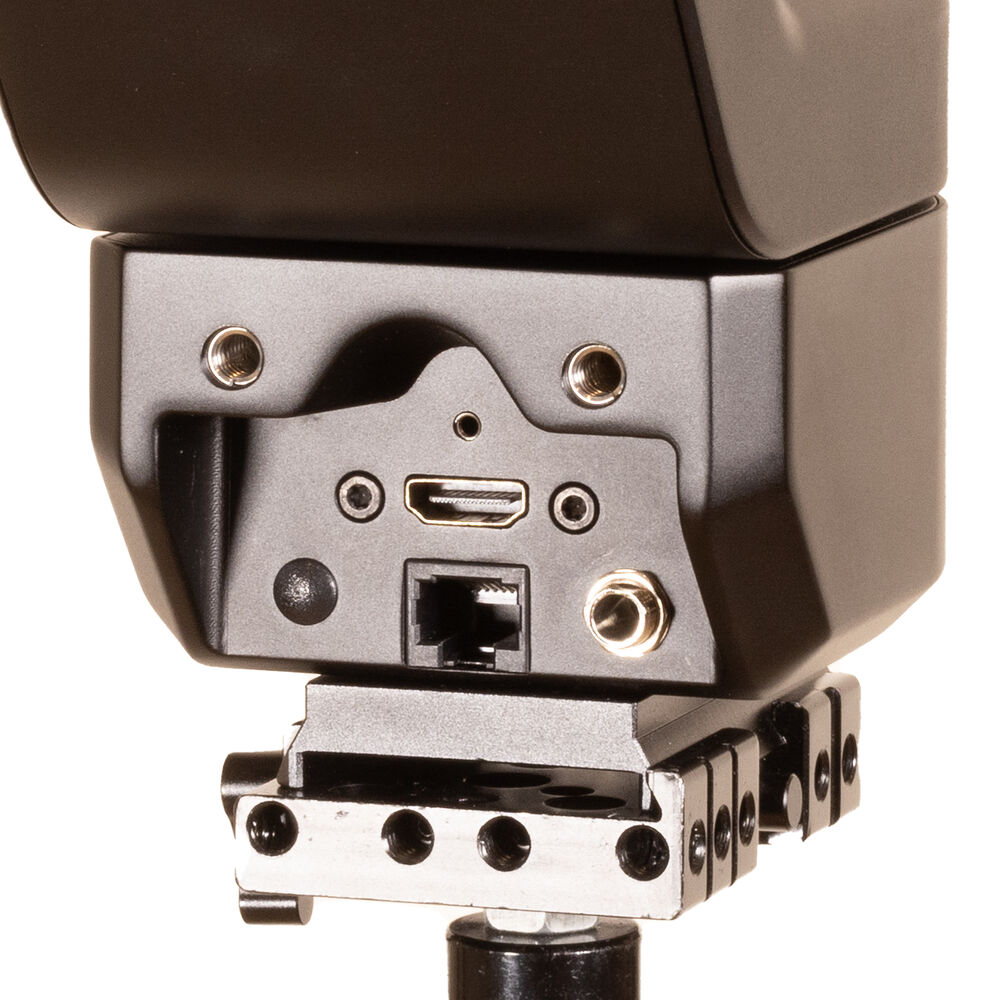

You can run multiple AIR One robots on a shoot since they easily connect to a permissioned IP network. Networking AIR One is easy: just connect video via Ethernet or HDMI and connect stereo XLR audio using the 5-pin LEMO-type port.

• Capture up to 4K60 resolution, 10-bit color
• 4/3� CMOS sensor
• Up to 16 stops dynamic range
• Gigabit Ethernet for data, control, and direct live streaming
• 12-bit ProRes RAW onboard recording
• Full-range pan, tilt, and zoom
• Interchangeable lens
• Brushless motors for smooth, silent movement
• 4GB onboard CPU for smooth movement and motion data capture
• Self-leveling head gives sets up and breaks down in seconds
• Light enough to mount anywhere, small enough to fit in carry-on baggage

AIR One Air One Specs

Image Sensor	4/3"-Type CMOS
Sensor Resolution	Effective: 10.28 Megapixel
Shutter Speed	1/8000 to 1 Second
Optical Zoom Ratio	10x
External Recording Modes	10-Bit via RJ45 DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps HD (1920 x 1080p) up to 59.94 fps
Internal Recording Modes	Z RAW 12-Bit 4096 x 2160 up to 160 fps 3840 x 2160 up to 120 fps 1920 x 1080p up to 120 fps MOV/MP4 10-Bit 4096 x 2160 up to 160 fps 3840 x 2160 up to 120 fps 1920 x 1080 up to 240 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265 via SRT/RTMP 1920 x 1080 to 3840 x 2160 at 30p, 25p, 24p, 60p (300.00 Mb/s)
Supported Control Protocols	IP

Image Sensor	4/3"-Type CMOS
Sensor Resolution	Effective: 10.28 Megapixel
Focus Control	Autofocus

Shutter Speed	1/8000 to 1 Second
ISO/Gain Sensitivity	Native: 400 to 125,000
White Balance	Range: 2300 to 7500K Presets: Auto, Preset Manual

Focal Length	14 to 140mm
Optical Zoom Ratio	10x

External Recording Modes	10-Bit via RJ45 DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps HD (1920 x 1080p) up to 59.94 fps
Embedded Audio	LAN (RJ45)
Internal Recording Modes	Z RAW 12-Bit 4096 x 2160 up to 160 fps 3840 x 2160 up to 120 fps 1920 x 1080p up to 120 fps MOV/MP4 10-Bit 4096 x 2160 up to 160 fps 3840 x 2160 up to 120 fps 1920 x 1080 up to 240 fps
Audio Recording	MOV: 2-Channel 24-Bit 48 kHz AAC Audio
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265 via SRT/RTMP 1920 x 1080 to 3840 x 2160 at 30p, 25p, 24p, 60p (300.00 Mb/s)

Presets	40 via IP
Pan/Tilt	Pan: 360° at 90°/s  Tilt: 180° (-60 to 120°)
Tally Light	No
Supported Control Protocols	IP

Media/Memory Card Slot	Single Slot: CFast (CFast 2.0)
Video I/O	1x HDMI (Unspecified Signal) Output
Audio I/O	1x 5-Pin LEMO Input
Other I/O	1x RJ45 (Ethernet) Control/Data/Video Input/Output

Power I/O

1x LEMO 2-Pin (12VDC up to 8 A) Input

Operating Conditions	32 to 122°F / 0 to 50°C
Impact Resistance	No
Environmental Resistance	No

Material of Construction	Aluminum, Carbon Fiber
OS Compatibility	iPadOS Only
Dimensions (W x H x D)	13.8 x 13.8 x 3.9" / 35 x 35 x 10 cm
Weight	10.47 lb / 4.75 kg (Body Only)

Package Weight	31.02 lb
Box Dimensions (LxWxH)	18.3 x 16.7 x 10.3"
