Description
AIDA Imaging PTZ-NDI Overview

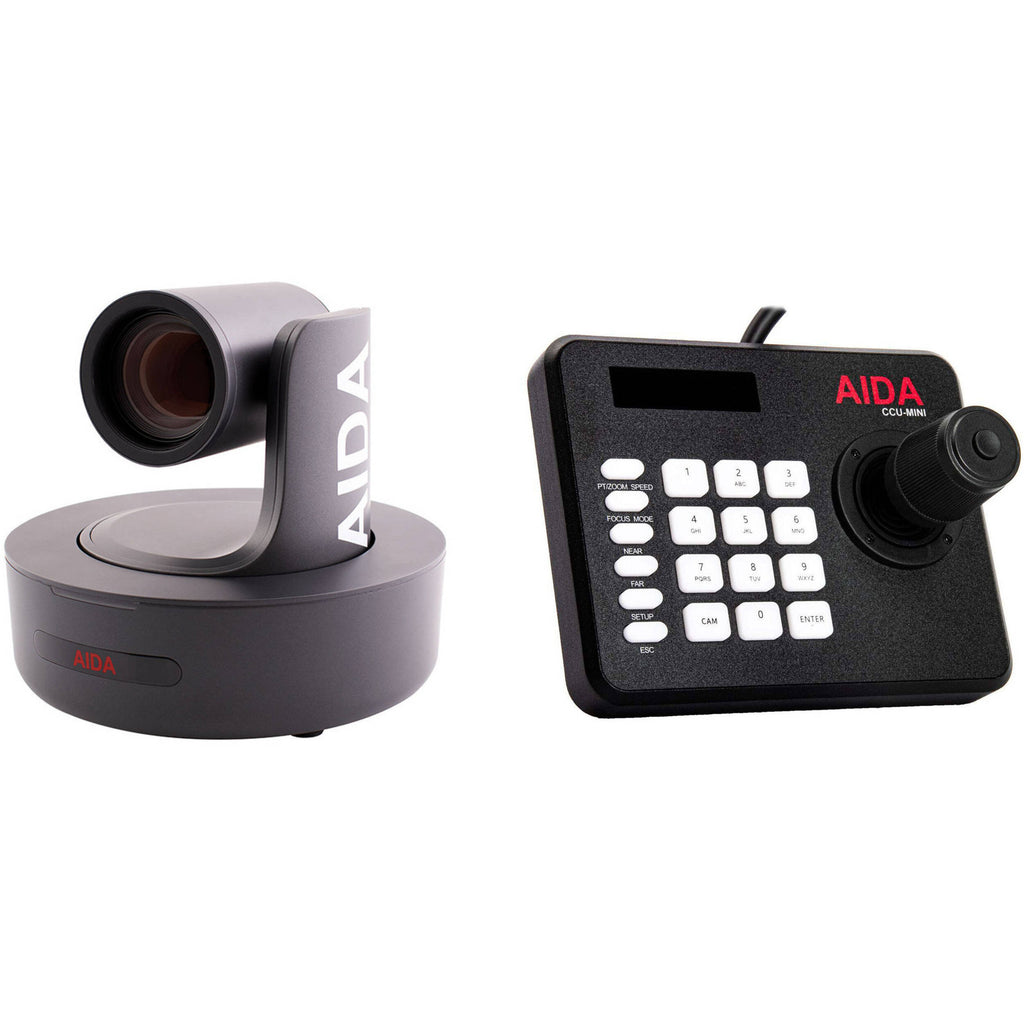

With the Full HD NDI|HX PTZ Camera with 12x Optical Zoom + Controller Bundle, AIDA Imaging offers a compelling package to jump-start your live video productions. Control the pan, tilt, and zoom over a network with support for the NDI|HX high-efficiency protocol for greater overhead. This bundle includes the PTZ-NDI-X12 camera and the CCU-MINI camera controller which allows you to control up to seven PTZ cameras.
Read more below about the items in this kit.

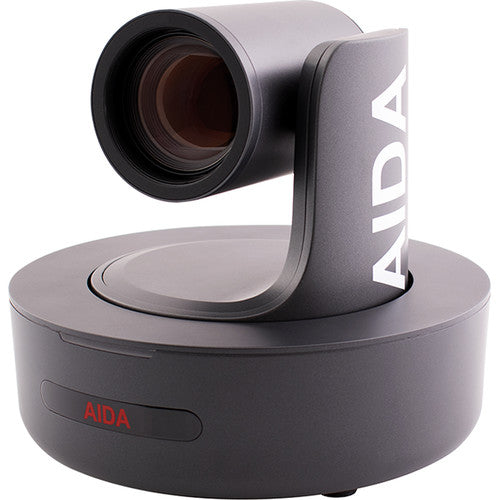

Add the Full HD NDI|HX Broadcast PTZ Camera with 12x Optical Zoom from AIDA to your NDI network, which offers four simultaneous video outputs as well as NDI|HX workflows over IP. While the SDI, HDMI, and USB outputs must be set at the same resolution up to 1080p60, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps. The camera features a 12x zoom, and pan, tilt, and zoom functions can be controlled via serial control or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
- Simultaneous SDI, HDMI, USB, and NDI|HX output
- Up to 1080p60 resolution video output
- 12x optical zoom
- H.264 / H.265 streaming
- RS-232 input/output
- VISCA-over-IP control protocol
- TCP/IP, RTSP/RTMP IP protocol
- 10 presets via included IR remote controller, 128 presets over serial control
- Motion-compensated temporal noise reduction filter allows for noise reduction without blur
- SMPTE 424M/292M standard
- Built-in OSD controls
- 4:2:2 (YCbCr) 10-bit color space
- White balance: auto, manual, auto tracking, one push, indoor, outdoor
- Auto shutter speed

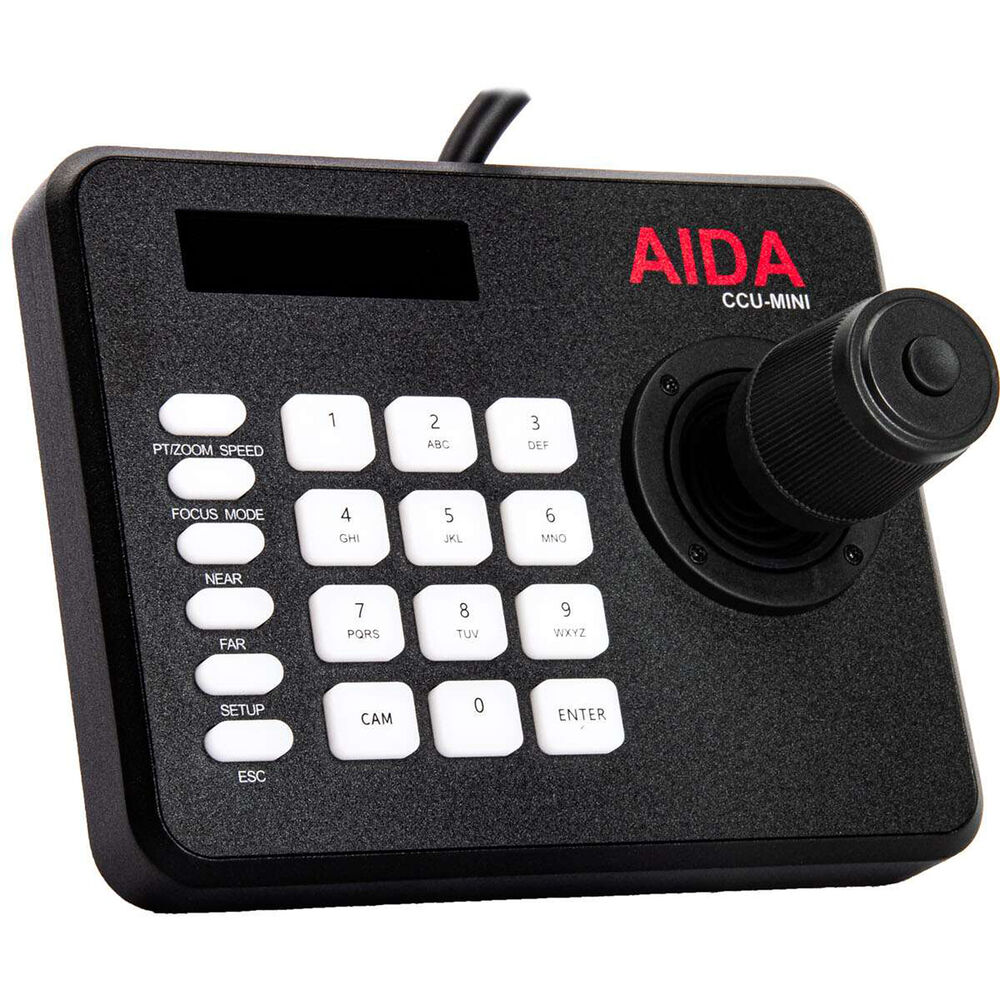

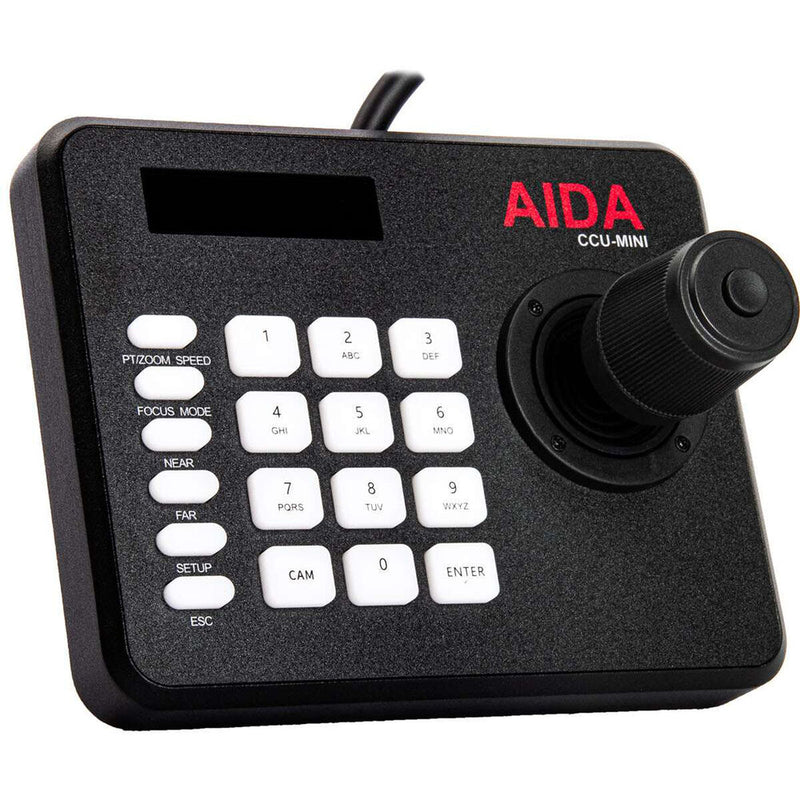

Add this simplified Compact VISCA Serial & IP PTZ Camera Controller from AIDA Imaging to your PTZ camera production for fast camera selection and easy usage. Using the built-in breakout cable, the CCU-MINI can connect to your cameras using the VISCA serial protocol or control IP cameras over a LAN. The breakout cable features a 12 VDC female power input, an RJ45 Ethernet cable, an RS-485 terminal block serial cable, and an RJ45 RS-422 serial cable.
Using the 3-way joystick, you can control the pan, tilt, and zoom operations for up to seven cameras. You can select cameras using a single button press, and there are additional buttons for control of focus, pan/tilt speed, and setup operations. A large LCD shows you the status of your camera controls.
In the Box
- AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 12x Optical Zoom
- Remote Controller
- Mounting Bracket
- USB 3.0 Cable
- Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
- AIDA Imaging Compact VISCA Serial & IP PTZ Camera Controller
- Limited 2-Year Manufacturer Warranty
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 12x Optical Zoom Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
12x
|
| External Recording Modes |
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps RJ45 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps 1024 x 576 at 23.98/24.00/25/29.97/50/59.94 fps 620 x 360 at 23.98/24.00/25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI|HX, RTMP, RTSP, SRT, TCP
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
IR
RS-232 VISCA |
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Minimum Illumination |
0.1 Lux
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
| Optical Zoom Ratio |
12x
|
| Field of View |
79 to 6.8°
|
| Maximum Aperture |
f/1.5 to 3
|
| External Recording Modes |
SDI/BNC / HDMI / USB
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps RJ45 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps 1024 x 576 at 23.98/24.00/25/29.97/50/59.94 fps 620 x 360 at 23.98/24.00/25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI|HX, RTMP, RTSP, SRT, TCP
1920 x 1080 1280 x 720 |
| Presets |
10 via IR
128 via RS-232, VISCA |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IR
RS-232 VISCA |
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232, VISCA) Input
1x Mini-DIN 8-Pin (RS-232, VISCA) Output 1x RJ45 (LAN) Output |
| Power I/O |
1x Barrel (9 to 15VDC) Input
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Weight |
2.97 lb / 1.35 kg
|
| Package Weight |
7.74 lb
|
| Box Dimensions (LxWxH) |
11.8 x 10.8 x 10.4"
|
AIDA Imaging Compact VISCA Serial & IP PTZ Camera Controller Specs
| Number of Supported Cameras |
7 Channels
|
| Control I/O |
1x RJ45 (RS-422)
1x RJ45 (IP Control) 1x Block (RS-485) |
| Controls |
12x Camera Selection Buttons
4x Multifunction Buttons 1x Focus Button 1x Camera Movement Speed Button 1x Menu Button 1x Pan/Tilt, Zoom Joystick |
| PoE Support |
Yes
|
| Security Lock Support |
No
|
| Number of Supported Cameras |
7 Channels
|
| Supported Control Protocols |
IP
RS-232 RS-422 VISCA |
| Control I/O |
1x RJ45 (RS-422)
1x RJ45 (IP Control) 1x Block (RS-485) |
| Controls |
12x Camera Selection Buttons
4x Multifunction Buttons 1x Focus Button 1x Camera Movement Speed Button 1x Menu Button 1x Pan/Tilt, Zoom Joystick |
| PoE Support |
Yes
|
| Power Connectors |
1x Barrel / Coaxial
|
| DC Input Power |
12 VDC
|
| Security Lock Support |
No
|
| Dimensions |
6.75 x 5.5 x 4" / 171.45 x 139.7 x 101.6 mm
|
| Weight |
2 lb / 907 g
|
| Package Weight |
3.12 lb
|
| Box Dimensions (LxWxH) |
9.4 x 8.3 x 6.5"
|
