Description
Sharp XP-A104U Overview

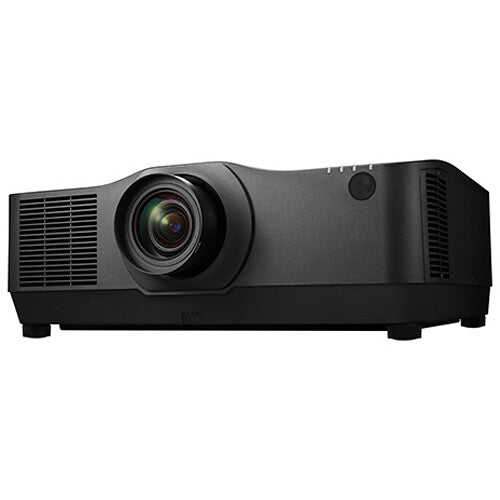

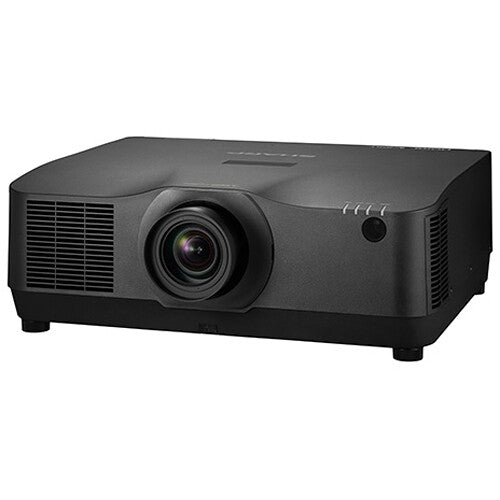

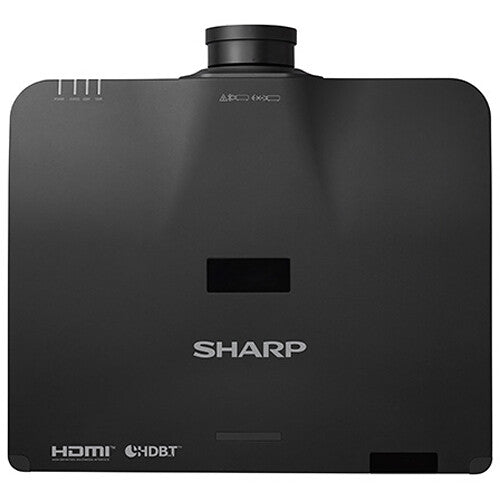

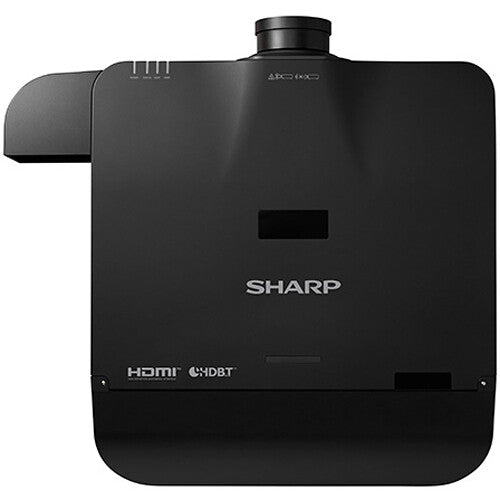

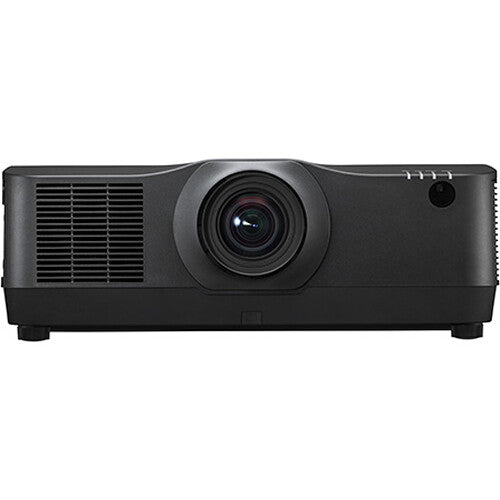

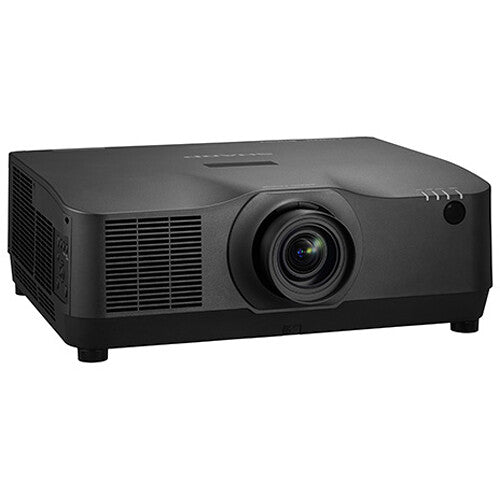

The Sharp XP-A104U-B 10,000 ISO-Lumen WUXGA Laser 3LCD Projector is a large-venue, professional installation projector with features well suited to higher education and corporate users. A long-lasting laser light source and IP5X-rated sealed optical engine provide thousands of hours of virtually maintenance-free operation.
Installation is flexible with a complete line of optional motorized lenses (sold separately). Connect sources via HDMI and HDBaseT inputs. The onscreen resolution is Full HD, with input support for 4K content. Furthermore, HDBaseT passthrough and built-in edge blending help create multi-projector setups without the need for external hardware or processing.
HDBaseT
HDBaseT is optimized for video applications and supports uncompressed full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
Multi-Display Support
Built-in software supports picture-in-picture and picture-by-picture displays. Built-in edge blending helps create a seamless image with multiple projectors.
Stacking Capability
This projector includes built-in stacking correction capabilities. Stacking correction allows the projectors to boost an image's brightness, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also supports image redundancy in mission-critical applications.
ProAssist Management
Projector management software for installation professionals provides full control for multiple screens to create the perfect image. Controls such as input switching, picture, lens, edge blending, uniformity, and gamma control are adjustable through the GUI.
NaViSet Administrator 2
Control, monitor, and manage your projector settings in an all-in-one support system with NaViSet Administrator 2. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried, and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors, or DDC/CI protocol for desktop units.
Integrator Friendly
Integrated software applications such as AMX, Crestron Roomview, Extron, and PJ Link allow for complete control system support. Furthermore, learning the basic control of competitors' products reduces the need for reprogramming of a control system, lowering the cost of your installation.
Additional Features
- Optional lenses support projection distances from 2.5 to 68.5'
- Motorized zoom and focus
- Roll-free 360? installation capability, including portrait orientation support
- IP5X-certified, sealed LCD cooling system prevents dust from reaching the optics and eliminates the need for a filter
- DICOM simulation
Items Included
- Sharp XP-A104U-B 10,000 ISO-Lumen WUXGA Laser 3LCD Projector (No Lens, Black)
- Remote Control with Batteries
- Power Cord
- Lens Hole Cover
- Lens Anti-Theft Screw
- Limited 5-Year Manufacturer Warranty (or 20,000 Hours, Whichever Comes First)
Additional Resources
Sharp XP-A104U Specs
Key Specs
| Display System |
1" Micro Lens Array (MLA) LCD
|
| Native Resolution |
1920 x 120
|
| Maximum Brightness |
10,500 Lumens (Center)
10,000 Lumens (ISO) |
| HDR Support |
No
|
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) LAN Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8" / 3.5 mm Mini Remote Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
1" Micro Lens Array (MLA) LCD
|
| Native Resolution |
1920 x 120
|
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz
|
| Maximum Brightness |
10,500 Lumens (Center)
10,000 Lumens (ISO) |
| Aspect Ratio |
Native: 16:10
Supported: 16:9 Supported: 4:3 Supported: 21:9 |
| Contrast Ratio |
3,000,000:1
|
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 15 to 153kHz
Vertical: 24 to 120Hz |
Lens
| Includes Lens |
No
|
Features
| Keystone Correction |
Manual to Vertical: ? 40?
Manual to Horizontal: ? 40? |
| HDR Support |
No
|
| Multi-Input Support (PIP/PBP) |
Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
No
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Remote, Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Control Input 1x RJ45 (Ethernet) LAN Input 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8" / 3.5 mm Mini Remote Input |
| HDCP Support |
Yes: Version 1.4/2.2
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
No
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Medium Brightness: 20,000 Hours
|
| Fan Noise |
Medium Brightness: 36 dB
Low Brightness: 32 dB |
| Security |
Cable Lock Slot
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Medium Brightness: 750 W
Standby Mode (Lamp Off): < 0.5 W |
| Certifications |
CSA 62368-1:19 3rd ed., FCC Part15, ICES-003 Issue 7, UL62368-1 3rd ed.
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 85% Humidity
|
| Storage Conditions |
14 to 122?F / -10 to 50?C at 20 to 80% Humidity
|
| Dimensions (W x H x D) |
23.6 x 8.5 x 19.3" / 599.0 x 216.0 x 490.0 mm
|
| Weight |
53.1 lb / 24.1 kg
|
