Description

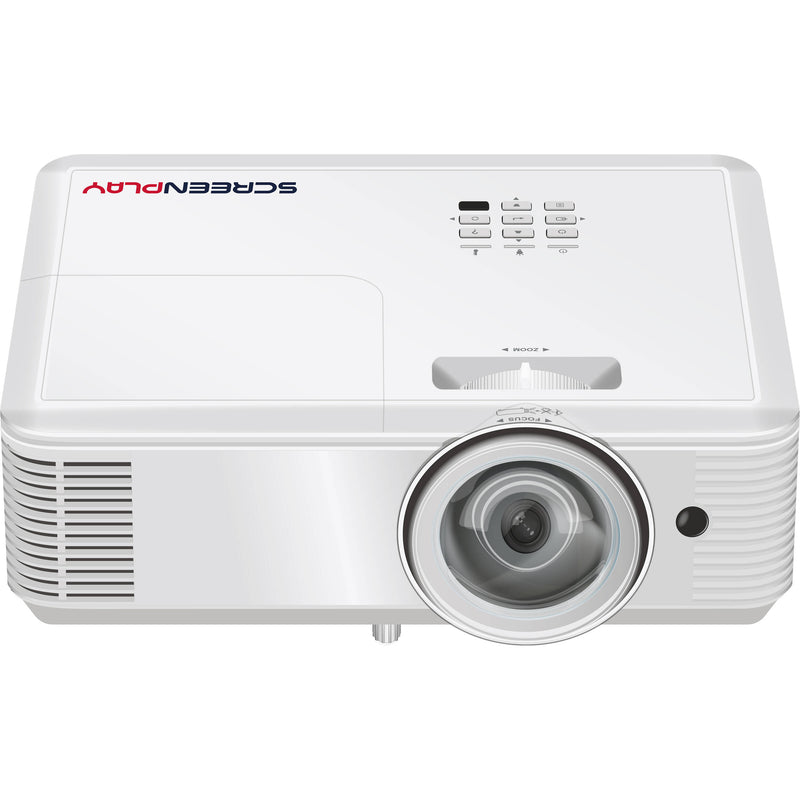

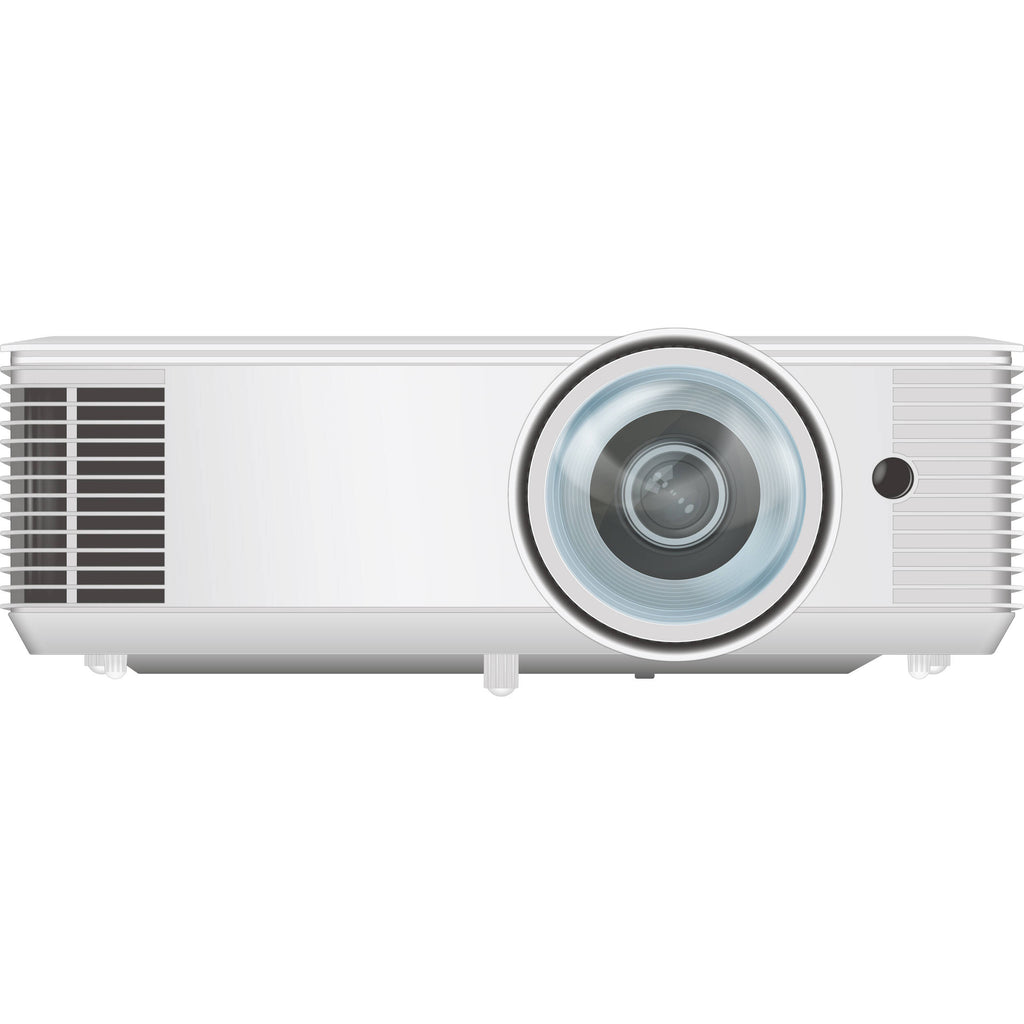

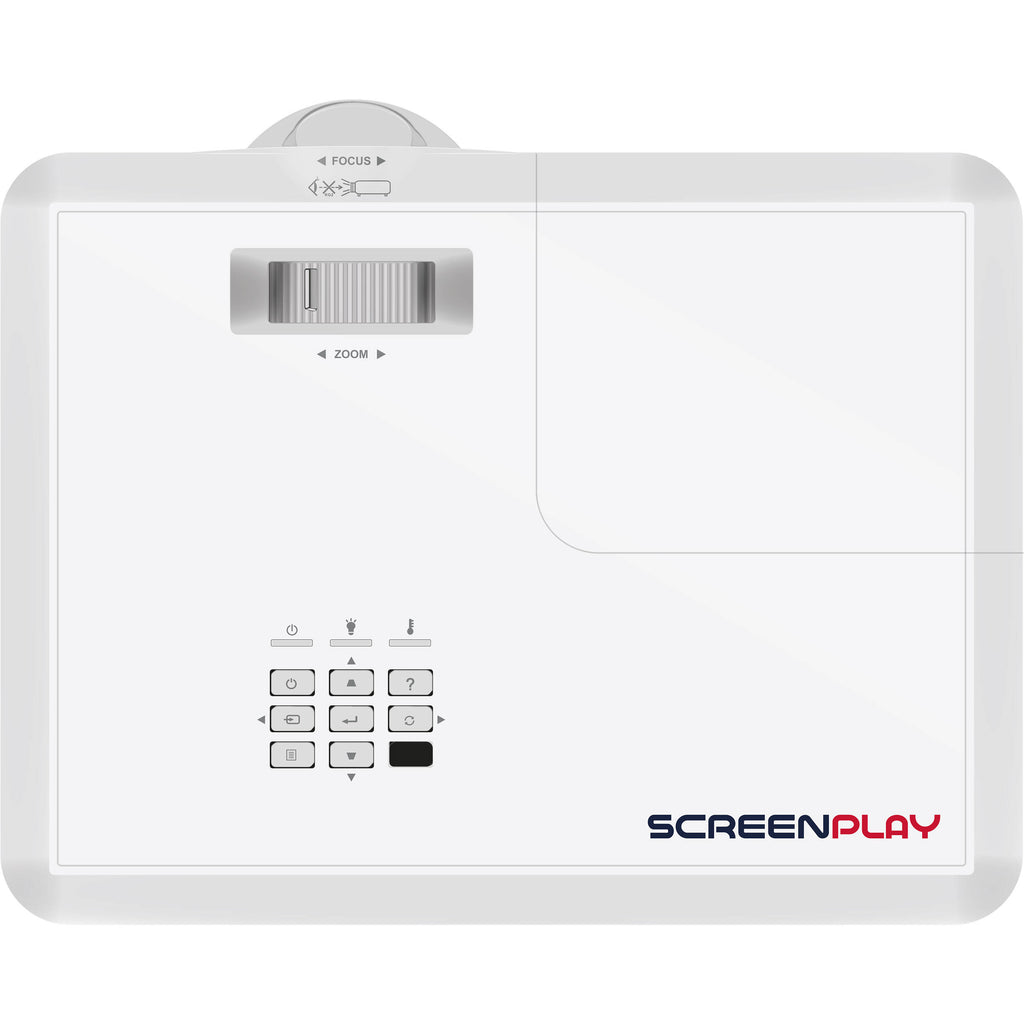

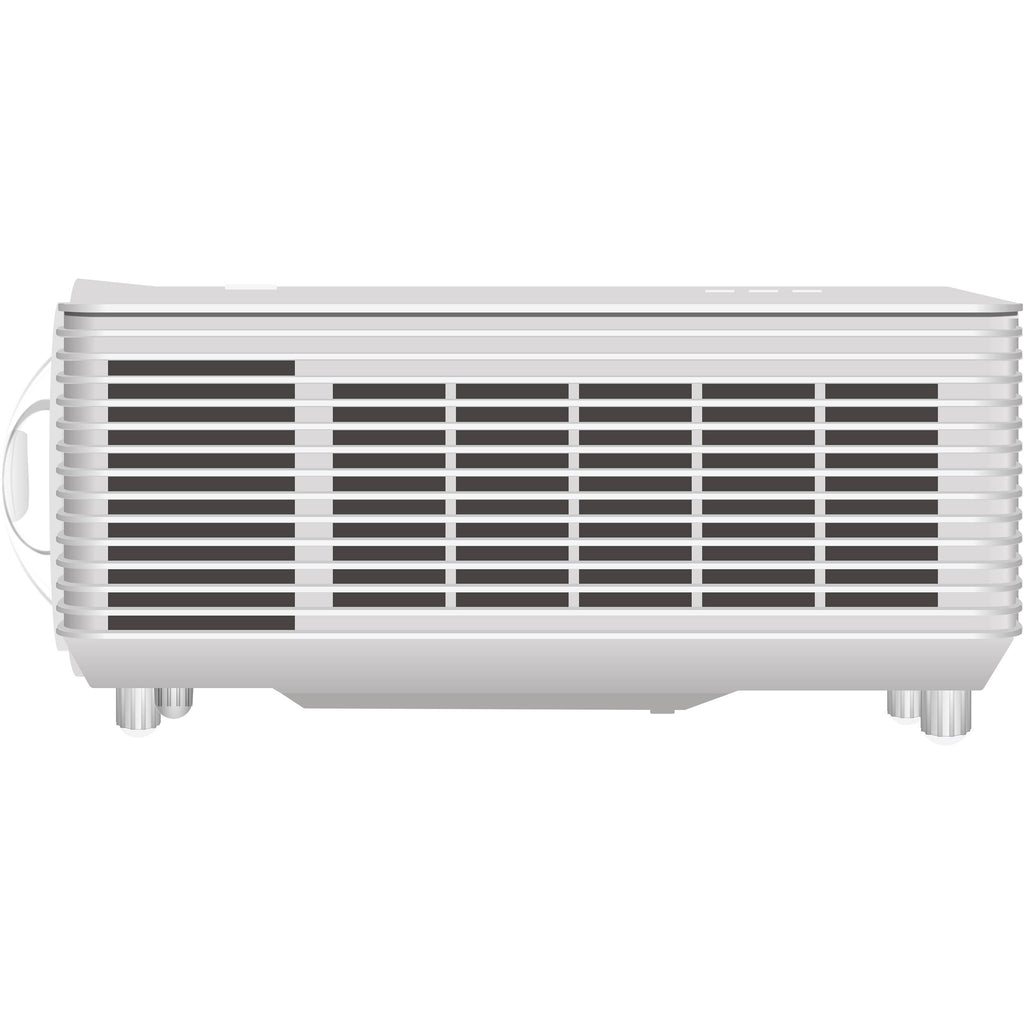

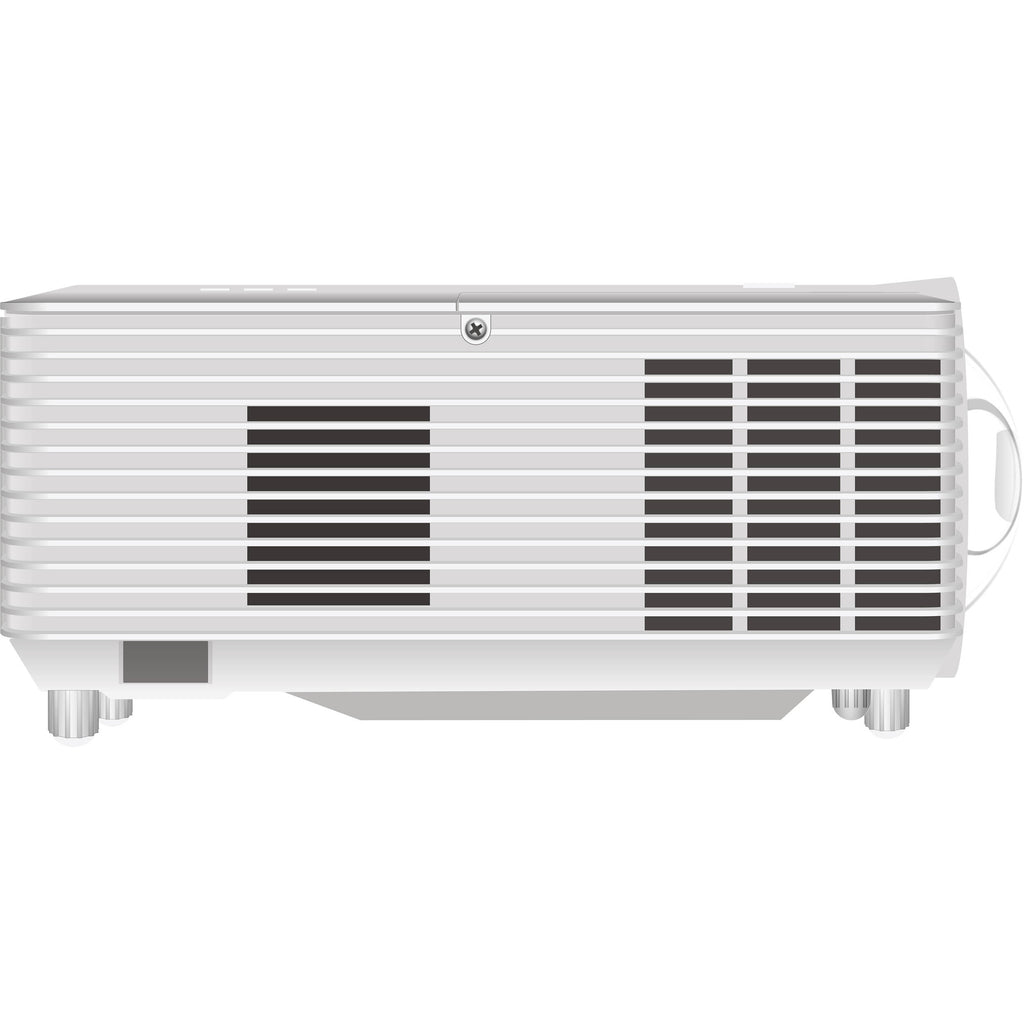

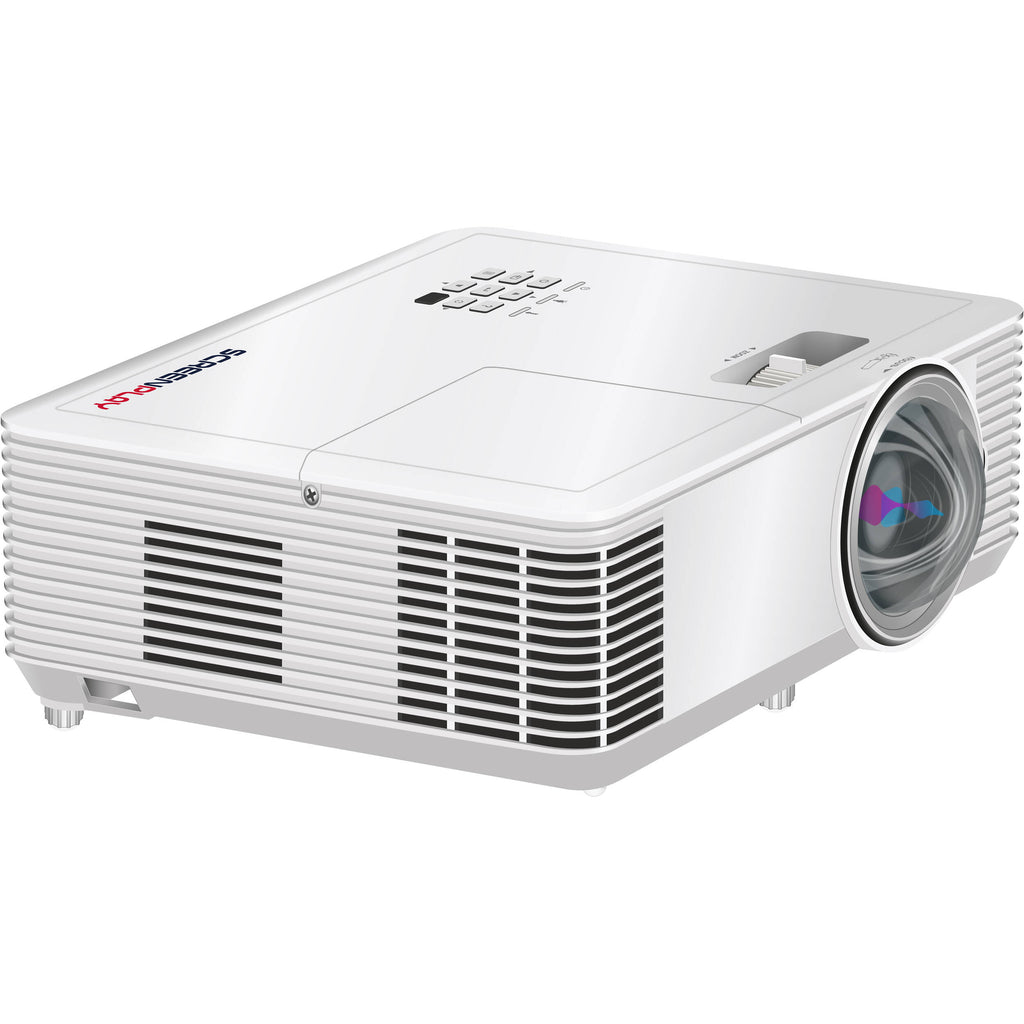

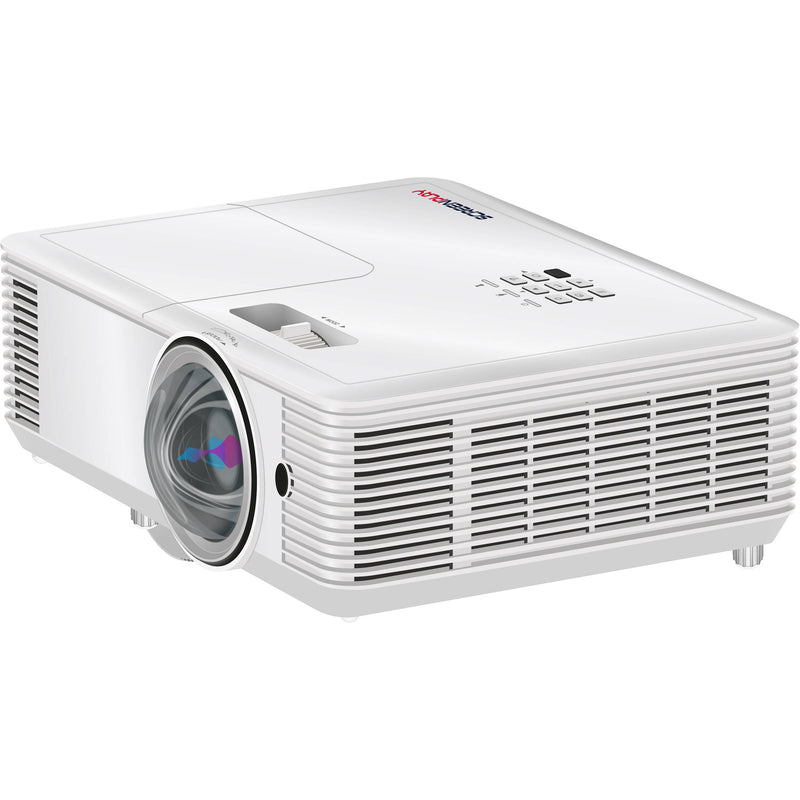

ScreenPlay Vista SP2234ST Overview
Ideally suited for large-scale deployments in corporate settings, the Crestron-certified ScreenPlay VISTA SCSP2234ST 4200-Lumen XGA Short-Throw DLP Projector meets the Crestron Connected standards and is compatible with the Crestron XiO Cloud Service. These features give IT professionals the ability to remotely monitor and manage the ScreenPlay VISTA along with other Crestron-compatible devices. At the user level, the SCSP2234ST's UHP lamp can produce 4200 lumens of brightness, making it a practical solution for even fully lit rooms. Add in a host of inputs and image correction features, and the ScreenPlay VISTA makes it quick and easy to project everything from presentations to streaming TV, movies, and games.
Short Throw
Thanks to its short-throw capability, the SP2234ST can be placed closer to a projection screen or wall, making it better suited for rooms with limited space.
Multiple Inputs
Dual HDMI, single VGA, and composite video inputs offer traditional connection of laptops or A/V components, such as a Blu-ray player or video game console. Additionally, you can use the RJ45 port to access server-based presentation files, or you can plug in and power an optional USB-A device for online streaming, such as Google Chromecast with Amazon TV.
Advanced Image Correction
Manual and automatic keystone correction works with optical and digital zoom to properly shape and fit projections to a screen or wall. Digital edge masking and image shift features can then be used to perfect your final image.
Direct Power On/Off
Save time when using the ScreenPlay VISTA with the direct power on and off feature. Direct power on will activate the projector as soon as it gets an electrical current, such as from a room's master power switch. Direct power off allows you to shut the projector down when you're finished and pack it away without waiting for it to cool down.
Other Network Protocols
While the ScreenPlay VISTA is optimized for use in Crestron environments, it also supports other popular standards, such as PJLink, AMX Dynamic discovery, Extron IPLink, and a comprehensive set of RS232 commands.
Additional Features
- Full 3D content support
- 24-hour operation for prolonged projections
- 15,000-hour lamp life in Dynamic Mode
- Easy maintenance with no filters to replace
UPC: 850031865891
Items Included
- ScreenPlay VISTA SCSP2234ST 4200-Lumen XGA Short-Throw DLP Projector
- Limited 1-Year Manufacturer Warranty (1 Year or 1000 Hours (Lamp))
Additional Resources
ScreenPlay Vista SP2234ST Specs
Key Specs
| Display System |
0.55" DMD DLP
|
| Native Resolution |
1024 x 768
|
| Maximum Brightness |
4200 Lumens
|
| Throw Ratio |
0.617:1
|
| HDR Support |
No
|
| Inputs/Outputs |
1x DE-15/DB-15 (VGA) Video Input
2x HDMI 1.4 Audio, Video Input 1x RCA (Composite) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x USB-A Service Input/Output 1x 1/8" / 3.5 mm Mini Audio Output 1x DE-15/DB-15 (VGA) Video Output 1x RJ45 (Ethernet) Data Input/Output 1x DE-9/DB-9 (RS-232) Control Input |
| Light Source |
Lamp (1 x UHP)
|
Image Display
| Display System |
0.55" DMD DLP
|
| Native Resolution |
1024 x 768
|
| Supported Resolutions |
Maximum: 1920 x 1200
|
| Maximum Brightness |
4200 Lumens
|
| Uniformity |
80%
|
| Offset |
115%
|
| Aspect Ratio |
4:3
|
| Contrast Ratio |
30,000:1
|
| Scan |
Horizontal: 15 to 97.55kHz
Vertical: 54 to 85Hz |
Lens
| Includes Lens |
Yes
|
| Focus |
Manual
|
| Aperture |
f/2.8
|
| Focal Length |
7.15mm
|
| Optical Zoom |
1.1x
|
| Throw Distance |
1.3 to 12.5' / 0.4 to 3.8 m
|
| Throw Ratio |
0.617:1
|
Features
| Keystone Correction |
Auto / Manual to Vertical: ± 20°
|
| HDR Support |
No
|
| Digital Zoom |
2.0x
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
Input/Output Connectors
| Inputs/Outputs |
1x DE-15/DB-15 (VGA) Video Input
2x HDMI 1.4 Audio, Video Input 1x RCA (Composite) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x USB-A Service Input/Output 1x 1/8" / 3.5 mm Mini Audio Output 1x DE-15/DB-15 (VGA) Video Output 1x RJ45 (Ethernet) Data Input/Output 1x DE-9/DB-9 (RS-232) Control Input |
| HDCP Support |
Not Specified by Manufacturer
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
No
|
| Bluetooth |
No
|
General
| Light Source |
Lamp (1 x UHP)
|
| Expected Lamp Life |
Full Brightness: 15,000 Hours
|
| Fan Noise |
Full Brightness: 27 dB
|
| Security |
Cable Lock Slot
Password Protection |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: 267 W
Low Brightness: 210 W Standby Mode (Lamp Off): < 0.5 W |
| Certifications |
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS, WEEE, RoHS EU, RoHS China
|
| Operating Conditions |
41 to 104°F / 5 to 40°C at 10 to 85% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 10 to 85% Humidity
|
| Dimensions (W x H x D) |
9.3 x 3.8 x 12.3" / 236.0 x 96.4 x 313.0 mm
|
| Weight |
5.7 lb / 2.6 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
