Description
Panasonic VMZ7ST Overview

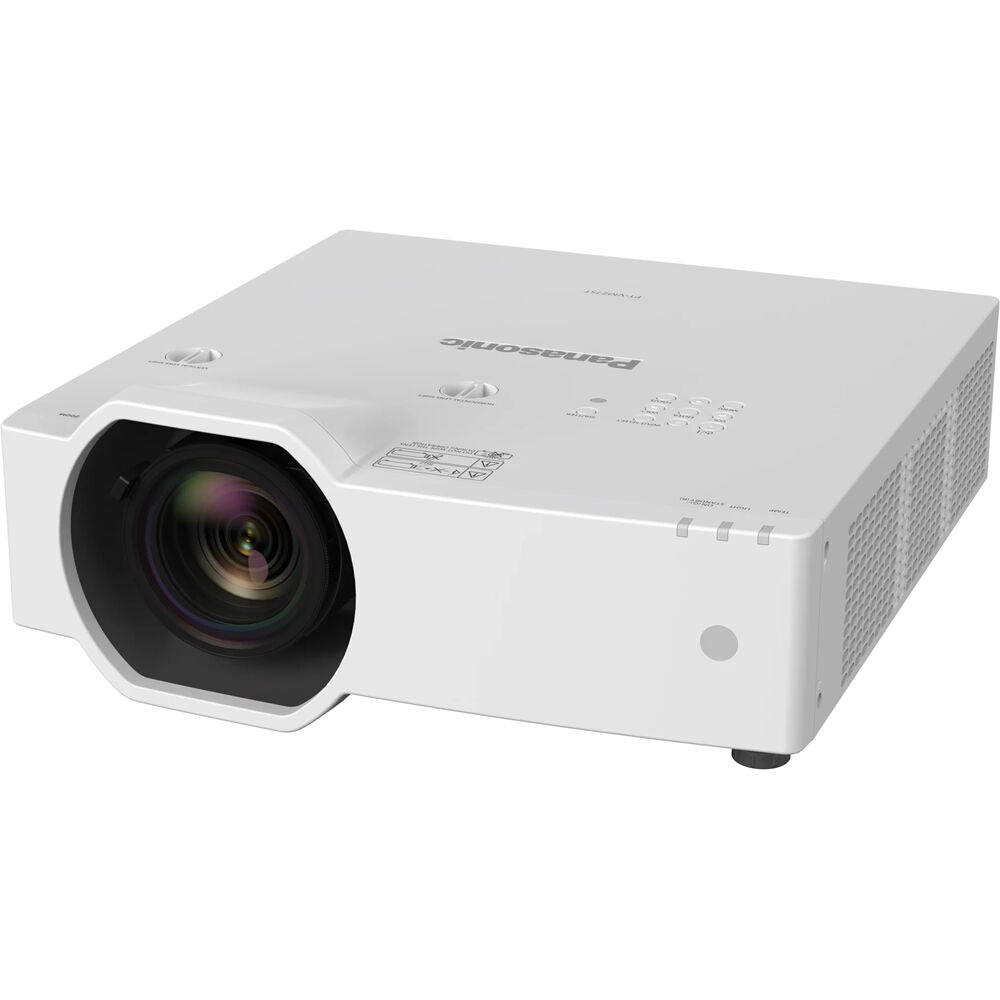

The Panasonic PT-VMZ7STU7 7000-Lumen WUXGA Short-Throw Laser 3LCD Projector is a compact, eco-friendly projection option designed for a diverse array of professional applications where space is limited, such as galleries and simulator spaces as well as offices, classrooms, and more.
The PT-VMZ7STU7 uses 3LCD color to produce bright and vibrant images, along with a laser light source that provides efficient, and reliable operation, with 24/7 capability. Video sources can be connected via HDMI, VGA, and RJ45 Digital Link with HDBaseT support. A host of features and settings help to simplify installation and control, with built-in support for the latest protocols from PJLink, Crestron, Extron, and others.
Stress-Free Installation
Designed for golf simulators and digital museums, the PT-VMZ7STU7 projects a 100" diagonal image from just 5.6', minimizing screen shadows in tight spaces. Powered focus eliminates manual adjustment in hard-to-reach areas, while 1.2x optical zoom, V/H lens shift, and 6-Point Screen Correction enhance layout flexibility. Grid Adjustment, Angle Monitor, and data-cloning via LAN/USB help to streamline installation, making the VMZ7ST Series a smart choice for creating engaging experiences in diverse environments.
Built-In Angle Monitor
Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ7ST Series features a built-in gyro sensor that detects changes in the projector's pitch and roll angles, which are graphically displayed in the OSD menu. Installers can adjust the projection angle without needing assistance.
Clear & Bright Projection in a Variety of Spaces
The PT-VMZ7STU7 delivers sharp, realistic visuals in well-lit spaces with 7000-lumen brightness, 3,000,000:1 Dynamic Contrast, and Daylight View Basic for optimal image quality in any lighting. Advanced color adjustment offers precise adjustments for more vibrant reproduction, ideal for colorful game content and museum artwork. DIGITAL LINK supports 4K signal input and control commands over LAN, enhancing flexibility in larger venues, while CEC command-compatible HDMI simplifies control with compatible devices.
Supports Next-Generation Control Protocols
Dedicated LAN terminal and DIGITAL LINK connections support the latest protocols, including IPv6, Art-Net DMX, PJLink (Class 2), Crestron Connected V2, Crestron XiO Cloud, and Extron XTP. The projector also includes an emulation function to ensure compatibility with legacy management software.
Eco-Friendly Design
Designed for a sustainable life cycle, the projector body plastic contains about 56% recycled resins and is shipped in a carton featuring easily recyclable cardboard insulation. Its high-efficiency laser light source and long-life ECO Filter require no maintenance for an estimated 20,000 hours, minimizing downtime, resource consumption, and waste. Auto Power On reduces energy wastage during idle periods, while the new built-in scheduling feature supports automated operation and playback according to a daily schedule.
Additional Features
- Intuitive Graphical User Interface (GUI) streamlines adjustments via the included remote control
- Digital zoom and digital image shift function
- Grid function for precise image correction
- Curved screen correction
- Data cloning via LAN or USB for multi-projector installations
- Optional wireless LAN module for screen sharing and app control
UPC: 885170435506
Items Included
- Panasonic PT-VMZ7STU7 7000-Lumen WUXGA Short-Throw Laser 3LCD Projector (White)
- Power Cord
- Remote Control with Batteries
- Limited 3-Year Manufacturer Warranty
Additional Resources
Panasonic VMZ7ST Specs
Key Specs
| Display System |
3-Chip 0.64" LCD
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
7000 Lumens (ANSI)
|
| Throw Ratio |
0.797 to 1.01:1 (150" Screen Size @ 9.8' / 3 m)
|
| Projection Size |
70 to 300" / 1.8 to 7.6 m
|
| HDR Support |
No
|
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x USB-A Data, LAN, Power Input/Output 1x DE-9/DB-9 (RS-232) Control Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
3-Chip 0.64" LCD
|
| Native Resolution |
1920 x 1200
|
| Supported Resolutions |
Maximum: 4096 x 2160 @ 30 Hz
|
| Maximum Brightness |
7000 Lumens (ANSI)
|
| Aspect Ratio |
Native: 16:10
Supported: 16:9 Supported: 4:3 Supported: 21:9 |
| Dynamic Contrast Ratio |
5,000,000:1
|
| Color Depth |
10-Bit (1.07 Billion Colors)
|
Lens
| Includes Lens |
Yes
|
| Focus |
Manual Powered
|
| Aperture |
f/1.53 to 1.66
|
| Focal Length |
11.3 to 14.2mm
|
| Lens Shift |
Vertical: + 50%
Horizontal: ? 20% |
| Optical Zoom |
Manual: 1.2x
|
| Throw Distance |
3.87 to 21.85' / 1.18 to 6.66 m
|
| Throw Ratio |
0.797 to 1.01:1 (150" Screen Size @ 9.8' / 3 m)
|
| Projection Size |
70 to 300" / 1.8 to 7.6 m
|
Features
| Keystone Correction |
Manual to Vertical: ? 25?
Horizontal: ? 35? |
| HDR Support |
No
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
Yes (Mono)
|
| Speaker Power |
10 W
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x USB-A Data, LAN, Power Input/Output 1x DE-9/DB-9 (RS-232) Control Input |
| HDCP Support |
Yes
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
Yes: Android & iOS
App Name: Panasonic Wireless Projector App Functionality: Setup |
| Wireless LAN / Wi-Fi |
No, Optional Adapter Available
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours |
| Fan Noise |
Medium Brightness: 37 dB
Low Brightness: 27 dB |
| Security |
Cable Lock Slot
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Medium Brightness: 345 W
|
| Certifications |
CE
|
| Operating Conditions |
32 to 113?F / 0 to 45?C at 20 to 80% Humidity
|
| Dimensions (W x H x D) |
16.3 x 6.6 x 16.7" / 414.0 x 167.0 x 424.0 mm (with the feet at shortest position, including protrusions)
|
| Weight |
18.3 lb / 8.3 kg
|
Packaging Info
| Package Weight |
28.95 lb
|
| Box Dimensions (LxWxH) |
22.6 x 21.5 x 11"
|
