Description
Optoma Technology ZU820T Overview
By Photo's
Frank Abbate
Enjoy bright, consistent images, and low maintenance with the ZU820T WUXGA Laser Projector from Optoma Technology. With a brightness output of 7400 ANSI lumens, the ZU820T uses DLP and laser technology in an IP5X dust-resistant design to maintain rich color and high brightness over long periods of use. It houses a standard throw, fully-motorized lens and can be installed in any orientation, making it an ideal choice for digital signage, professional environments, and multi-projector installations.
Dust Resistant DuraCore Laser Technology
A long lightsource lifetime is achieved using Optoma�s DuraCore technology, which implements advanced laser diode cooling techniques and an innovative dust-resistant design. The ZU820T has been independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.
Full Motorized Lens Shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. With the ZU820T, the image can be shifted via remote control, up to 55% vertically, and 25% horizontally. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Four Corner Correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
HDBaseT
Uncompromising, uncompressed Full HD video, audio, network, and control commands all delivered on a single CAT-type cable capable up to 328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
360° and Portrait Orientation
The ZU820T is ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image. With 360° projection images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
Integrated Warping and Edge Blending
An integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Color Management System
Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.
True AV Mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Constant Power and Constant Brightness
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life, or anywhere in-between.
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations
Integrator Friendly Control
The ZU820T features a wide range of options to control and monitor the projector remotely.
- RS232 - Optoma projector�s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
- AMX compatible - Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
- Crestron RoomView - Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
- Extron IPLink compatible - Allows for easy installation with Extron control systems.
Additional Features
- 4K and HDR compatibility
- Full DLP 3D support
- 3D sync input and output
- Wired remote input
- Direct/instant power off
- Telnet compatible
- Built-in dual 10W speakers
- Backlit remote control included
UPC: 796435446017
In the Box
- Optoma Technology ZU820T 7400-Lumen WUXGA Laser DLP Projector
- Power Cord

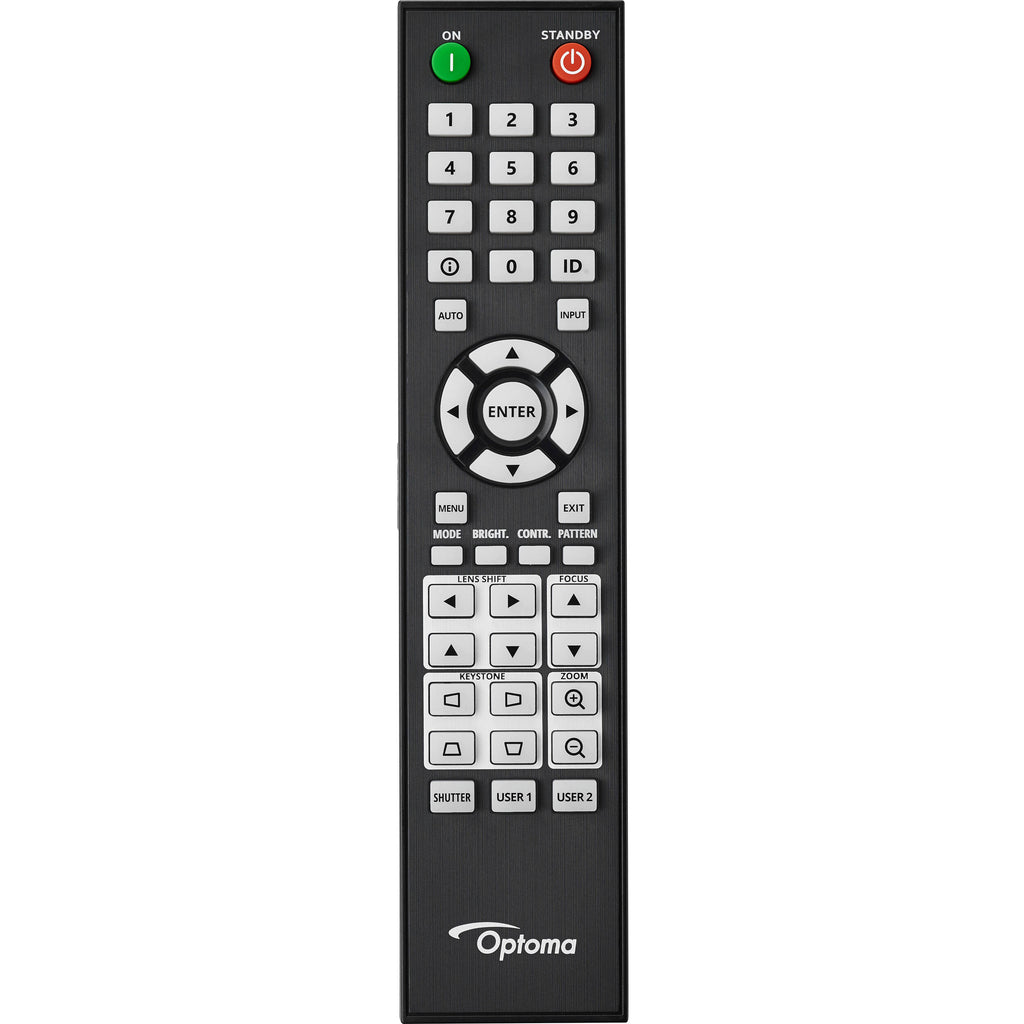

- Remote Control
- Limited 3-Year Manufacturer Warranty (Projector Parts and Labor)
- Limited 5-Year Manufacturer Warranty (Or 12,000 Hours on Light Source)
Additional Resources
Optoma Technology ZU820TSpecs
Key Specs
| Display System |
1-Chip DLP
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
7400 Lumens (ANSI)
|
| Throw Ratio |
1.25 to 2:1 (200" Screen Size @ 23.0' / 7 m)
|
| Projection Size |
50 to 300" / 1.3 to 7.6 m
|
| HDR Support |
Yes
|
| Inputs/Outputs |
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1x HDMI 2.0 Audio, Video Input 1x HDMI 1.4a Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x RJ45 LAN Input 1x HDMI Audio, Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Control Output |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
1-Chip DLP
|
| Native Resolution |
1920 x 1200
|
| Supported Resolutions |
Maximum: 3840 x 2160 @ 60 Hz
|
| Maximum Brightness |
7400 Lumens (ANSI)
|
| Uniformity |
95%
|
| Offset |
50%
|
| Aspect Ratio |
Native: 16:10
Supported: 16:9 Supported: 4:3 |
| Contrast Ratio |
1100:1
|
| Dynamic Contrast Ratio |
3,000,000:1
|
| DLP Link 3D |
Yes
|
| Supported 3D Formats |
Frame Sequential (up to 1080p)
Frame Packing (up to 1080p) Side by Side (up to 1080i) Top Bottom (up to 1080p) |
| Color Wheel |
3-Segment (RGB)
|
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 15.38 to 91.15kHz
Vertical: 24 to 85Hz |
Lens
| Includes Lens |
Yes
|
| Focus |
Manual Powered
|
| Focal Length |
18.72 to 29.59mm
|
| Lens Shift |
Vertical: ± 55%
Horizontal: ± 25% |
| Optical Zoom |
Powered: 1.6x
|
| Throw Distance |
52.36 to 514.17" / 1.33 to 13.06 m
|
| Throw Ratio |
1.25 to 2:1 (200" Screen Size @ 23.0' / 7 m)
|
| Projection Size |
50 to 300" / 1.3 to 7.6 m
|
Features
| Keystone Correction |
Manual to Vertical: ± 30°
Manual to Horizontal: ± 30° |
| HDR Support |
Yes
|
| Digital Zoom |
4x
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
Yes (Stereo)
|
| Speaker Power |
20 W
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors

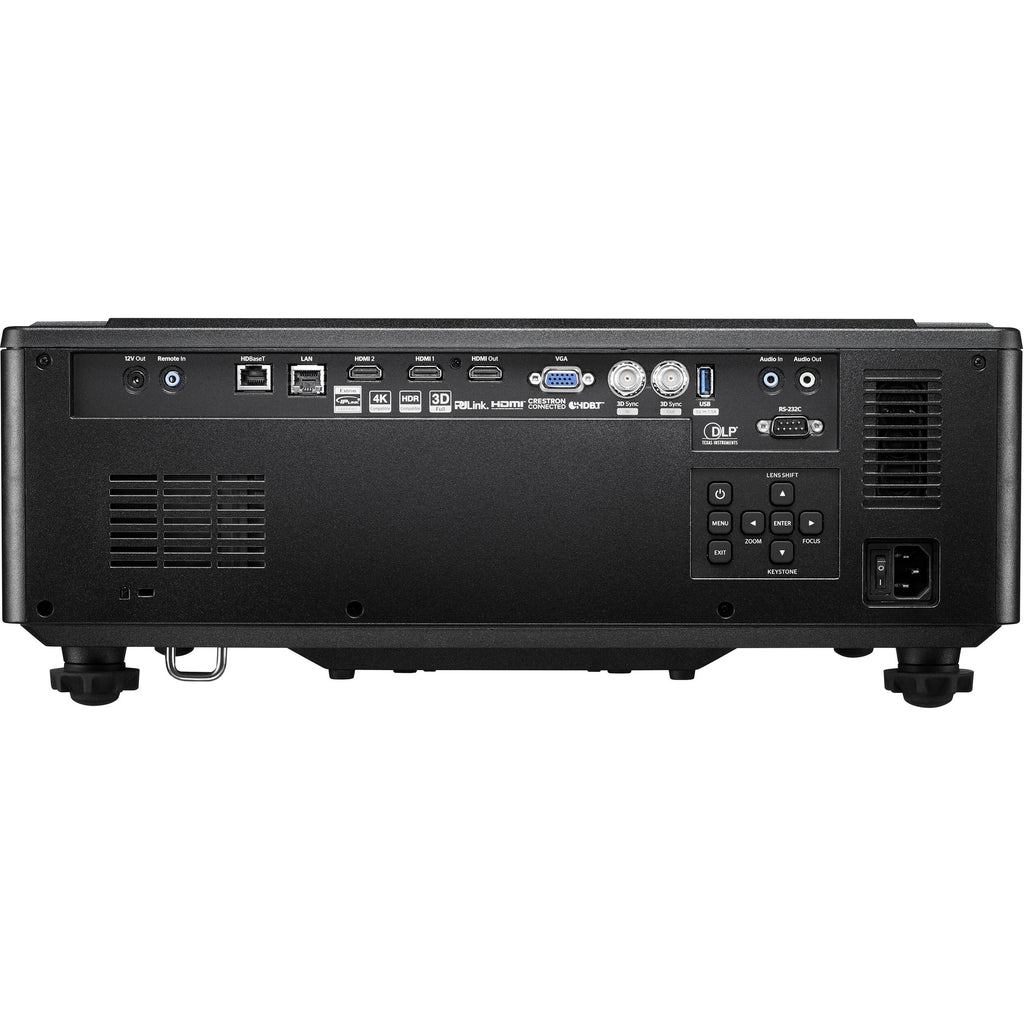

| Inputs/Outputs |
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1x HDMI 2.0 Audio, Video Input 1x HDMI 1.4a Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x RJ45 LAN Input 1x HDMI Audio, Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8" / 3.5 mm Mini Remote Input 1x 1/8" / 3.5 mm Mini Control Output |
| HDCP Support |
Yes
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
No
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 30,000 Hours
|
| Fan Noise |
Full Brightness: 36 dB
|
| Security |
Cable Lock Slot
Security Bar |
| Supported Languages |
English
French German Italian Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Input Power |
90 to 264 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: < 520 W
Low Brightness: 260 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Conditions |
41 to 104°F / 5 to 40°C at 10 to 85% Humidity
|
| Dimensions (W x H x D) |
19.1 x 6.9 x 17.0" / 485.1 x 175.3 x 431.8 mm
|
| Weight |
30.86 lb / 14 kg
|
Packaging Info
| Package Weight |
41.9 lb
|
| Box Dimensions (LxWxH) |
25.6 x 22.4 x 14.9"
|
