Description

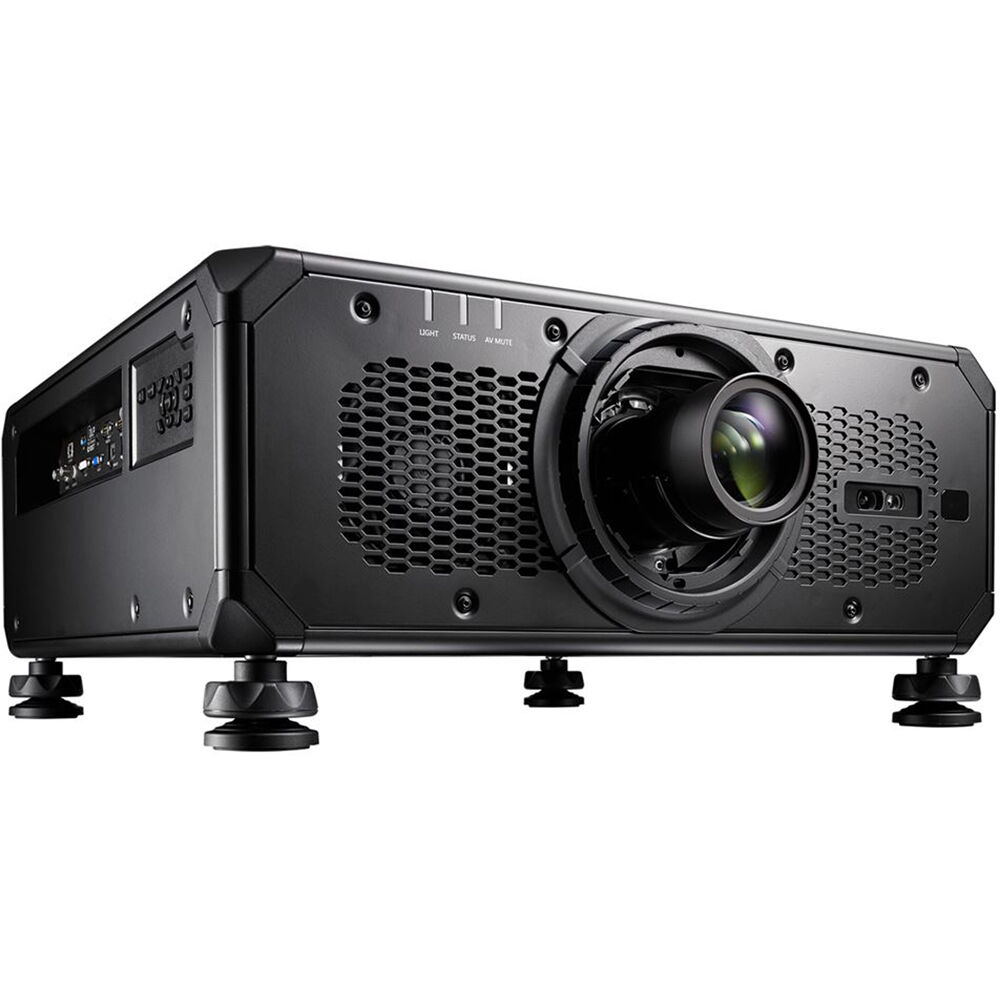

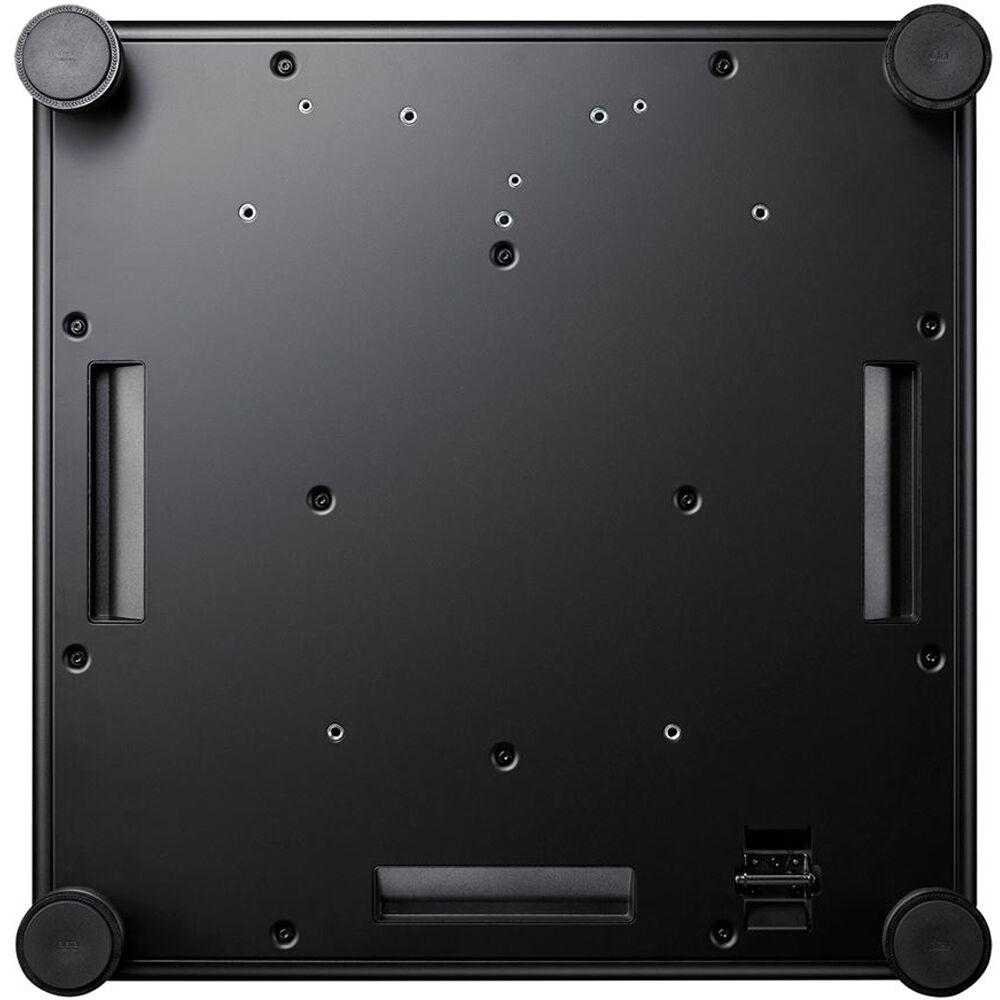

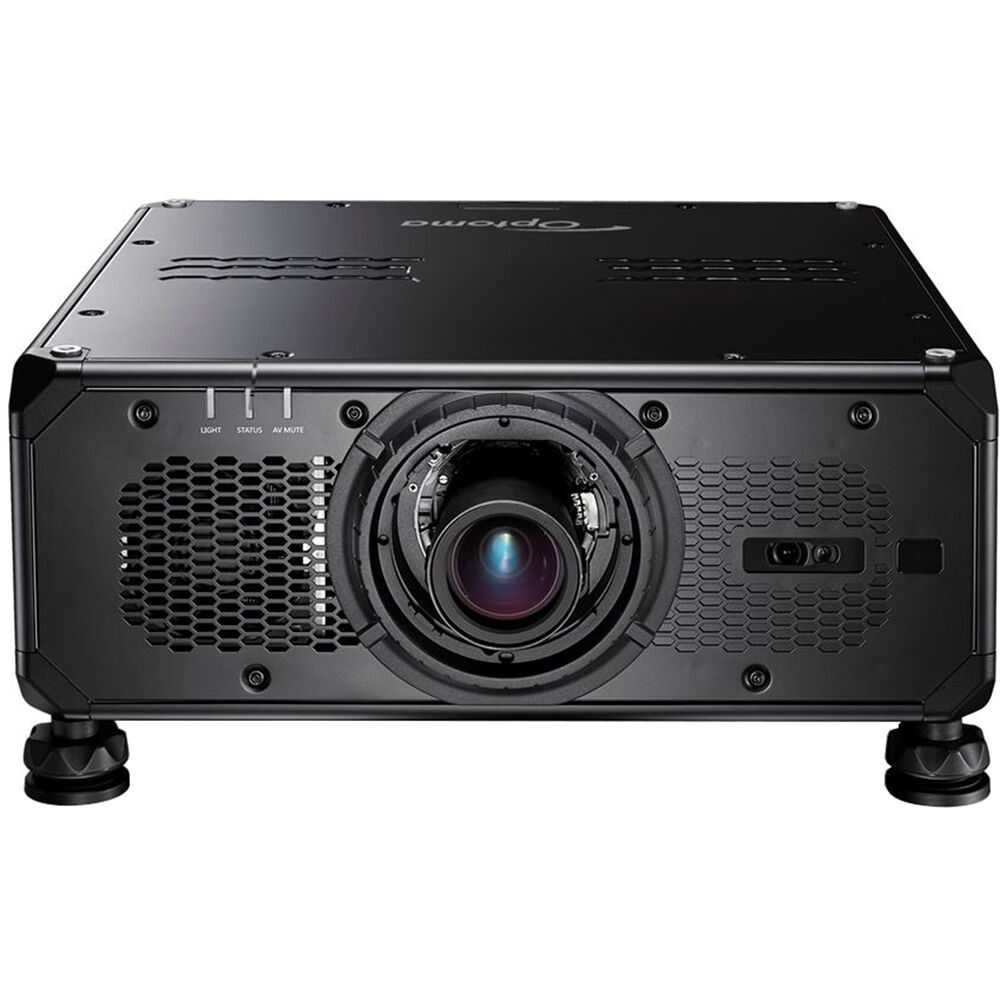

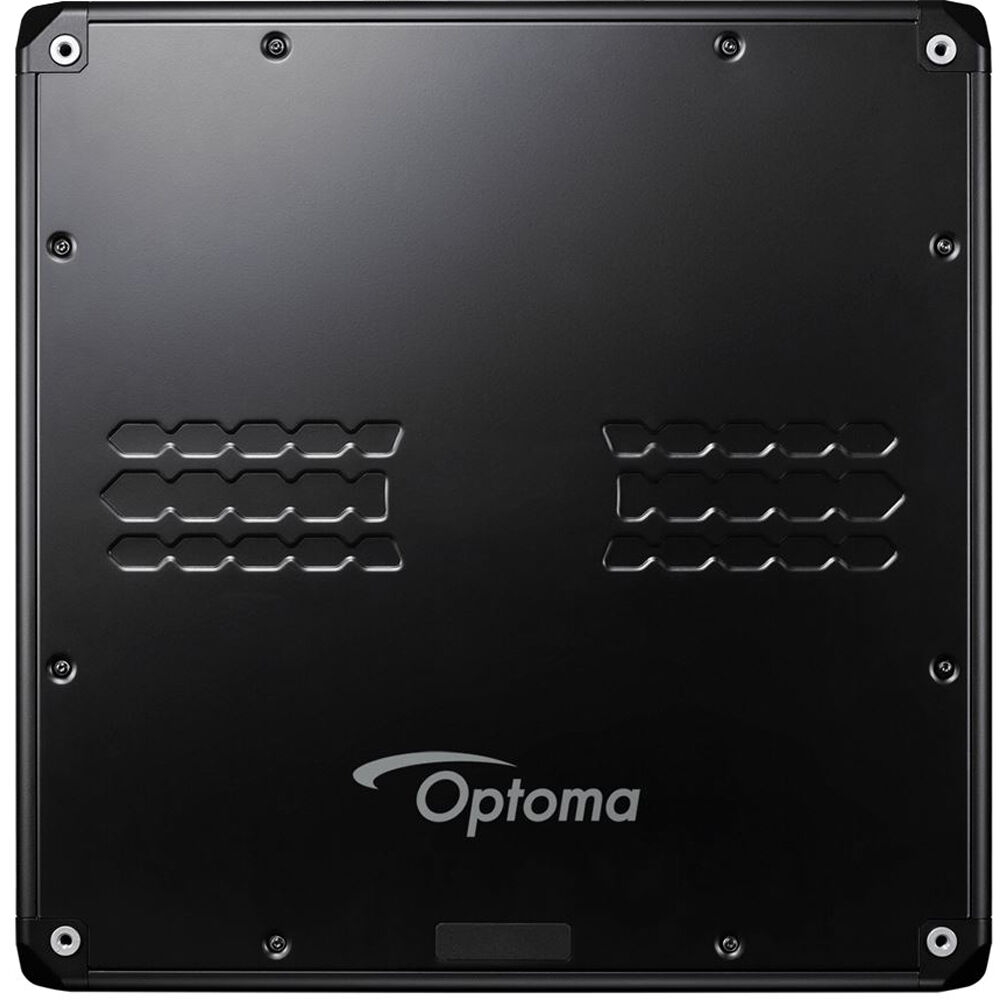

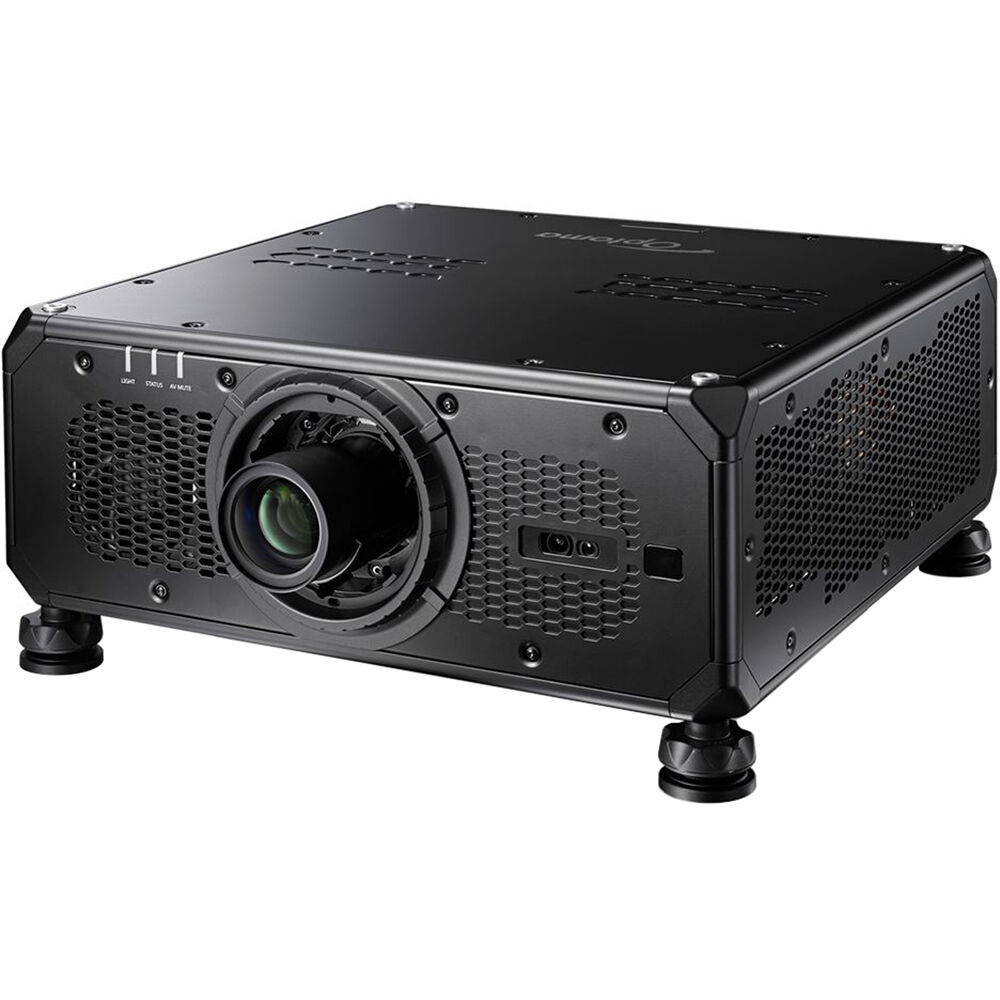

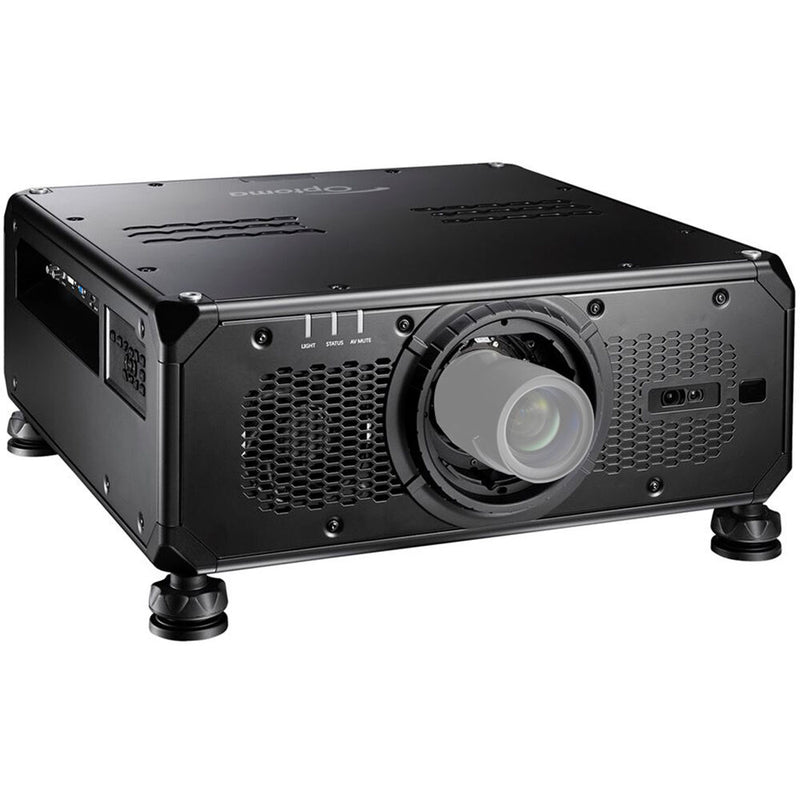

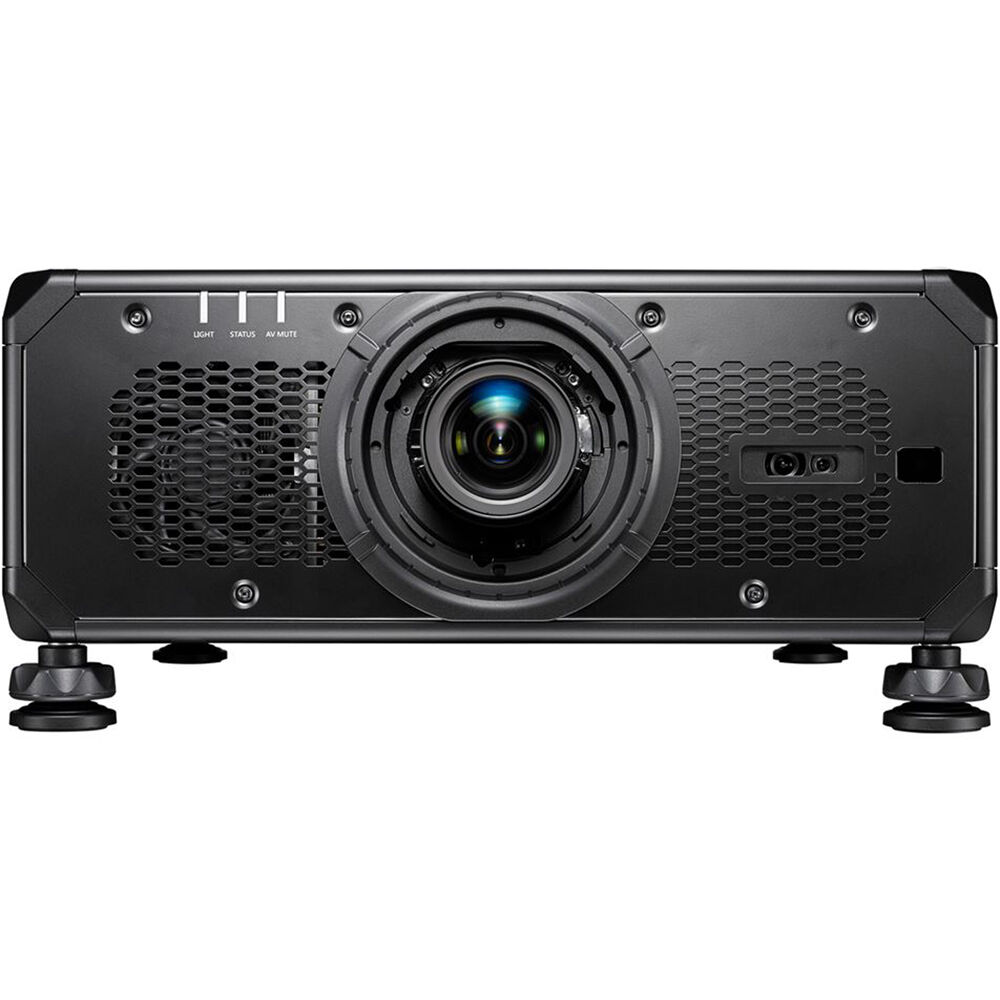

Optoma Technology ZU2200 Overview
By Photo's
Frank Abbate
The Optoma Technology ZU2200 18,500-Lumen WUXGA Laser DLP Projector is a high brightness, professional-grade model capable of delivering 18,500 ANSI-lumens for large, high-end installations, including in the entertainment, exhibition, and digital signage markets. Additionally, the ZU2200 achieves superior color rendition through MultiColor Laser (MCL) technology.
The ZU2200 comes with a full suite of professional features, such as image warping and blending, color and brightness management, full lens shift, and 360° placement capability. Furthermore, eight lens options (sold separately) provide throw ratios from 0.65 to 10.8:1 to cover an incredible variety of projection sizes and distances.
Professional Quality and Reliability
Strong reliability is at the core of the ZU2200 projector, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122°F. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the ZU2200 projector offers a solution for intricate installations, including multi-projector and dome projection applications.
Brightness
The ANSI lumen brightness for the ZU2200 projector is 18,500 lumens. The manufacturer has provided their own specification of 22,000 lumens.
Multicolor Laser
Innovative Multicolor Laser (MCL) technology adds a second red laser to the common blue laser. This results in greatly improved color performance.
Input Failover with Fast Switching
The unique signal input detection function provides instant source switching in the event of the failure of the signal source device. This feature ensures an image never fails to display in mission critical installations such as control rooms, live events, or other similar scenarios.
Integrated Warping and Edge Blending
An integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Auto Color Uniformity and Focus
Providing a quick, hassle free and more convenient setup; you can enjoy a crystal-clear image with accurate color uniformity in a matter of seconds with the super-fast camera-based auto color uniformity and auto focus features. These features are compatible with image sizes up to 300" diagonally.
HDBaseT
HDBaseT input compatibility provides uncompressed Full HD video, audio, network, and control commands, all delivered on a single CAT-type cable. HDBaseT is typically capable of transmitting signals up to 328 feet without loss making installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Integrator Friendly Control
The ZU2200 features a wide range of options to control and monitor the projector remotely.
- RS232: Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
- AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
- Crestron RoomView: Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
- Extron IPLink compatible: Allows for easy installation with Extron control systems.
- PJLink: Allows for easy installation with PJLink compatible control systems.
- Telnet: This model can receive commands via telnet allowing for easy installation with Telnet compatible control systems.
Additional Features
- 4K and HDR compatible
- Color Management System (CMS) allows you to fine tune the color settings
- Manage power for longest life, brightest picture, or anywhere in between
- Constant brightness helps maintain consistent brightness levels over time for long running installations
- True AV mute gives 100% screen blackout with instant on and off
- Full lens shift
- Picture-by-picture, picture-in-picture
- Active and Passive full 3D capability
- Wired remote control option
UPC: 796435445546
Items Included
- Optoma Technology ZU2200 18,500-Lumen WUXGA Laser DLP Projector (No Lens)
- Power Cord
- Remote Control
- Limited 3-Year Manufacturer Warranty (On Projector)
- Limited 5-Year Manufacturer Warranty (Or 12,000 Hours on Light Source, Whichever Comes First)
Not Included
- Essential Lenses & Lens Adapters
Additional Resources
Optoma Technology ZU2200 Specs
Key Specs
| Display System |
DLP
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
18,500 Lumens (ANSI)
22,000 Lumens |
| HDR Support |
Yes
|
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DisplayPort Video Input 1x DE-15/DB-15 (VGA) Video Input 1x DVI-D Video Input 1x BNC (3G-SDI) Video Input 1x HDMI Video Output 1x BNC (3G-SDI) Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x BNC (VESA 3D Sync) Control Input 1x 1/8" / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC (VESA 3D Sync) Control Output 1x 1/8" / 3.5 mm Mini Remote Output 1x RJ45 (Ethernet) LAN Input 1x USB-A Service Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
DLP
|
| Native Resolution |
1920 x 1200
|
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz
|
| Maximum Brightness |
18,500 Lumens (ANSI)
22,000 Lumens |
| Aspect Ratio |
Native: 16:10
Supported: 16:9 |
| Dynamic Contrast Ratio |
2,000,000:1
|
| DLP Link 3D |
Yes
|
| Supported 3D Formats |
Frame Sequential
Frame Packing Side by Side Top Bottom |
Lens
| Includes Lens |
No
|
Features
| Keystone Correction |
Vertical: ± 40°
Horizontal: ± 40° |
| HDR Support |
Yes
|
| Digital Zoom |
4x
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
No
|
| Projection Tilt Option |
Yes
|
Input/Output Connectors
| Inputs/Outputs |
2x HDMI Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DisplayPort Video Input 1x DE-15/DB-15 (VGA) Video Input 1x DVI-D Video Input 1x BNC (3G-SDI) Video Input 1x HDMI Video Output 1x BNC (3G-SDI) Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x BNC (VESA 3D Sync) Control Input 1x 1/8" / 3.5 mm Mini Remote Input 1x DE-9/DB-9 (RS-232) Control Output 1x BNC (VESA 3D Sync) Control Output 1x 1/8" / 3.5 mm Mini Remote Output 1x RJ45 (Ethernet) LAN Input 1x USB-A Service Input |
| HDCP Support |
Yes
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
No
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Low Brightness: 30,000 Hours
|
| Fan Noise |
Full Brightness: 40 dB
|
| Security |
Cable Lock Slot
Password Protection |
| Supported Languages |
Dutch
English French German Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Thai Traditional Chinese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: < 1200 W
Low Brightness: 590 W Standby Mode (Lamp Off): < 0.5 W |
| Certifications |
FCC Class A, Part 15, ICES-003, RoHS, WEEE
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 10 to 85% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 5 to 90% Humidity
|
| Dimensions (W x H x D) |
25.6 x 11.8 x 26.9" / 650.0 x 300.9 x 682.0 mm (with Feet, without Lens)
25.6 x 9.9 x 26.9" / 650.0 x 251.0 x 682.0 mm (without Feet, without Lens) |
| Weight |
119.05 lb / 54 kg
|
