Description
Optoma Technology ZH507+ Overview
By Photo's
John Foldi

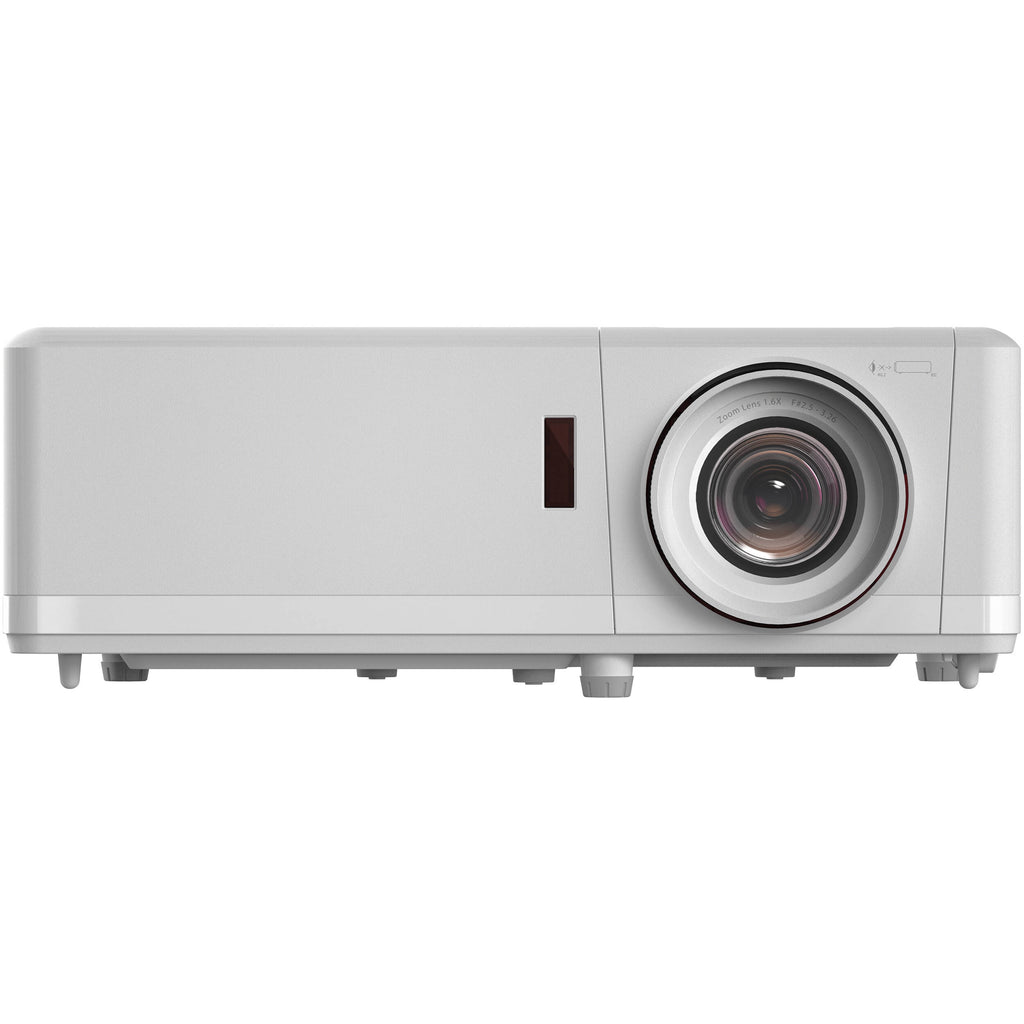

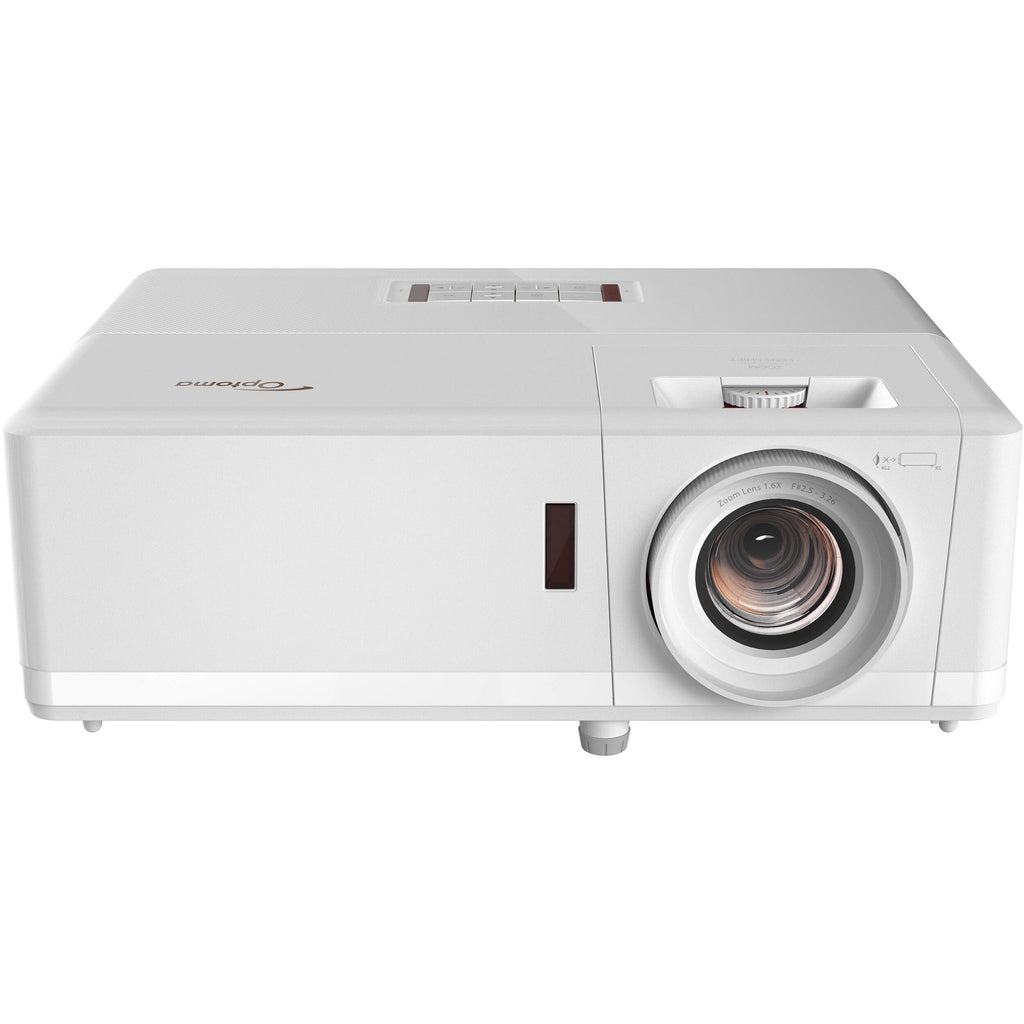

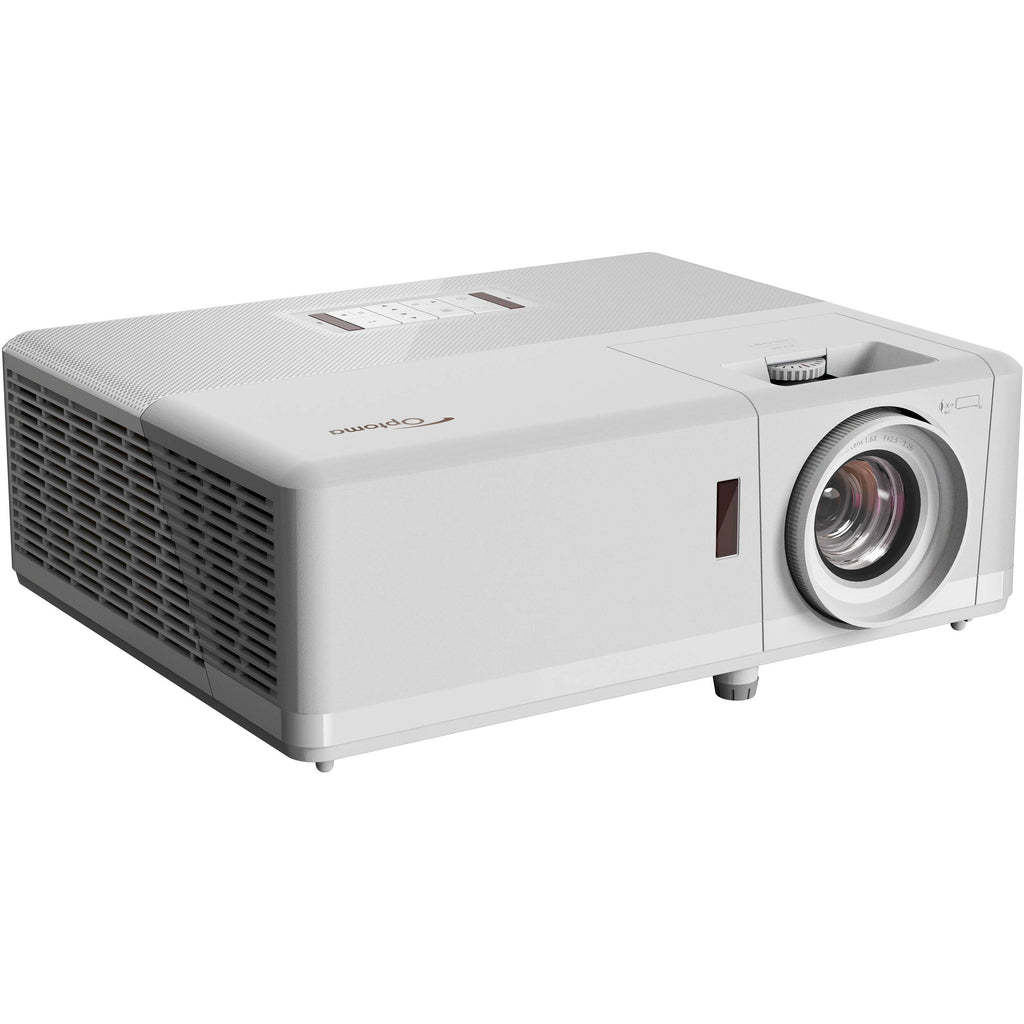

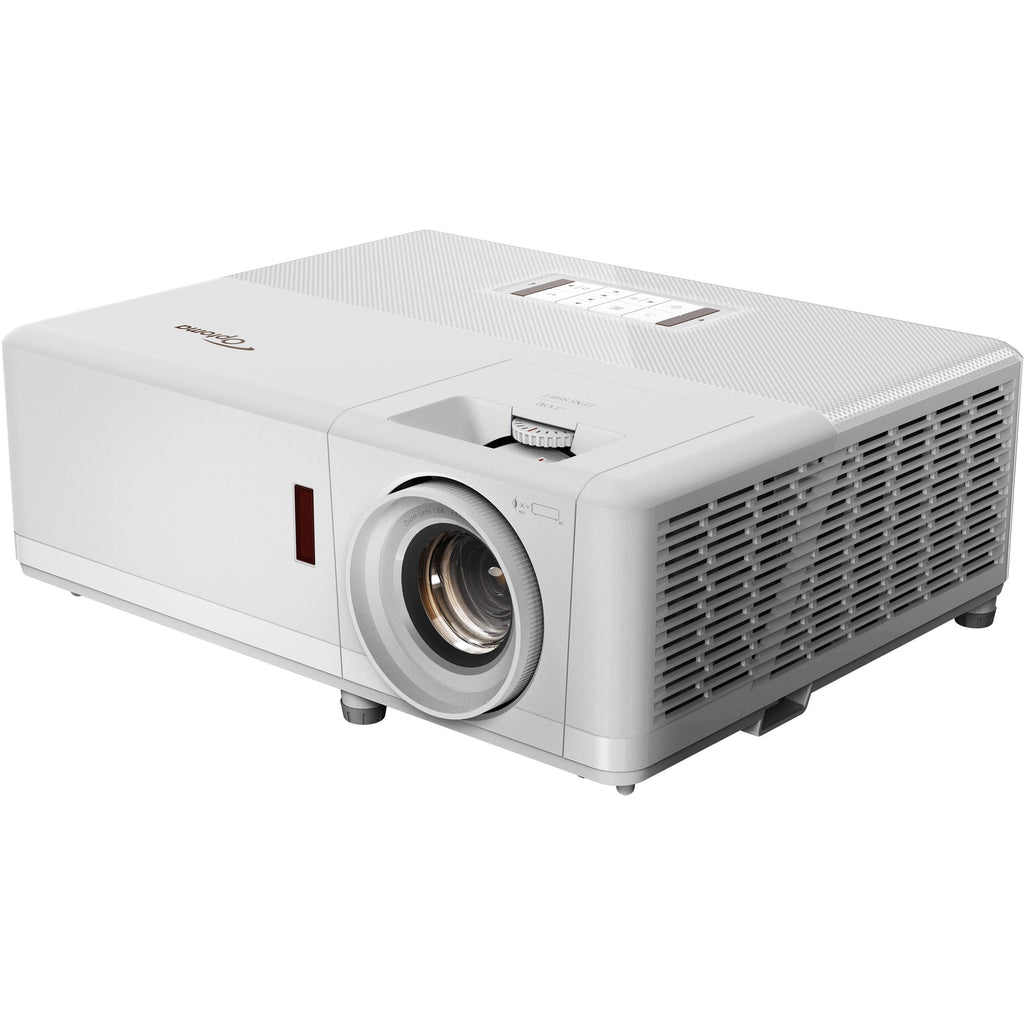

Designed for large venue installations, the ZH507+ 5500-Lumens Full HD Laser DLP Smart Projector from Optoma Technology offers bright and crisp images throughout the day, wireless streaming support, and remote maintenance by IT staff. Lifelike color and rich contrast, even during the day, is made possible by the DuraCore laser light source and DLP projection system. Project 1080p and HDR content with an impressive 5500 lumens of brightness. Use the included USB Wi-Fi adapter and CreativeCast Pro to access content from the internet, local network, or cast from a mobile device. This connectivity and support for a host of professional control systems, lets support staff remotely manage and service the projector to ensure it's always operational.
360 Projection
You can orient the ZH507+ in any direction to suite your projection needs. Project at a standard 16:9 aspect ratio for presentations and entertainment, or portrait images that are well-suited for digital signage and advertising.
Image Adjustment

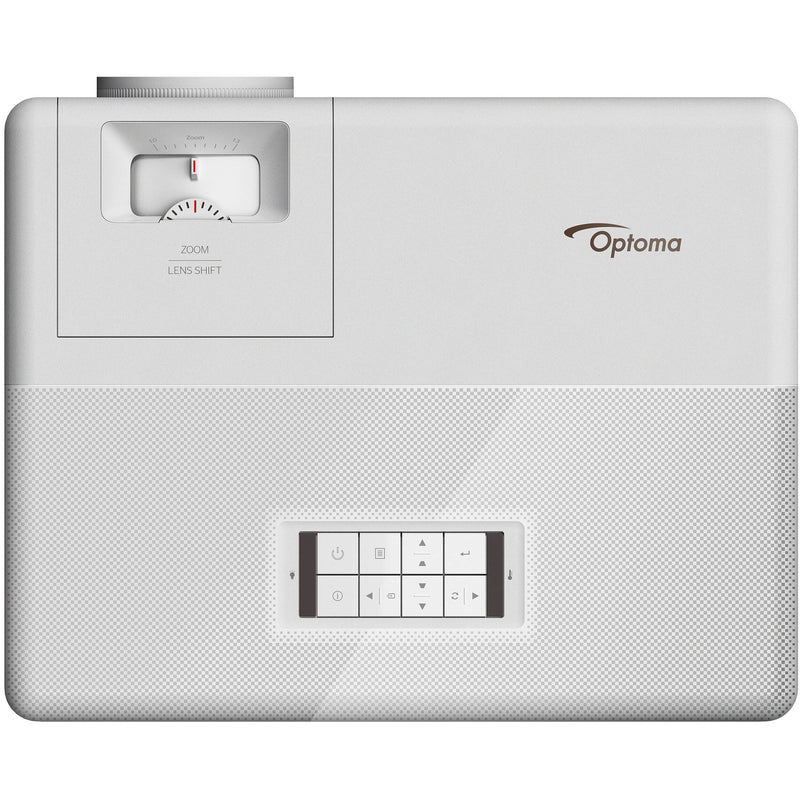

However you setup your ZH507+, you can quickly create a perfectly square or rectangular image using built-in image adjustment features, such as 1.6x zoom, vertical lens shift, and four corner correction.
Optoma Management Suite Cloud
Using Optoma Management Suite Cloud, IT staff can control and manage the projector from any location. It also allows users to can set alerts and broadcast emergency announcements. This remote control works in conjunction with control system support for Crestron, Extron, AMX, PJ-Link, Telnet LAN, and RS232 commands.
Multiple Inputs

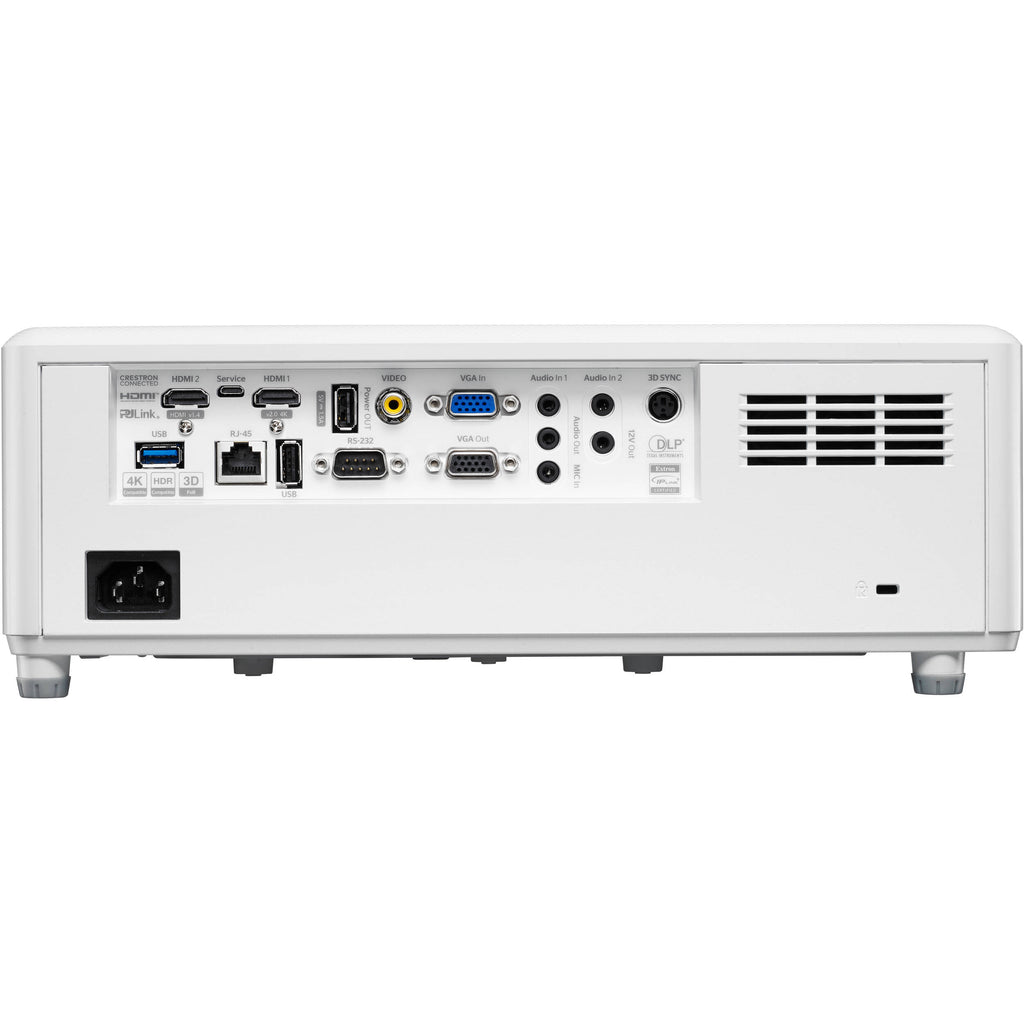

In addition to sourcing content wirelessly with the included adapter, you can connect a wide variety of devices to the ZH507+. You have access to dual HDMI inputs, one VGA input, and one composite video input. There is also a USB-A power output that can be used to support a media player dongle, such as Google Chromecast.
AV Mute
In order to deliver a more engaging presentation, this feature blanks out the screen to focus the audience on the presenter when needed.
Direct Power On/Off
If the projector is plugged into an outlet that can be controlled by a wall switch, the projector can be turned on and off without the need of the included remote control.
Quick Resume
The Quick Resume feature instantly powers on the EH401 if it was accidentally switched off.
Additional Features
- IP6X airtight optical engine
- Auto power off if left unused for a period of time
- 24/7 operation
- Supports true 3D content
- Dual built-in 10W speakers
UPC: 796435446253
In the Box
- Optoma Technology ZH507+ 5500-Lumens Full HD Laser DLP Smart Projector

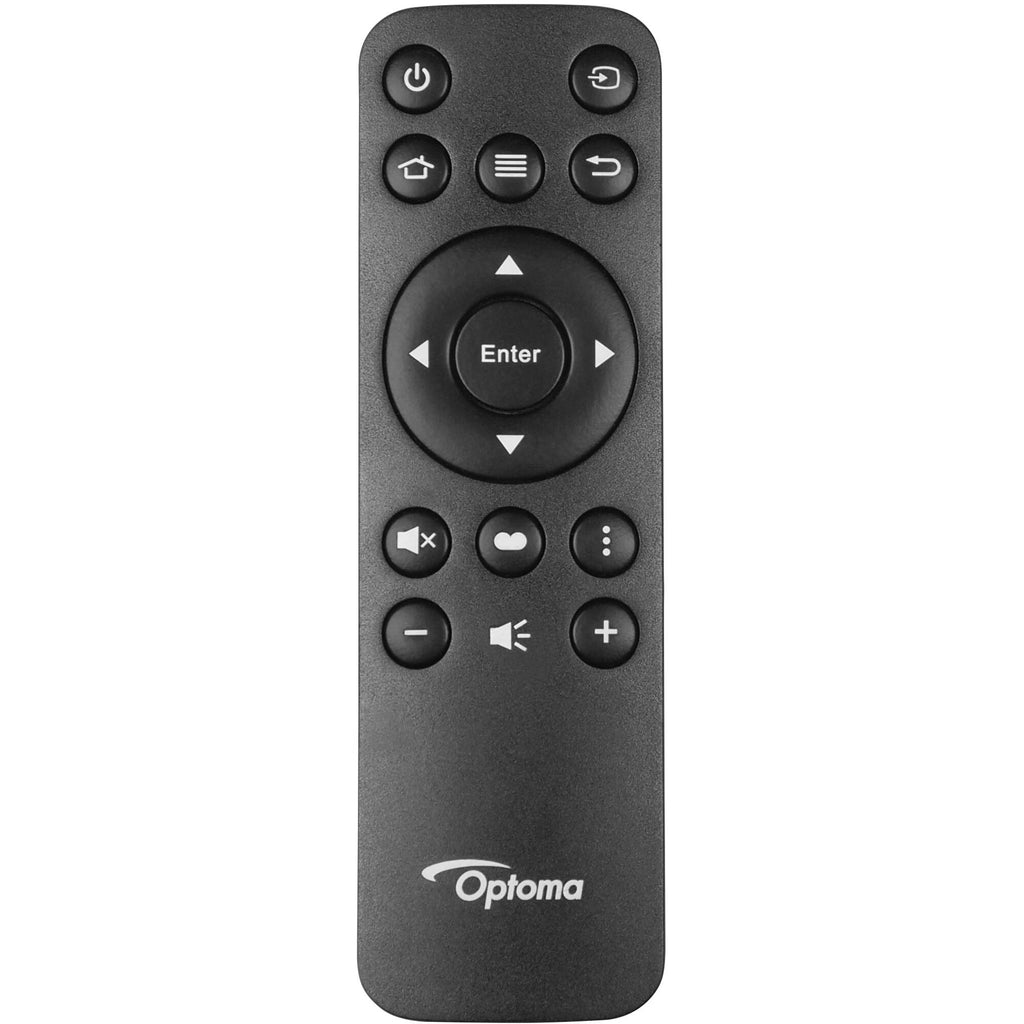

- Remote Control with Battery
- AC Power Cord
- Limited 3-Year Manufacturer Warranty (Projector Excluding Light Source)
- Limited 5-Year Manufacturer Warranty (5 Years or 12,000 Hours (Light Source))
Additional Resources
Optoma Technology ZH507+Specs
Key Specs
| Display System |
DLP
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
5500 Lumens
|
| Throw Ratio |
1.4 to 2.24:1
|
| Projection Size |
20.2 to 320.4" / .5 to 8.1 m
|
| HDR Support |
Yes, HDR10
|
| Inputs/Outputs |
1x HDMI 2.0 Audio, Video Input
1x HDMI 1.4a Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 2x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Audio Line/Mic Input 1x DE-15/DB-15 (VGA) Video Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Data Output 1x USB-A 2.0 Data Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input/Output 1x 12 V Trigger Control Input 1x Micro-USB Service Input 1x 3-Pin DIN (VESA 3D Sync) Data Input |
| Light Source |
Laser Phosphor
|
Image Display
| Display System |
DLP
|
| Native Resolution |
1920 x 1080
|
| Supported Resolutions |
Maximum: 1920 x 1080 @ 50/60 Hz
Minimum: 640 x 480 |
| Maximum Brightness |
5500 Lumens
|
| Uniformity |
80%
|
| Offset |
100%
|
| Aspect Ratio |
Native: 16:9
Supported: 4:3 |
| Contrast Ratio |
300,000:1
|
| Supported 3D Formats |
Side by Side (up to 1080i)
Frame Packing (up to 1080p) |
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 15.375 to 91.146kHz
Vertical: 50 to 85Hz |
Lens
| Includes Lens |
Yes
|
| Focal Length |
20.91 to 32.62mm
|
| Lens Shift |
Vertical: ± 16%
|
| Optical Zoom |
1.6x
|
| Throw Distance |
39.37 to 393.7" / 1 to 10 m
|
| Throw Ratio |
1.4 to 2.24:1
|
| Projection Size |
20.2 to 320.4" / .5 to 8.1 m
|
Features
| Keystone Correction |
Vertical: ± 30°
Horizontal: ± 30° |
| HDR Support |
Yes, HDR10
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Built-In Speaker |
Yes (Stereo)
|
| Speaker Power |
20 W
|
Input/Output Connectors
| Inputs/Outputs |
1x HDMI 2.0 Audio, Video Input
1x HDMI 1.4a Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 2x 1/8" / 3.5 mm Mini Audio Input 1x 1/8" / 3.5 mm Mini Audio Line/Mic Input 1x DE-15/DB-15 (VGA) Video Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Data Output 1x USB-A 2.0 Data Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input/Output 1x 12 V Trigger Control Input 1x Micro-USB Service Input 1x 3-Pin DIN (VESA 3D Sync) Data Input |
| HDCP Support |
Not Specified by Manufacturer
|
| Media/Memory Card Slot |
No
|
Hardware
| Mobile App Compatible |
No
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 30,000 Hours
|
| Fan Noise |
Full Brightness: 32 dB
Low Brightness: 30 dB |
| Security |
Cable Lock Slot
Password Protection Security Bar |
| Supported Languages |
Arabic
Czech Danish Dutch English Farsi Finnish French German Greek Hungarian Indonesian Italian Japanese Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish Vietnamese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: 282 W
Low Brightness: 227 W Standby Mode (Lamp Off): < 0.5 W |
| Dimensions (W x H x D) |
13.3 x 4.8 x 10.4" / 33.8 x 12.2 x 26.4 cm
|
| Weight |
9.92 lb / 4.5 kg
|
Packaging Info
| Package Weight |
13.32 lb
|
| Box Dimensions (LxWxH) |
19.3 x 14.9 x 7.8"
|
