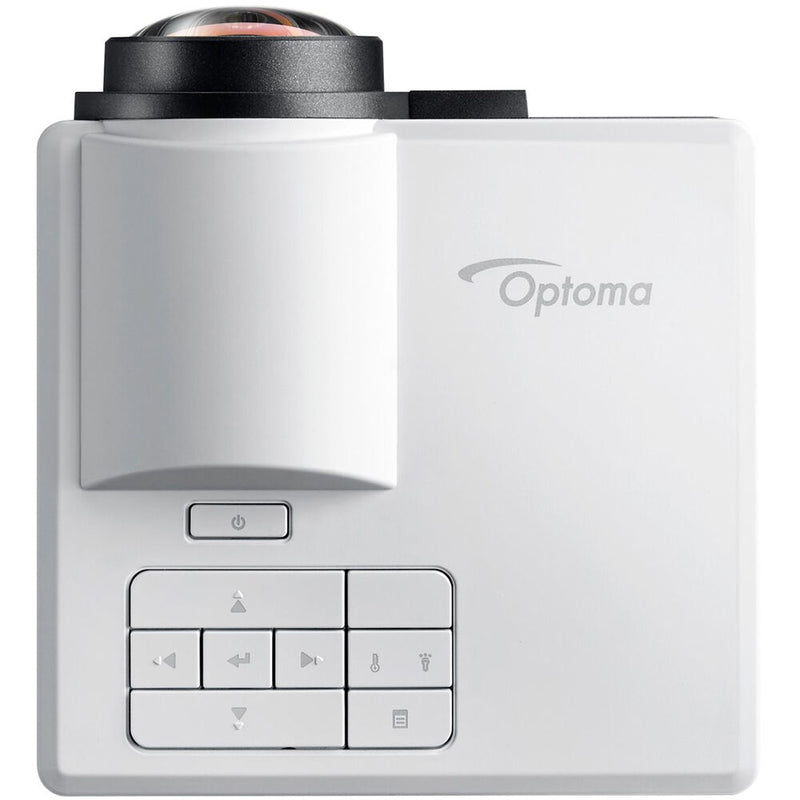

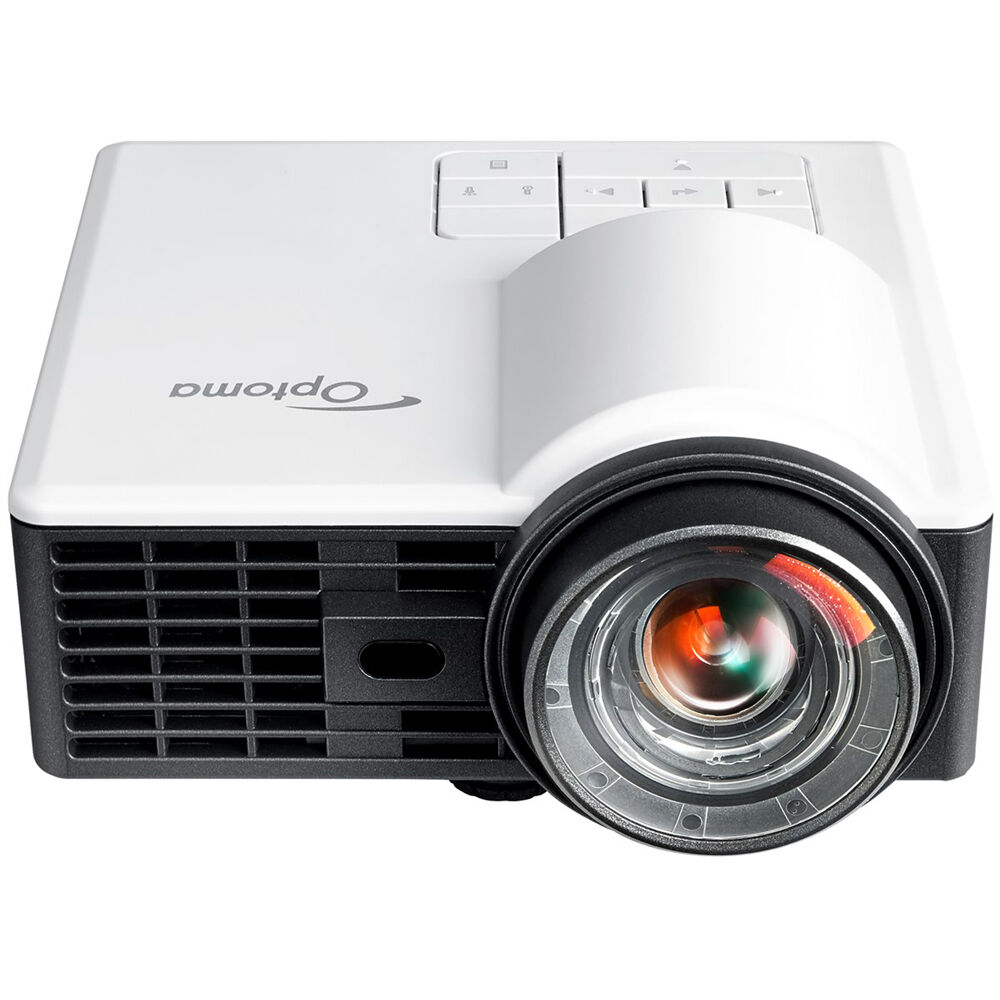

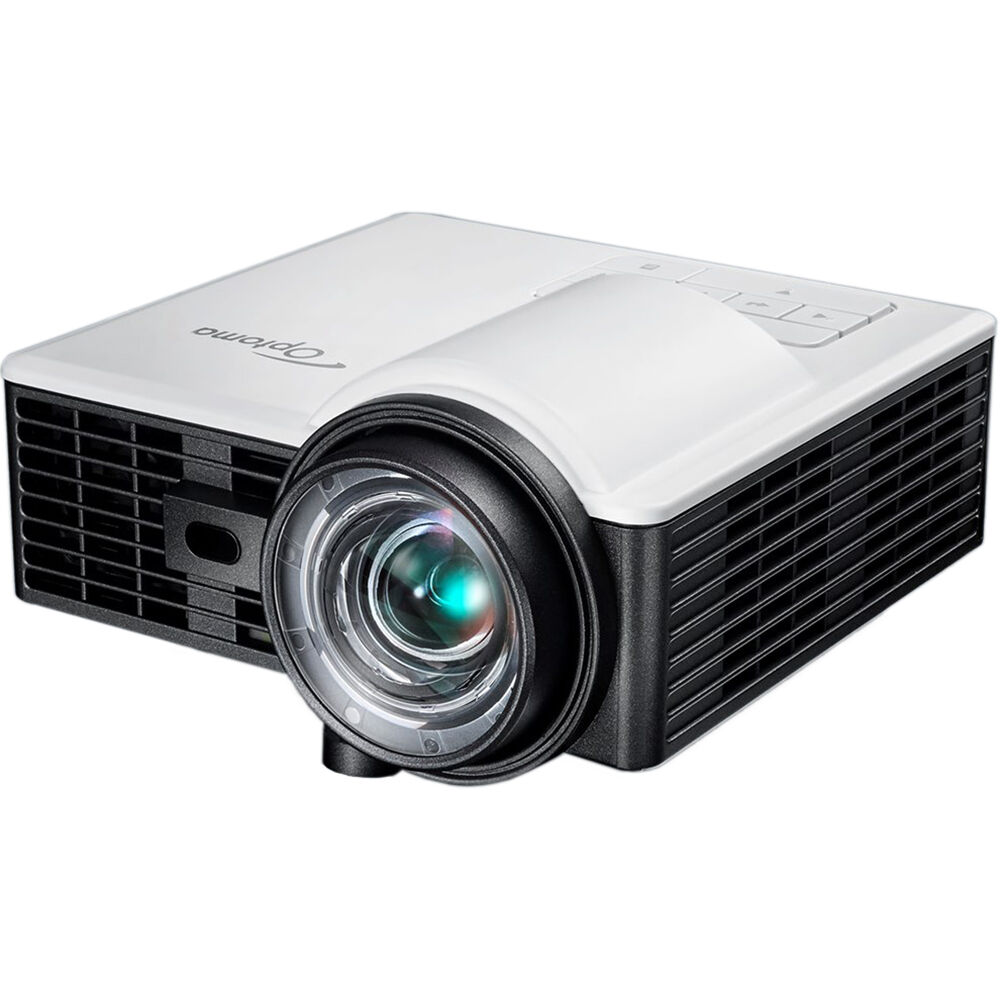

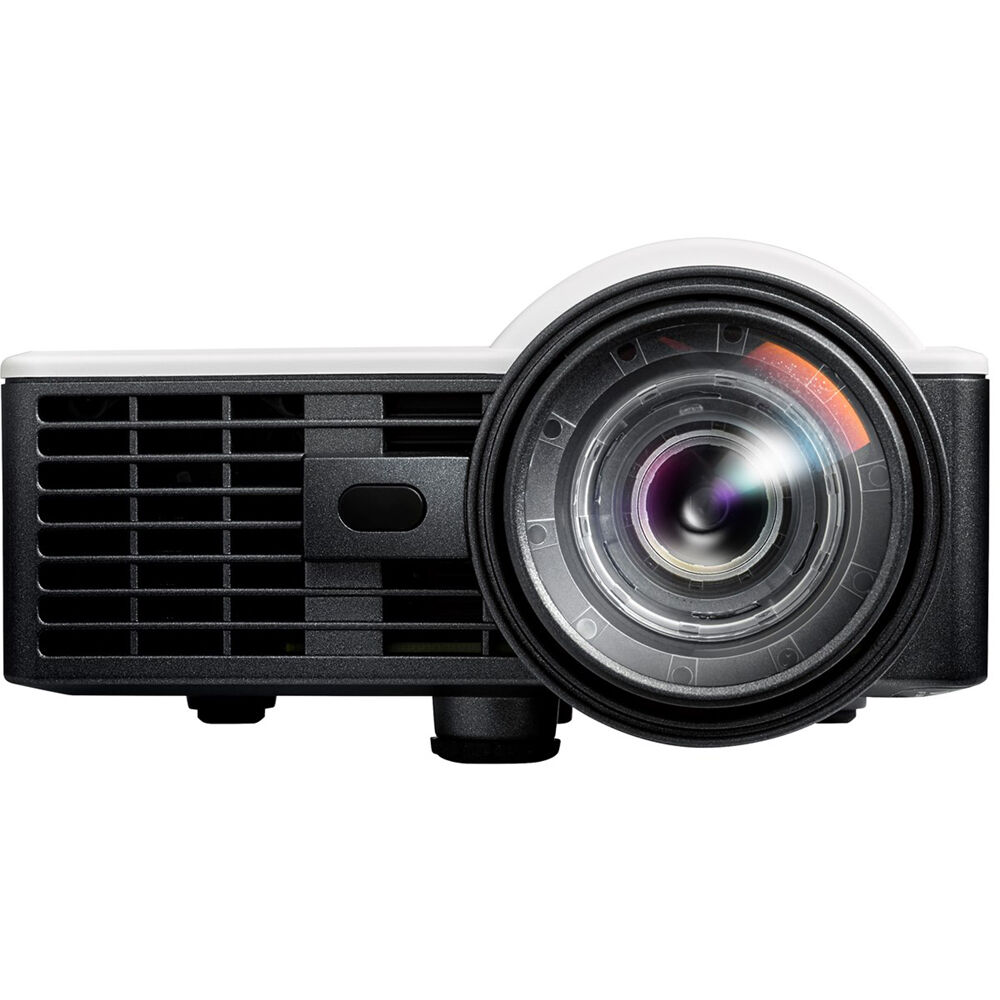

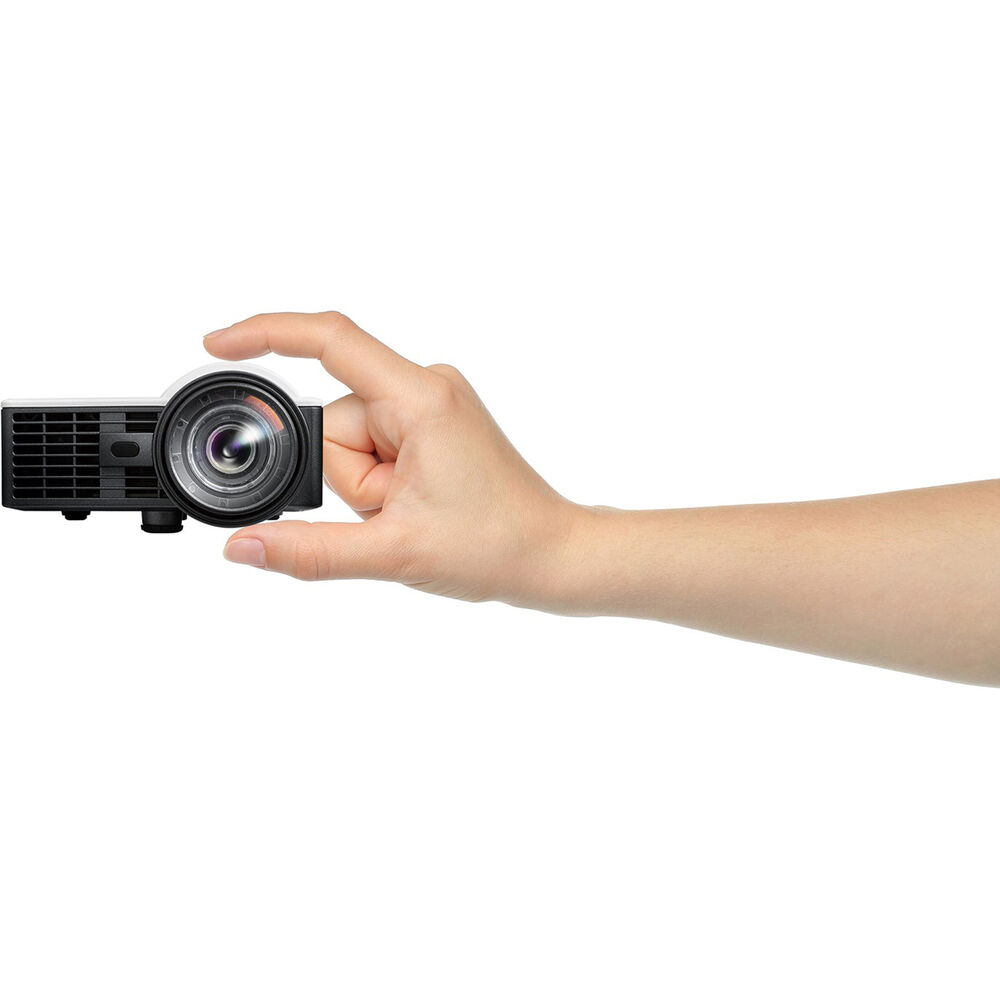

Optoma Technology ML1050STi 535-Lumen WXGA DLP LED Pico Projector

LED Technology

Optoma LED projectors use high-quality individual red, green, and blue LEDs to create the projected image. In many situations, the perceived brightness from LED illumination can be twice that of an equivalent lamp-based model. This phenomenon is known as the Helmholtz-Kohlrausch (HK) effect. They also deliver increased efficiency to maintain consistent brightness, superior color performance, instant on/off, and a long lifespan.

Direct Power On/Off

The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a master power switch. Power off your projector immediately or directly at the main power source. This means you don�t have to wait for the projector to cool down before turning it off.

Wireless Mirroring with EZC-USB Optional Wireless Dongle

Instantly connect and present wirelessly from your PC, Mac, or mobile device using the free EZCast Pro App and EZC-USB optional wireless dongle (sold separately). The app gives you the freedom to wirelessly share and present documents, photos, videos, and your devices camera turning it into a document camera. The app is available on Windows, MacOS, Android, and iOS.

Integrator Friendly Control

The ML1050STi features a wide range of options to control and monitor the projector remotely:

• RS232: Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView: Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
• Extron IPLink compatible: Allows for easy installation with Extron control systems.

Additional Features

• Auto vertical keystone up to ±40°
• Auto focus
• USB and microSD card inputs can read Word, Excel, PowerPoint, PDF, and JPEG files, in addition to audio and video files
• 24 fps playback for movies
• 24/7 operation capable
• 360° and portrait projection orientation support
• Integrated 2W mono speaker
• LED technology reduces power consumption by up to 47% compared to lamp-based options
• Eco-friendly packaging contains up to 97% recyclable materials
• Body made from non-hazardous and recycled materials

Optoma Technology ML1050STi Specs

Display System	1-Chip DLP
Native Resolution	1280 x 800
Maximum Brightness	535 Lumens (ANSI) 1000 Lumens
Throw Ratio	0.8:1 (71" Screen Size @ 4' / 1.2 m)
Projection Size	50 to 100" / 1.3 to 2.5 m
HDR Support	No

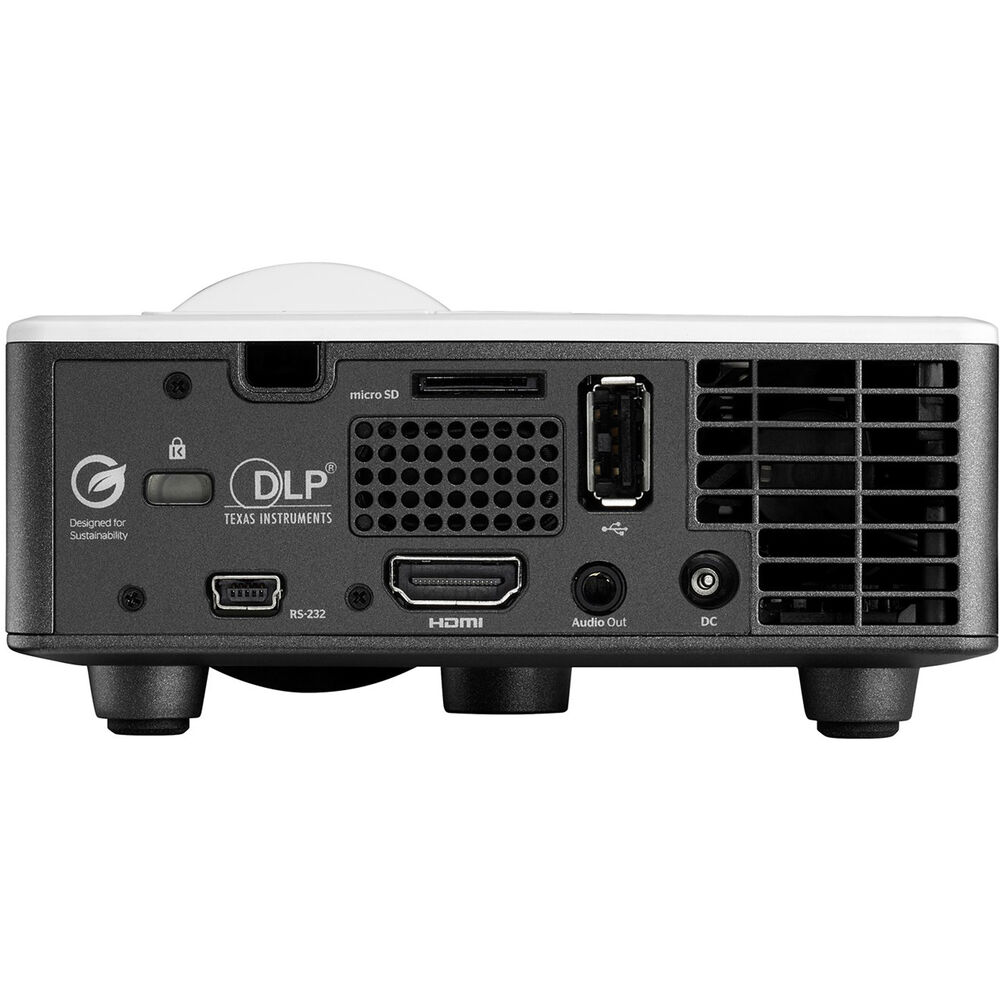

Inputs/Outputs	1x HDMI 1.4b Audio, Video Input 1x USB-A Data Input 1x Micro-USB Control Input 1x 1/8" / 3.5 mm Mini Audio Output
Light Source	Multi-LED

Display System	1-Chip DLP
Native Resolution	1280 x 800
Supported Resolutions	1920 x 1080 @ 60 Hz
Maximum Brightness	535 Lumens (ANSI) 1000 Lumens
Uniformity	90%
Offset	100%
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Contrast Ratio	20,000:1
DLP Link 3D	Yes
Scan	Horizontal: 15.375 to 91.146kHz Vertical: 24 to 85Hz
Latency	16 ms

Includes Lens	Yes
Focus	Auto
Focal Length	8.02mm
Optical Zoom	No
Throw Distance	33.86 to 67.72" / 0.86 to 1.72 m
Throw Ratio	0.8:1 (71" Screen Size @ 4' / 1.2 m)
Projection Size	50 to 100" / 1.3 to 2.5 m

Keystone Correction	Auto / Manual to Vertical: ± 40°
HDR Support	No
Multi-Input Support (PIP/PBP)	No
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Mono)
Speaker Power	2 W
Projection Tilt Option	Yes

Inputs/Outputs	1x HDMI 1.4b Audio, Video Input 1x USB-A Data Input 1x Micro-USB Control Input 1x 1/8" / 3.5 mm Mini Audio Output
HDCP Support	Yes
Media/Memory Card Slot	Slot 1: microSD (Unspecified Type)

Mobile App Compatible	Yes, Adapter Required (Not Included): Android & iOS
Wireless LAN / Wi-Fi	No, Optional Adapter Available
Bluetooth	No

Light Source	Multi-LED
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 29 dB Low Brightness: 22 dB
Security	Cable Lock Slot Password Protection Security Bar
Supported Languages	Dutch English French German Greek Italian Polish Portuguese Russian Spanish Swedish Turkish
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 68 W Standby Mode (Lamp Off): 0.5 W
Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Dimensions (W x H x D)	4.4 x 4.1 x 1.9" / 112.5 x 105.0 x 48.1 mm (With Feet)
Weight	0.88 lb / 0.4 kg

Package Weight	2.805 lb
Box Dimensions (LxWxH)	11.7 x 11 x 3.8"
