Description

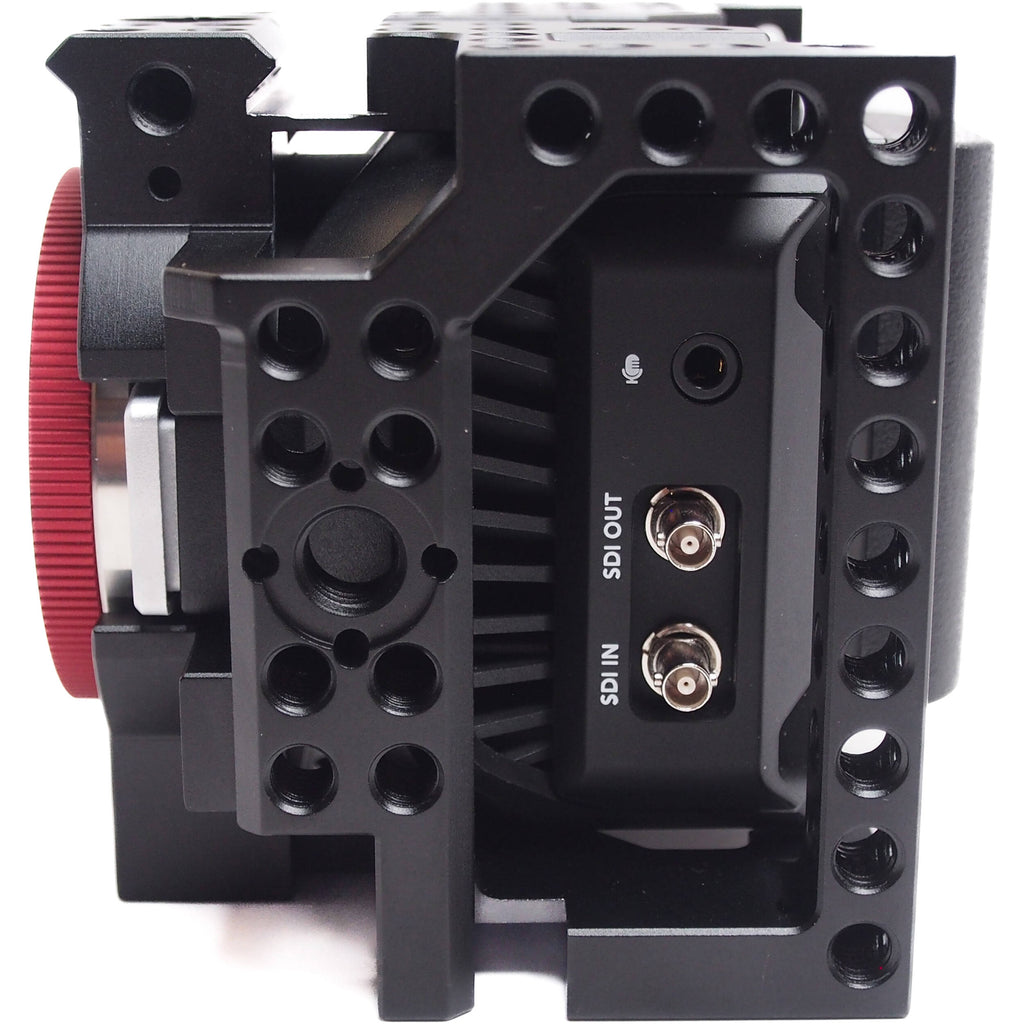

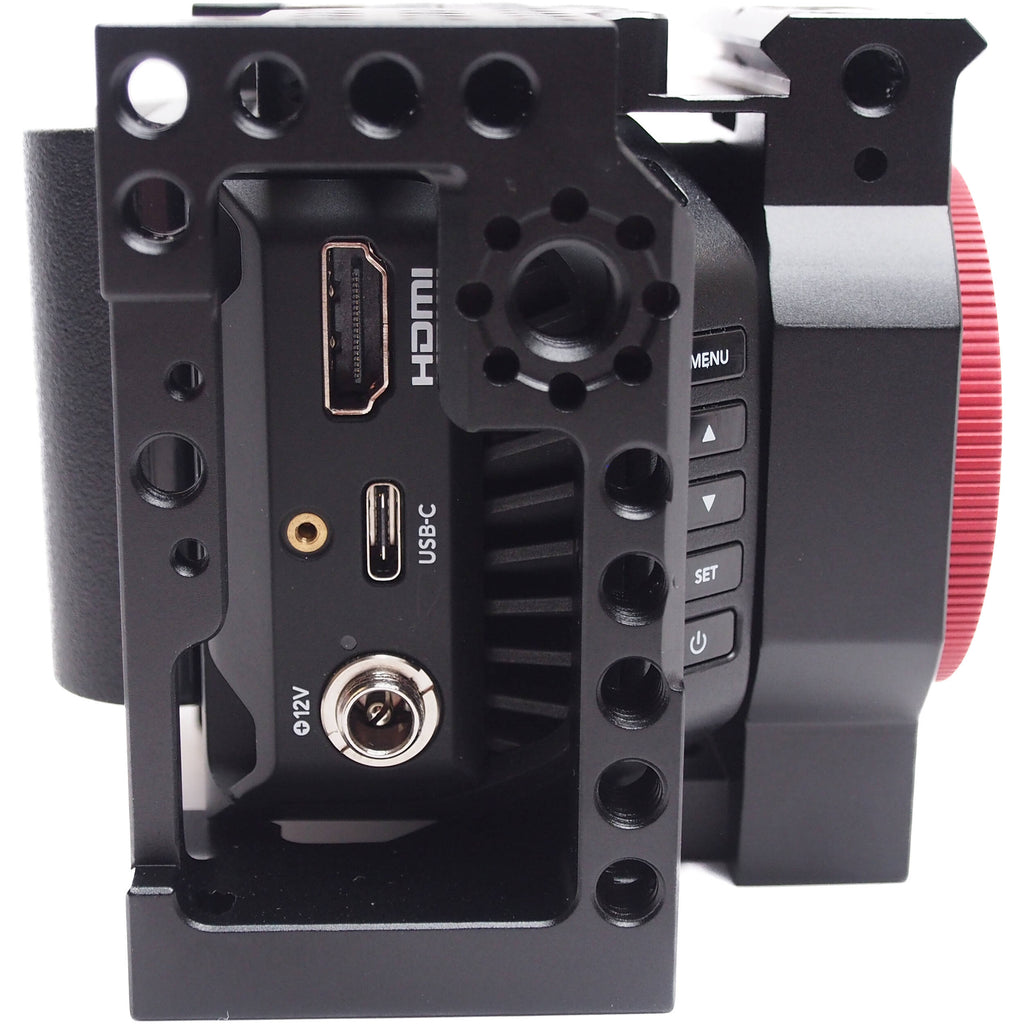

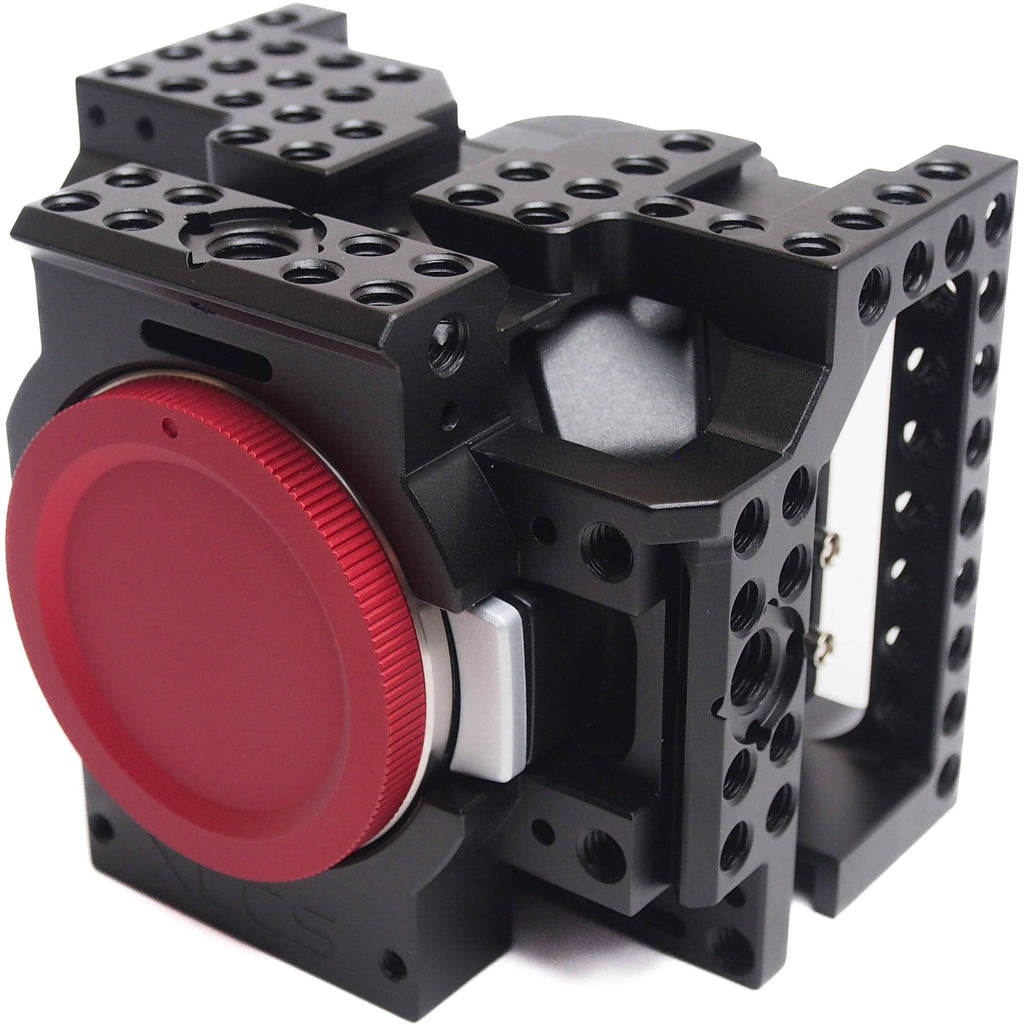

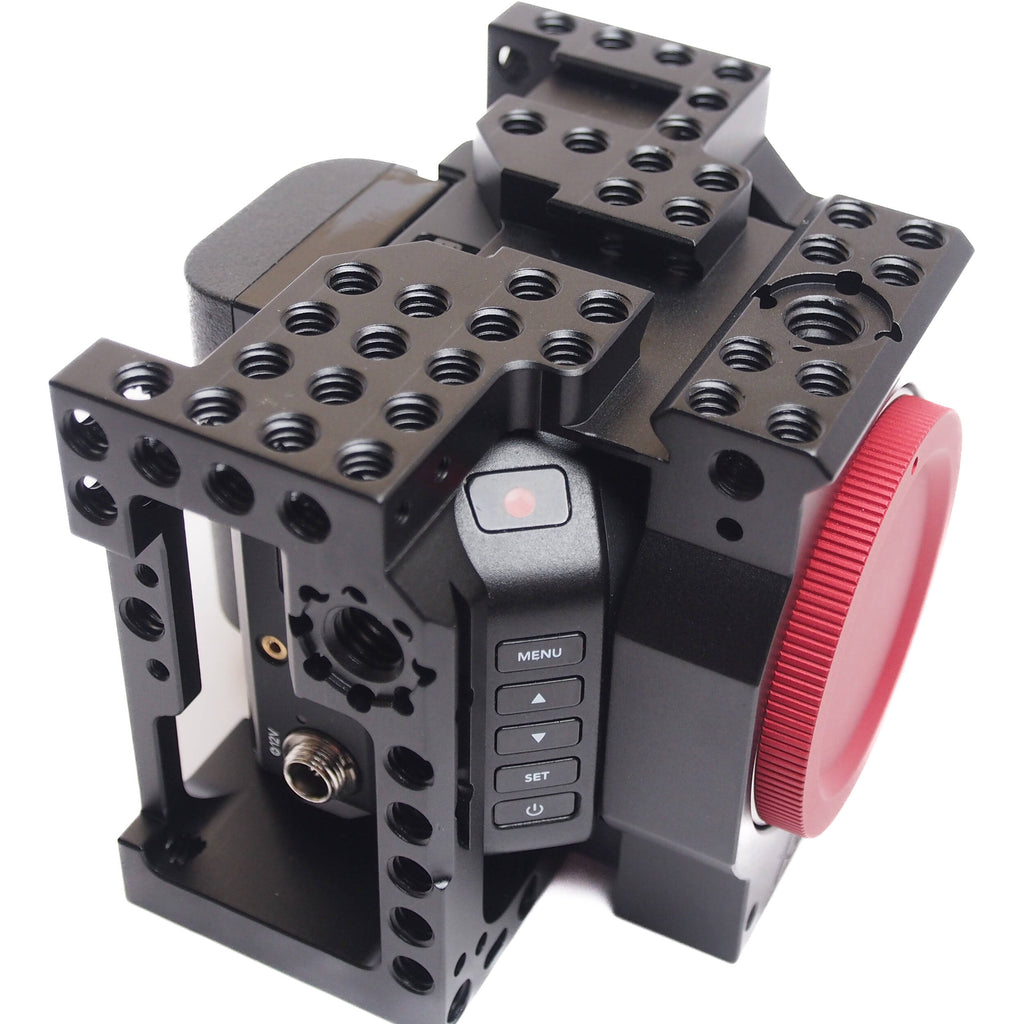

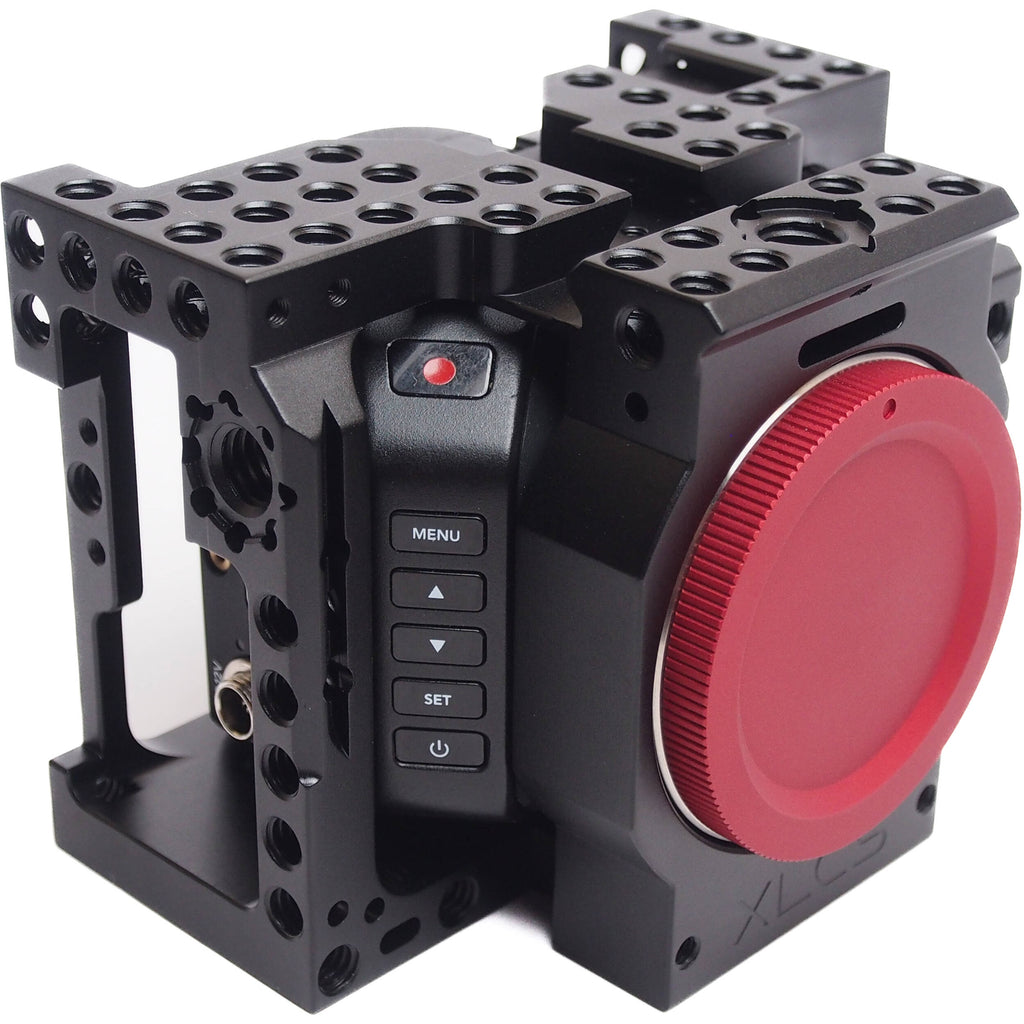

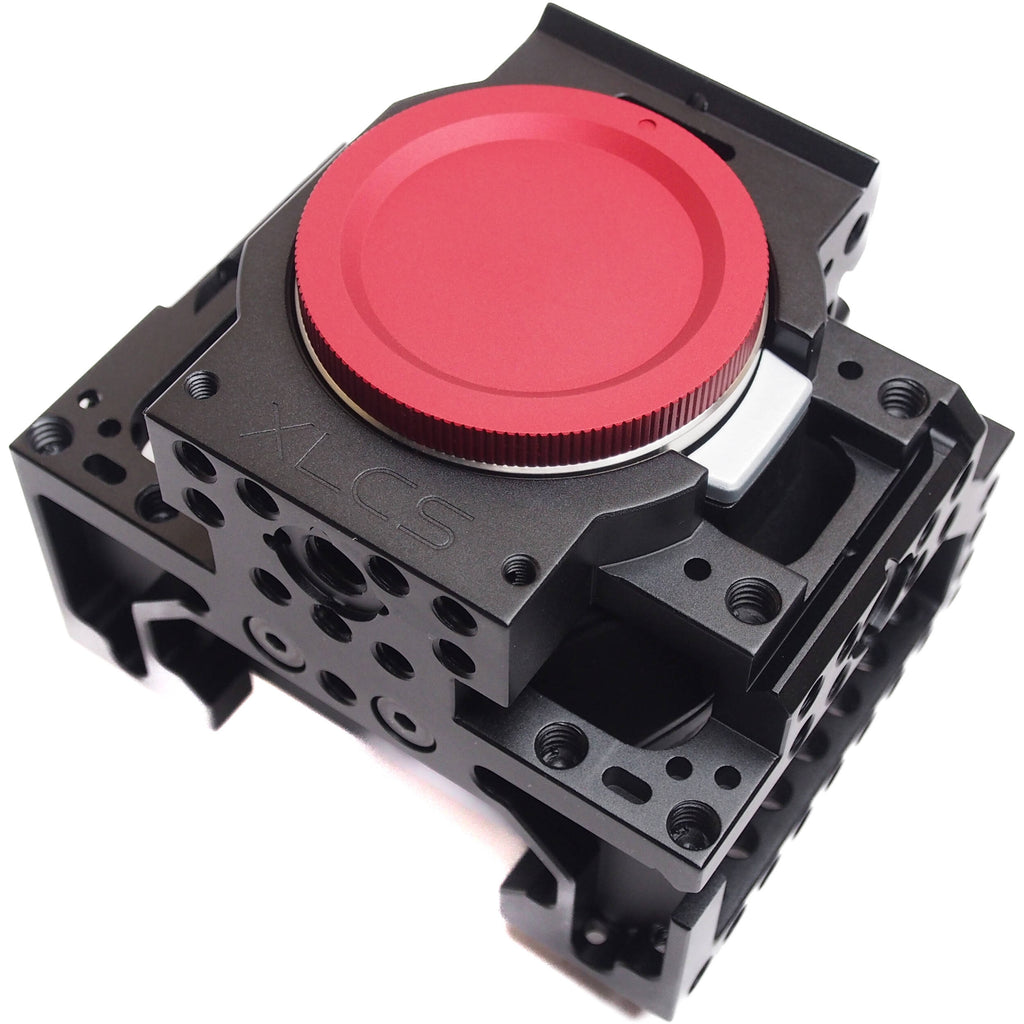

Expand the accessory mounting capabilities of a Blackmagic Micro 4K G2 with this Camera Cage Rig V2.0 from XLCS Designs. The rig includes a versatile camera cage, cheese backplate, 4.5" long 15mm rod, dog bone rod extender, locking USB-C monitor cable, 12 VDC D-tap power cable, USB-C cable lock, and T-handle Allen key.
A highly functional cage for the Blackmagic Micro 4K G2, this Camera Cage V2.0 from XLCS Designs protects the compact studio camera and provides a plethora of accessory mounting options. Fashioned from durable 6061 aluminum, the backloading cage is the ideal tool for building out a Micro 4K G2 rig. Each of its sides sports accessory mounts, with a multitude of 1/4"-20 and 3/8"-16 threads offering wide-ranging compatibility.
Strategically placed openings permit the unfettered operation of camera controls, while the dovetail and cold shoe offer dedicated points for the attachment of a monitor, EVF, or microphone. With multiple integrated NATO rails and ARRI-style anti-twist mounts, the Camera Cage V2.0 supports extensive customization for flexible rig configurations.
- 70 built-in 1/4"-20 threads for accessory attachment and tripod mounting
- Six built-in 3/8"-16 (four ARRI anti-twist) threads for additional mounting options
- Dovetail monitor mount, cold shoe, and native NATO rails
- Dual M4 threads at cage front for locking lens adapters
- Allows the direct attachment of 15mm rails for a compact setup
- Includes necessary hardware for secure camera mounting

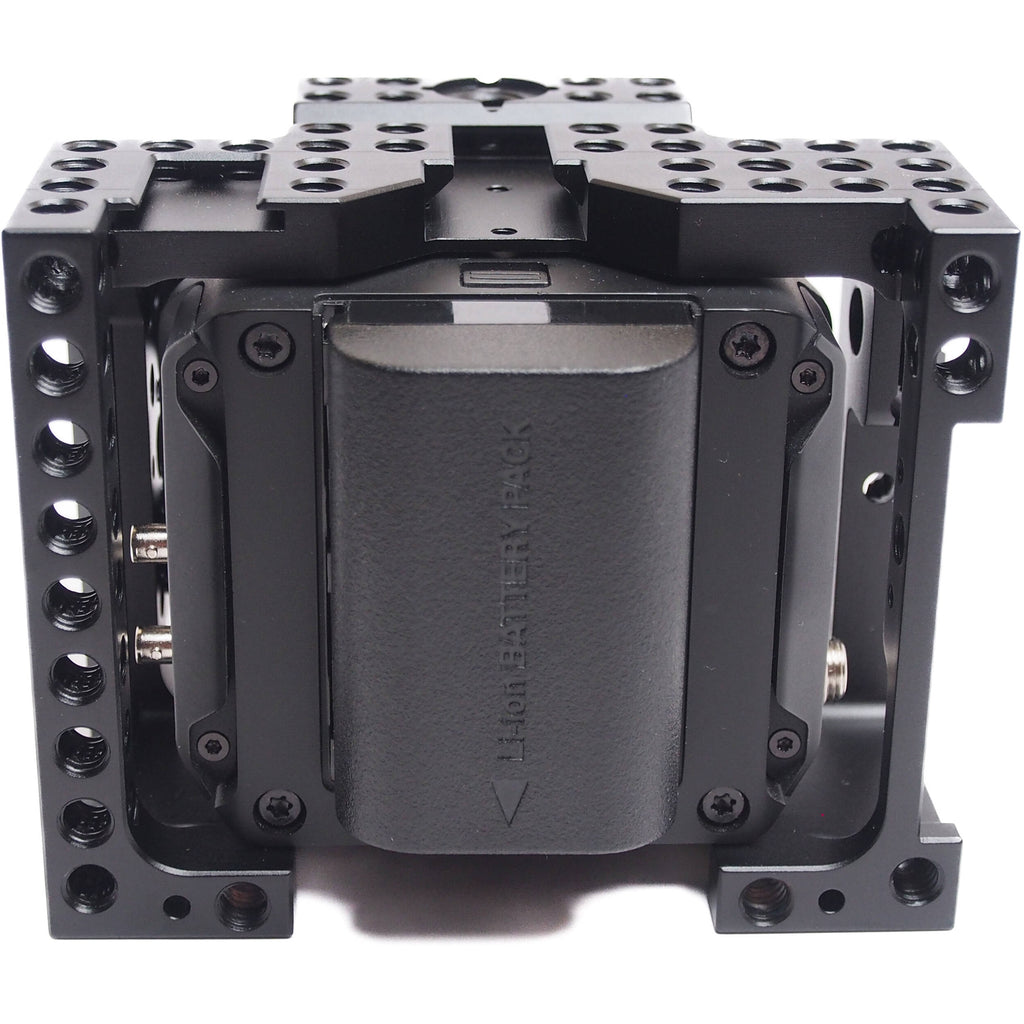

- Convenient backloading design for fast battery swaps
- Uninhibited access to camera controls, ports, and tally light
- 6061 aluminum construction provides protection while keeping the weight low at 9.5 oz
- Proprietary USB-C cables lock to the cage, safeguarding G2's ports
- Includes large trigger for tactile record/stop operation
Protect your Micro Cage while adding accessory mounting options with this Cheese Backplate from XCLS Designs. Equipped with 98 1/4"-20 holes and 56 M4 0.7 holes, the sturdy cheese plate bolts to the rear of the Micro Cage and comes with four 12.5mm metal risers to facilitate positioning for mounting optional devices such as a battery, other powering options, or an SSD drive for recording. The unit can also be mounted on a set of separately available 15mm rods for a more traditional cheese plate application.
This USB-C Cable Lock from XLCS Designs is specifically designed to work with the Blackmagic Design Micro Studio Camera 4K G2. The lock allows you to securely anchor the USB-C cable from your SSD to the camera port without fear of damaging the port.
Power your Blackmagic Micro G2 from a high-capacity battery with D-Tap connectivity using this Locking Right-Angle 12 VDC Power to D-Tap Cable from XLCS Designs. The 6.7" long cable has a D-Tap connector at one end that can be connected to an optional Gold or V-mount battery, with a right-angle locking barrel connector on the other end that fits into the camera's power port.
Items Included
- XLCS Designs Camera Cage V2.0 for Blackmagic Micro 4K G2
- Record Trigger
- Dovetail Insert
- Mounting Hardware Set
- XLCS Designs Locking USB-C Pigtail Cable (5.11")
- Limited 1-Year Manufacturer Warranty
- XLCS Designs Cheese Backplate for Micro Cage
- 4 x 12.5mm Metal Riser
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
- XLCS Designs USB-C Cable Lock for Micro Studio Camera 4K G2
- Set of Mounting Hardware
- Limited 1-Year Manufacturer Warranty
- XLCS Designs Locking Right-Angle 12 VDC Power to D-Tap Cable for Blackmagic Micro G2 (6.7")
- Limited 1-Year Manufacturer Warranty
- 15mm Rod (4.5")
- Dog Bone Extender for 15mm Rod
- Locking USB-C Right-Angle Monitor Cable (5.9")
- T-Handle Allen Key
Additional Resources
No additional resources available
XLCS Designs Camera Cage V2.0 for Blackmagic Micro 4K G2
| Battery Plate Type |
No
|
| Accessory Mounting |
70x 1/4"-20 Female Thread
4x ARRI Anti-Twist 3/8"-16 Female Thread 2x 3/8"-16 Female Thread 2x M4 Female Thread |
| Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
| Shoe Mounting |
1x Cold Shoe
|
| Rosettes |
No
|
| Rail Mounting |
3x NATO Rail
|
| Cable Clamp |
No
|
| Filter Compatibility |
No
|
| Materials |
Aluminum Alloy
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
9.5 oz / 269 g
|
| Support Type |
Cage
|
| Grip Type |
No
|
| Camera Compatibility |
Blackmagic Micro Cinema Camera
|
| Package Weight |
0.84 lb
|
| Box Dimensions (LxWxH) |
5 x 4.7 x 4.2"
|
