Description
- Comprehensive 3D Tools
- HD-SDI In (x2) & HDMI In (x2)
- Phasemeter, Derobe's Grid, Picture Shift
- Genlock Analysis Tools
- SuperBright 1000Nits Output
- 16:9, Anamorphic and 4:3 Display Modes
- Multiple Color Adjustments
- Line & Parade Waveforms
- Histogram and Vectorscope
- Frameline and Matting Generator

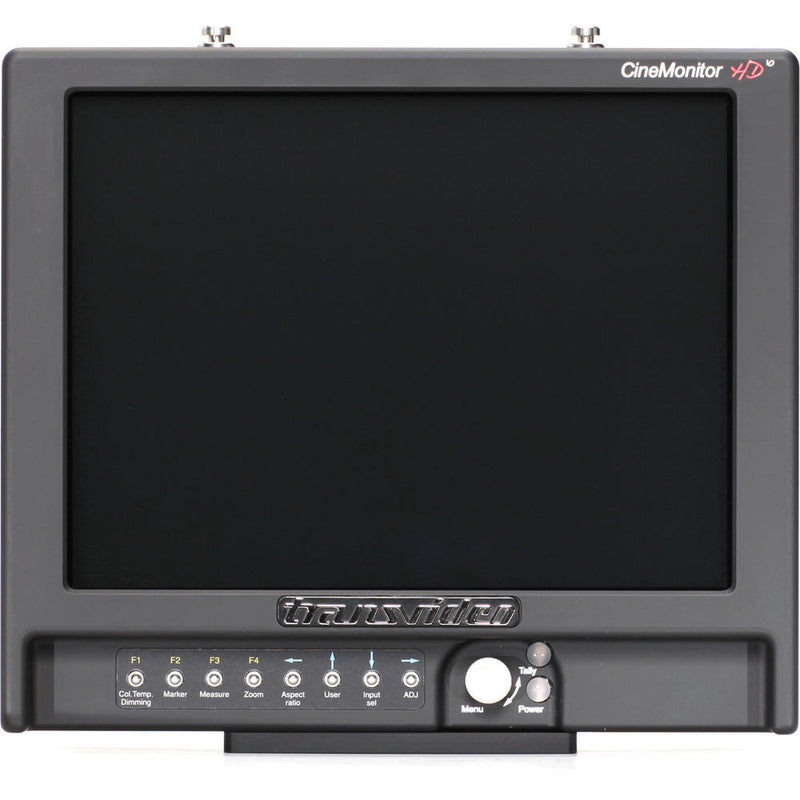

The 10" CineMonitorHD10 3DView Evolution from Transvideo features a comprehensive set of 3D tools, including 3 Anaglyph, Monochrome and Shutter Glasses. Two HD-SDI and two HDMI inputs support stereoscopic set-ups, and each camera "eye" can be independently monitored as well as flipped vertically and/or horizontally. A phasemeter provides pixel and line phase information between the 2 signals, and the Derobe's Grid & Picture Shift functions help to achieve two-camera photometric matching.
This SuperBright model outputs 1000Nits, which improves visibility in sunny environments. Standard monitoring functions include selectable aspect ratios, fixed markers, zoom & reframe, and image flip & reverse. Multiple color adjustments include Colorimetry, gamma adjust, green and B&W modes, and Blue Check. The Focus Helper uses a multi dimensional filter to assess focus in difficult situations.
The monitor also provides for advanced picture analysis with Line & Parade Waveforms, user-programmable clipping levels, Histogram, Vectorscope and exposure monitoring. Standard 2D Tools include a full color frameline & matting generator, tri-color tally and embedded SDI tally.
A specific manual written by Alain Derobe describing theory and basics of 3D stereoscopic shooting with the CineMonitorHD 3DView comes with each monitor. Alain Derobe was a French stereographer and teacher. He was also one of the founders of the A.F.C.
- Comprehensive 3D and 2D Tools, Phasemeter, Derobe's Grid, Picture Shift
- Supports stereoscopic set-ups with two HD-SDI inputs, two HDMI inputs, and genlock analysis
- SuperBright 1000Nits output improves visibility
- Selectable aspect ratios and anamorphic conversion
- Multiple color adjustments: Colorimetry, gamma, green & B&W display modes, Blue Check
- Focus Helper based on a multi dimensional filter
- Line & Parade Waveforms, histogram, and vectorscope
- Frameline and matting generators
- Tri-color Tally and embedded SDI Tally
- Manual
- 1-Year Limited Warranty
| Display | |
|---|---|
| Brightness | 1000Nits |
| Contrast Ratio | max 500:1 |
| Viewing Angles | Left/Right: �80� Top/Bottom: �65� |
| Interface | |
|---|---|
| Video Input & Outputs | HD/SD-SDI inputs (x2, BNC) Rclk output (x2, BNC) mini HDMI (x2) |
| Standards | HD-SDI (SMPTE 292M) 1280 x 720p at 24, 25, 29.97, 30 Hz (SMPTE 296M)* 1280 x 720p at 50, 59.94, 60 Hz (SMPTE 296M) 1920 x 1080i at 50, 59.94, 60 Hz (SMPTE 274M) 1920 x 1080psf at 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M)* SD-SDI (SMPTE 259M-C) 720 x 487i at 60Hz (SD SDI 525 - SMPTE 125M)* 720 x 576i at 50Hz (SD SDI 625 - ITU-R BT.601)* HDMI 720 x 480i at 59.94, 60 Hz* 720 x 576i at 50 Hz* 720 x 480p at 59.94, 60 Hz 720 x 576p at 50 Hz 1280 x 720p at 50, 59.94, 60 Hz 1920 x 1080i at 50, 59.94, 60 Hz 1920 x 1080psf at 25, 29.97, 30 Hz 1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz * not available in 3D mode |
| General | |
|---|---|
| Power | XLR4 connector (-1, +4) - with galvanic insulation |
| Power Consumption | 11 - 36V DC / 35W |
| Dimensions | 10.55 x 8.89 x 2.99" (26.8 x 22.6 x 7.6 cm) |
| Weight | 6.0 lb (2725 g) |
