Description

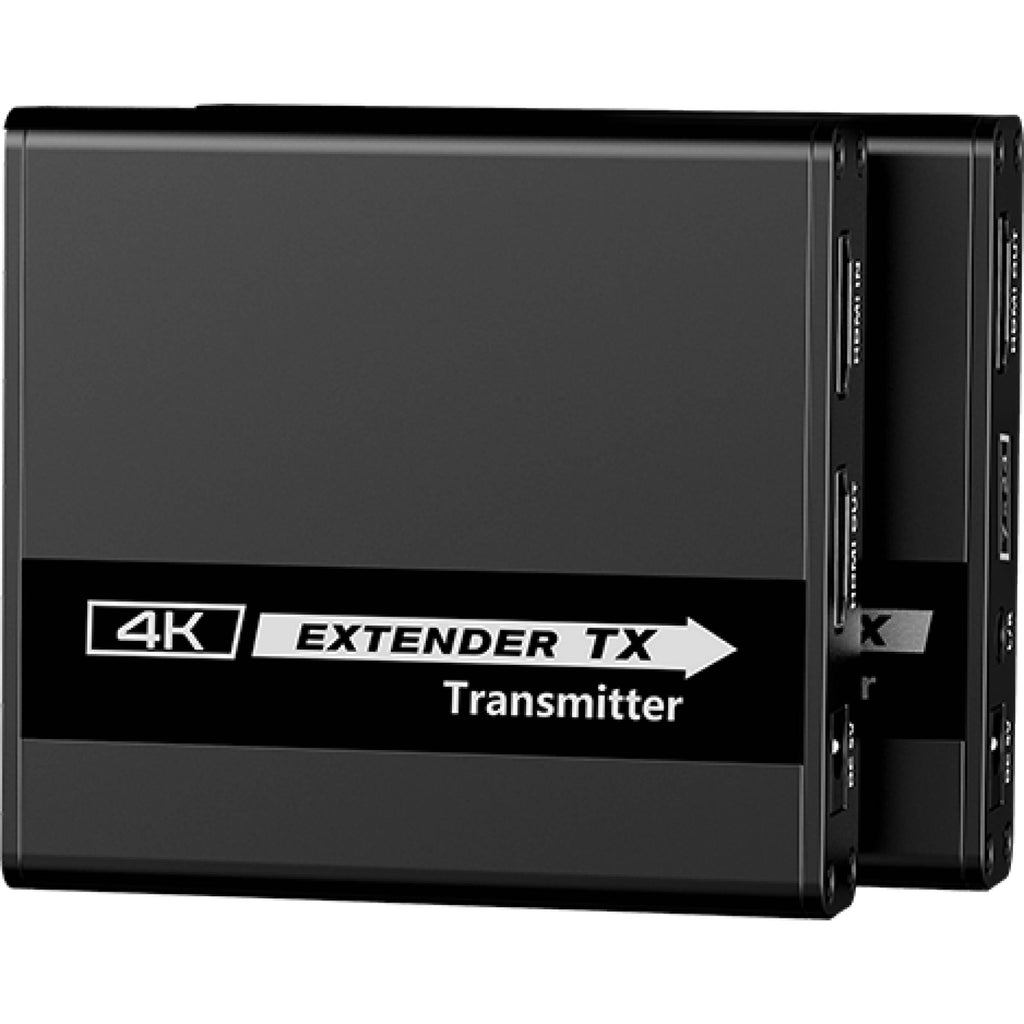

Translite Global TL-HE922 Overview
The TL-HE922 HDR Point-to-Point HDMI Extender Kit from Translite Global enables you to transmit one HDMI source to one display via network cables. It supports UHD 4K30 signals at transmission distances up to 130' and 1080p60 signals up to 230' over a Cat 6, 6A, or 7 network cable. This extender also supports 3.5mm audio output, bidirectional IR pass-through, RS-232 control, HDR10 dynamic range, and EDID pass-through.
HDMI Transmission

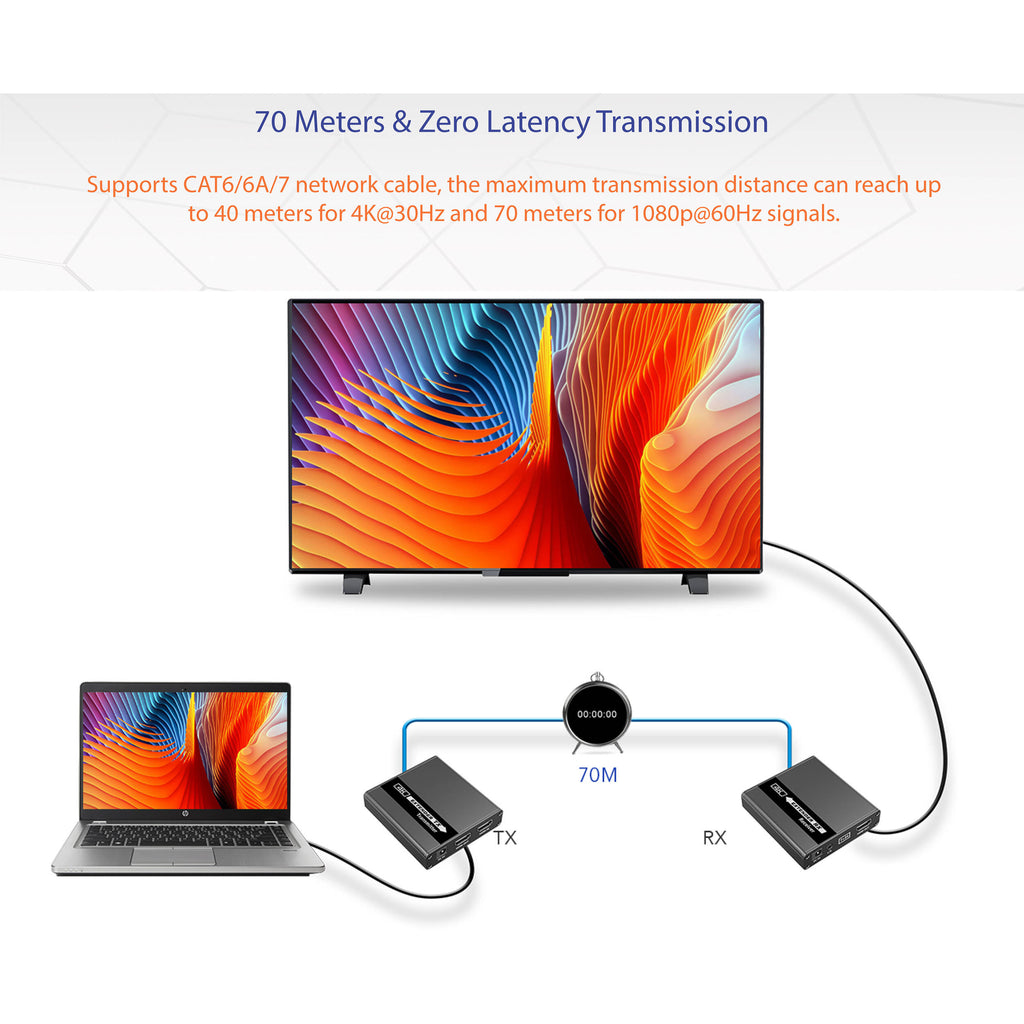

- Extends UHD 4K30 HDMI signals up to 131' and 1080p60 to 230' via Cat 6, 6A, or 7 cables.
- Provides support for HDR10, IR pass-through, and EDID pass-through.
3.5mm Audio Output
- A 3.5mm stereo output port enables you to send audio to a compatible headphone or speaker.
UPC: 860004300779
In the Box
- Translite Global TL-HE922 HDR Point-to-Point HDMI Extender Kit with 3.5mm Audio Out (230')
- 2 x Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
Translite Global TL-HE922Specs
Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45
1x HDMI (HDMI 1.4) |
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output |
Receiver Interfaces
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output 1x 1/8" / 3.5 mm Audio Line |
Standards
| HDR Support |
Yes, HDR10
|
| HDCP Support |
Yes, Version 1.4
|
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
1080p at 60 Hz:
229.7' / 70 m (via Cat 6/6a/7) UHD 4K at 30 Hz: 131.2' / 40 m |
| Video Format |
HDMI
UHD 4K: 24/25/30 fps 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
| PC Resolutions |
HDMI: 1680 x 1050
1440 x 900 1366 x 768 1280 x 960 1024 x 768 800 x 600 |
| DTS Compatibility |
DTS-HD High Resolution, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Digital, Dolby TrueHD
|
| Supported Cable Types |
Cat 5e/6/6a/7
|
| Latency |
0 ms
|
Power
| Transmitter Power I/O |
1x Barrel (5 VDC at 0.5 A) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC at 0.5 A) Input
|
| Transmitter Power Consumption |
(2.5 W)
|
| Receiver Power Consumption |
(2.5 W)
|
General
| Operating Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C up to 90% Humidity
|
| Transmitter Dimensions |

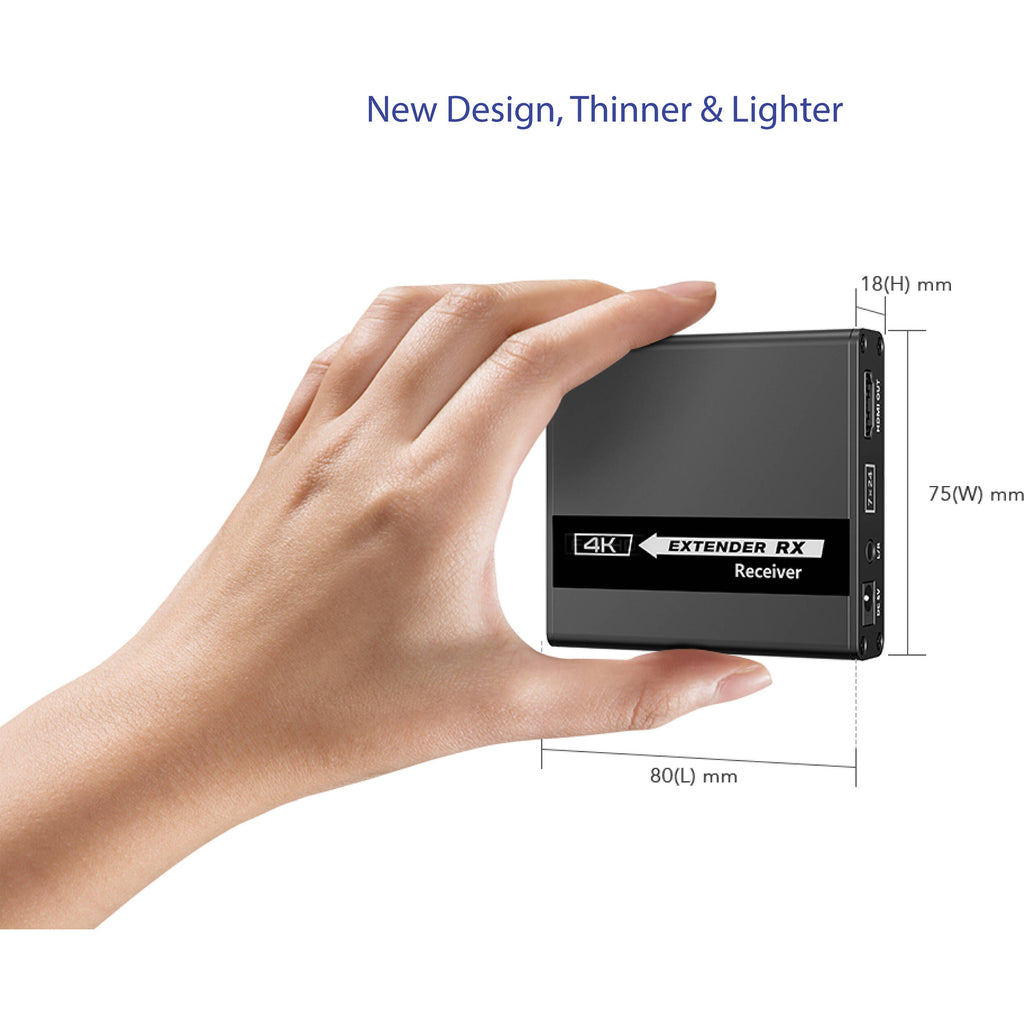

3.1 x 3 x 0.7" / 80 x 75 x 18 mm
|
| Receiver Dimensions |
3.1 x 3 x 0.7" / 80 x 75 x 18 mm
|
| Transmitter Weight |
5.6 oz / 160 g
|
| Receiver Weight |
5.6 oz / 160 g
|
Packaging Info
| Package Weight |
1.125 lb
|
| Box Dimensions (LxWxH) |
8.5 x 5.9 x 3.3"
|
