| ₹ 17685.0 includes GST and import duties. | |
| B2B customers can avail ₹ 2696.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

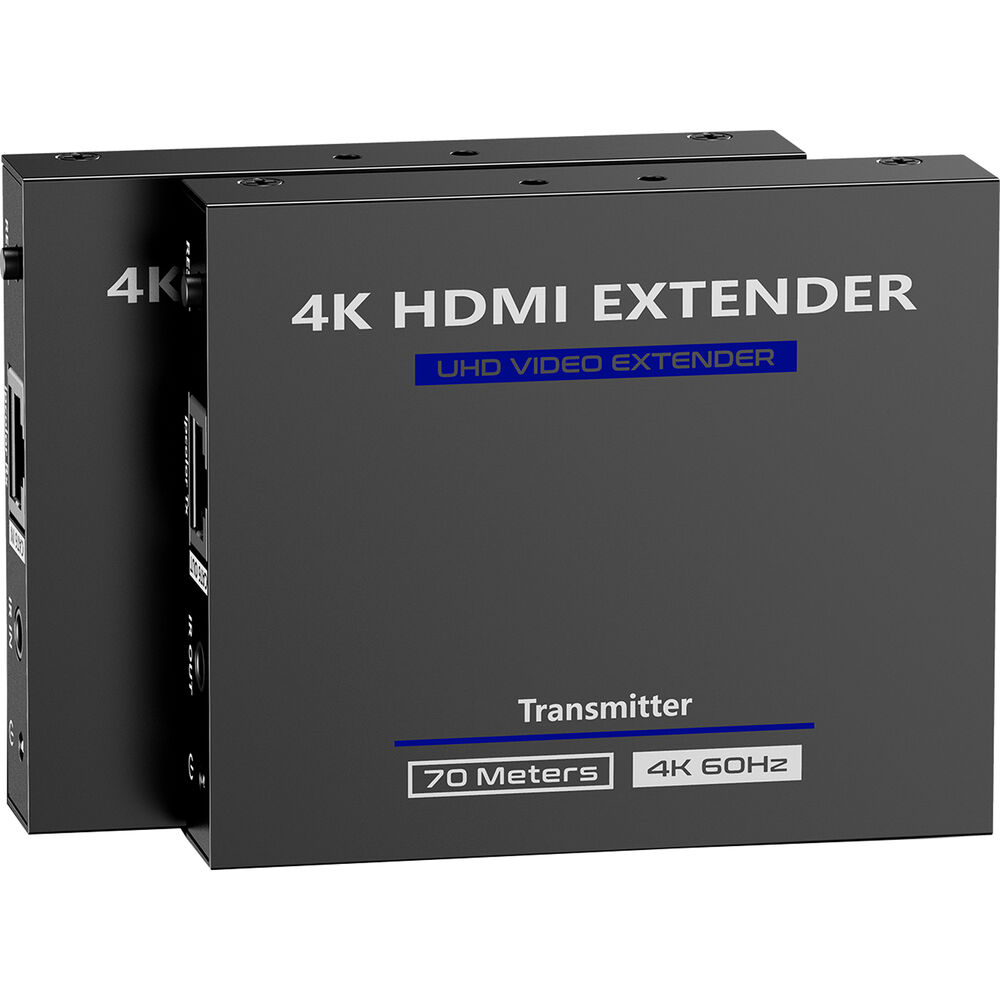

Translite Global TL-HE565 Overview

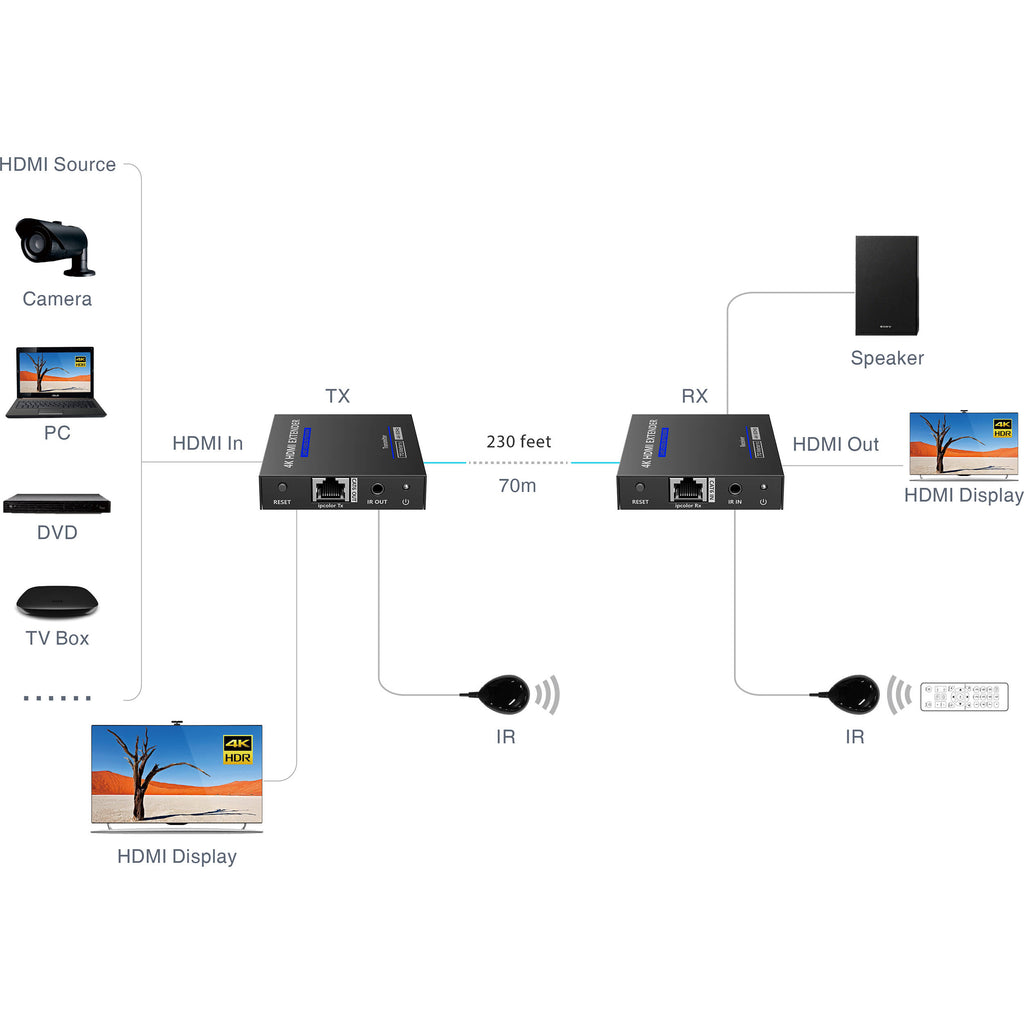

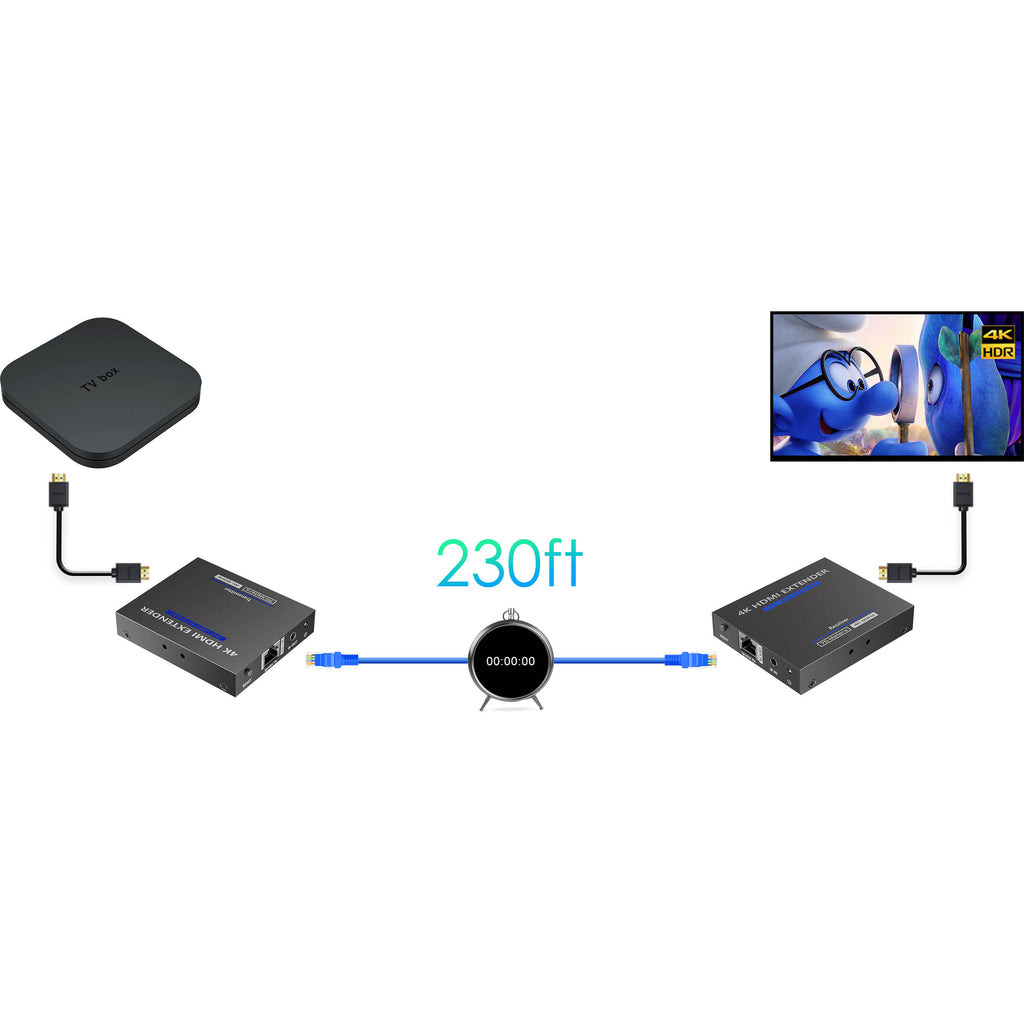

The TL-HE565 HDR Point-to-Point HDMI Extender Kit from Translite Global enables you to transmit one HDMI source to one display via network cables. It supports UHD 4K60 signals at transmission distances up to 130' and 1080p60 signals up to 230' over a Cat 6, 6A, or 7 network cable. This extender features an LCD status window and supports 3.5mm audio output, bidirectional IR pass-through, RS-232 control, HDR10 dynamic range, EDID pass-through, and ESD protection.
In the Box
- Translite Global TL-HE565 HDR Point-to-Point HDMI Extender Kit with 3.5mm Audio Out (230')
- Limited 1-Year Manufacturer Warranty
Additional Resources
Translite Global TL-HE565Specs
Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 2.0)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45
1x HDMI (HDMI 2.0) |
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Output
|
Receiver Interfaces
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 2.0)
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm Audio Line |
Standards
| HDR Support |
Yes, HDR10
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Auto-Detect
|
Transmission
| Max Transmission Distance |
UHD 4K at 60 Hz:
229.7' / 70 m (via Cat 6/6a/7) |
| Video Format |
HDMI
DCI 4K: 24/25 fps UHD 4K: 24/25/30/50/60 fps 1080p: 50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
| PC Resolutions |
HDMI: 1280 x 960
1280 x 800 1280 x 768 1680 x 1050 1360 x 768 1366 x 768 1600 x 900 1024 x 768 800 x 600 |
| DTS Compatibility |
DTS-HD High Resolution, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital
|
| Supported Cable Types |
Cat 6/6a/7
|
| Latency |
0 ms
|
Power
| Transmitter Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Transmitter Power Consumption |
(3 W)
|
| Receiver Power Consumption |
(3 W)
|
General
| Certifications |
FCC, CE, RoHS
|
| Operating Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C
|
| Transmitter Dimensions |
3.1 x 3 x 0.6" / 80 x 75.5 x 16.5 mm
|
| Receiver Dimensions |
3.1 x 3 x 0.6" / 80 x 75.5 x 16.5 mm
|
| Transmitter Weight |
4.9 oz / 140 g
|
| Receiver Weight |
4.9 oz / 140 g
|
Packaging Info
| Package Weight |
1.445 lb
|
| Box Dimensions (LxWxH) |
8.7 x 6.7 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 17331.3 |
| 3-5 | ₹ 17154.45 |
| 5-10 | ₹ 16800.75 |
| 10+ | ₹ 16447.05 |
Bulk discount will be automatically applied during checkout based on quantity.
