Thor 16DVBS Overview
Redirect satellite signals to integrate them into your IP streaming workflow with the 16 x DVBS/S2 to IP Gateway from Thor, a single rackmount box that can convert DVBS/S2 satellite signals to IPTV signals into a TS, SPS, multicast, or unicast output stream. This unit features 16 inputs that support DVBS/S2 source signals from a satellite dish.

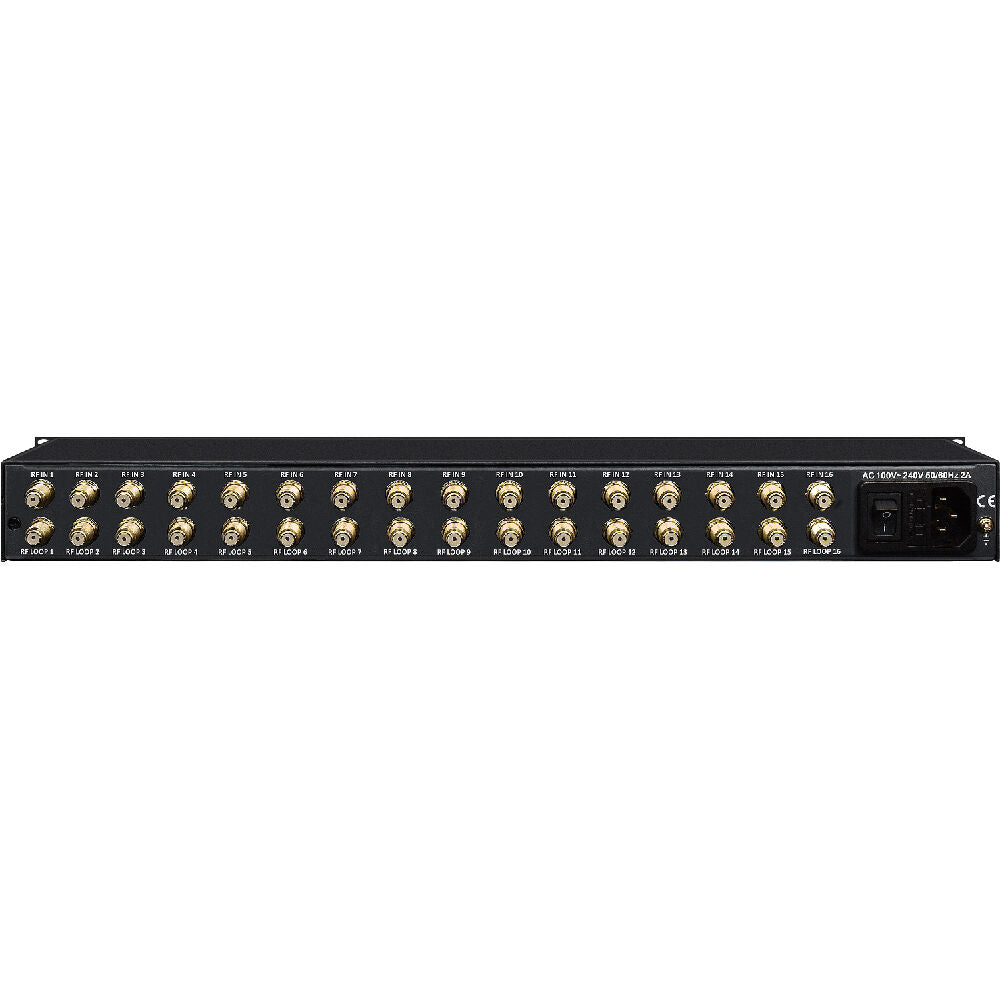

The unit features very low latency and two RJ45 Ethernet outputs for either IP TS or SPTS mode with converted subchannels or MPTS mode with a single stream. There are also 16 RF loop outputs on the back of the unit, and it has two ASI inputs for external TS source signals. A dedicated management Ethernet port allows you to configure and manage the unit.
16 independent off-air DVBS/S2 satellite tuners input to IP TS SPTS multicast or unicast outputs
16 loop outputs per tuner
Each TS program "subchannel" from any DVBS/S2 satellite channel can be converted to IP stream
Select which channels to stream out via SPTS
Integrated demodulating and multiplexing functions
Closed captions supported
Multiplex one program to all outputs
Full IP control and Network Management through browser
Low latency of 10 to 20 ms
Supports AC3 and MPEG2 audio and MPEG2 and MPEG4 H.264 video
Thor 16DVBS Specs
| Video Inputs |
16 x Coax Female |
| Audio Input Connectors |
None |
| Video Outputs |
16 x Coax Female (Loop Output)
2 x RJ45 Female |
| Audio Output Connectors |
None |
Standards
| HDR Compatibility |
None |
| Latency |
10 to 20 ms |
| Other I/O |
1 x RJ45 LAN Input/Output
1 x USB-A Firmware Input |
| Expansion Slots |
None |
Power
| Power I/O |
1 x IEC C14 Input |
| Power Consumption |
Device: 100 to 220 VAC (25 W) |
Environmental
| Operating Temperature |
32 to 77°F / 0 to 45°C |
| Storage Temperature |
-4 to 176°F / -20 to 80°C |
General
| Dimensions |
19 x 11.8 x 1.8" / 482 x 300 x 44.5 mm |
| Weight |
8.2 lb / 3.7 kg |
