Sony mocopi Pro Motion Capture Kit for VR and 3D Content Creation

Get next-level full-body motion capture wherever you venture with the dustproof and water-resistant mocopi Pro Motion Capture Kit from Sony. This Android- and iOS-compatible system uses a direct data receiver to your PC and 12 lightweight sensors for improved accuracy indoors or out. Please note that some features are only available for PCs.

• You can create an avatar and merge it with a selected background or your smartphone's video capture.
• Save content to your PC or transfer the motion data in real time to external software or platforms.

• Use one mocopi Data Receiver per six sensors to directly transfer motion data to the mocopi PC application or XYN Motion Studio.
• The receiver connects to your PC via a USB-C cable.

• Pro mode improves your capture accuracy by using up to 12 sensors.
• Additional trackers can be placed on arms, legs, hands, and feet.

Use an external camera with the mocopi PC or XYN Motion Studio application to merge the camera data for better accuracy.

• Enhanced Foot Grounding: Improved post-capture foot grounding with less slipping and floating.
• Motion Editing: Edit and manage files from mocopi and other sources and merge multiple motions.
• Trim and adjust time and position and save motions in BVH and FBX files.
• Tweening: Uses automatic interpolation to create smooth motion mergers.
• Cloud Storage: Upload motions to the Cloud, use auto-tagging, and get text-based searching.

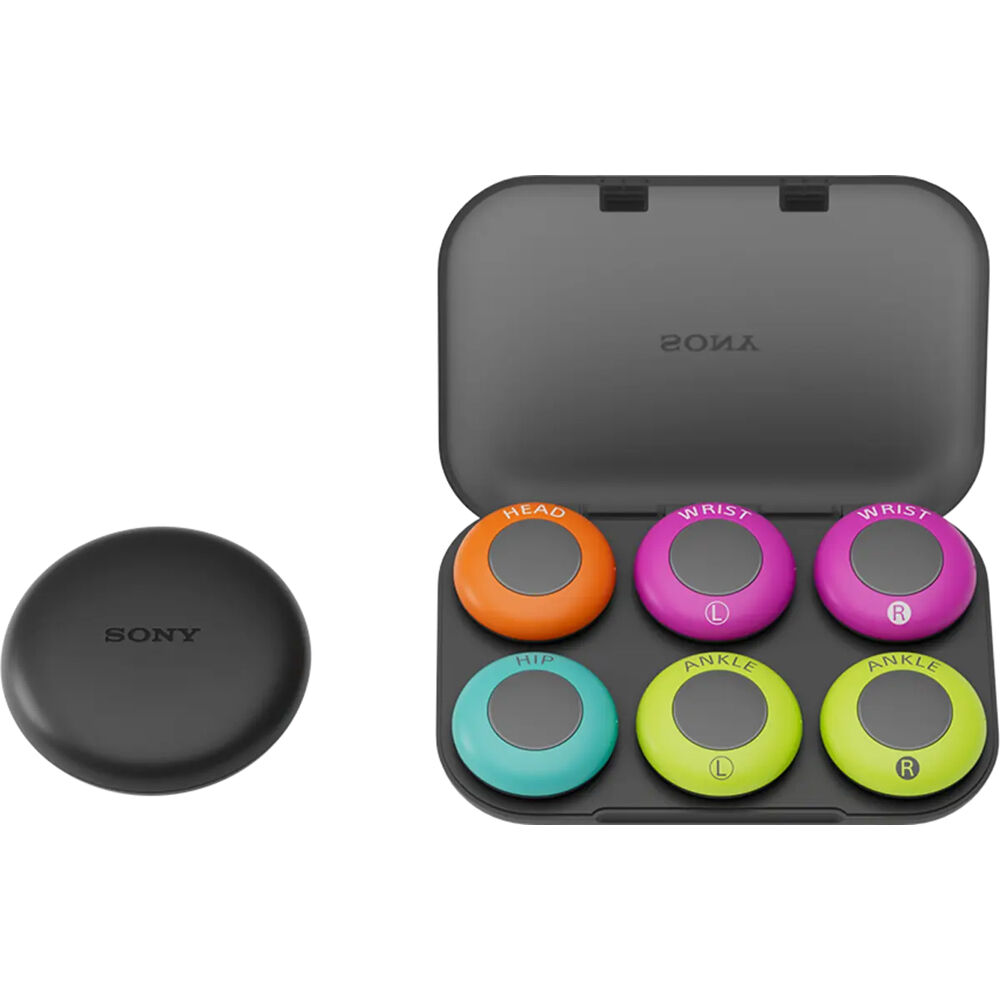

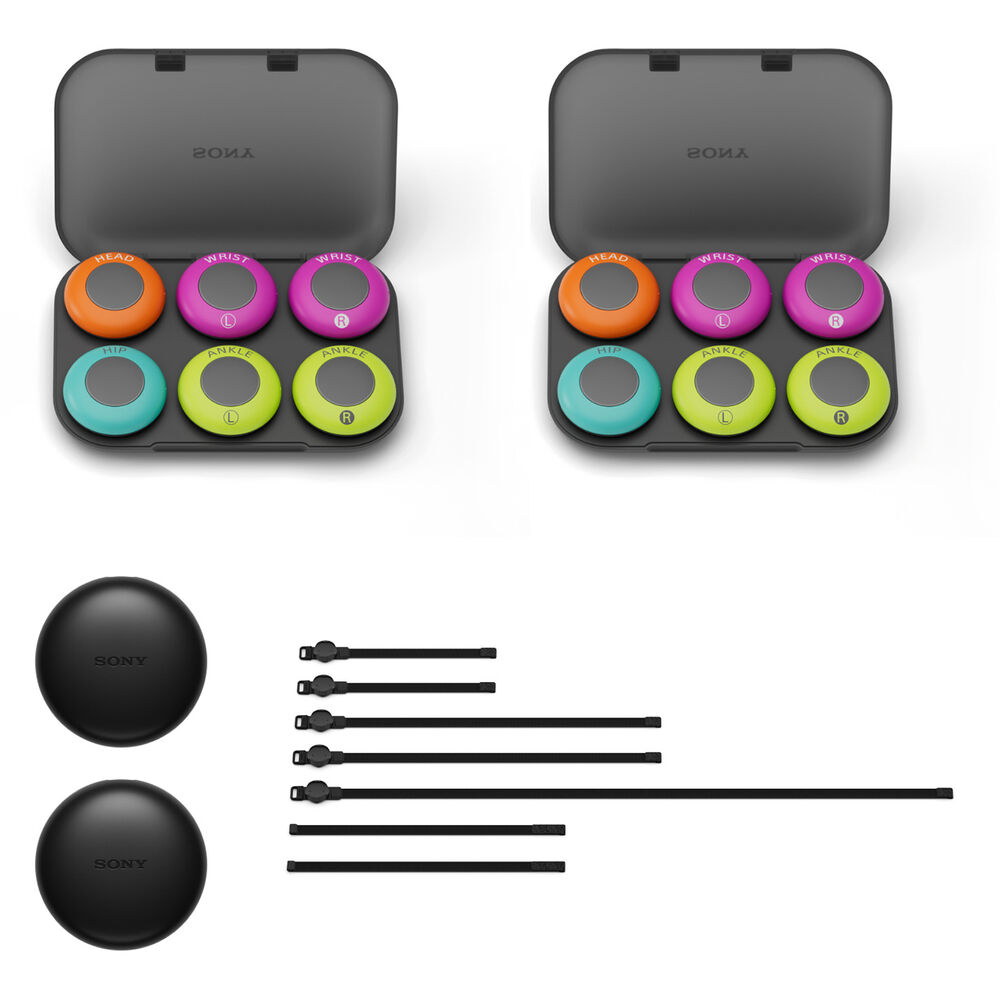

• With the revolutionary mocopi system, you can capture full-body motion anywhere you want using up to 12 comfortable, lightweight sensors.

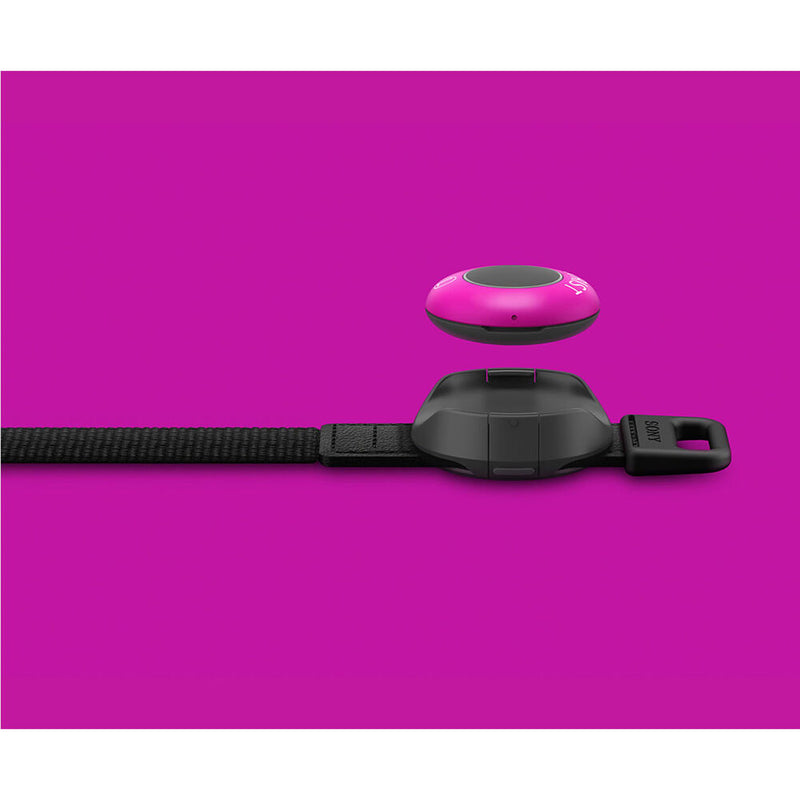

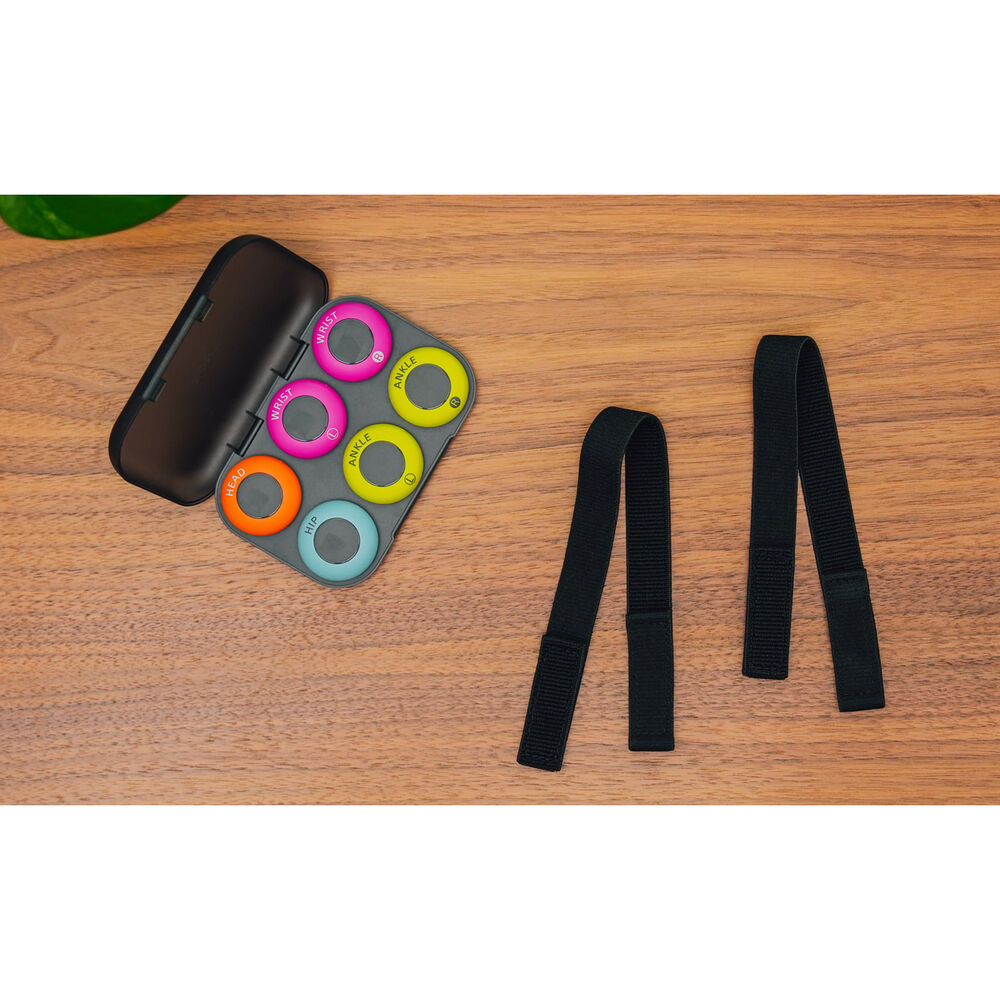

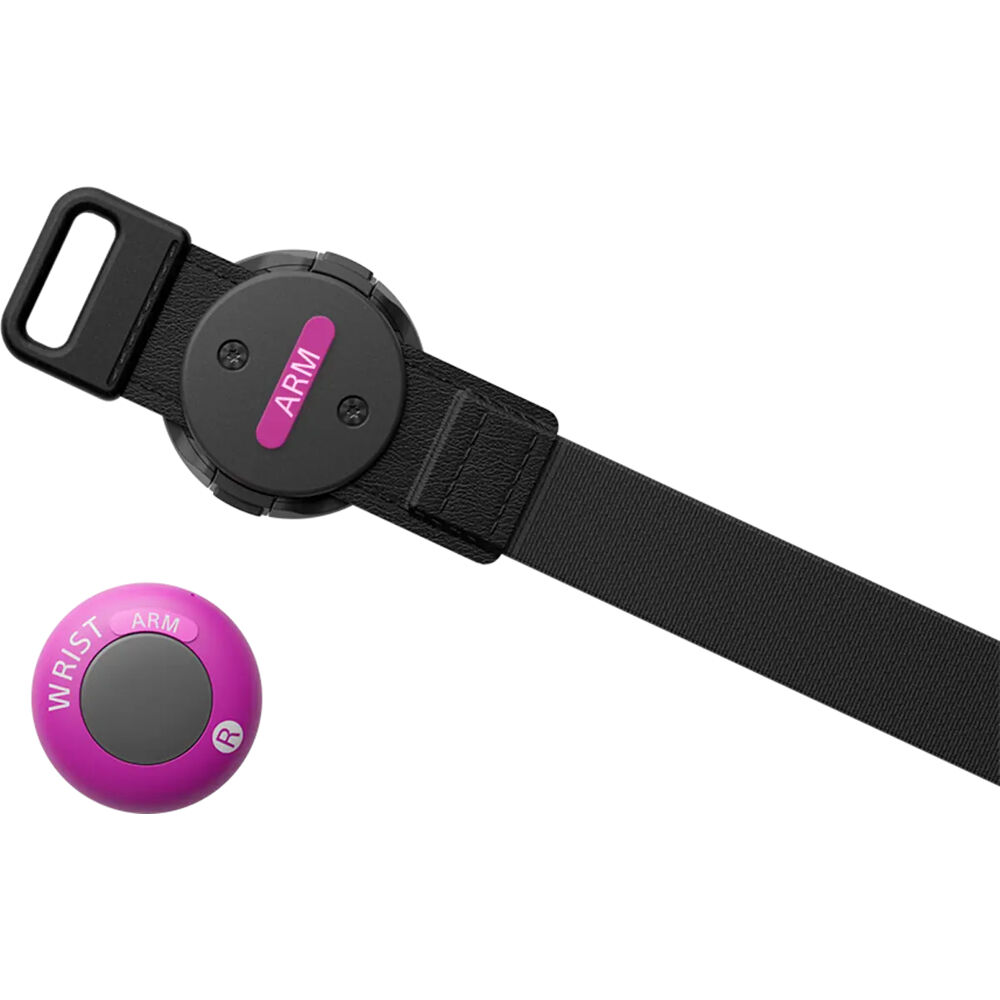

• Motion capture is easy using your compatible smartphone and mocopi's sensors, headband, wristbands, and ankle bands.
• Pair the sensors with your phone, attach and calibrate the sensors, select your avatar and backdrop, and record your motion.

Use mocopi to get started tracking your movements indoors or head outdoors and create your own 3D motion content wherever you go.

Official mocopi partners include:

• Cluster
• MotionBuilder
• Rokoko Studio
• VMC (VirtualMotionCapture)
• VRChat
• VRoid Hub

Sony QMSS1/USCXK Specs

Compatibility

Android Xperia 1, 1 II, 1 III, IV / Xperia 5, 5 II, 5 III, IV Apple iPhone SE (3rd Gen) / iPhone 12, 12 mini, 12 Pro, 12 Pro Max / iPhone 13, 13 mini, 13 Pro, 13 Pro Max / iPhone 14, 14 Pro, 14 Pro Max, 14 Plus

USB I/O	1 x USB-C Female Input
Media/Memory Card Slot	Yes
Internal Storage	Yes
Max Transmission Distance	33'
Sensor	6DoF: 3DoF Accelerometer + 3DoF Angular Rate Sensor
Video Resolution	Motion Data: 1080p: 60/50/30/24 Video Frame Rate: 30 fps
File Format	Motion Data: BVH FBX for mocopi PC and XYN Motion Studio Video Data: MP4
Video Format	MPEG-4 AVC/H.264
Audio Format	AAC

Wireless	Bluetooth 5.2 *Built-In
Mobile App Compatible	Yes, Required: Android & iOS

Battery Chemistry	Not Specified by Manufacturer
Recharge Time	1.5 Hours
Maximum Battery Life	10 Hours

Mounting	Multiple Bands
Color	Blue / Orange / Pink / Yellow
Environmental Resistance	Dust/Water-Resistant (IPX8)

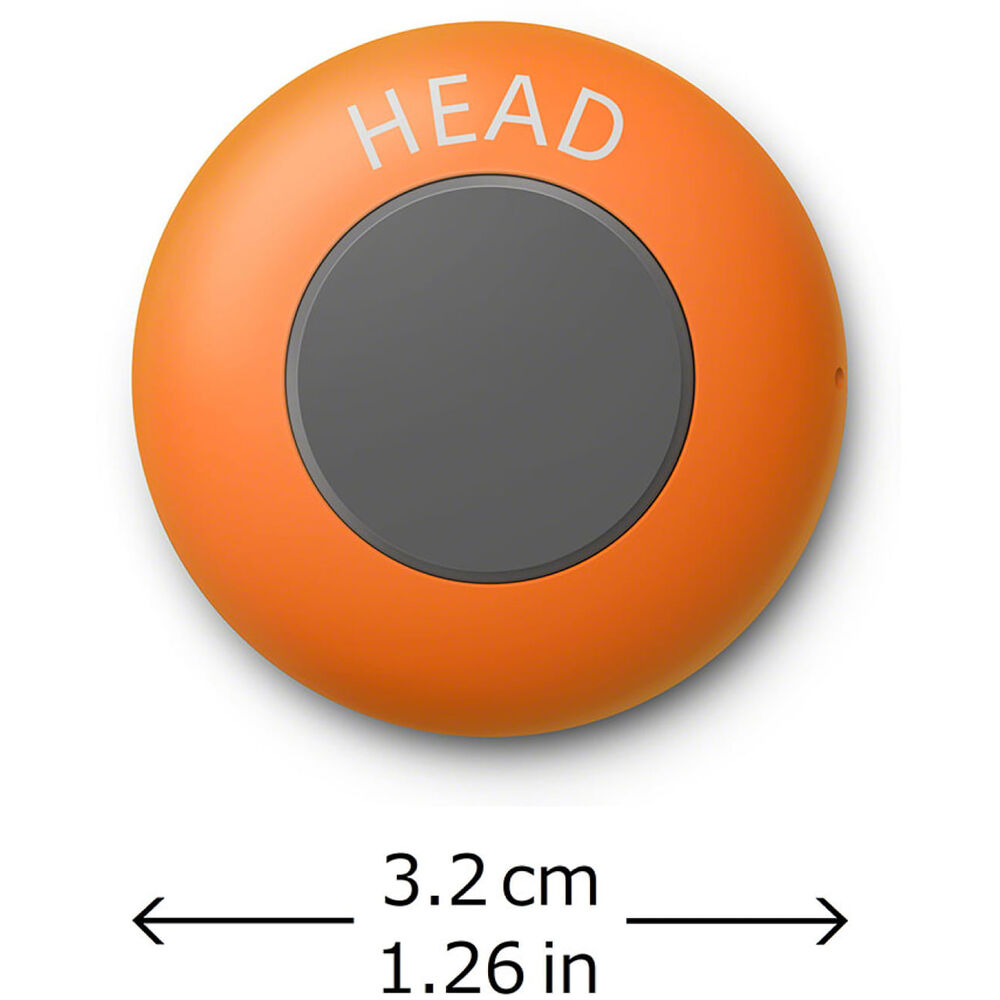

Dimensions	1.3 x 0.46" / 3.2 x 1.16 cm (Each Sensor)
Weight	0.3 oz / 8 g (Each Sensor)

Package Weight	3.715 lb
Box Dimensions (LxWxH)	14.3 x 8.4 x 6.6"
