Description
RGBlink D4 4K60Hz Overview

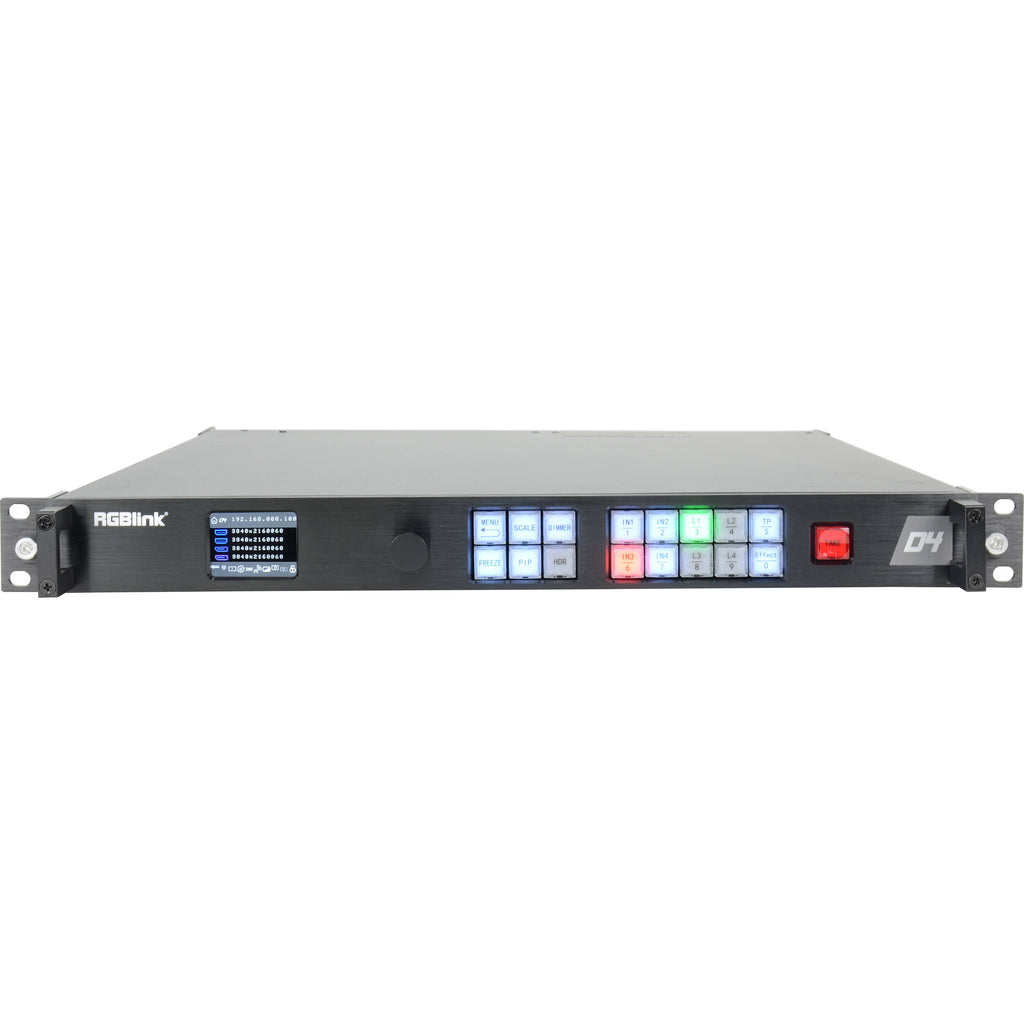

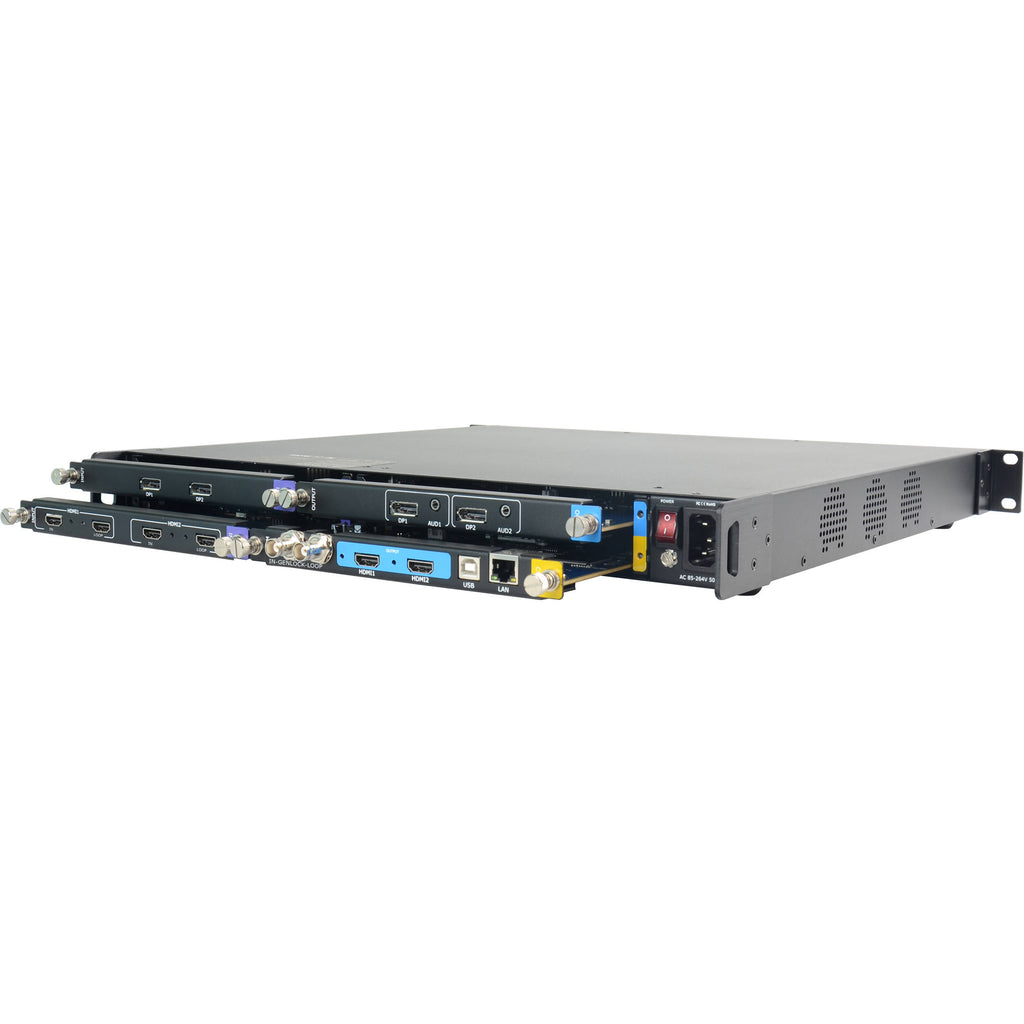

The D4 4K Professional Presentation Switcher/Scaler from RGBlink is a versatile all-in-one video presentation solution that offers switching and scaling capabilities between mixed video input signals. The D4's modular design offers four slots that facilitate the employment of a series of optional HDMI, 12G-SDI, 3G-SDI, DVI, and DisplayPort cards, and it has two 4K HDMI 2.0 scalable outputs that are standard and may be duplicated for output via the option slot. The D4 supports up to 8K2K splicing, HDR and HLG, 4K EDID management, 12-bit processing, and 10-bit YUV 4:4:4 color space. It also boasts 8K1K input and output support and HDCP 2.x compliance.
Key Features at a Glance
- Internal YUV 4:4:4 processing
- 4K60 output options including HDMI 2.0, DisplayPort 1.2, 12G-SDI and more
- 12-bit processing
- Support for 8K1K native input and output
- HDR 10 and HLG compliance
- 4K EDID management
- Up to 8K2K output splicing
- Multiple operation modes
- 12G/6G/3G/HD/SD-SDI input compatibility
- Optional DVI outputs supports AOI splicing
In the Box
- RGBlink D4 4K Professional Presentation Switcher/Scaler
- Power Cable
- 2 x HDMI Cable
- USB-A to USB-B Cable
- Antistatic Bag
- Limited 3-Year Manufacturer Warranty
RGBlink D4 4K60Hz Specs
Processing
| Switching Type |
Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
12-Bit 4:4:4 YUV
|
Input
| Input Video Format |
DisplayPort / HDMI / SDI
8K at 60 fps DCI 4K at 50/60 fps UHD 4K at 23.98/24/25/29.97/30/50/60 fps WUXGA (1920 x 1200) at 60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps 1600 x 1050 at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps 1280 x 768 at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps |
Output
| Video Outputs |
2x HDMI (2.0) Female
|
| Output Video Format |
DisplayPort / HDMI / SDI
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps WUXGA (1920 x 1200) at 60 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps SXGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps |

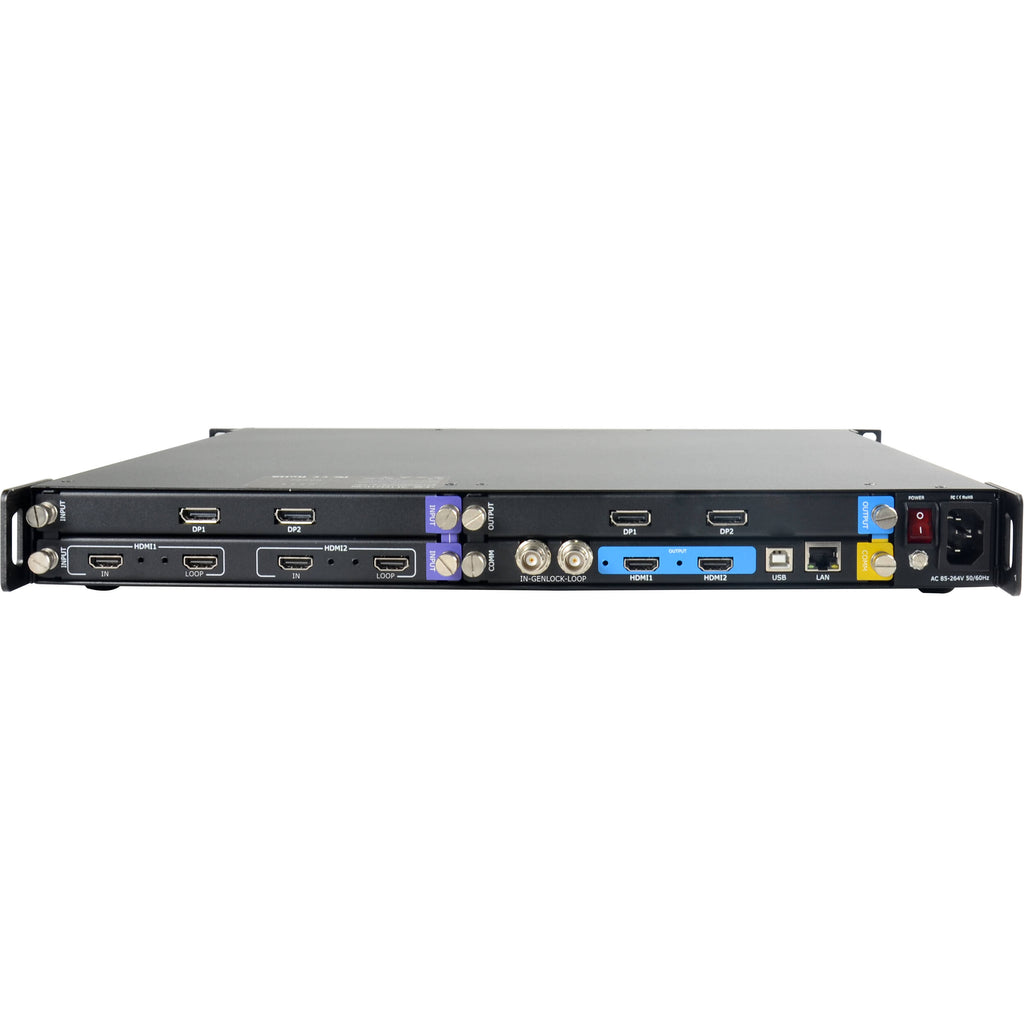

Connectivity
| Inputs/Outputs |
1x RJ45 Female
|
| Other I/O |
1x BNC Genlock Input
1x BNC Genlock Output 1x USB-B Control Input 1x USB-A Control Input |
| Video Standard Compliance |
SMPTE 259M/292M/424M/ST-2081-1/ST-2082-1
|
| HDCP Support |
Yes
|
| HDR Compatibility |
HDR10, Hybrid Log Gamma
|
Hardware
| OS Compatibility |
Windows
macOS |
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x IEC C14 (85 to 264 VAC) Input
|
| Power Consumption |
Device: 100 W
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 85%
|
General
| Rack Form Factor |
1 RU
|
| Dimensions |
18.9 x 18.7 x 1.8" / 480 x 474 x 45 mm
|
| Weight |
15.9 lb / 7.2 kg
|
