Description

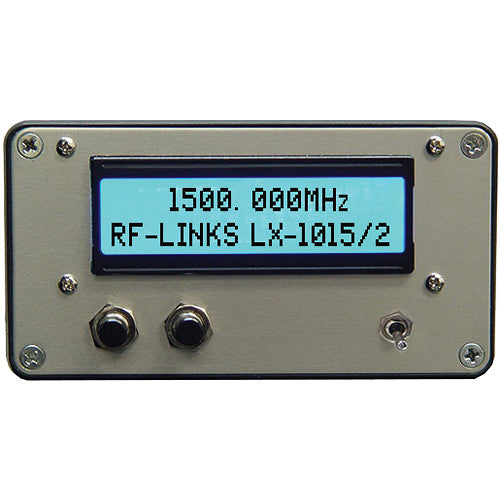

RF-Links LX-1015/2 Overview
Able to withstand a wide range of temperature extremes, the RF-Video LX-1015/2 Video/Audio Transmitter 1000 to 1500 MHz is a lightweight wireless video/audio transmitter that weighs about 3/4 of a pound and supports NTSC / PAL video, making it suitable for use as a transmitter for flying platforms. It features over 3.7 miles of line of sight transmission of the analog video signals. Frequency selection is digitally controlled in 250 kHz steps from 1000 to 1500 MHz. A digital LCD display confirms your Frequency selection. Please note that this item is only available for sale to government agencies, and is not for commercial use within the United States.
- Frequency is selectable from 1000 to 1500 MHz in 250 kHz steps
- Push button control, up and down for frequency selection
- The transmitter can work at extreme temperature ranges from -40 to over 170°F
- Video/audio is input via an F connector
- Low power consumption of 1600 mA at 12 Volts DC
- The transmitter accepts from 9 to 16 Volts DC (12 Volt recommended)
In the Box
- RF-Links LX-1015/2 Video/Audio Transmitter 1000 to 1500 MHz (NTSC, PAL)
- Limited 1-Year Warranty
RF-Links LX-1015/2 Specs
| Operating Frequencies | 1000 MHz - 1500 MHz |
| Video Format | NTSC PAL |
| Video/Audio Inputs | 1 x RCA F |
| Video Impedance | 75 � |
| Video Level | 1V |
| Frequency Stability | +-1 ppm (TCXO) |
| Frequency Step | 250 KHz |
| Video Distortion | 3% |
| Antenna Connector | SMA |
| Modulation | WFM |
| Maximum Range | LOS: > 3.7 miles / 6 km |
| Power | DC Voltage: 9 to 16 V RF Power: 2 W Current Consumption: 1600 mA / 12 V |
| Temperature Range | -40 to 172.4°F /-40 to 78°C |
| Dimensions | 6 x 3 x 1" / 15.2 x 7.6 x 2.54 cm |
| Weight | 12.3 Oz / 350 g |
