Description
- 2-Stage Telescoping Aluminum Jib Arm
- Jib Arm Load Capacity: 100 lb
- Mitchell Bases for Camera & Tripod
- 6' Range of Travel
- Requires Separate Tripod
- Vector Balance Bar & Fine-Tuning Weight
- Weighs 61.5 lb
- Aluminum & Stainless Steel Components
- Made in the USA

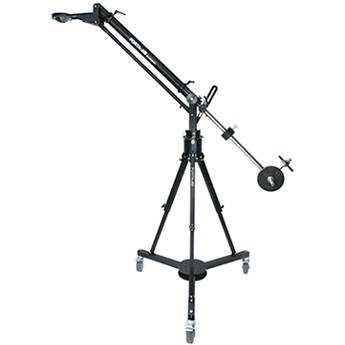

The Standard Porta-Jib with Mitchell Camera Base is a two-stage, round-tube jib arm supporting camera rigs weighing up to 100 lb. This versatile jib includes a Mitchell camera insert; it may also be used with separately available 150mm or 100mm camera bases. This two-stage, telescoping jib arm has a reach of 57", a pull-back of 19", and a boom range of 72". Features include a Vector Balancing Bar, 7 lb fine-tuning weight, a boom lock, and pan lock. The Vector Balancing System enables you to transfer weight from the horizontal bar to the vertical Vector Bar, creating a zero-drift effect.
Counterbalancing the Standard Porta-Jib is done using the adjustable rear section, the Vector Balancing Bar, the fine-tuning weight, and standard weights (barbell weights available separately). A Mitchell tripod base is included; compatible bases available from Porta-Jib include a 150mm base, lightweight tripod base, and a DV column base. A boom drag function is available when the Standard Porta-Jib is used with compatible bases except for the 150mm bowl base. The Standard Porta-Jib is constructed of machined aluminum and stainless steel components, and is made in the USA.
Note: Tripod not included; the Standard Porta-Jib is not compatible with 100mm tripods. Warning! The boom drag feature only works properly with the P-J Lightweight Tripod Base, DV Base, or Mitchell Base. If you have a Porta-Jib with a 150mm base you will not have a pin locking into a key-way as you would with the Mitchell Base. Consequently, if you apply an amount of boom drag and then boom the jib counter-clockwise, you may begin to unthread the jib's tie-down assembly. This could become very dangerous. Jibs with 150mm bases should use this knob for pan lock only, not for drag.
- Camera Mount
- Includes a Mitchell base that can be used in over or under-slung configurations; it may be swapped out with separately available 150mm or 100mm bowl inserts
- Vector Balancing System
- The Vector Balancing System enables you to transfer weight from the horizontal bar to the vertical Vector Bar, creating a zero-drift effect
- Counterbalance
- Payload may be counterbalanced with the adjustable rear section, the Vector Balancing Bar, and the Fine-Tuning Weight 1
Please Note:
Required standard barbell weights are not included.
close
- Base Mount
- Includes a Mitchell tripod base; can also be mounted to separately available 150mm bowl base, or 3-way leveler base 2
Please Note:
The Standard Porta-Jib is not compatible with 100mm-top tripods.
close
- Construction
- Telescoping machined aluminum and stainless steel components
| Construction | Telescoping aluminum and stainless steel tubes |
| Payload Capacity | 100 lb (45 kg) |
| Counterbalance System | Fine-Tuning Weight: 7 lb (3.2 kg) Vector Balancing Bar Barbell weights (not included) |
| Height Range | 0-72" (0-183 cm) |
| Maximum Reach | 57" (145 cm) |
| Pull Back | 19" (48 cm) |
| Boom Range | +/- 56° |
| Weight Ratio | 1:1.5 |
| Tilt Drag | Yes |
| Pan Lock | Yes |
| Tripod Attachment | Mitchell base |
| Head Attachment | Mitchell base |
| Head Arm Leveling | Adjustable secondary leveling arm |
| Weight | Total Weight: 63 lb (28 kg) Porta-Jib: 60 lb (27 kg) Mitchell Insert: 1 lb (0.45 kg) Mitchell Base: 2 lb (0.9 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 43.4 lb |
| Box Dimensions (LxWxH) | 19.0 x 18.5 x 13.5" |
- Mitchell Front Insert
- Vector Balancing Bar
- Fine-Tuning Weight
- Boom Lock
- Pan Lock
- Limited 1-Year Warranty
