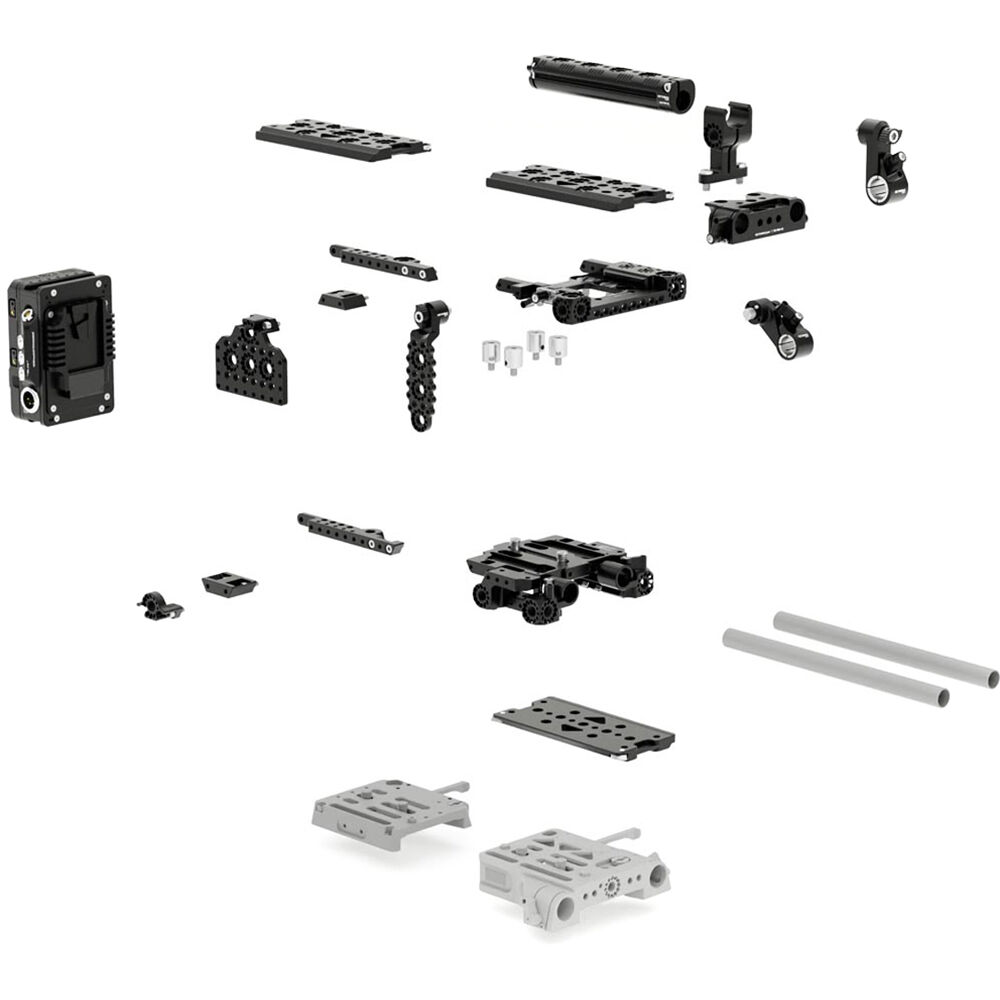

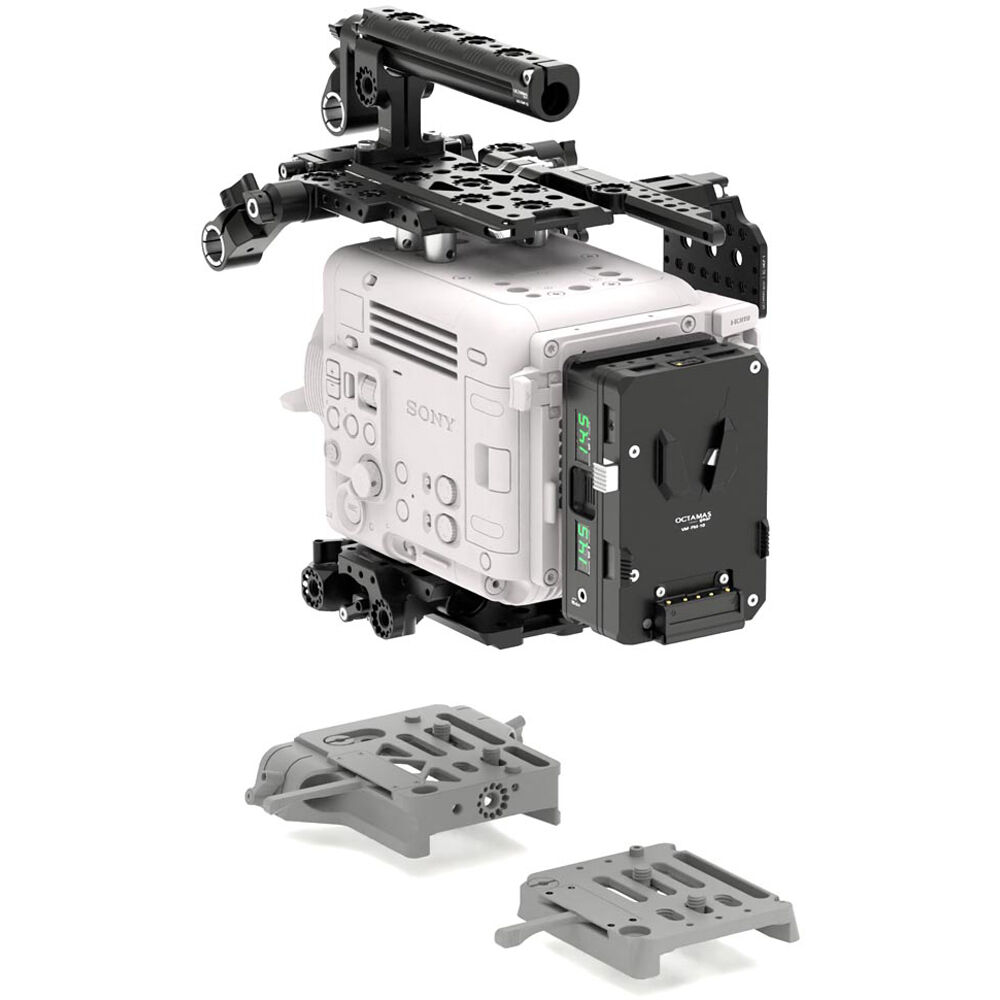

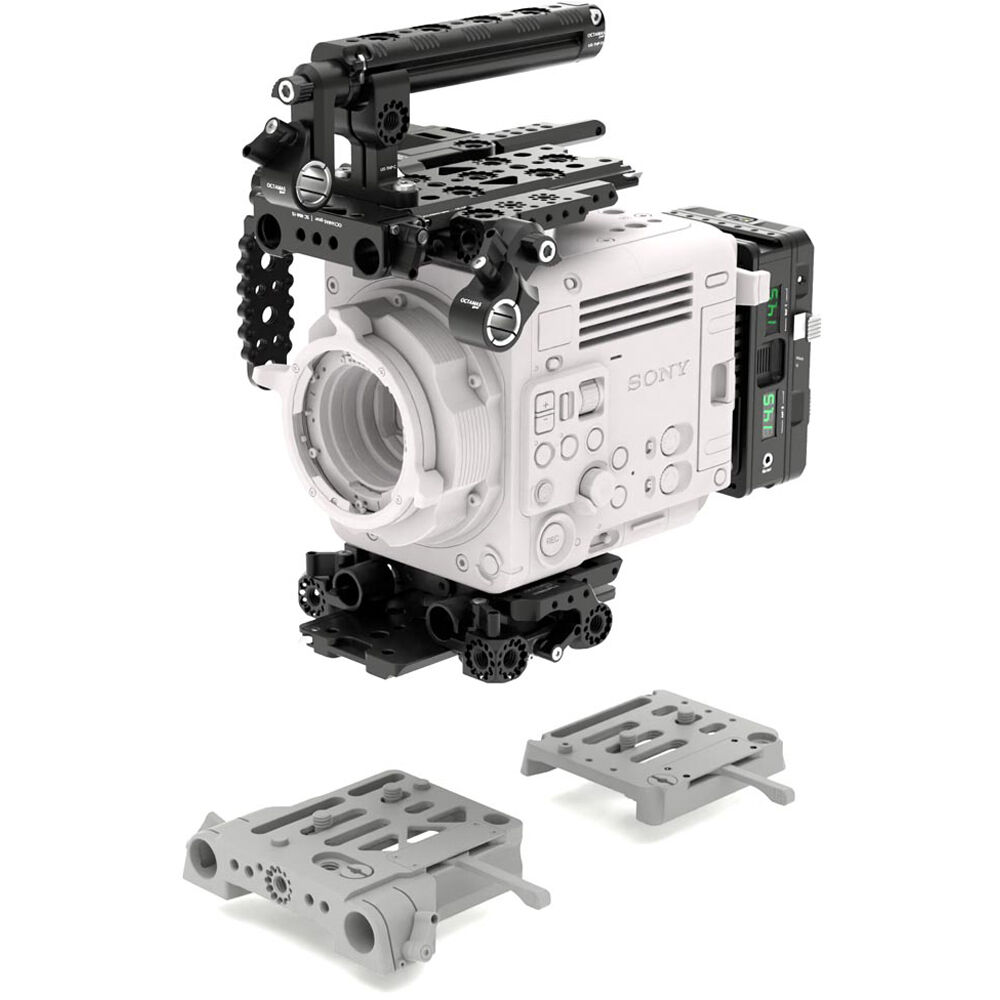

OCTAMAS gear SWISS Cage Advanced Power Set for Sony BURANO (V-Mount)

Add numerous accessories to the top of your Sony BURANO, VENICE 1, VENICE 2, RIALTO 1, or RIALTO 2 camera rig with this SC Cage Top Interface Plate from OCTAMAS gear. Part of the OCTAMAS gear SWISS Cage system, the aluminum plate mounts onto the top of the camera, and it provides multiple 3/8"-16 ARRI-style anti-twist mounts, as well as 1/4"-20 and M4 accessory threads. It is compatible with separately available ARRI-standard dovetail plates. Also included are four riser threads that can be used to ensure an optical center with optional 15mm top mounts.

The 5.5" SWISS cage Dovetail Plate is a low profile plate for all OCTAMAS gear SWISS cage top/bottom interface plates. It features 3/8"-16 ARRI anti-twist, standard 1/4"-20, and M4 threads. The plate has safety stops on both ends.

The SWISS cage 15mm Rod Mount Interface is a 15mm LWS rod adapter for OCTAMAS gear SWISS cage top/bottom dovetail plates. It features 3/8"-16, 1/4"-20, and M4 mounting threads.

The Top Handle Pro from OCTAMAS gear is a universal, adjustable handle with a secure and comfortable grip and professional mounting options. It features several 3/8"-16 ARRI anti-twist and 1/4"-20 threads. It can be mounted on any cage or mounting plate via two included 1/4"-20 screws with 36mm spacing. Using an optional Connector Top Handle Pro, two handles can easily be combined to create a Master Handle setup. The Top Handle Pro is also compatible with the ARRI HEB handle extensions.

The SWISS cage 15mm Bottom Interface Plate for Sony VENICE 1/2 & Rialto 1/2 is part of the modular SWISS cage from OCTAMAS gear. It provides 15mm LWS ports and supports ARRI dovetail plates. There are several 1/4"-20 and M4 mounting threads and 3/8"-16 ARRI anti-twist mounts with 30° pin adjustment. This plate also works on the top and bottom of the ARRI ALEXA 35 and the bottom of the Sony FX6.

Adapt your cinema camera or light for use with full-sized V-mount batteries using this Power Box Pro V-Mount to V-Mount Adapter from OCTAMAS gear. Constructed from lightweight yet durable aluminum, this versatile power adapter features numerous power options for powering your V-mount camera or production gear using a professional V-mount battery while providing redundant, hot-swap power and accessory power distribution options. Multiple threads on the top and bottom of the mount provide mounting options to integrate into the OCTAMAS gear SWISS cage system.

The plate features a 12V 4-pin XLR input to provide redundant power from an external source for hot-swapping with uninterrupted power, and its built-in chip prevents the battery from being discharged when installed. Output options include two 24V 3-pin Fischer run/stop trigger ports, a 3.5mm LANC run/stop trigger port, three D-Tap outputs, and two 2-pin LEMO-type outputs for powering accessories.

From OCTAMAS gear, this is a single-rod 19mm Rod Mount designed for ARRI 3/8"-16 anti-twist threads. It features a matching 3/8"-16 anti-twist mount that's secured by a wing-style thumbscrew.

From OCTAMAS gear, this is a single-rod 19mm Rod Mount designed for ARRI 3/8"-16 anti-twist threads. It features a matching 3/8"-16 anti-twist mount that's offset 90° from the rod port and secures by a wing-style thumbscrew.

The 19mm to 15mm Reducer is designed exclusively for the 19mm Rod Mount and 19mm Rod Mount 90° from OCTAMAS gear. It converts the 19mm Rod Mount to the 15mm standard, allowing 15mm rods to be used. It's designed to be locked in place inside the Rod Mount.

The long SC Left/Right Mounting Wings from OCTAMAS gear feature left and right mounting adapters that work with Canon, RED, and ARRI top and bottom plates. Each wing mount has a 3/8"-16 ARRI-type anti-twist thread and multiple 1/4"-20 and M4 mounting threads. The SC Mounting Wings are required when mounting the separately sold SC Power Box Mount or the SC Side Interface Plate 90°. An Allen key is included in the package.

The OCTAMAS gear Mounting Cheese Stick is designed to attach to a 3/8"-16 ARRI anti-twist mount and is secured via a lever. It provides ARRI 3/8"-16 anti-twist, standard 1/4"-20, and M4 mounting threads.

The Mounting Cheese Plate I from OCTAMAS gear is a mid-size accessory plate with 3/8"-16 anti-twist and 1/4"-20 standard threads. Suitable for mounting transmitters and other devices, it's designed to be attached at a 90° angle to M4 threads with ARRI-standard 20mm spacing between them.

The Mounting Cheese Plate II from OCTAMAS gear is a small accessory plate with a 3/8"-16 anti-twist thread for accessories. Suitable for mounting handgrips and other accessories, it's designed to be mounted at a 90° angle to M4 threads with ARRI-standard 20mm spacing between them.

The OCTAMAS gear Universal Spacer I is a small offset adapter designed to mount on M4 threads with ARRI-standard 20mm spacing between them. When used with the OCTAMAS modular SWISS cage, it sets the SWISS cage Side Interface Plate 90° to the correct distance to support OCTAMAS 19mm and 15mm Studio Bridge Plates at the correct height with larger cameras.
