Description

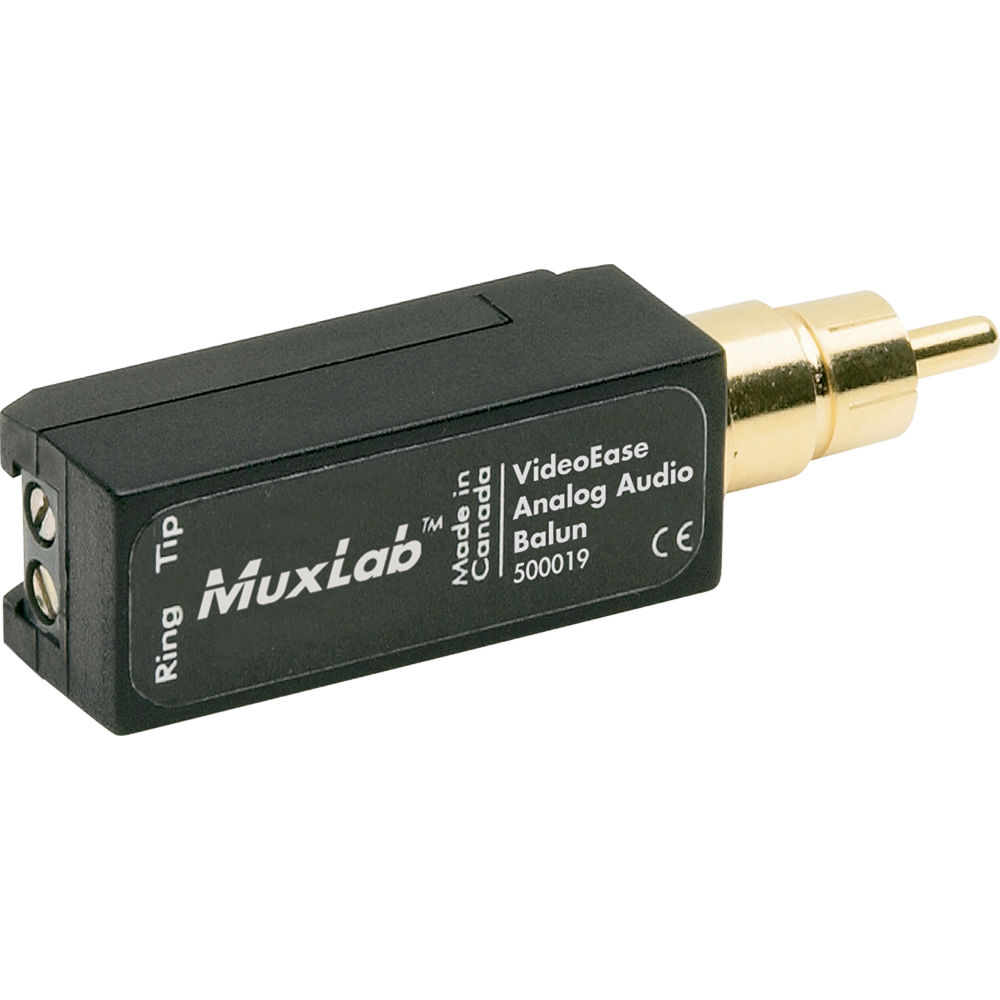

MuxLab Analog Audio Balun Overview
The MuxLab 500019 Analog Audio Balun allows a digital audio source to be connected at a distance up to 600� (183m) from a digital audio decoder/amplifier in a point-to-point configuration using Cat5 UTP (Unshielded Twisted Pair) cable.
Providing a hassle-free cabling solution, the audio balun connects directly to the digital audio equipment that includes DVD, VCR, camcorders, satellite receivers, home theatre, channel processors, amplifiers, D/A converters, MPEG encoders/decoders, switchers, etc.
Made of fire retardant plastic, the compact balun measures 2.30 x 0.62 x 0.62� (5.8 x 1.6 x 1.6 cm) and features 2 screw terminals and a built-in cable strain relief for ease of installation.
Supporting Dolby Digital, Dolby Pro Logic, dts, LOGIC7, and THX Surround EX, the analog audio balun can be used in home theater systems, schools, concert halls, auditoriums and convention halls, arenas, parks, airports, and hotels.
Items Included
- MuxLab 500019 Analog Audio Balun
- Limited Lifetime Manufacturer Warranty
Additional Resources
MuxLab Analog Audio Balun Specs
| Environment |
Dolby Digital, Dolby Pro Logic, dts, LOGIC7, THX Surround EX
|
| Devices |
DVD, VCR, camcorders, satellite receivers, home theater, channel processors, amplifiers, D/A converters, MPEG encoders/decoders, switchers and other commercial or consumer audio equipment supporting digital audio
|
| Transmission |
Transparent to the user
|
| Bandwidth |
DC to 25 MHz
|
| Input |
Maximum Input: 1.0 Vp-p
|
| Insertion Loss |
Less than 1 dB per pair over the frequency range
|
| Return Loss |
Greater than 15 dB over the frequency range
|
| Common Mode Rejection |
Greater than 60 dB @ 10 MHz
|
| Maximum Distance |
Cat 5 - 600' (183m)
|
| Cable Requirements |
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
|
| Connectors |
2 screw terminals
1 S/PDIF (RCA) gold-plated male connector |
| Pins |
Pin Configuration: Tip-signal, Ring-GND
|
| Impedance |
Input: 75 ohms (RCA)
Output: 100 ohms (Screw Terminals) |
| Temperature |
Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ 185°F (-20 ~ 85°C) Humidity: up to 95% |
| Enclosure |
Fire retardant plastic
|
| Dimensions |
2.3 x 0.6 x 0.6" (5.8 x 1.6 x 1.6cm)
|
| Weight |
1.5 oz (43g)
|
| Package Weight |
0.07 lb
|
| Box Dimensions (LxWxH) |
10 x 1.6 x 1.4"
|
