Laird Digital Cinema HDBNC4855-MM Overview
- 1Description
- 212G-SDI 4K UHD
- 3HD-BNC Male Connectors
- 4Silver-Plated Copper
- 5Low Return Loss
- 6SMPTE Compatible

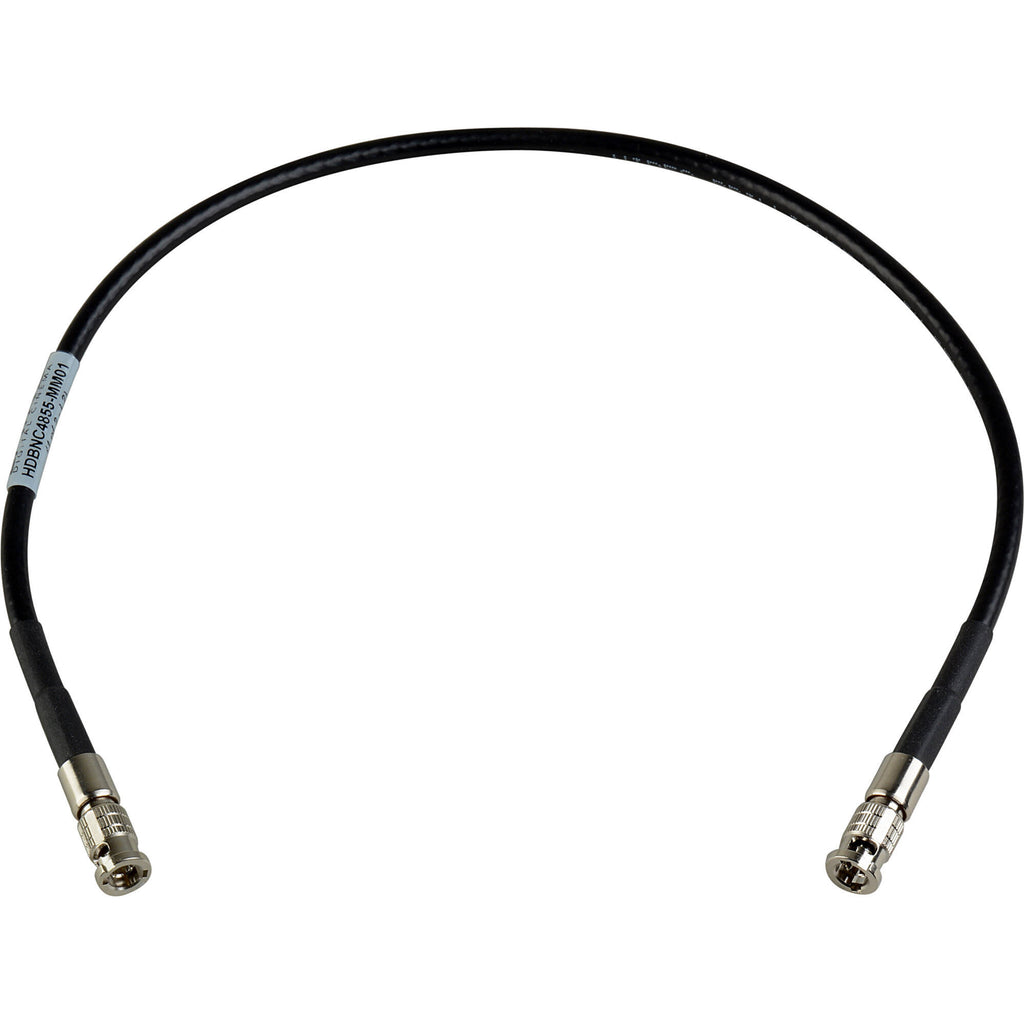

The 3' High-Density HD-BNC Male to BNC Male 12G-SDI Cable from Laird Digital Cinema is designed for transmitting uncompressed 12G-SDI UHD 4K video signals in RF performance-critical applications. It features return loss and attenuation improvements, which make it highly suitable for high-density patch bays, routers, and signal distribution systems. This cable features a straight low-profile coax HD-BNC (micro BNC) male connector on each end.
12G-SDI 4K UHD
Transmits uncompressed 12G-SDI 4K UHD video signals up to 149'
HD-BNC Male Connectors
HD-BNC male connectors on each end, both straight
Silver-Plated Copper
A braided design and silver-plated copper conductor plus a polyethylene formula contribute to improved return loss and attenuation
Low Return Loss
15 dB return loss from 4.5 to 12 GHz
SMPTE Compatible
Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards
Table of Contents
- Description
- 12G-SDI 4K UHD
- HD-BNC Male Connectors
- Silver-Plated Copper
- Low Return Loss
- SMPTE Compatible
Laird Digital Cinema HDBNC4855-MM Specs
General
| Connector 1 | 1 x Micro-BNC |
| Connector 2 | 1 x Micro-BNC |
| Cable Length | 3' / 0.9 m |
| Signal Type | 12G-SDI |
| SMPTE Standards | SMPTE 2081-1/2082-1 |
| Coaxial Type | RG-59 (4855R) |
| Conductor Material | Silver-Plated Copper |
| Insulation Type | Polyvinyl Chloride (PVC) |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Shielding | Tinned Copper Braid |
| Wire Gauge | 23 AWG |
| Weight | 1.6 oz / 45 g |
Electrical
| Capacitance | 16.3 pF/ft |
