Description
Kondor Blue KB-UARRI-BRP-BK Overview

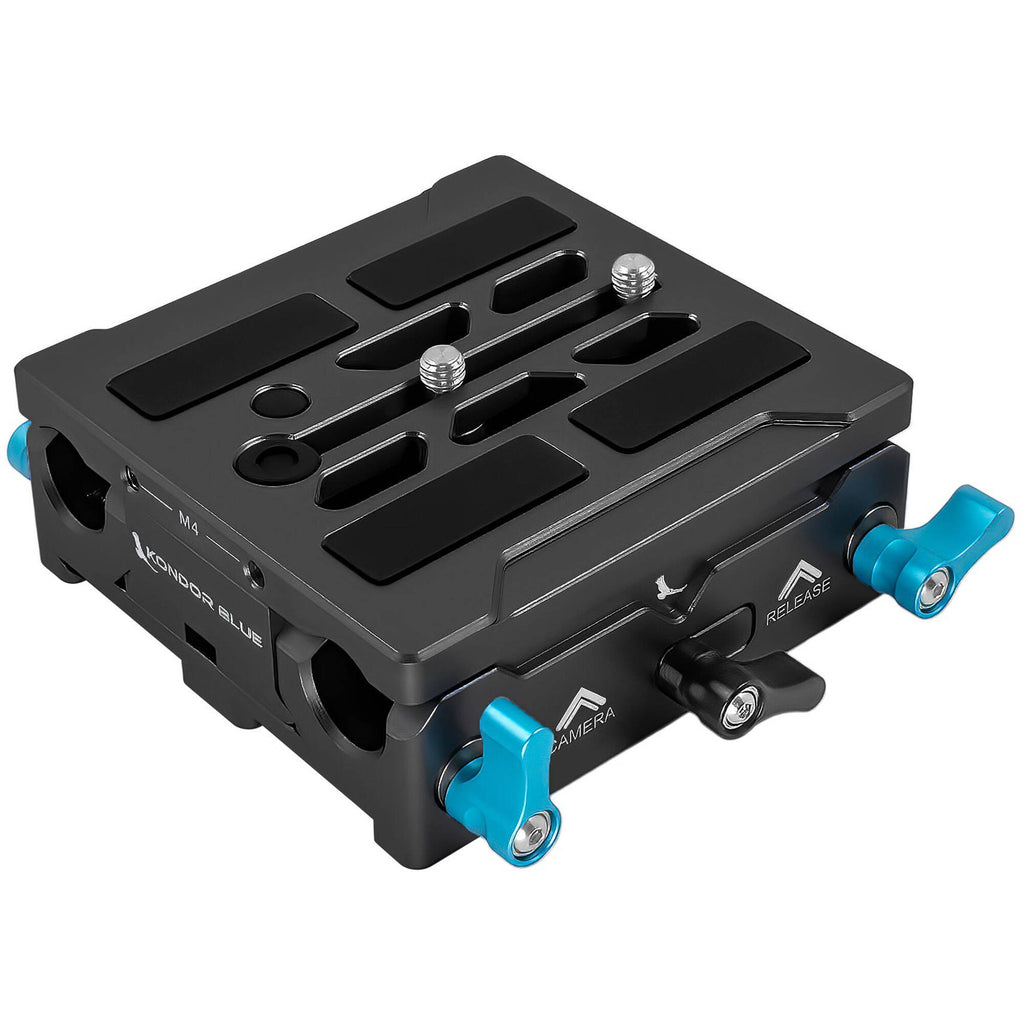

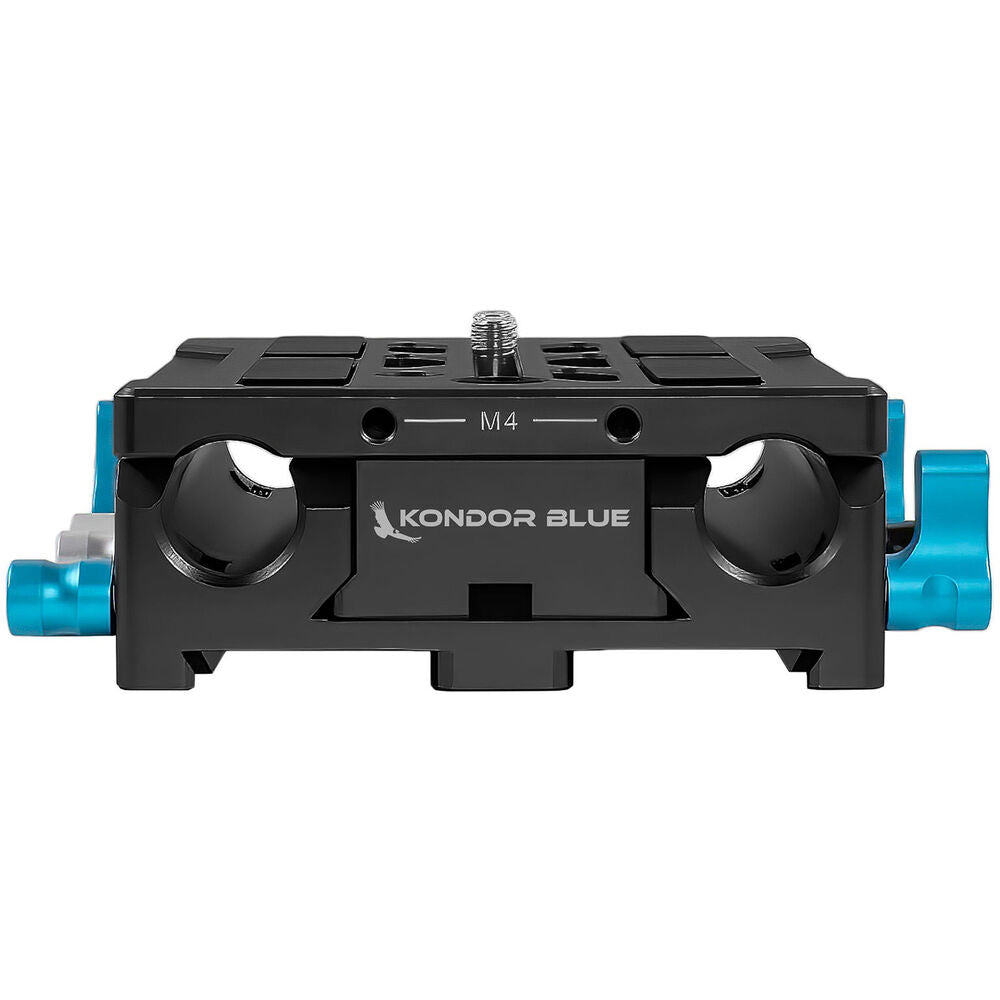

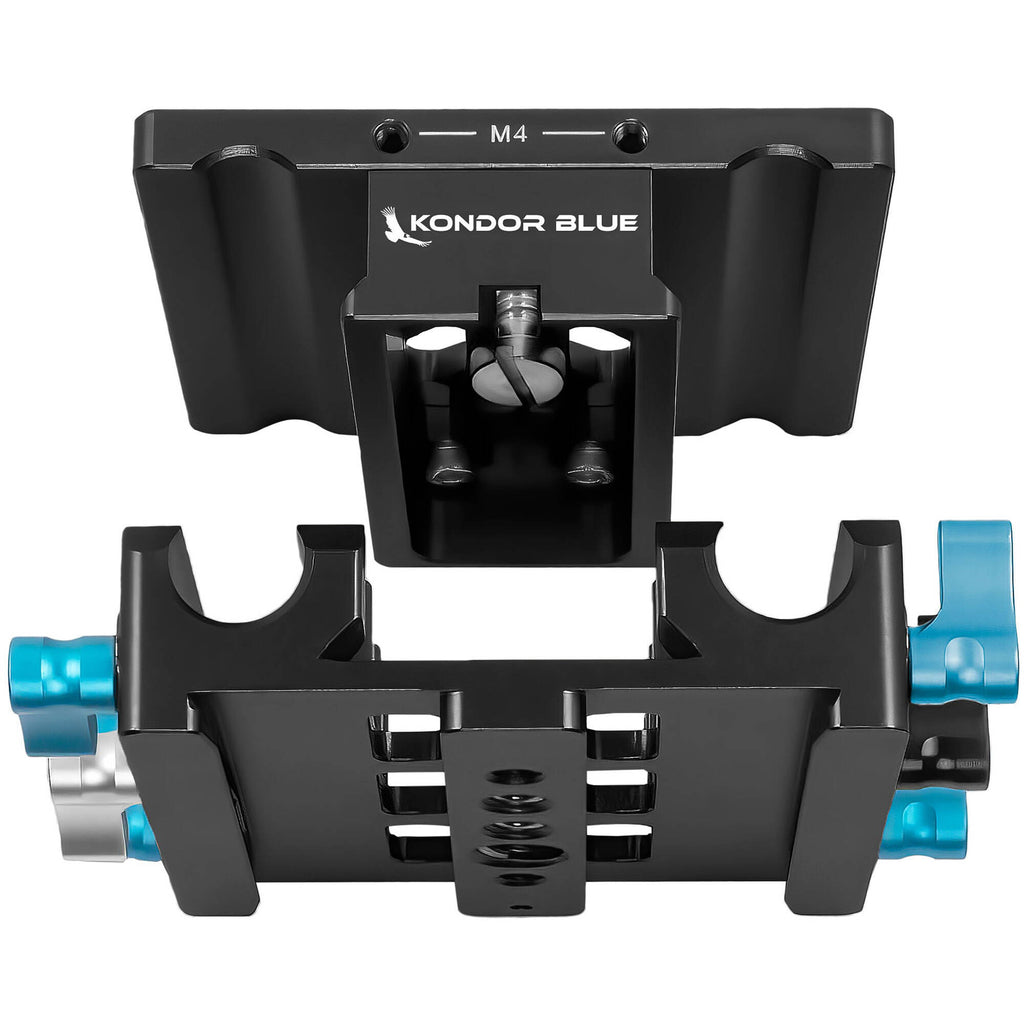

Add 15mm LWS and quick release support to your professional camera rig with this raven black Universal 15mm LWS Bridge Plate from Kondor Blue. The bridge plate is designed to work with ARRI-standard dovetail rigs and can support larger pro cameras from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE. It features an ARRI-standard dovetail base, a quick release camera plate, and a 15mm LWS rod system.
The quick release camera plate features 1/4"-20 and 3/8"-16 mounting screws, front M4 screws for a lens support, and rubber padding on top to protect the camera from scratching or twisting. The dovetail base offers 1/4"-20 and 3/8"-16 tripod mount threads. Its 15mm rod ports pass through the entire base and are secured with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate features a standard 3.3" riser height to match the camera's lens height, and optional riser plates will be available to support additional camera models.
Optional camera-specific riser plates are available for a variety of additional cameras from ARRI, RED, Canon, and Sony.
In the Box
- Kondor Blue Universal 15mm LWS Bridge Plate for ARRI/RED/URSA/C70/VENICE (Raven Black)
- Quick Release Camera Plate
Kondor Blue KB-UARRI-BRP-BK Specs
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Universal |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | None |
| Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread, 3/8"-16 Thread, ARRI Dovetail Clamp |
| Rod Ports | Baseplate: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 1.29 lb |
| Box Dimensions (LxWxH) | 6.8 x 5.5 x 3.2" |
Kondor Blue KB-UARRI-BRP-BK Reviews
Works great on BM Ursa 12k
Great solution for Ursa 12k fixes the flex I had using lesser products. It's well maid and a fair price compared to others costing many x the price.
