Description
Key Digital IP922ENC Overview
- 1Description
- 2Key Digital App-Ready
- 3KDMS Pro Ready
- 4High Dynamic Range

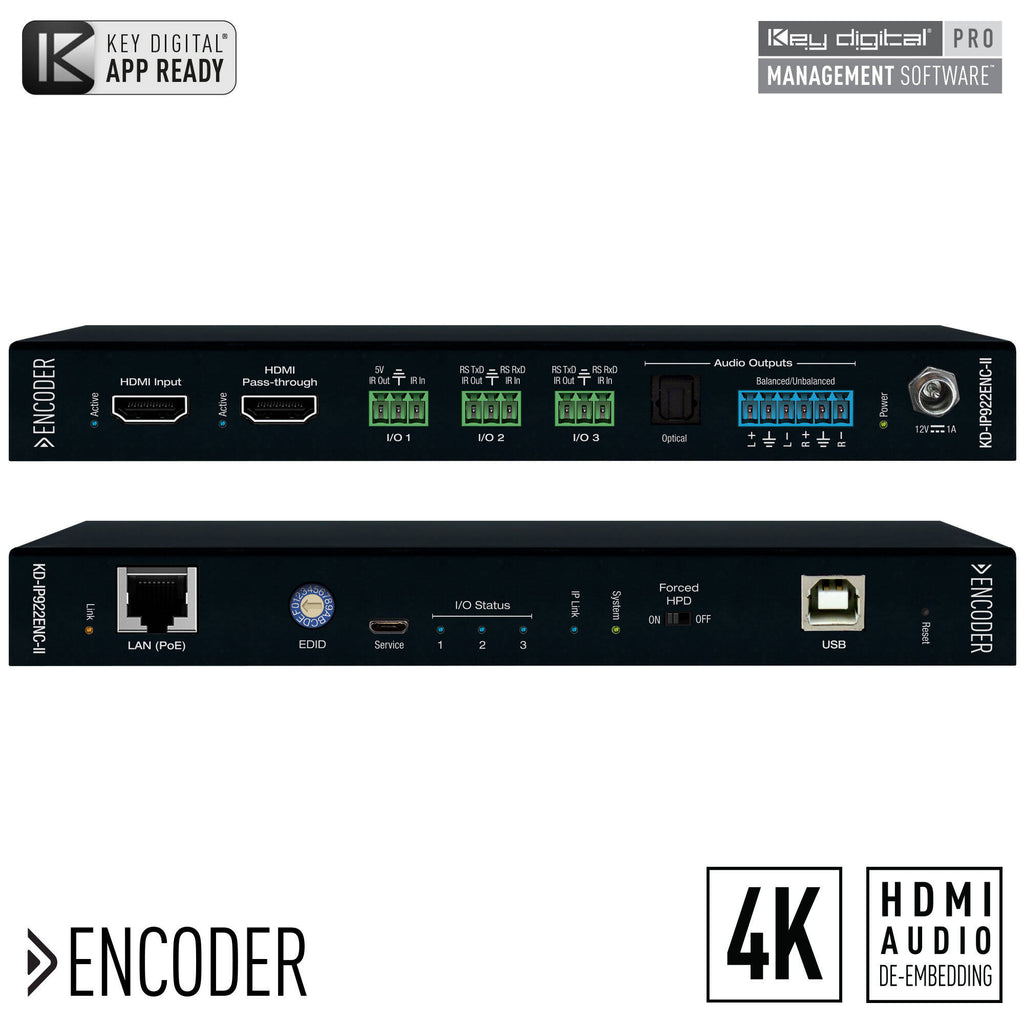

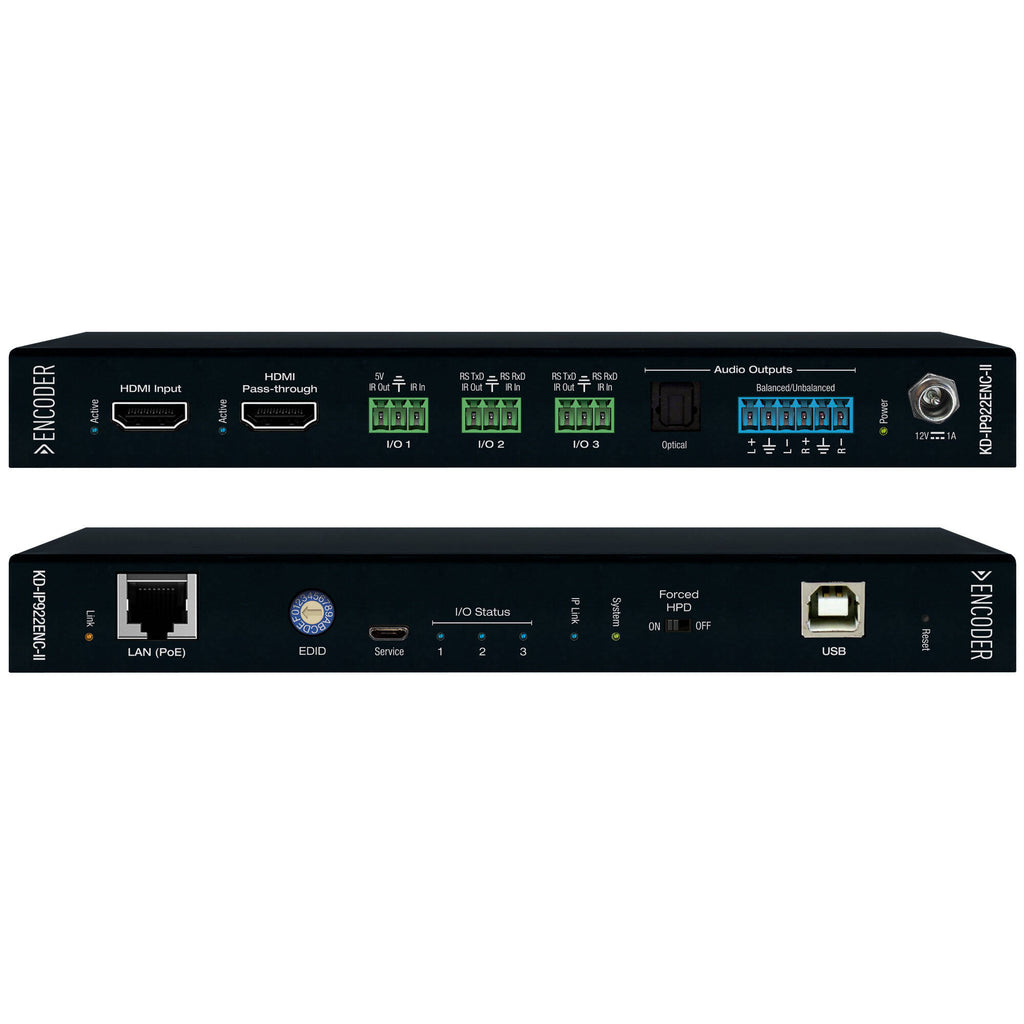

The KD-IP922ENC-II 4K AV over IP System Encoder from Key Digital features PoE (power over Ethernet), low latency, scaling, support for up to DCI 4K30 video, and audio de-embedding. Designed for use with a verified network switch, this app-ready encoder can be mixed-and-matched with KD-IP822 and KD-IP922 encoders and decoders to create up to 16x16 video walls with a maximum total of 256 displays. Interfaces include one GbE LAN port, one HDMI input, one HDMI pass-through output, one 6-pin block audio output, one USB port for routing up to four KVM devices, and three 3-pin block control ports.

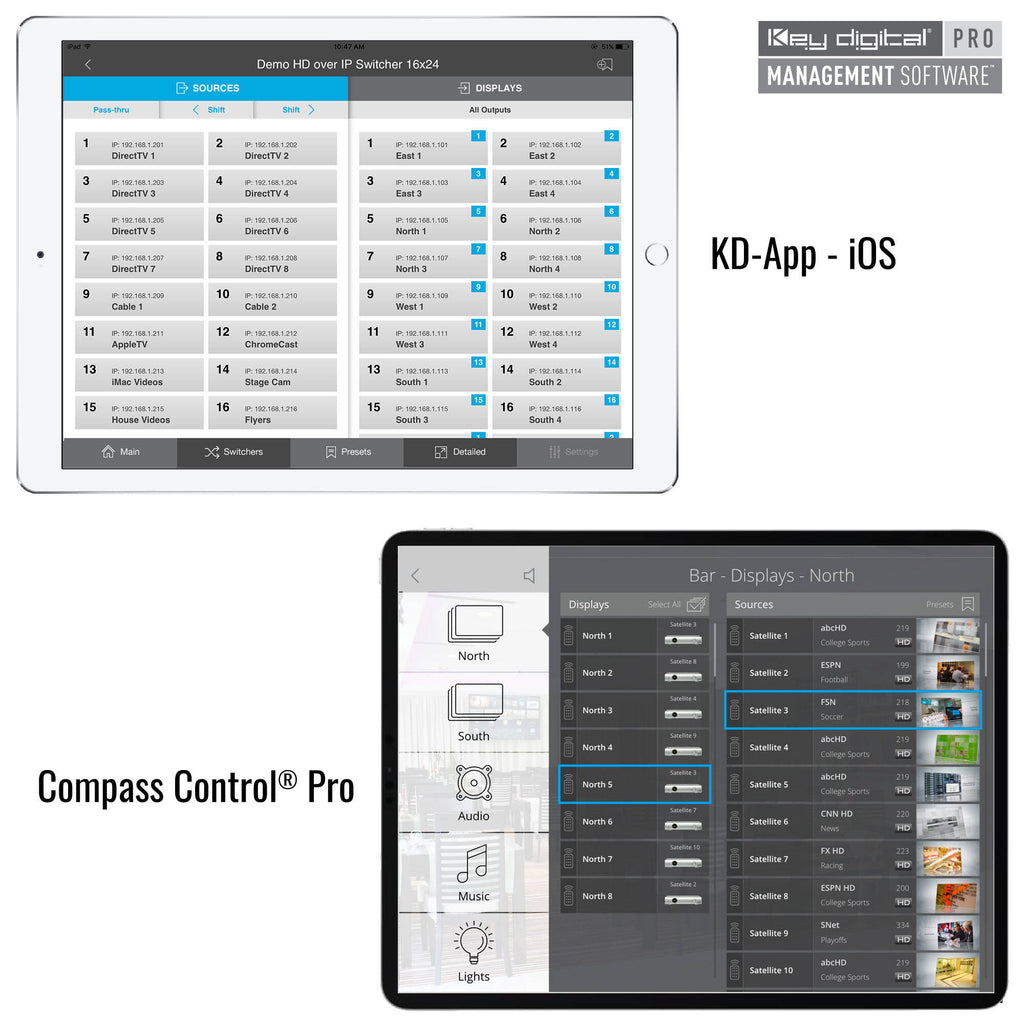

Key Digital App-Ready
- Ready to use the Key Digital app
- Performs a network scan to detect and populate a pre-built GUI
- Includes optional image preview, finger-drag video wall management
- Offers source and display IR control of popular devices
KDMS Pro Ready
- Use with the KDMS Pro PC software for unit and system setup
- Offers a control UI with a clean end-user mode option
- Includes optional image preview, mouse-drag video wall management
- Provides IR and PJ link source and display control of popular devices
High Dynamic Range
- Offers 12-bit, 4:4:4 UHD 4K30 HDR (high dynamic range) for AppleTV sources
- Enables more lifelike images with a greater range of luminance levels
UPC: 815996022314
In the Box
- Key Digital KD-IP922ENC-II 4K AV over IP System Encoder with PoE and Open API Control Ports
- Desktop Power Supply
- USB-A to Micro-USB Cable (6')
- 3 x 3-Pin Block Terminal
- IR Sensor (Bare Wire)
- IR Emitter (Bare Wire)
- 2 x L-Bracket Mount
- 4 x Bracket Screw
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Key Digital App-Ready
- KDMS Pro Ready
- High Dynamic Range
Key Digital IP922ENC Specs
Inputs / Outputs
| Video Inputs |
1x HDMI
|
| Audio Inputs |
No
|
| Video Outputs |
1x HDMI
|
| Audio Outputs |
1x Block 6-Pin
|
| Other I/O |
1x RJ45 LAN
1x USB-B 2.0 1x Micro-USB Service 1x Block 3-Pin IR 1x Block 3-Pin RS-232 Input/Output 1x Block 3-Pin Remote |
| Expansion Slots |
No
|
| Latency |
40 ms
|
Format Support
| Input Video Format |
HDMI / RJ45 (8-Bit 4:4:4/4:2:2)
DCI 4K at 24/25/30 fps UHD 4K at 24/25/30 fps 1080p 1080i 720p |
| Output Video Format |
HDMI / RJ45 (8-Bit 4:4:4/4:2:2)
DCI 4K at 24/25/30 fps UHD 4K at 24/25/30 fps 1080p 1080i 576p |
| Embedded Audio |
HDMI/LAN (RJ45) Input
HDMI/LAN (RJ45) Output |
Standards
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
No
|
| HDR Compatibility |
Not Specified by Manufacturer
|
| DTS Compatibility |
DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
|
IP Streaming
| Video IP Encoding |
Proprietary: 1280 x 720 to 4096 x 2160 at 30p (125 to 850 Mb/s)
|
Hardware
| Tally Light |
Yes
|
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Power Supply: 20 W
|
Environmental
| Operating Temperature |
149°F / 65°C
|
General
| Rack Form Factor |
No
|
| Certifications |
CE, RoHS, WEEE
|
| Dimensions |
6.25 x 3.1 x 1.1" / 15.88 x 7.9 x 2.8 cm
|
| Weight |
14.4 oz / 408 g
|
