ikan Professional 15" SDI/HDMI Teleprompter Travel Kit with Widescreen Talent Monitor

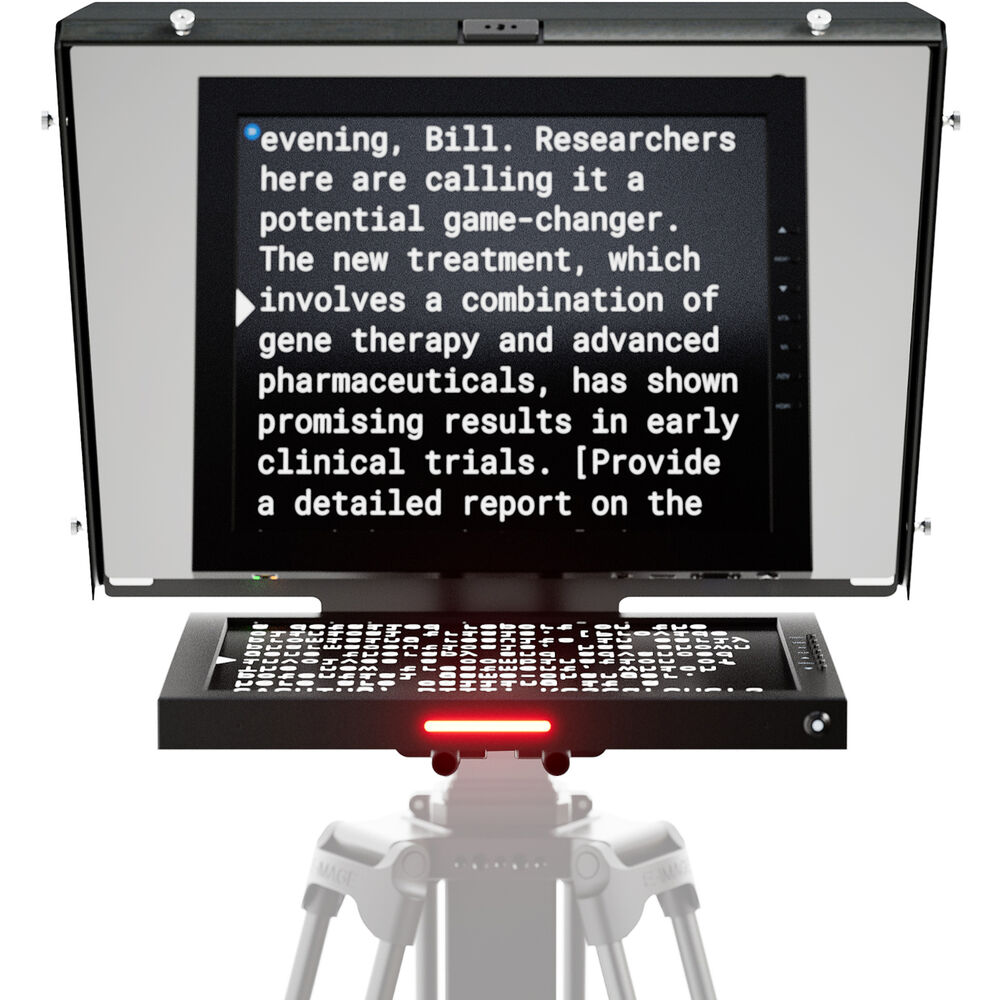

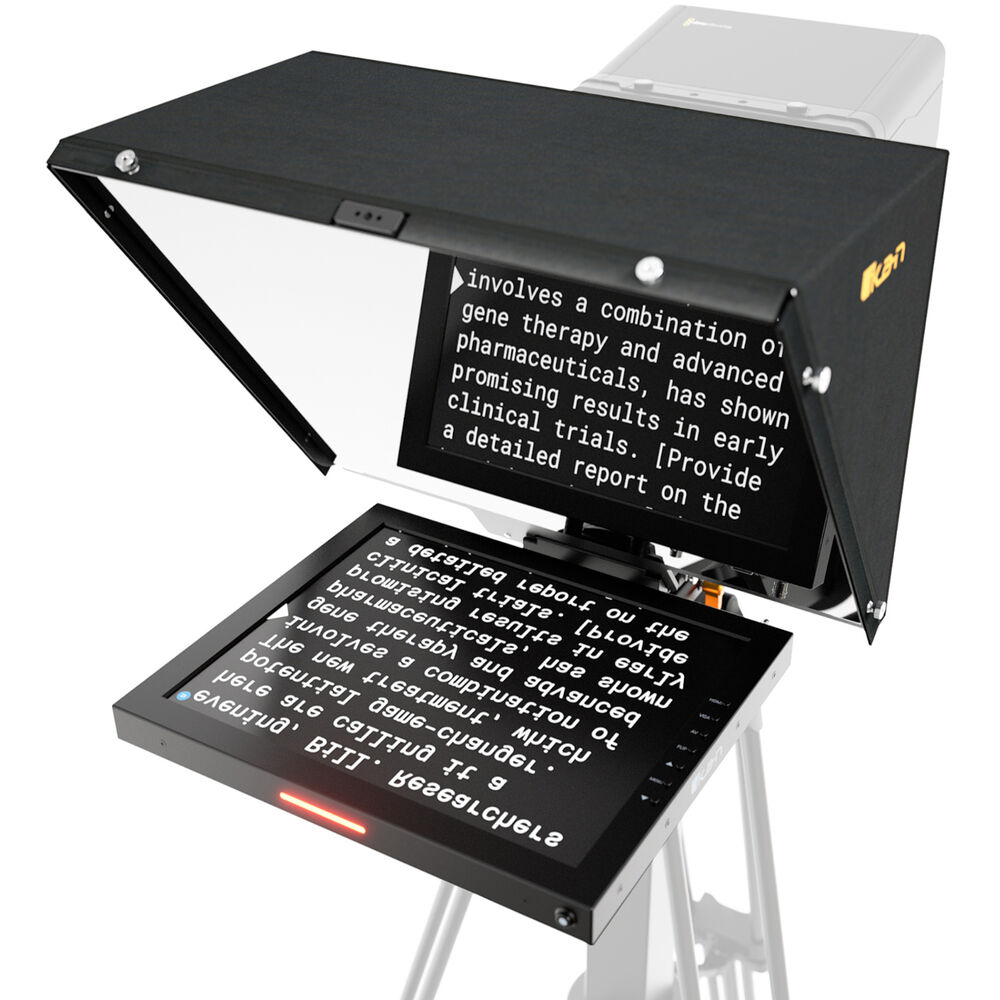

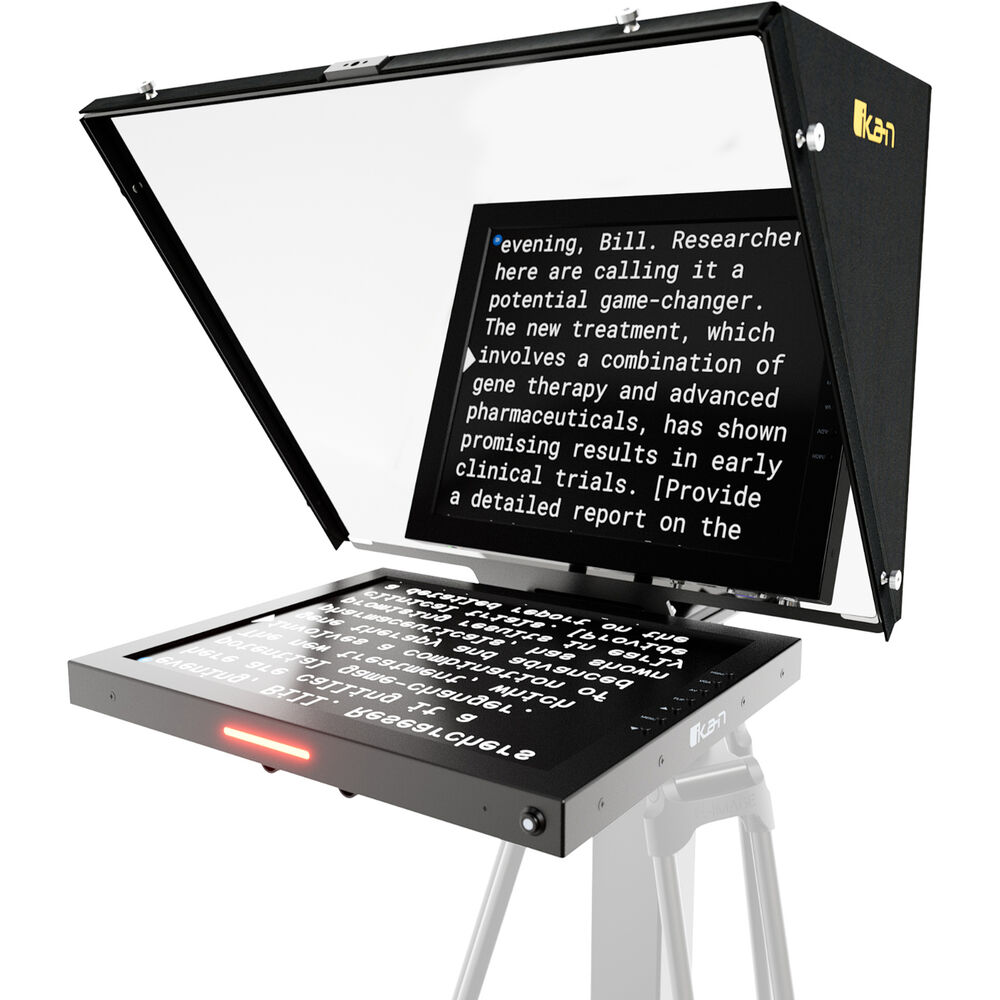

The Professional 15" SDI/HDMI Teleprompter with Widescreen Talent Monitor from ikan is designed for quick and easy setup in studio or broadcast applications to film professional scripted content. The durable aluminum teleprompter includes a 15" monitor, 15" widescreen monitor, 65/35 beamsplitter glass, an adjustable lens hood, and an improved base for better balancing. Multiple 1/4"-20 and 3/8"-16 threads on the teleprompter makes mounting it to a tripod or pedestal a breeze. HDMI, SDI, VGA, and Composite video inputs are compatible with most video equipment.

65/35 Beamsplitter Glass

The included beamsplitter glass features a front mirror coating with 65% transmission and 35% reflection along with an anti-reflection coating on the rear to prevent ghosting. This ensures clear, color-neutral images for the camera and easy-to-read text for the presenter. The component is 0.12" thick and constructed of optical-grade glass.

Wide Camera Compatibility

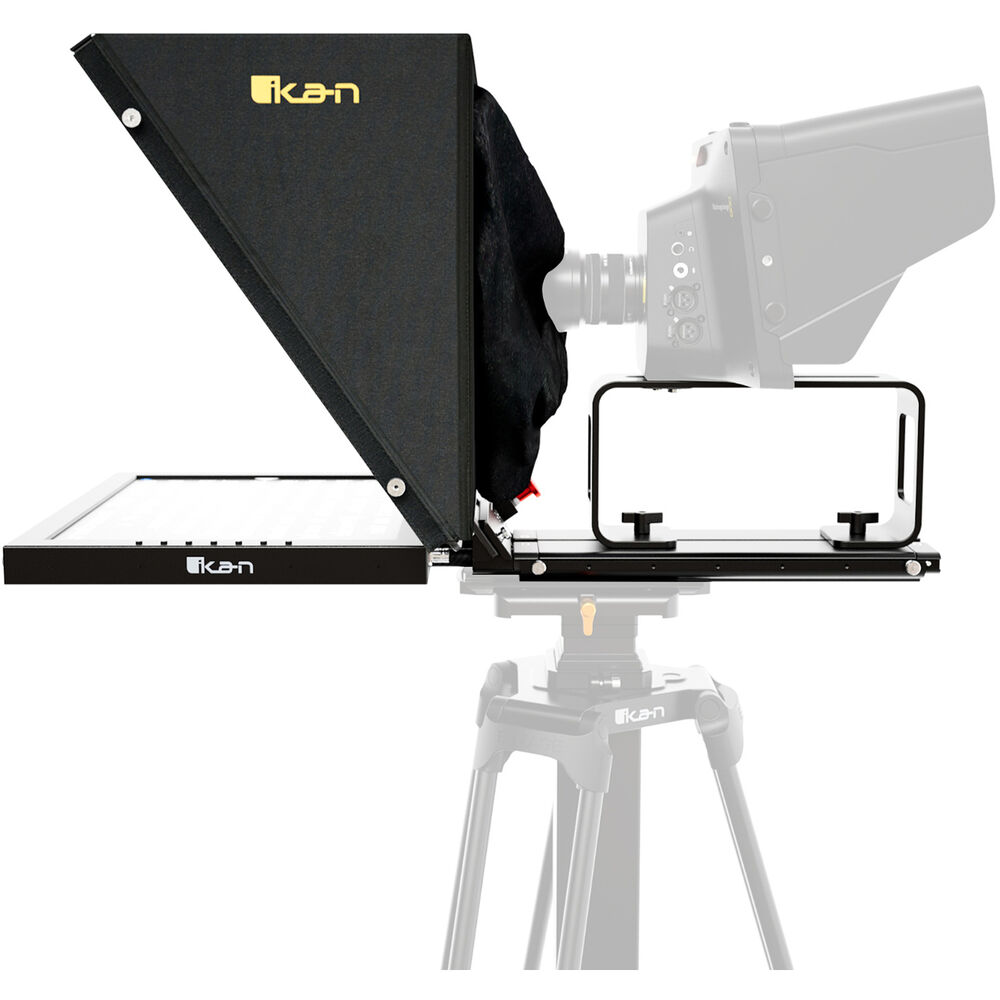

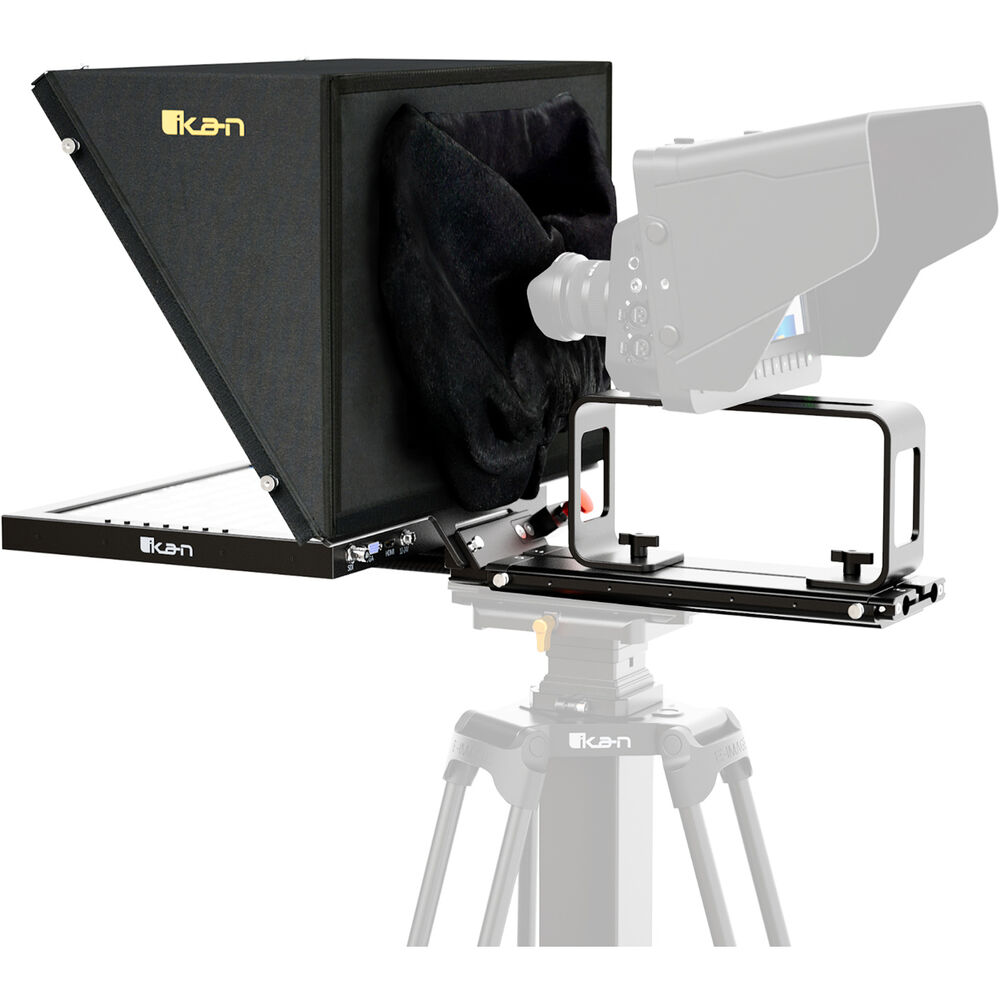

Included with the teleprompter are three different camera mount bases in varying heights for compatibility with professional ENG cameras, cinema cameras, mirrorless cameras, and camcorders. The tall riser measures 5.31", the short riser measures 2.06", and the DSLR riser measures 6.29".

Versatile Monitor

The monitor features HDMI, SDI, VGA, and Composite video inputs. Its native resolution is 1280 x 1024 and its maximum brightness is 1000 cd/m². Use the OSD adjustment to view and change settings like brightness, contrast, backlight, tint, chroma, and sharpness. You can also adjust the intensity of the RGB. The native aspect ratio for the monitor is 4:3, but you can adjust it to be 16:9, full, or to automatically detect the ratio and set it accordingly. A 170° wide viewing angle ensures your talent can view the text from virtually anywhere. An image flip button allows you to horizontally or vertically flip the image. When plugged into a video switcher, two tally lights on the side and front of the monitor turn either green or red to indicate whether or not the camera is live.

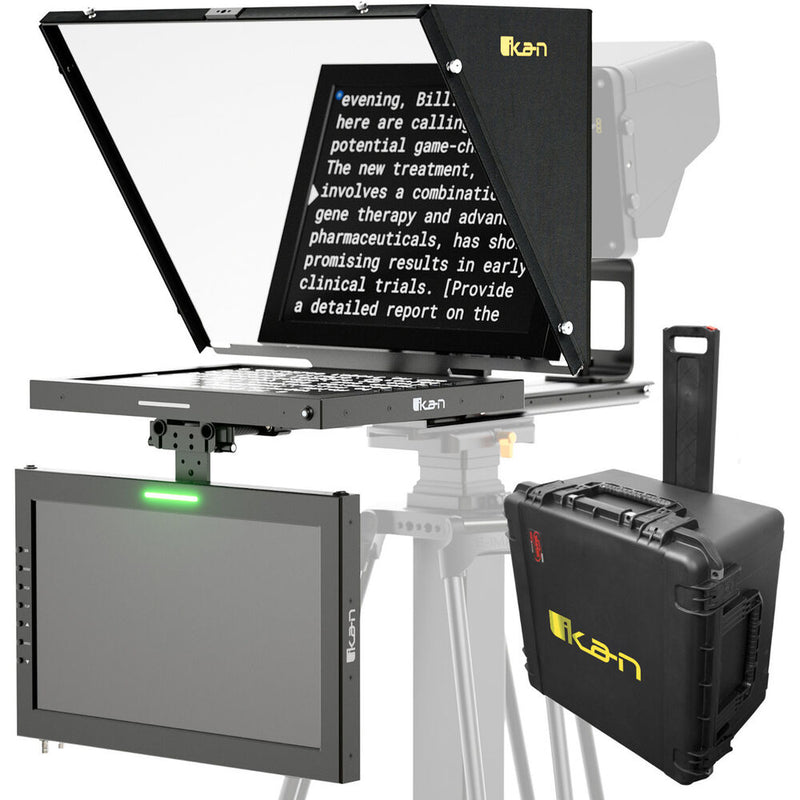

Widescreen Talent Monitor

The 15" widescreen talent monitor secures below the main teleprompter via 15mm mounting system to allow talent to see their presentations while live on camera. It features 3G-SDI, HDMI, and VGA input ports, a native 1920 x 1080 resolution, and a maximum brightness of 1000 cd/m². Adjust contrast, brightness, backlight, tint, chroma, sharpness, and each RGB color channel via OSD menu. The aspect ratio can be set as 16:9, 4:3, full, or can automatically detect an aspect ratio and adapt accordingly. When connected to a compatible video switcher, the monitor's onboard dual tally lights lets you know when the camera is live.

Easy to Balance

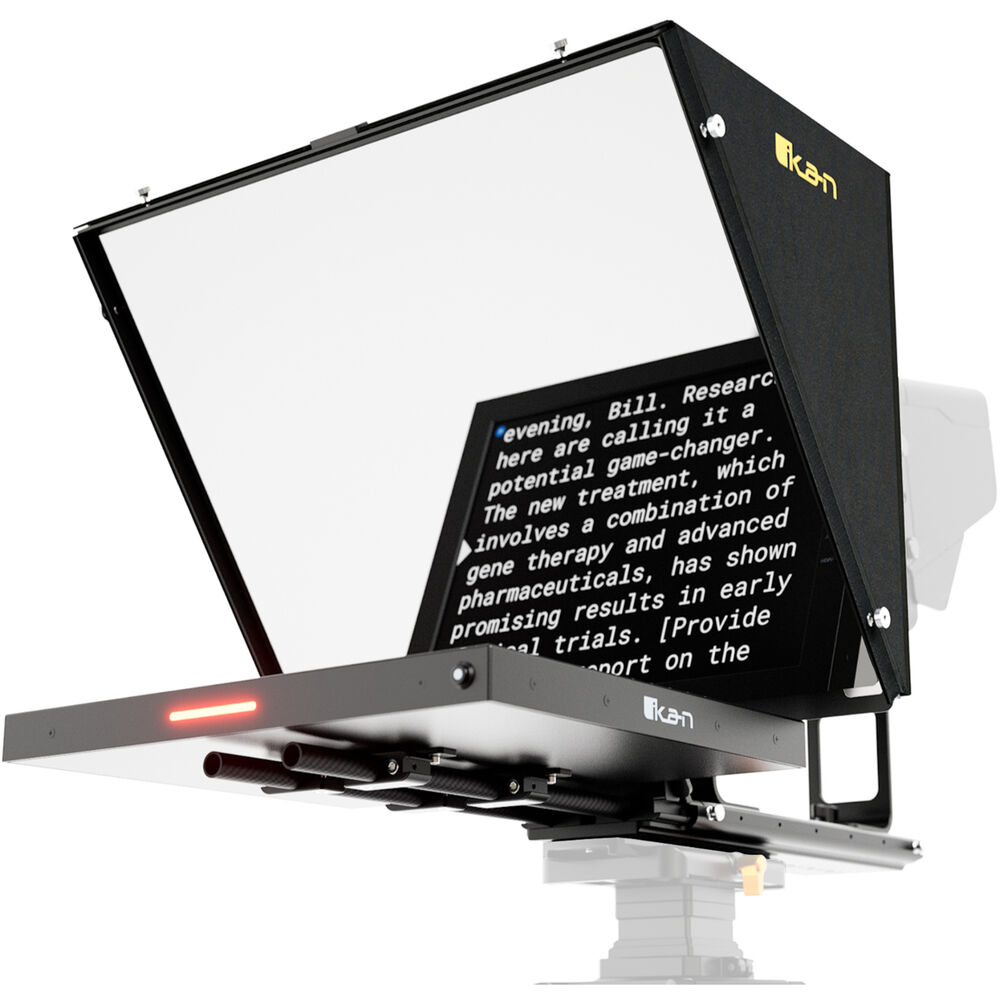

The upgraded teleprompter base includes a rail to slide the entire rig forwards or backwards. This makes balancing more intuitive and does not require counterweights.

Updated Lens Hood

The new version of the adjustable lens hood is anchored to the frame and secured with magnets for extra stability. It is also designed to accommodate larger lenses thanks to its wider opening.

ikan

• PT4900-V2, PT4700-V2 teleprompters
• PT4500-V2, PT419 teleprompters

Kit Contains:

ikan Professional 15" SDI/HDMI Teleprompter with Widescreen Talent Monitor

Reading Range	24.9' / 7.6 m
Tripod Mount Type	11x 1/4"-20 Female 9x 3/8"-16 Female
Size (Diagonal)	15" / 38.1 cm
Inputs/Outputs	1x SDI Input 1x HDMI Unspecified Version Input 1x VGA Input 1x Composite Input 1x Tally (RJ45) Input
Self Reversing	Yes
Monitor 2 Size (Diagonal)	15" / 38.1 cm
Inputs/Outputs (Monitor 2)	1x SDI Input 1x HDMI Unspecified Version Input 1x VGA Input 1x Tally (RJ45) Input

Reading Range	24.9' / 7.6 m
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mount Type	11x 1/4"-20 Female 9x 3/8"-16 Female

Size (Diagonal)	15" / 38.1 cm
Maximum Brightness	1000 nits / cd/m2
Native Resolution	1280 x 1024
Aspect Ratio	4:3
Viewing Angle (H x V)	160 x 170°
Inputs/Outputs	1x SDI Input 1x HDMI Unspecified Version Input 1x VGA Input 1x Composite Input 1x Tally (RJ45) Input
Self Reversing	Yes
Input Power	12 VDC at 4 A
Power I/O	1x Barrel Input
Power Consumption	28 W
Dimensions	12.1 x 14.3" / 30.7 x 36.3 cm
Weight	3.97 lb / 1.80 kg

Monitor 2 Size (Diagonal)	15" / 38.1 cm
Monitor 2 Maximum Brightness	1000 nits / cd/m2
Resolution	1920 x 1080
Aspect Ratio	16:9
Monitor 2 Viewing Angle (H x V)	178 x 178°
Inputs/Outputs (Monitor 2)	1x SDI Input 1x HDMI Unspecified Version Input 1x VGA Input 1x Tally (RJ45) Input
Monitor 2 Power I/O	1x Barrel Input
Power Consumption	26.5 W
Dimensions	15.7 x 10.6" / 39.9 x 26.9 cm
Weight	3.73 lb / 1.69 kg

Material of Construction	Aluminum, Carbon Fiber
Rod Length	15.7" / 400 mm
Height Adjustment	No
Weight	16 lb / 7.3 kg (Baseplate)
