Description
COAX Connectors 67-005-B66-FC-BULK Overview

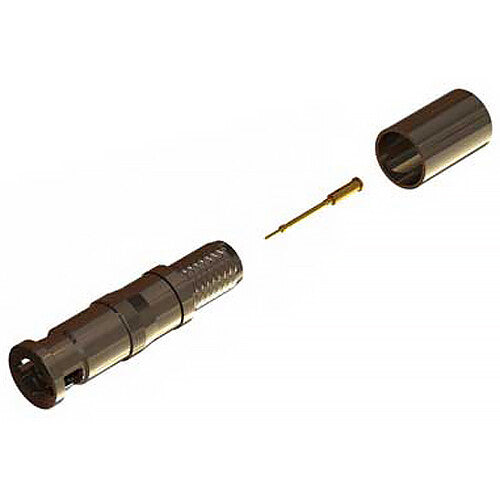

This 100-pack of 12G 75-Ohm Micro BNC Straight Crimp connectors from COAX Connectors features gold-plated center and nickel-plated outer contacts. Supporting 3G and 12G signals and tested to support signals up to 18 GHz signals, it is compatible with Belden 1694A/1694F, as well as similar cables in group FC. With a diameter of only 0.3", mounting density is increased by four times when compared with a standard BNC connector. This connector is used in Full HD1080p (3G), HD-SDI and are fit for Ultra-HD 4K (12G) applications.
- 70082NH
- Belcom EventSeries HD1000 LSZH FireFighter
- Belden 1694A
- Belden 1694F
- Belden 1695A
- Belden 4694ANH
- Belden 4694F
- Belden 4694P
- Belden 4694R
- Belden H124Co2
- Bryant BD SD10F
- Bryant BD SD11
- Canare L-5CFB
- Canare L-5CHD
- Canford SDV-F
- Canford SDV-L
- Canford SDV-L-LFH
- Canford SDV-L-RR
- Canford SDV-L-SR
- Canford SDV-L-X-LFH
- Canford SDV-XF
- Conducfil 13653
- Draka 1.0/4.8 AF
- Draka HD PRO 1.0/4.8 AF
- Draka HD PRO FLEX 1.0L/4.8 AF Dz
- Image 1000
- Percon VK7
- Percon VK70 ENH
- Percon VK77
- TACHII TCX-4CHD
- Center contact: beryllium copper
- Outer contact: brass
- Insulator: PTFE
- Bayonet cap: brass
- Gasket: silicone
- Center contact plating: gold
- Outer contact plating: nickel
- RoHS3 compliant: yes
- Center contact termination: crimp
- Outer contact termination: crimp
- Mating cycles: 500
- Contact retention: 10 N min
- Cable retention: 100 N min
- Mating force: 10 N max
- Un-coupling force: 10 N max
- Impedance: 75 ohms
- Frequency range: up to 12 GHz
- Dielectric withstand voltage: 1000 Veff
- Insulation resistance: 10000 Megohms
- Return loss: -25 dB @ 12 GHz
- COAX Connectors Micro-BNC Straight Crimp Plug for Belden 1694A/1694F (100-Pack)
No additional resources available
COAX Connectors 67-005-B66-FC-BULK Specs
| Interface |
Not Specified by Manufacturer
|
| Connector 1 |
1x Micro-BNC Male
|
| Connector 2 |
x Bare End
|
| Materials |
Connector/Contact: Gold-Plated Brass
|
| Color |
Silver
|
| Certifications |
RoHS 3
|
| Package Weight |
1.365 lb
|
| Box Dimensions (LxWxH) |
7.9 x 4.8 x 1.9"
|
