Description
Cartoni Focus 22 Cine Tripod System Overview

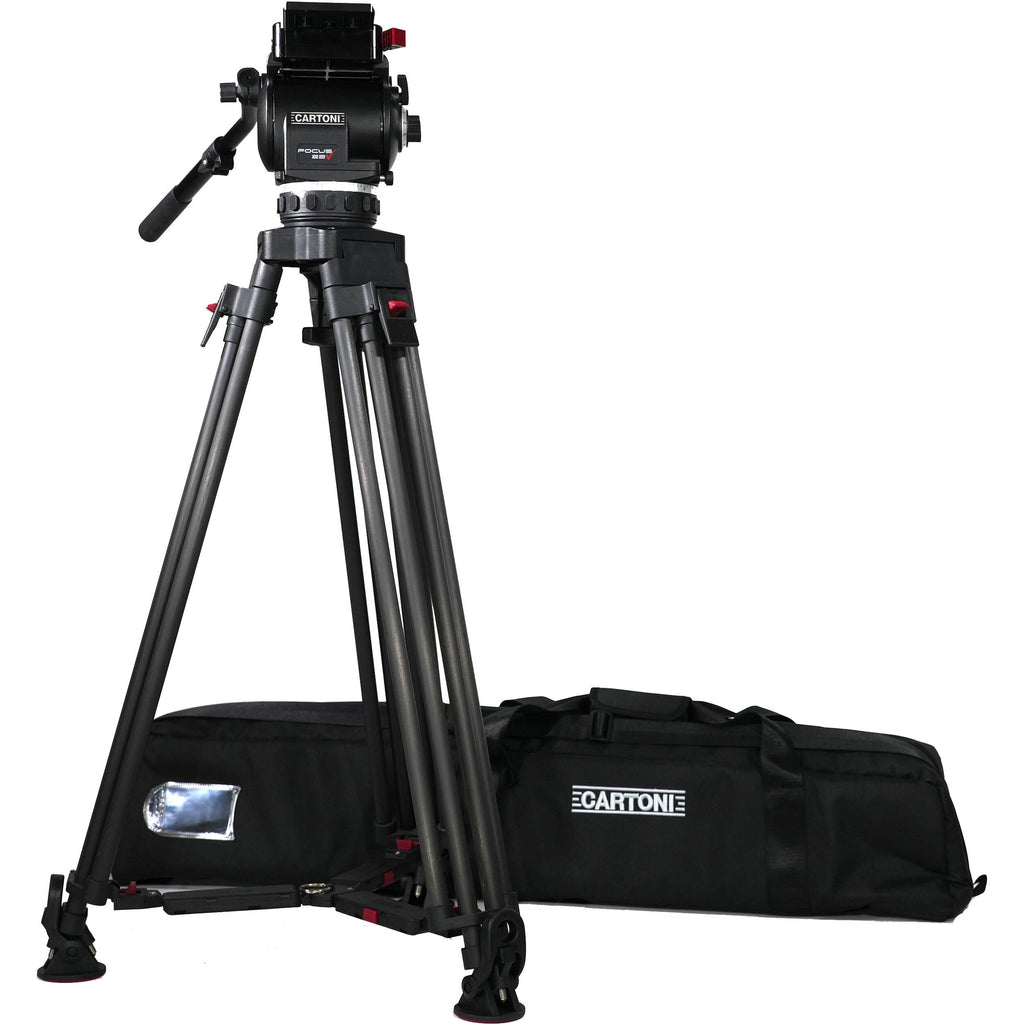

Add a sturdy but lightweight tripod system to your kit with the Focus 22 Cine Fluid Head with 1-Stage Carbon Fiber Tripod, Mid-Level Spreader, Pan Bar & Bag Kit from Cartoni. The kit includes a Focus 22 fluid head, a side-loading quick release plate, a pan bar, a pan bar extender, an H603 1-stage carbon fiber tripod, a mid-level spreader, a rubber foot set, and a soft case to carry the entire kit.
The Focus 22 fluid head provides perfect balance along its 100mm half-ball head, +/-90° tilt range, 360° panning range, and features continuous drag control adjustment, and it supports loads up to 48.5 lb. The H601 carbon fiber legs weigh only 8.8 lb on their own and feature a single stage that extends from 35 to 65" in height, and they fold down to just 28" long for transport. The spiked feet can be converted for indoor use with the rubber feet.

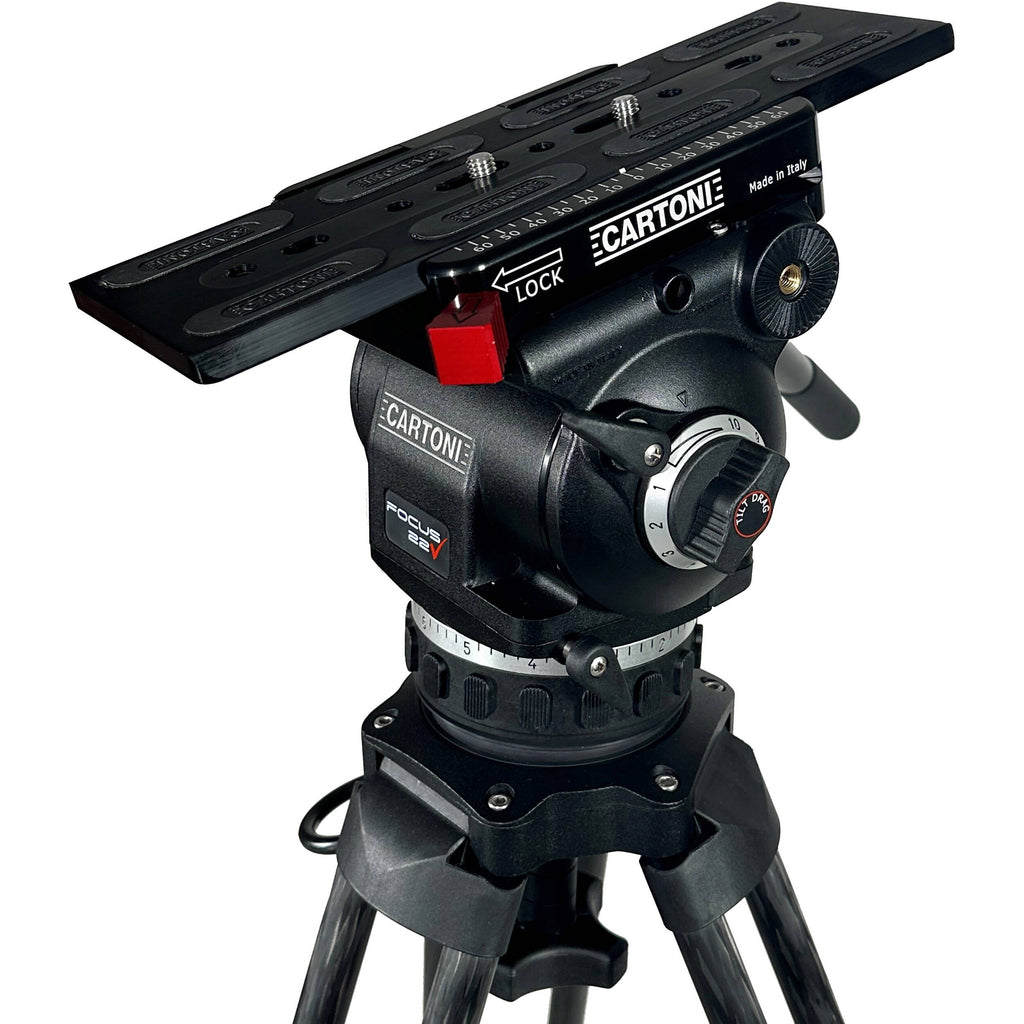

Add a sturdy fluid head to your kit with the Focus 22 Cine Fluid Head from Cartoni. The Focus 22 fluid head provides smooth balance along its 100mm half ball head, +/-90° tilt range, and 360° panning range. It features continuous drag control adjustment and supports loads from 6.6 lb up to 48.5 lb. Its cine-style camera plate mounts into the head via a side-load locking system.
The 100mm half ball head is compatible with Cartoni 100mm tripods. Its illuminated bubble level and easy-to-read counterbalance markings make it simple to use in any lighting conditions.
- 100mm half ball base
- Supports loads between 6.6 to 48.5 lb
- Perfect balance along the entire +/-90° tilt range
- Cine-style side-load plate system
- Continuous counterbalance and drag
- Illuminated bubble level
- Includes a pan bar attachable on either side
Suitable for fast moving ENG and EFP applications, the lightweight telescopic mid-level spreader adds only 1.0 lbs to your tripod and allows a very quick set-up. Its quick release attachment requires only a few seconds for being installed. Fits the L502 and L504 2-stage tripods.
These Cartoni Hooking Rubber Tripod Feet (Set of 3) can be pulled onto most Cartoni tripod models (except for Ultra-Light models) to provide non-slip contact with smooth surfaces. Each foot features a rubber strap (the "hook") that secures it in place on a corresponding nub on the tripod leg.
Increase the radius of the pan rotation of your Cartoni fluid head with this large Multi-Thread Rosette Extender from Cartoni. The compact and handy device allows you to extend the pan bar position on select Cartoni heads, including the Focus 18 and 22, the Master 25 and 30, and the Lambda 25. The versatile duralumin extender boasts two 1/4"-20 and two 3/8"-16 screw threads for mounting accessories while enhancing maneuverability and providing you with smooth and precise camera control.
The Cartoni C928-2 Soft Bag is designed to accommodate a Cartoni two-stage video tripod with a 75mm or 100mm bowl and a compatible video head. Alternatively, it can be used to store or transport a tripod and head combination with a length, width, and depth measuring less than 37 x 7.5 x 7.5" when collapsed and placed on its side.
A durable, nylon construction and padded design protects this video tripod bag's contents which are accessible using a zippered closure. To ensure that the Cartoni C928-2 Soft Bag can always be shouldered, its features a built-in strap. Dual handles which can be joined using an integrated handle wrap allow this video tripod bag to be comfortably hand carried, while a side accessory pocket with a zippered closure provides additional storage space. For the display of a contents label or owner information, a see-through identification pocket is also included on this video tripod bag's exterior.
In the Box
- Cartoni Focus 22 Cine Fluid Head (100mm Half Ball)
- Cine-Style Side-Load Plate
- Tie-Down Cup
- Cartoni Telescopic Handle for Focus 18, Focus 22, Laser, Gamma, Delta, C20S, Spinhead, and e-Sensor Fluid Heads
- Limited 5-Year Manufacturer Warranty
- Cartoni H603 Carbon Fiber 1-Stage HD Tripod Legs (100mm Bowl)
- Cartoni P732 Mid-Level Spreader
- Limited 1-Year Manufacturer Warranty
- Cartoni Hooking Rubber Tripod Feet (Set of 3)
- Cartoni Multi-Thread Rosette Extender (Large)
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year - Cartoni C928-2 Soft Bag for Two-Stage Cartoni Video Tripod with 75mm or 100mm Bowl
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Cartoni Focus 22 Cine Tripod SystemSpecs
| Camera Mounting |
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Sideload Quick Release Plate: Euro Plate)
|
| Head Type |
Fluid Head
|
| Drag Control |
Yes
|
| Load Capacity |
48.5 lb / 22 kg
|
| Weight |
8.6 lb / 3.9 kg
|
| Camera Mounting |
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Sideload Quick Release Plate: Euro Plate)
|
| Head Type |
Fluid Head
|
| Base Mount |
100 mm Half Ball
|
| Counter Balance |
Continuous
|
| Drag Control |
Yes
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Vertical Tilt |
+90° to -90°
|
| Lateral Tilt |
No
|
| Load Capacity |
48.5 lb / 22 kg
|
| Accessory Mounting |
No
|
| Bubble Level |
Yes (Illuminated)
|
| Weight |
8.6 lb / 3.9 kg
|
Cartoni Focus 22 Cine Tripod SystemSpecs
| Package Weight |
0.91 lb
|
| Box Dimensions (LxWxH) |
11.4 x 3.95 x 3.4"
|
Cartoni Focus 22 Cine Tripod SystemSpecs
| Mounting |
2x 1/4"-20 Thread
2x 3/8"-16 Thread |
| Color |
Black
|
| Material of Construction |
Duralumin
|
| Dimensions |
1.77 x 1.18" / 44.96 x 29.97 mm (Length x Diameter)
|
| Weight |
Not Specified by Manufacturer
|
Cartoni Focus 22 Cine Tripod SystemSpecs
| Color |
Black
|
| Interior Type |
Empty
|
| Dimensions |
Exterior
44 x 8" / 111.8 x 20.3 cm |
| Weight |
2.4 lb / 1.1 kg
|
| Camera Compatibility |
Universal
|
| Interior Type |
Empty
|
| Bottle Pocket |
No
|
| RFID-Blocking Pockets |
No
|
| Stand/Tripod Holder |
Yes
|
| Security Lock |
No
|
| Padded Interior |
Yes
|
| Materials |
Exterior: Nylon
|
| Dimensions |
Exterior
44 x 8" / 111.8 x 20.3 cm |
| Weight |
2.4 lb / 1.1 kg
|
| Package Weight |
2.6 lb
|
| Box Dimensions (LxWxH) |
38 x 14.5 x 2.5"
|
