Description

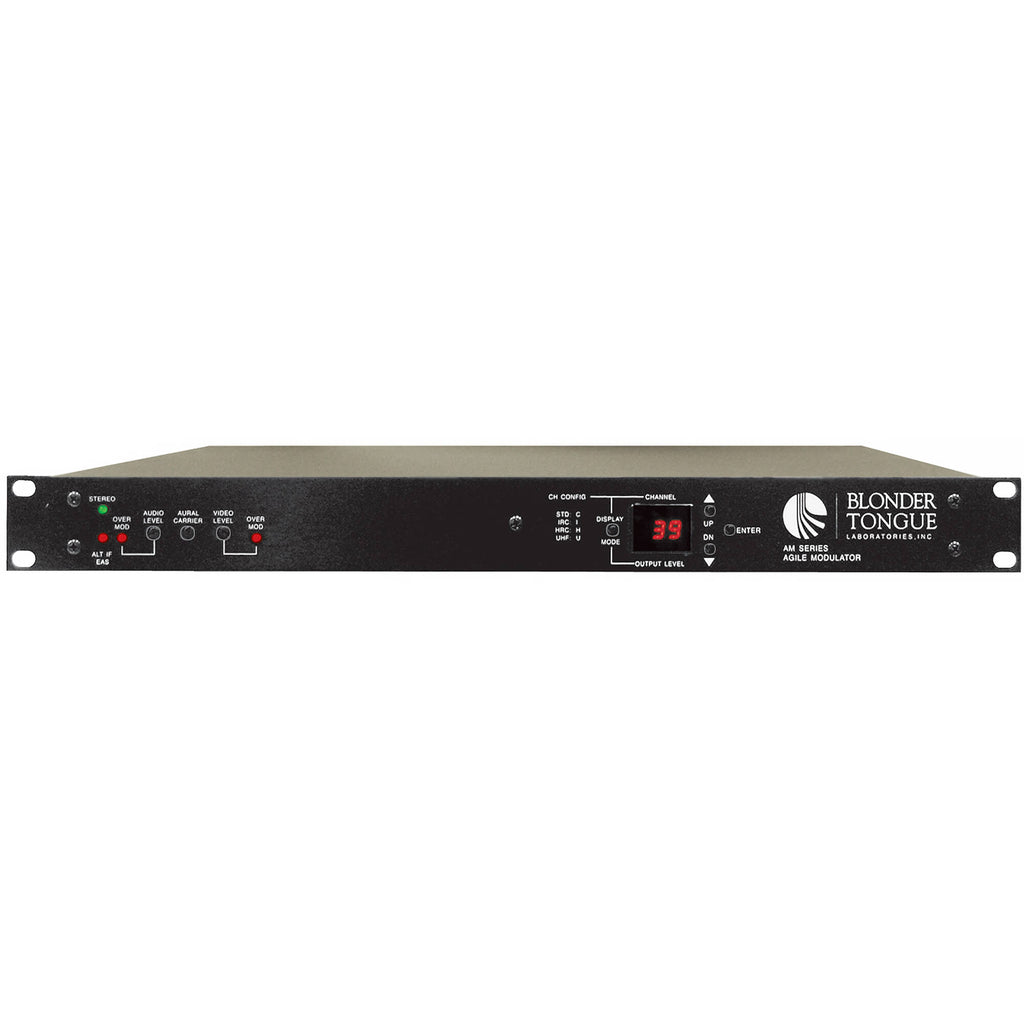

Blonder Tongue AM-60-860 WITH OPTIONS 2 AND 5 Overview
The AM-60-860 Agile Audio/Video Modulator with BNC, EAS, Stereo Audio from Blonder Tongue is an RF modulation system for analog CATV and security camera applications. It supports an output frequency range of 54 to 860. In addition, it features Emergency Alert System (EAS) and Secondary Audio Programming (SAP).
This model includes the option 2, 75-ohm BNC input connector and the option 5 stereo audio terminal strip.
Additional Details
- Subchannel capability for remote origination applications
- NTSC channels 2-135 (54-860 MHz)
- Emergency Alert System (EAS) support
- 75-ohm BNC video input connector
- Stereo audio terminal strip
- Suitable for school security camera applications
Items Included
- Blonder Tongue AM-60-860 Agile Audio/Video Modulator with BNC, EAS, Stereo Audio
- Power Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Blonder Tongue AM-60-860 WITH OPTIONS 2 AND 5 Specs
Inputs/Outputs
| Video I/O |
1x BNC Input
|
| Audio I/O |
1x Screw Terminal Input
|
| Other I/O |
1 x BNC Female Input
Impedance: 75 Ohms Return Loss: 18 dB Return Loss Video Input Level: 0.7 V Peak-to-Peak - 87.5% Depth of Modulation Video-to-RMS Hum Ratio: 65 dB Peak-to-Peak Signal-to-Noise Ratio: 58 dB - Weighted at 4 MHz Bandwidth Differential Gain: 2% Differential Phase: 1? Overmodulation Indicator: 87 to 92% Stereo Audio 1 x Terminal Strip Impedance: 600 Ohms, Balanced Level: 0.5 to 0.4 V Peak-to-Peak Frequency Range: 50 Hz to 15 kHz Frequency Response: ? 0.5 dB Total Harmonic Distortion: 1% at 25 kHz Deviation Signal-to-Noise Ratio: 59 dB Overmodulation Threshold: 25 ? 2 kHz Peak Deviation |
Power
| Power Source |
Plug-In Power
|
| AC Input Power |
Changing Voltage Requires Fuse Replacement
117 VAC, 60 Hz |
| Power Consumption |
28 W
|
Physical
| Color |
Black
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 0 to 95% Humidity
|
| Storage Conditions |
-13 to 158?F / -25 to 70?C at 0 to 95% Humidity
|
| Dimensions |
19 x 14.3 x 1.7" / 483 x 362 x 44 mm
|
| Weight |
7.01 lb / 3.18 kg
|
