Description
AIDA Imaging HD-NDI3-IP67 Overview
This
FHD 120fps NDI|HX3 Weatherproof POV Camera from

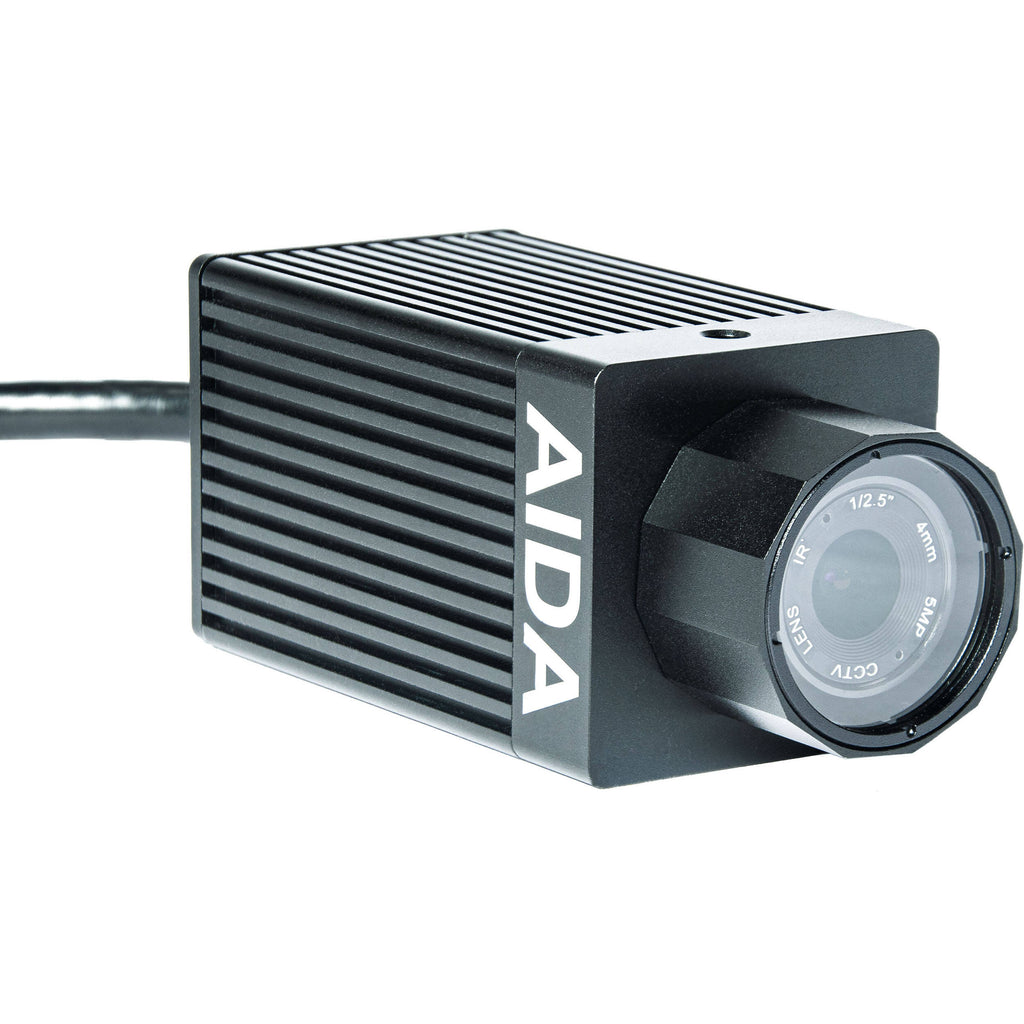

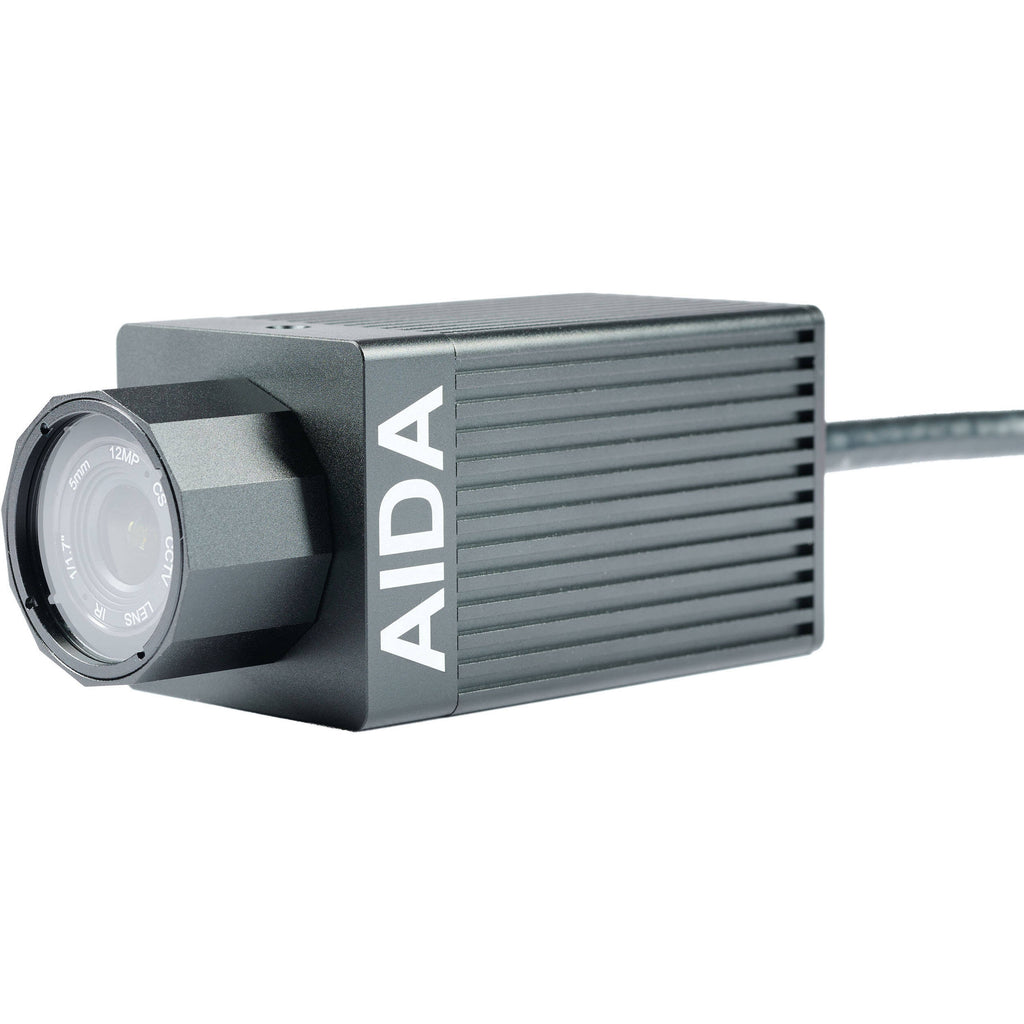

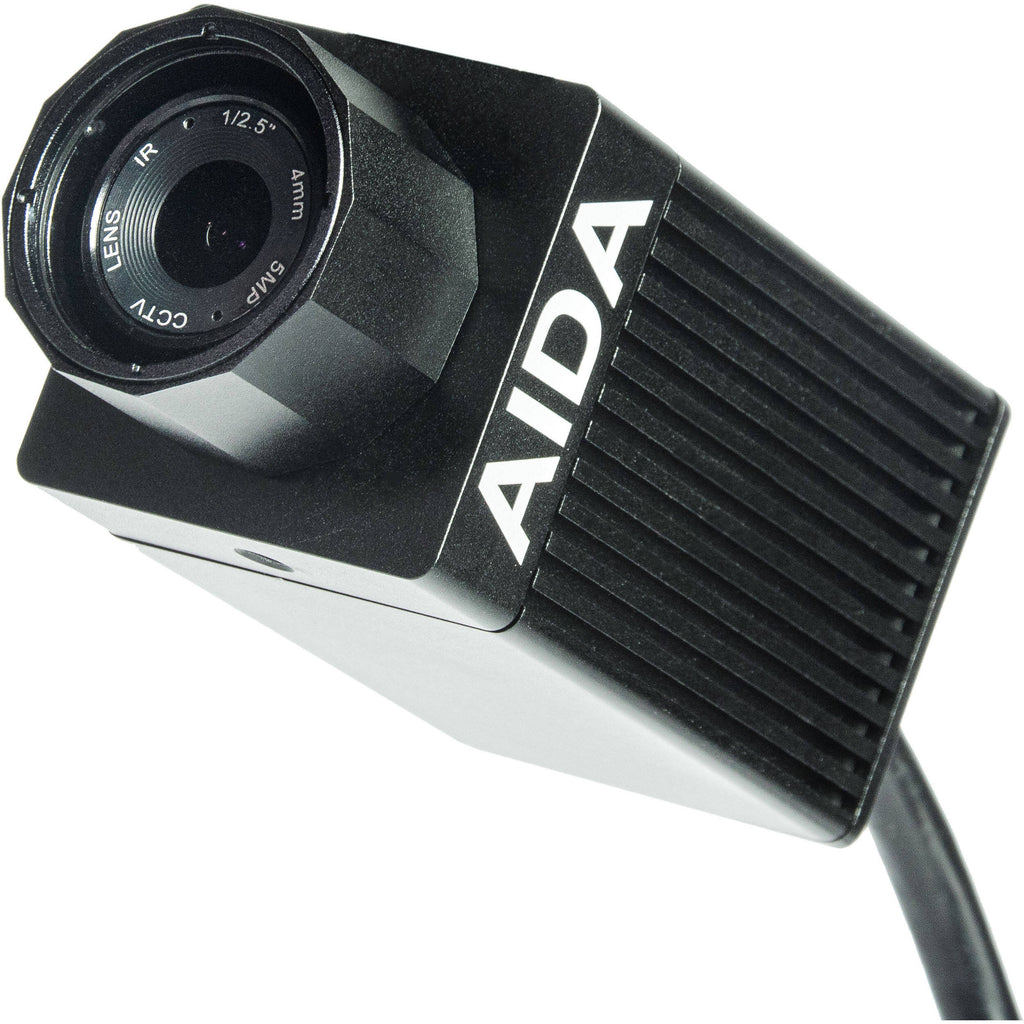

AIDA Imaging provides an industry leading 1080p120 video over HDMI or IP output thanks to its native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 4mm CS-mount lens and is housed in an IP67 rated weather resistant case.
AIDA Imaging offers this innovative POV camera capable of capturing full HD images at a stunning 120 frames per second with an 86° horizontal field of view. Pairing this high speed functionality with NDI|HX3 IP streaming compatibility, the HD-NDI3-IP67 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable. Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately).

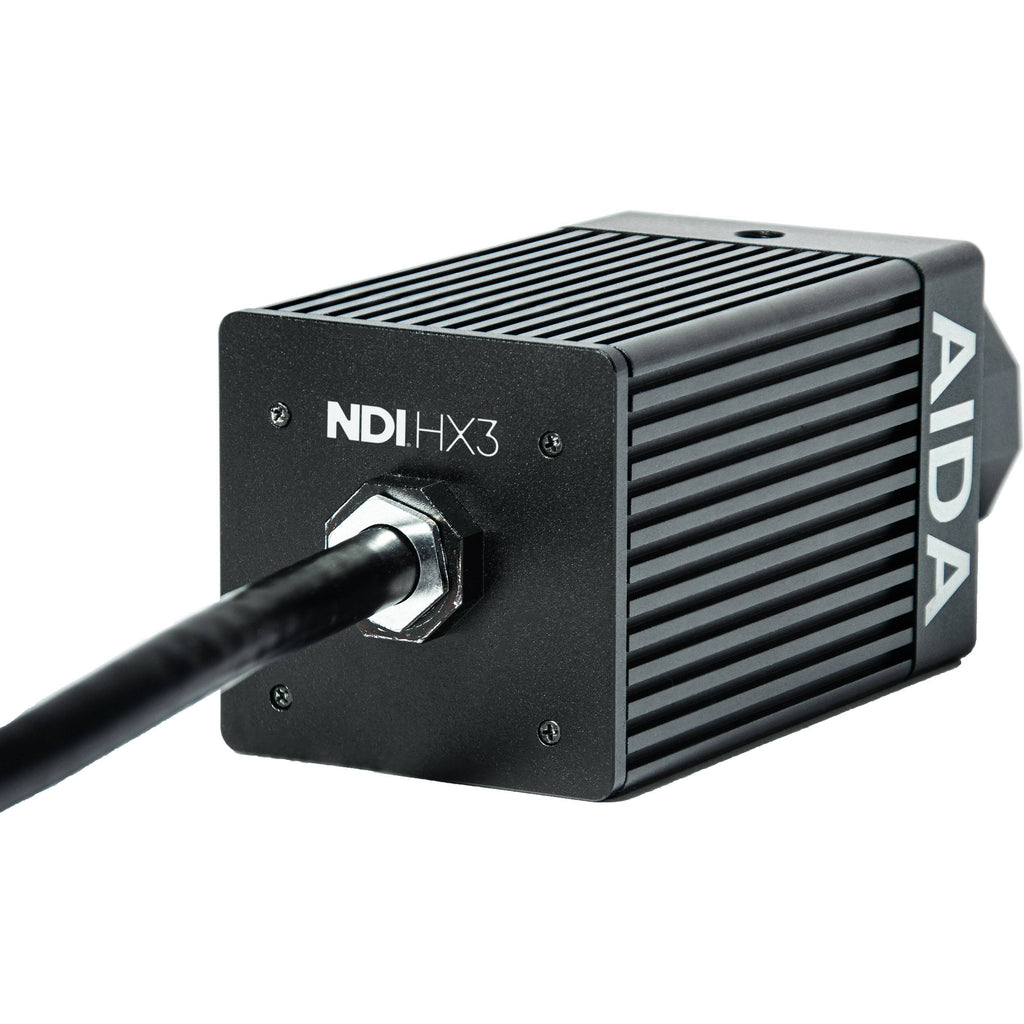

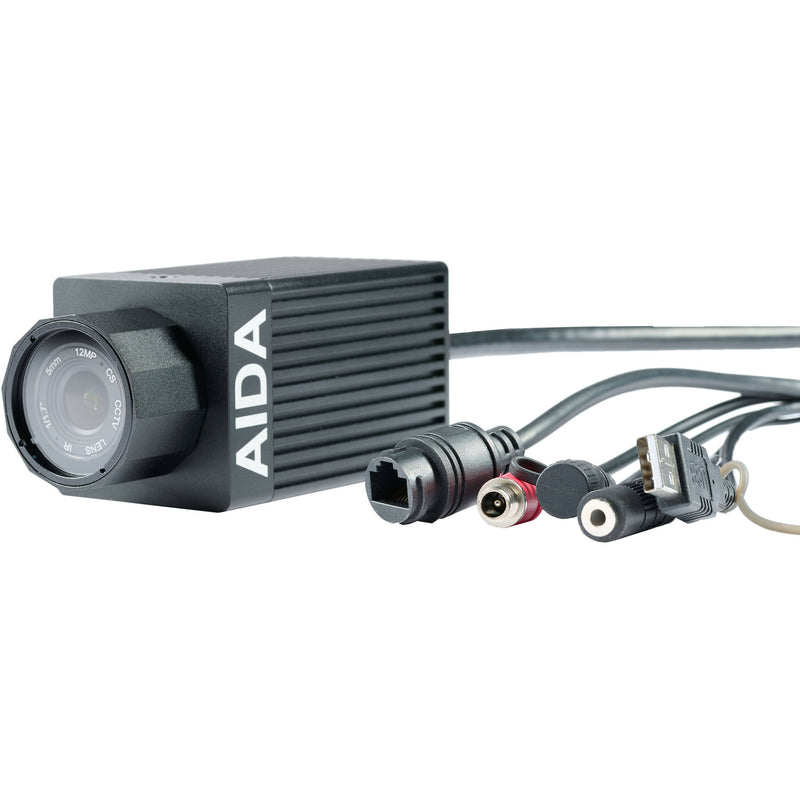

The HD-NDI3-IP67 is housed in a compact and rugged weatherproof case suitable for a wide variety of applications both indoors and outdoors. The IP67 rated body has no integrated interface, opting instead to use a 10' weatherproof breakout cable. The breakout carries the RJ45 port for IP connection, 12 VDC input port, SVC USB cable, and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment. Select CS-mount lenses can be safely swapped in thanks to the rubber-sealed lens cover. 1/4"-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live.
In the Box
- AIDA Imaging FHD 120fps NDI|HX3 Weatherproof POV Camera
- 4mm 5MP Lens
- Limited 2-Year Manufacturer Warranty
AIDA Imaging HD-NDI3-IP67 Specs
General
| Compatibility |
Newtek NDI|HX
|
| Image Sensor |
1/3" Progressive CMOS
|
| Effective Pixels (H x V) |
1920 x 1080
|
| Resolutions |
NDI|HX: 1080p120/100
NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50 |
| Lens |
5MP 4mm CS-Mount
|
| Field of View |
86°
|
| Color Spaces |
4:2:2 (YCbCr) 10bit
|
| Minimum Illumination |
Day: 0.2 Lux
Night: 0.1 Lux |
Inputs / Outputs
| USB I/O |
1 x USB-A Integrated Male Input/Output
|
| Video I/O |
1x RJ45 Output
|
| Audio I/O |
1x 1/8" / 3.5 mm Line Input
|
| Control Protocol |
VISCA over IP
|
Power
| Power Source |
AC Adapter with Power Brick (Included), PoE
|
| DC Input Power |
12 VDC
|
Environmental
| Environmental Protection |
Advertised as Weather Resistant with Included Housing
*Manufacturer Testing: IP67 |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
Physical
| Mounting |
Top: 1 x 1/4"-20 Thread
Bottom: 1 x 1/4"-20 Thread |
| Color |
Black
|
| Cable Length |
10' / 3 m
|
| Dimensions |
4.72 x 2.09 x 2.09" / 11.99 x 5.31 x 5.31 cm
|
| Weight |
1.8 lb / 800 g
|
Packaging Info
| Package Weight |
2.935 lb
|
| Box Dimensions (LxWxH) |
12.5 x 5.1 x 5"
|
