| ₹ 136757.07 includes GST and import duties. | |
| B2B customers can avail ₹ 20855.45 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

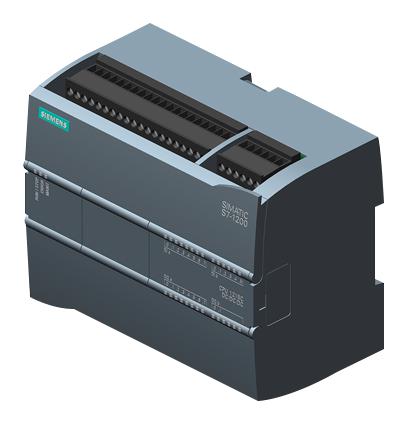

6ES7215-1AG40-0XB0 is a SIMATIC S7-1200 compact CPU. It is approved by UL and cULus.
- STEP 7 V18 or higher programming package
- Rated value is 24VDC, current consumption (rated value) is 500mA (CPU only)
- 1500mA max current consumption (CPU with all expansion modules)
- 12W typ power loss, 200kbyte integrated work memory
- 4Mbyte integrated load memory, ±60s/month at 25°C max deviation per day
- Switching frequency is 100KHz max (of the pulse outputs, with resistive load)
- 100Mbit/s max transmission rate, IP20 rating
- 130mm width, 100mm height, 75mm depth
- Ambient temperature range from -20°C to 60°C
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7215-1AG40-0XB0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 134021.93 |
| 3-5 | ₹ 132654.36 |
| 5-10 | ₹ 129919.22 |
| 10+ | ₹ 127184.08 |
Bulk discount will be automatically applied during checkout based on quantity.
