Description
Product Overview

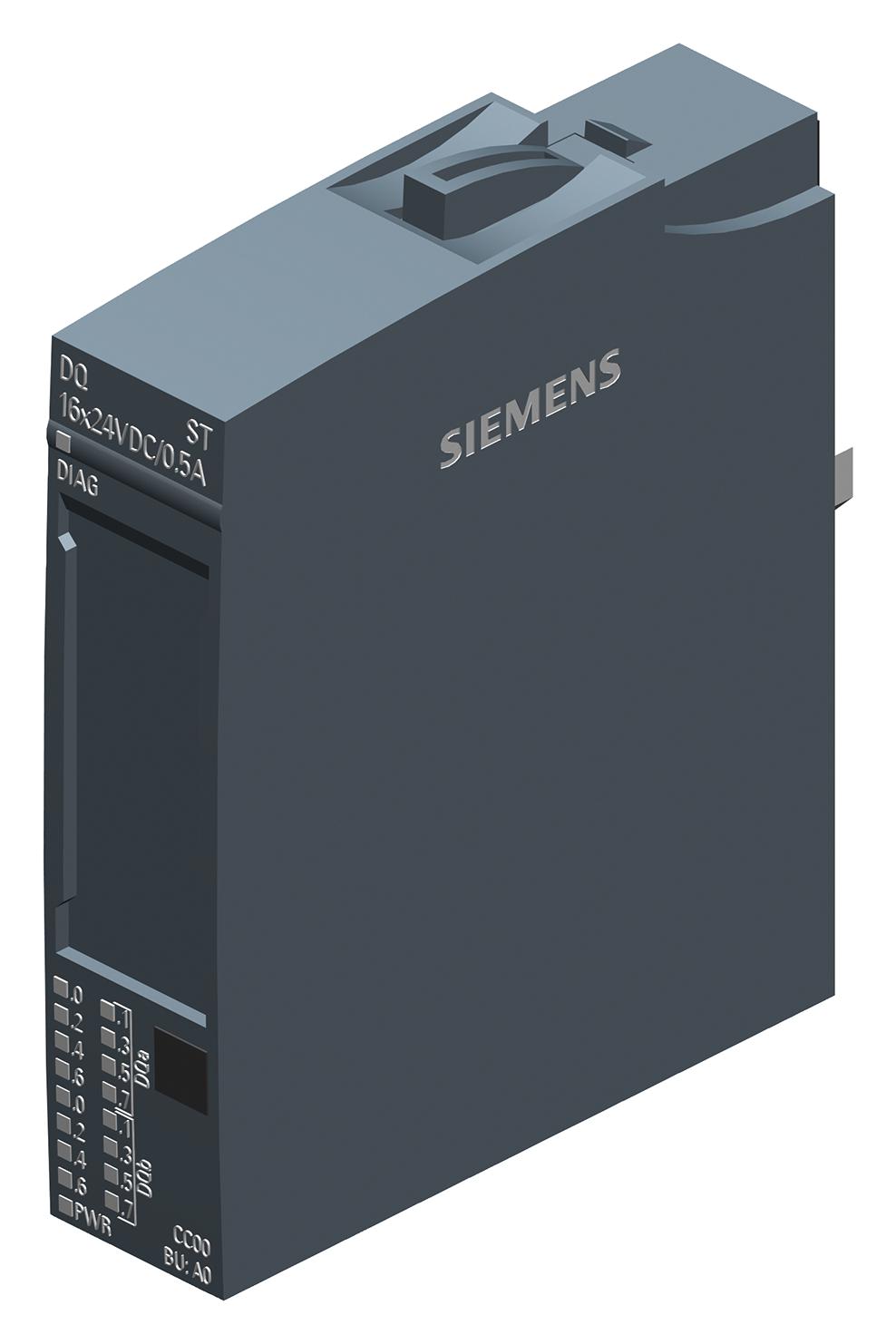

6ES7132-6BH01-0BA0 is a SIMATIC ET 200SP series, 16 outputs digital output module.
- 24VDC supply voltage, reverse polarity protection
- 19.2VDC permissible range, lower limit, 28.8VDC permissible range, upper limit
- 60mA max without load current consumption
- 16 number of digital outputs, short-circuit protection
- Isolation tested with 707VDC (type test), 100Hz max switching frequency with resistive load
- 1W typ power loss, 48 ohm lower limit load resistance
- 0.5A max switching capacity of the outputs with resistive load
- Dimension is 15 x 73 x 58mm (W x H x D)
- Ambient temperature during operation from -30 to 60°C (horizontal installation)
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7132-6BH01-0BA0. |
| Quantity | Each |
| Technical Data Sheet EN |  |
