Description
Product Overview

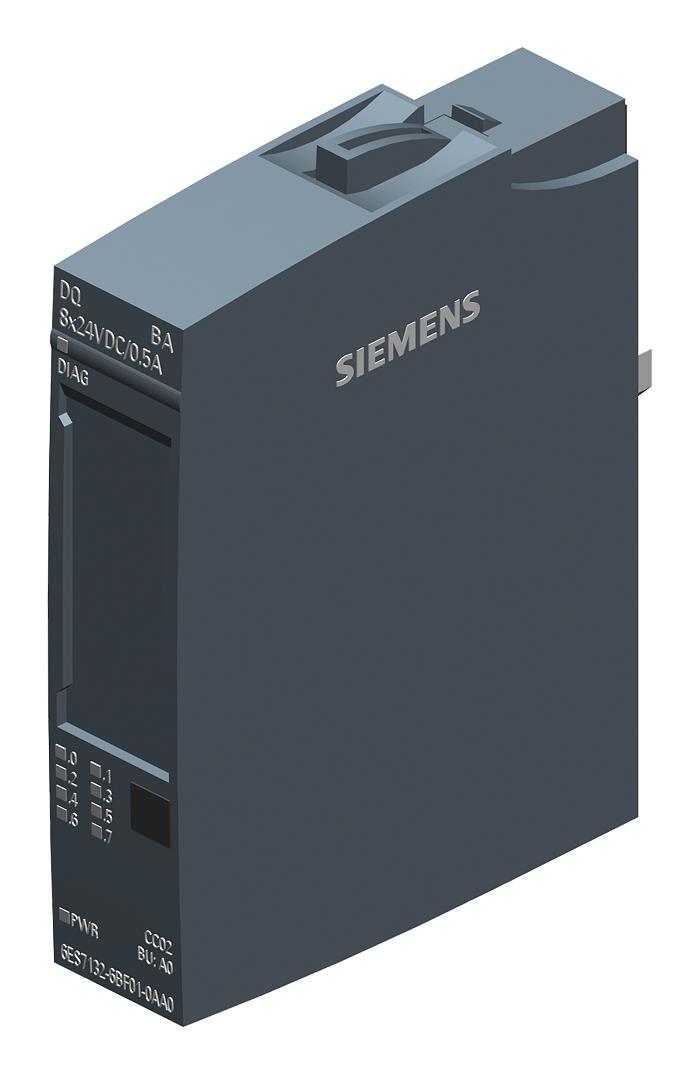

6ES7132-6BF01-0AA0 is a SIMATIC ET 200SP, 8 outputs, digital output module.
- 24VDC supply voltage, reverse polarity protection
- 19.2VDC permissible range, lower limit, 28.8VDC permissible range, upper limit
- 45mA max without load current consumption, 1-byte max address space per module
- 8 number of digital outputs, short-circuit protection
- Isolation tested with 707VDC (type test), 100Hz max switching frequency with resistive load
- 1W typ power loss, 48 ohm lower limit load resistance
- 0.5A max switching capacity of the outputs with resistive load
- Dimension is 15 x 73 x 58mm (W x H x D)
- Ambient temperature during operation from -30 to 60°C (horizontal installation)
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7132-6BF01-0AA0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11454.79 |
| 3-5 | ₹ 11337.9 |
| 5-10 | ₹ 11104.13 |
| 10+ | ₹ 10870.36 |
Bulk discount will be automatically applied during checkout based on quantity.
