Description
Product Overview

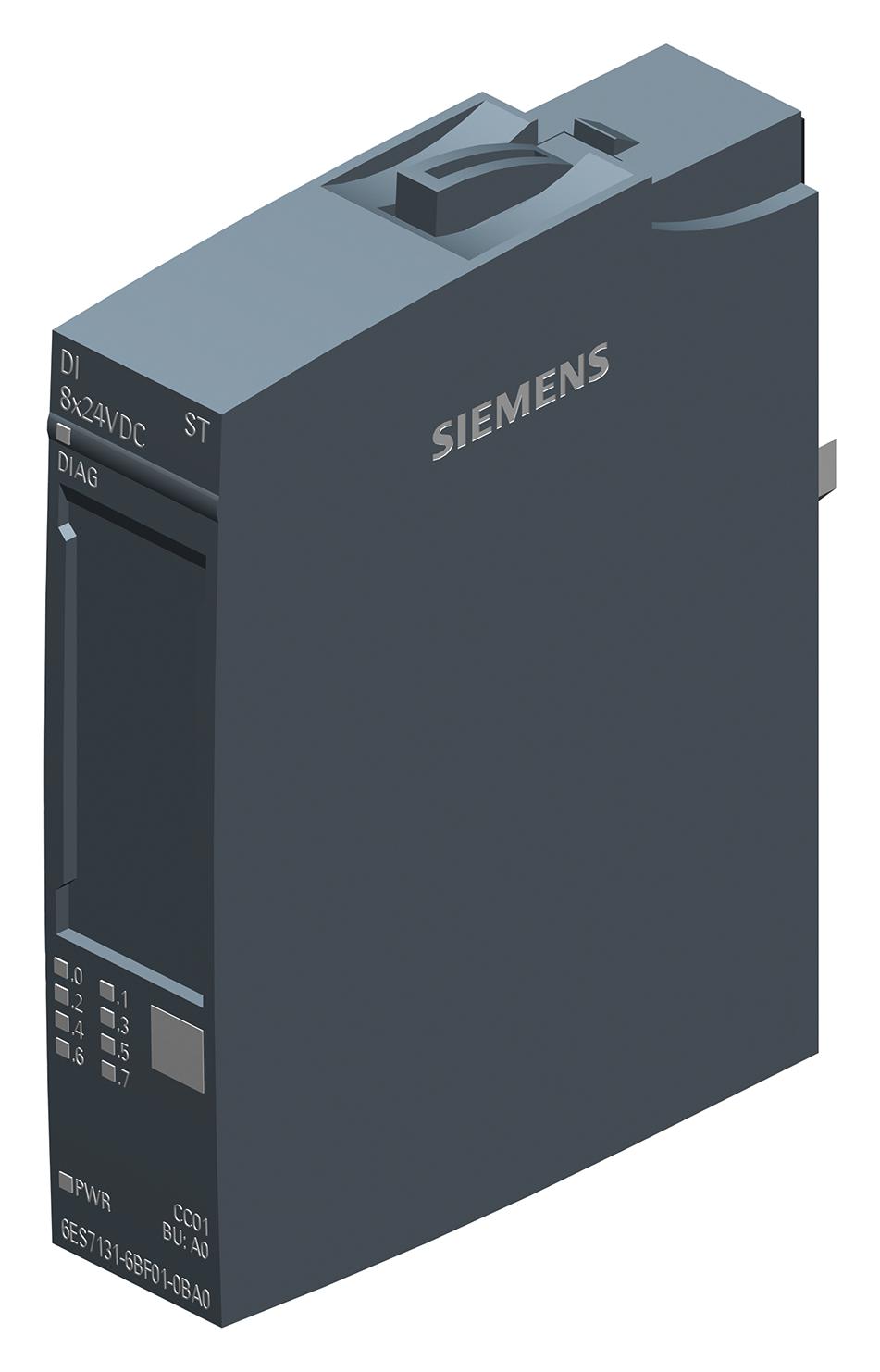

6ES7131-6BF01-0BA0 is a SIMATIC ET 200SP, 8 input, digital input module.
- 24VDC supply voltage, reverse polarity protection
- 19.2VDC permissible range, lower limit, 28.8VDC permissible range, upper limit
- 50mA max current consumption (all channels are supplied from the encoder supply)
- 8 number of outputs, 19.2V min output voltage, short-circuit protection
- 2.5mA typ input current for signal "1", isolation tested with 707VDC (type test)
- 1W typ power loss at (24V, 8 inputs supplied via encoder supply)
- 1000m max shielded, 600m max unshielded (cable length)
- Dimension is 15 x 73 x 58mm (W x H x D)
- Ambient temperature during operation from -30 to 60°C
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7131-6BF01-0BA0. |
| Quantity | Each |
| Technical Data Sheet EN |  |
