Description
Product Overview

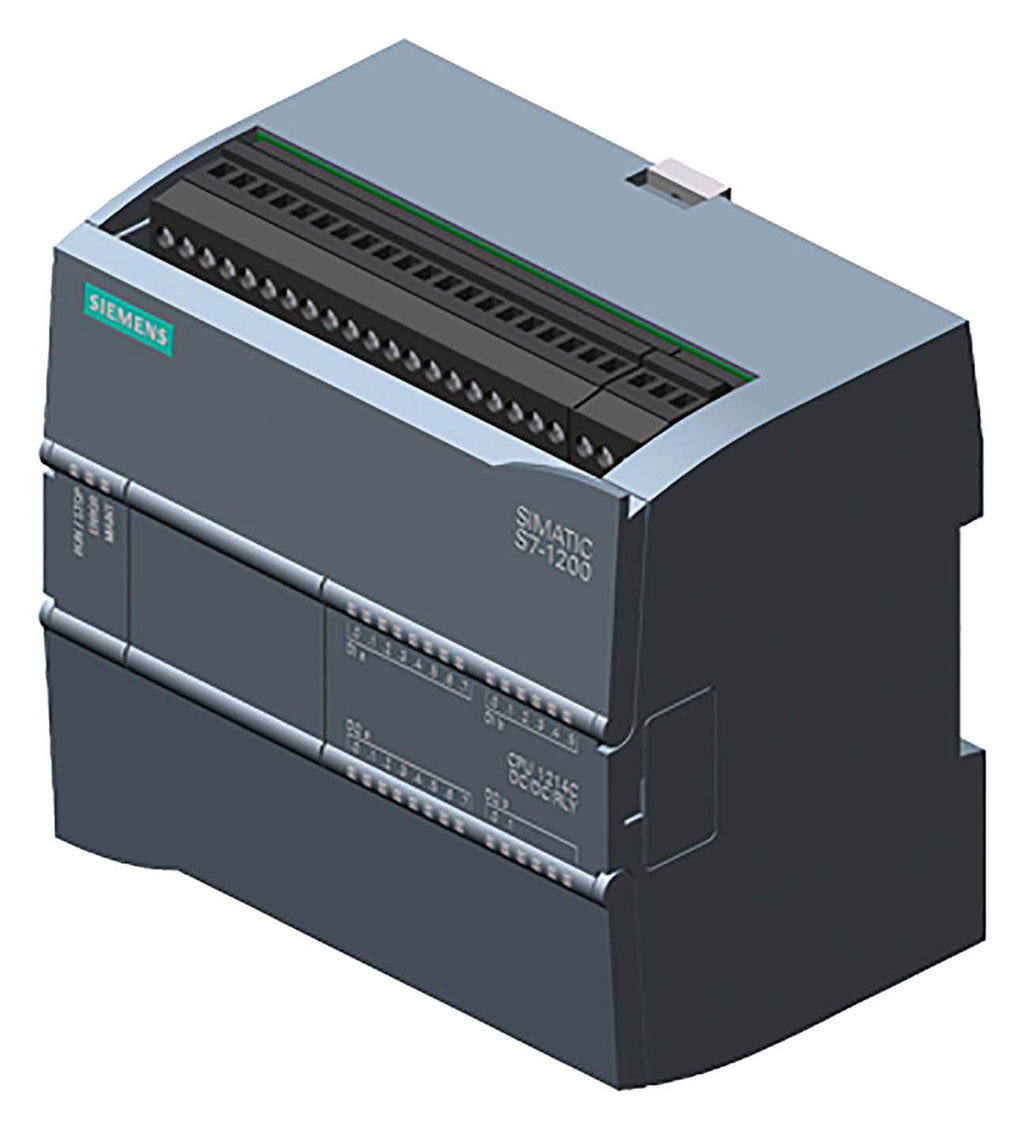

6ES7 214-1HG40-0XB0 is a SIMATIC S7-1200 CPU 1214C.
- 24VDC supply voltage, reverse polarity protection
- 20.4VDC permissible range, lower limit, 28.8VDC permissible range, upper limit
- 500mA current consumption, 12A at 28.8V max input current
- 12W typ power loss, 150Kbyte integrated work memory
- 4Mbyte integrated load memory, 500m max shielded cable
- 0.08µs/instruction typ CPU processing times for bit operations
- IP20 degree of protection, 2 number of analogue inputs
- ?100Kohms input resistance, 10bit max resolution with over range (bit including sign)
- Dimension is 110 x 100 x 75mm (W x H x D)
- Ambient temperature during operation from -20°C to 60°C
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7 214-1HG40-0XB0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 80636.57 |
| 3-5 | ₹ 79813.74 |
| 5-10 | ₹ 78168.1 |
| 10+ | ₹ 76522.46 |
Bulk discount will be automatically applied during checkout based on quantity.
