SIEMENS 6EP1961-2BA00 DIAGNOSIS MODULE, SITOP SELECT

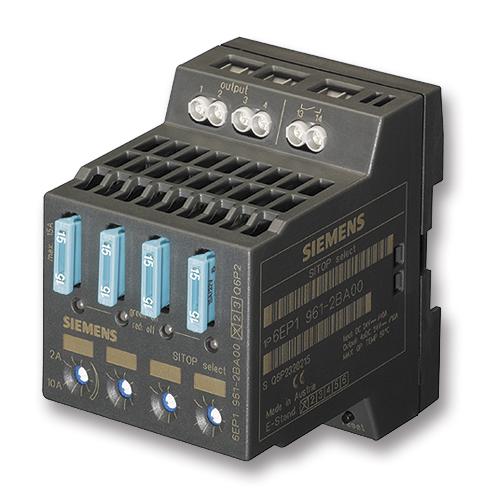

The 6EP1961-2BA00 is a SITOP select Electronic Diagnostic Module. It must be installed taking into account all relevant DIN/VDE specifications and other national standards. SITOP select allows the 24VDC output voltage generated by a stabilized power supply to be split between several load circuits and the current monitored separately for each load circuit. The rated current of each load circuit can be set with a potentiometer of 10A. The diagnostic module is equipped with one externally accessible FK2 blade-type fuse (2) per channel, the purpose of which is to protect the line. The module is delivered with 15 A FK2 blade-type fuses for connecting line cross-sections larger than 2.5 mm². If smaller line cross-sections need to be connected, the fuse concerned must be replaced by one with a lower rated current. The user is responsible for ensuring that the line cross-sections at the outputs of the diagnostic module are suitable for the fuses that are fitted.

• Built-in Electronic Diagnostic Module
• Equipped with One Externally Accessible FK2 Blade-type Fuse (2) Per Channel
• Stabilized Power Supply to be Split Between Several Load Circuits
• Overcurrent Disconnection can be Reset by Pressing the RESET Button

Applications

Automation & Process Control, Industrial

Warnings

ESD sensitive device, take proper precaution while handling the device, device is only suitable for operation with 24VDC voltage.
