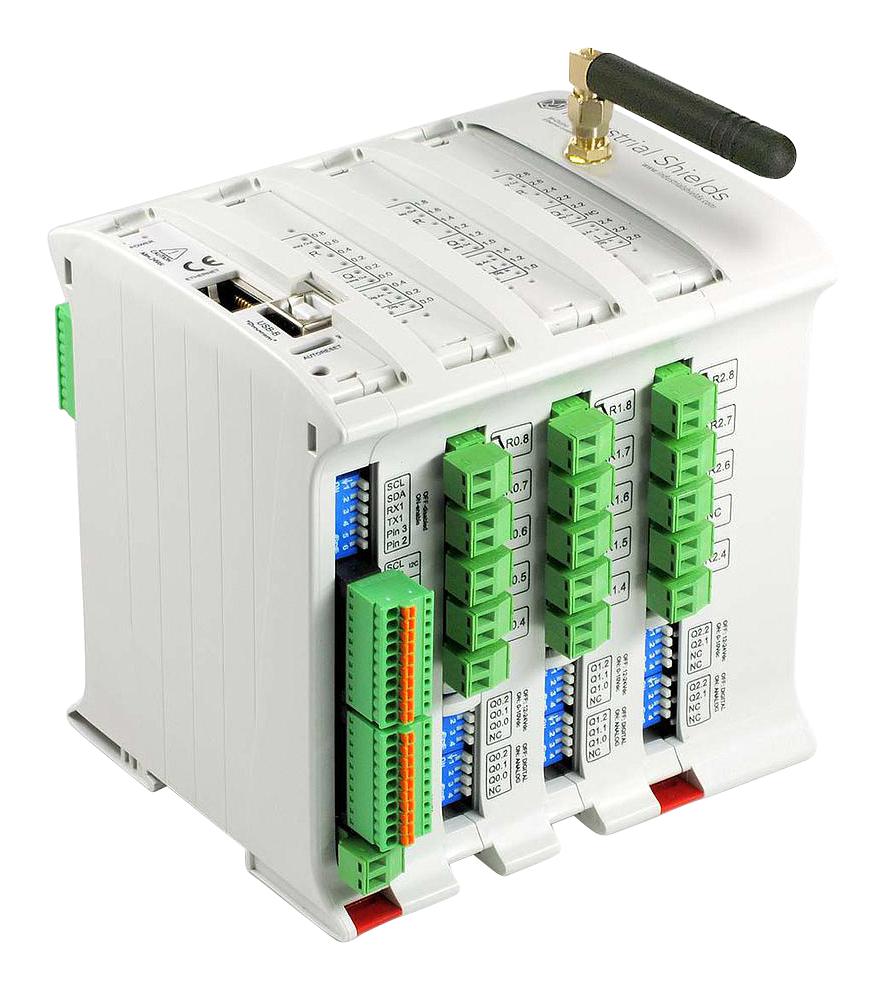

- M-DUINO PLC Arduino 54ARA I/Os analogue/digital/relay plus module
- 21 inputs, 28 outputs, DIN rail mounting
- RTC, Ethernet, USB, full/half duplex RS485, RS232, I2C, Modbus interface
- GPRS/GSM, serial TTL, SPI, µSD socket
- Arduino Mega original board (ATmega 2560) single board computer (SBC) microcontroller
- Maximum consumption of 1.5A, power supply voltage range from 12 to 24VDC
- First equipment based on the Arduino technology designed for a professional use
- Compatible with the Ardbox , M-duino and the Touchberry Pi with an instantaneous connection
- PLC can be programmed using the Arduino IDE platform
Product details
| No. of Inputs |
21Inputs |
| No. of Outputs |
28Outputs |
| Supply Voltage |
24VDC |
| Product Range |
- |
Other details
| Brand |
INDUSTRIAL SHIELDS |
| Part Number |
006001001100 |
| Quantity |
Each |
| Operating Instructions EN |
 |
